Add Device - Firewall Analyzer
Add firewalls and routers manually to Firewall Analyzer
In Firewall Analyzer, you can add a firewall or a router device manually. To fetch the firewall rules/policies and generate Rule management and Standards reports, click the 'I want Rule Management & Compliance report' link and provide device credentials. The device added will not forward Syslogs, you have to configure it separately.
Note: Only Rule Management reports are supported for Router devices.
You can add device manually from Settings > Discovery > Add Firewall page.

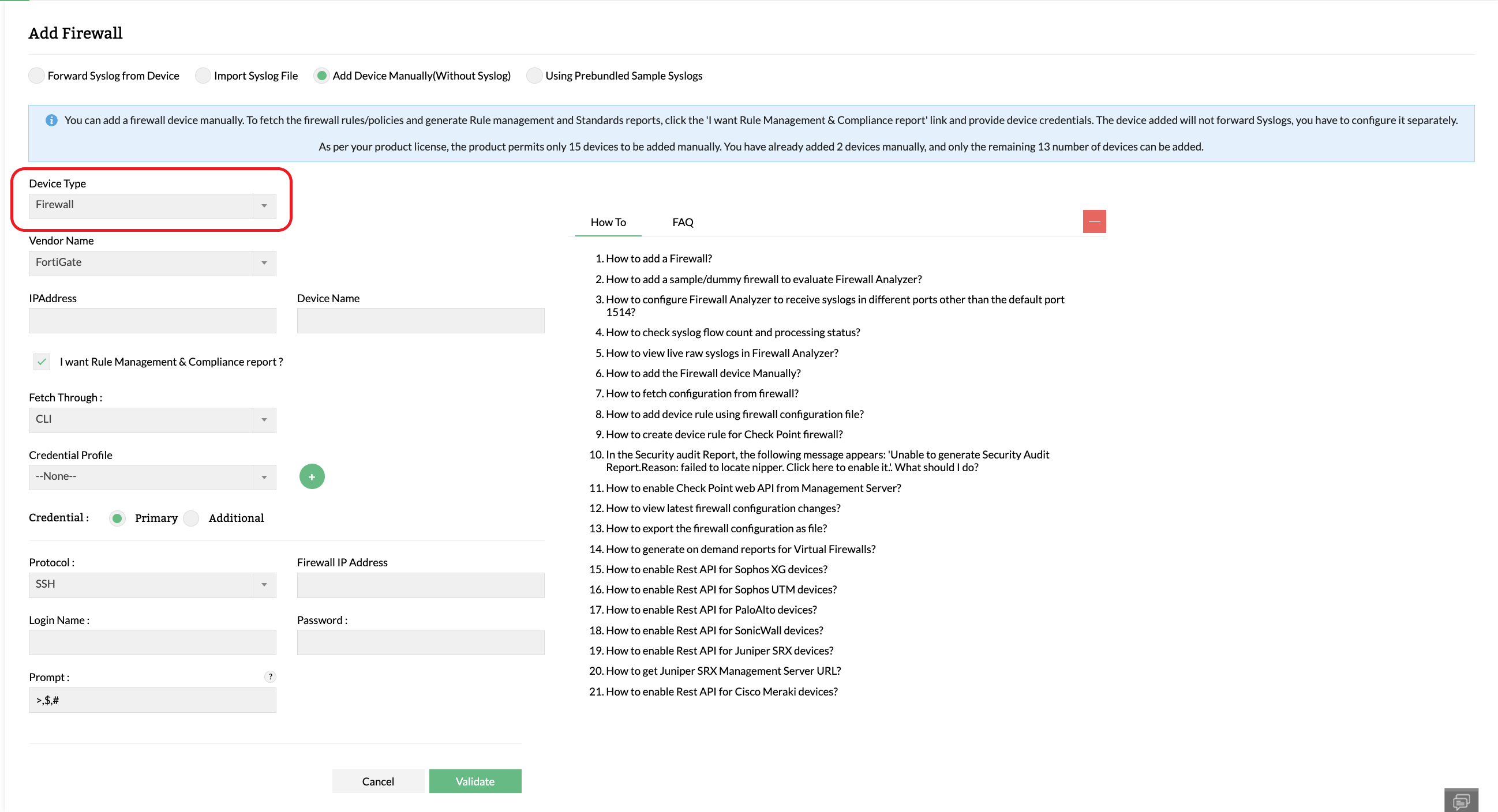

Add Device Manually (Without Syslog)
Follow the procedure given below to add firewall or router device manually to Firewall Analyzer:
- Select the Add Device Manually (Without Syslog) option.
- In the Device Type drop-down, choose between Firewall or Router.
- Choose your device's Vendor Name from the drop-down list. All the devices listed under the firewall rule management report in this page supports manual device addition.
- Enter the IP address of the firewall in the IP Address field.
- Enter the Device Name.
- Select the I want Rule Management & Compliance report check box to enable Firewall Analyzer's Rule Management and Compliance Reports for your device.
- Note: Generating Rule management and Compliance reports requires syslogs from your device.
- For CLI and API mode of device addition, refer this page.
- For File mode of device addition, refer this page.
- Click Validate button to check the reachability of the firewall from Firewall Analyzer with the given credentials.
- Click Save to proceed.
