Geolocation Reports


The Geolocation Reports are available for all Firewalls. This section presents country based bandwidth consumed and security reports in map and tabular view.

Click the Geolocation sub-tab to get the Geolocation reports. The Geolocation reports consists of two sections, Map View and Table View.

Map View

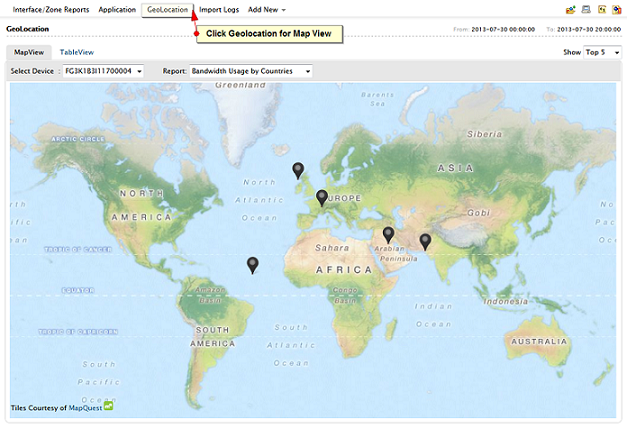

Geolocation - Map view

The map view displays the traffic from different countries around the globe through the selected firewall. Hovering on the map pins will show the details in the tool tip. Clicking on the pin wil display the traffic information through the friewall from the selected country in table format.

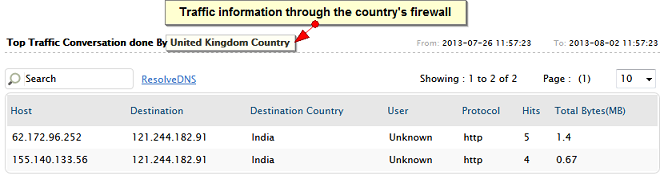

Map drill down report

Table View

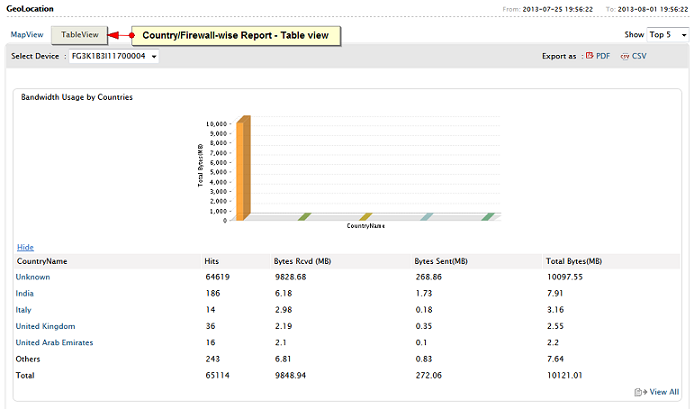

Geolocation - Table view

The table view displays the country-wise traffic through the selected firewall

The table columns are, COuntry Name, Hits, Bytes Received, Bytes Sent, and Total Bytes. By default top 5 countries are displayed and click the View All menu link to view all the countries data.

Apart from country-wise bandwidth information, you can get security reports.

The reports are:

  1. Top Denied Countries
  2. Top Attack Generating COuntries
  3. Top Virus Generating COuntries
  4. Top SPAM Generating COuntries

On the top the report is displayed in graphical format and in the tabular format the country-wise hits are displayed for each report.

Export as

The Export as option lets you choose the format of the reports for export. There will be two formats for exporting. They are:

  • PDF
  • CSV

Click on the PDF to export this report to PDF. Click on the CSV to export this report to CSV format (comma separated values).
