    Troubleshooting Mail Server Settings

    Troubleshooting Mail fetching problems

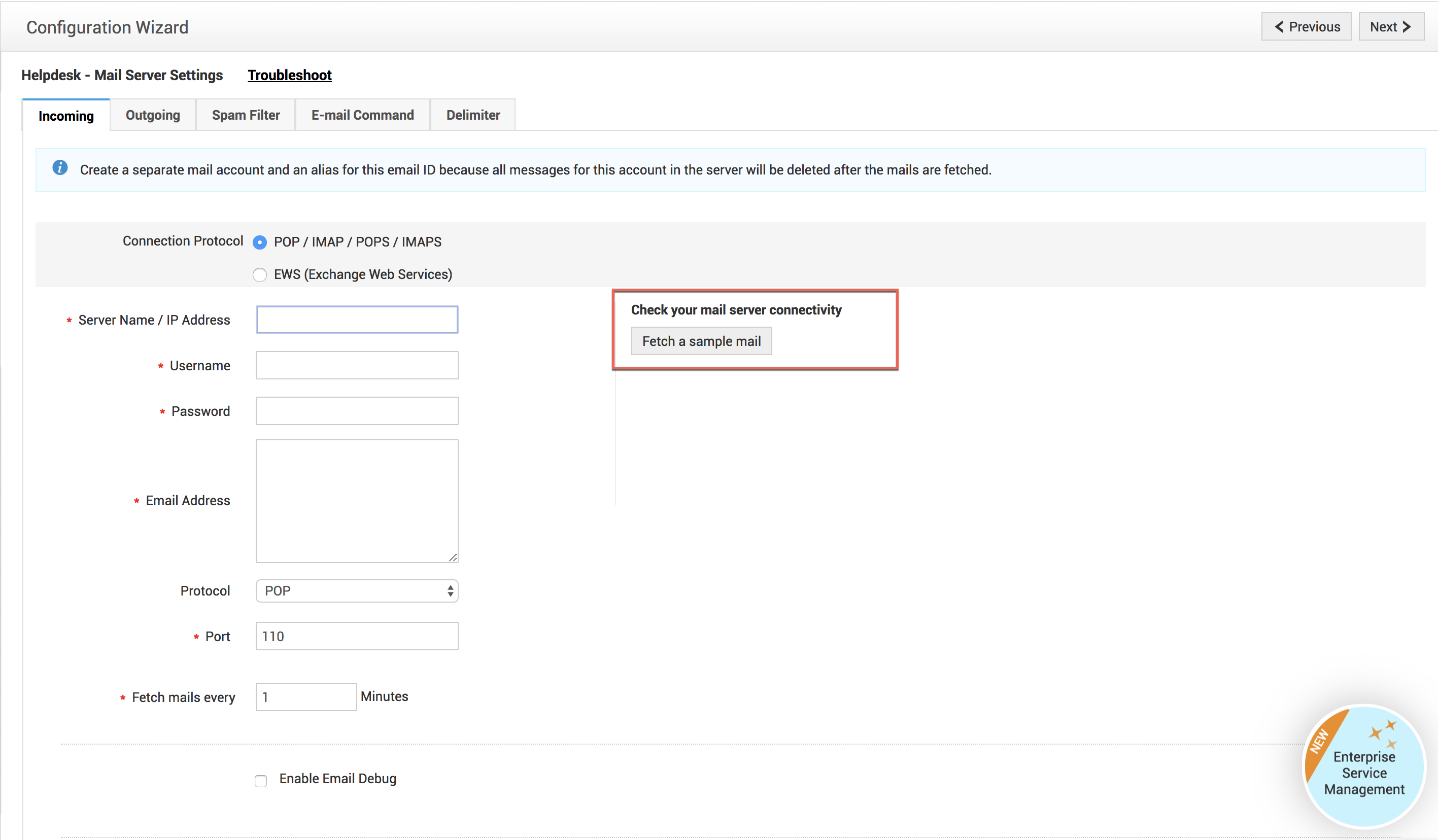

    After you configure the mail server, test the settings by fetching a sample mail. To do so, click the "Fetch a sample mail" button.





    If the settings are configured right and the connection is successful, the oldest mail from your mailbox will be fetched, along with its properties. If not, an error message will be displayed on the screen.

    In ServiceDesk Plus, mail fetching problems can be categorized as follows:

    Note: For all the mail fetching exceptions, please check connectivity using the same configurations in other third-party mail clients like Outlook Desktop app and Thunderbird desktop app.



    Authentication failed for the given username and password

    • Check whether the configured username and password are correct.
    • If the username and password are correct, check whether the mail server configurations are correct.
    • If the configured protocol is IMAP, the open concurrent IMAP connections could get exhausted sometimes. In such cases, an authentication exception is thrown intermittently (whenever the connection gets exhausted). Mail fetching will resume once an open IMAP connection becomes available. To know more, go to the link: Intermittent Authentication Failed Exception in IMAP protocol in SDP

     If  there are no connectivity issues with third-party apps, and there are authentication issues only with ServiceDesk Plus, go here.



    Configured mail host name is unknown or not reachable (or) Unable to connect to the mail server with the provided configurations



    • Check whether as mentioned, the configured server name is correct.
    • If the server name is correct, check whether the protocol configurations are correct.
    • The software/hardware firewall might be blocking the POP/IMAP port. If this is the case, please try after unblocking the port/try EWS (Exchange Web Services).

    If you are able to connect to other third-party apps and unable to connect the mailbox through ServiceDesk Plus server, go here.



    Could not find valid certification path to requested target, kindly configure to apply Trusted/Self Signed Certificate

    For Windows - gencert.bat <hostname>:<port>

    E.g. cmd> gencert.bat sdpexchange.com:995

    For Linux - sh gencert.sh <hostname>:<port>

    E.g. sh gencert.sh sdpexchange.com:995

    • The server will send the available certificates in the command prompt. You will be asked to enter the certificate number to proceed further. On supplying the certificate number, a file called jssecacerts is generated in the ServiceDesk Plus Home Directory (if the file is already present, this certificate will be appended to it).
    • Copy the jssecacerts file to jre\lib\security folder and restart ServiceDesk Plus application.
    • Save the settings and test the mail connection.

    If you still face the issue after applying the certificate, click here.



    Unable to open mailbox in READ/WRITE mode

    • The user might not have write access to the mailbox.

    • Please get the appropriate write access for the mailbox from your Administrator. The write access is necessary to delete the mails from your mailbox after it is fetched.



    Unable to connect to the mail server. Check server URL and try again.

    • The connect URL for EWS might be incorrect. Correct the connect URL. To know the EWS URL for your Exchange Server go to the link below:

    Get to know your Exchange Web Services URL (Connect URL)



    Troubleshooting Mail Sending problems

    To check the mail server connectivity, send a sample email by entering a mail address and clicking on the "Send a sample mail" button in the outgoing tab.







    If the settings are configured right and the connection is successful, a sample mail will be sent to given the email address. If not, an error message will be displayed on the screen.

    The common exceptions that occur in ServiceDesk Plus while sending mails can be categorized as follows:

    1. Incorrect username or password.
    2. Unable to reach host.
    3. Unable to connect to the mail server. Check Connect URL and try again.
    4. Unknown error occurred.



    Incorrect username or password

    • Verify if the configured username and password are correct.
    • Check your mail server configurations (protocol, TLS, port).
    • Configure the account using a third-party mail client and send a sample email to the same account. If the credentials are correct, you will be taken to the welcome page. If not, the alert prompt will be displayed repeatedly.

    Note: If you are using SMTP/STMPS, do not check your account configurations using Outlook Web Access as it works with the MAPI protocol. If you are using Exchange Web Services, open the connect URL in an incognito window.

    If you are still unable to login with your credentials, click here to debug your email and send a log report for analysis.



    Unable to reach host

    • Check if the configured server name is correct.
    • If the server name is correct, check if the protocol configurations are correct. If you are using Exchange Web Services, ensure the connect URL is correct. To find your Exchange Server URL, go to this link.
    • If you are using SMTP/SMTPS, the software/hardware firewall might be blocking the SMTP/SMTPS port. If this is the case, unblock the port or try EWS (Exchange Web Services).

    If the error persists, click here to enable email debugging and send a log report for analysis.



    Unable to connect to the mail server. Check connect URL and try again.

    • The connect URL for EWS might be incorrect. Correct the connect URL. To know the EWS URL for your Exchange Server, go to the link below:

    Get to know your Exchange Web Services URL (Connect URL)



    Unknown error occurred

    • If you are using Exchange Server and SMTP protocol (SMTP+TLS), ensure that your Exchange Server's certificate is updated in ServiceDesk Plus. To apply for the Exchange Server certificate, go here. If you are using EWS, you need to apply certificate in ServiceDesk Plus unless you are using Self-Signed Certificate in your Exchange Server. To apply EWS certificate in ServiceDesk Plus, go here. If you are using Office 365, you need not apply certificate.
    • If you are using SMTP/SMTPS, check if you are allowed to send mail to the entered address. To relay outside your Mail server domain, you will need permission. Contact your IT Administrator on this.



    If  there are no connectivity issues with third-party apps, and there are authentication issues only with ServiceDesk Plus, enable email debugging and mail the logs for analysis:

    1. To debug your emails, check the "Enable Email Debug" box and save the settings.



    2. Re-create the issue to populate the debug prints in the logs.
    3. The debug prints will be saved in the logs folder in the application server. For e.g. In Windows, the logs folder will be present in C→ManageEngine→ServiceDesk→logs.
    4. Zip the logs folder.
    5. Mail the zipped folder to support@servicedeskplus.com for analysis.

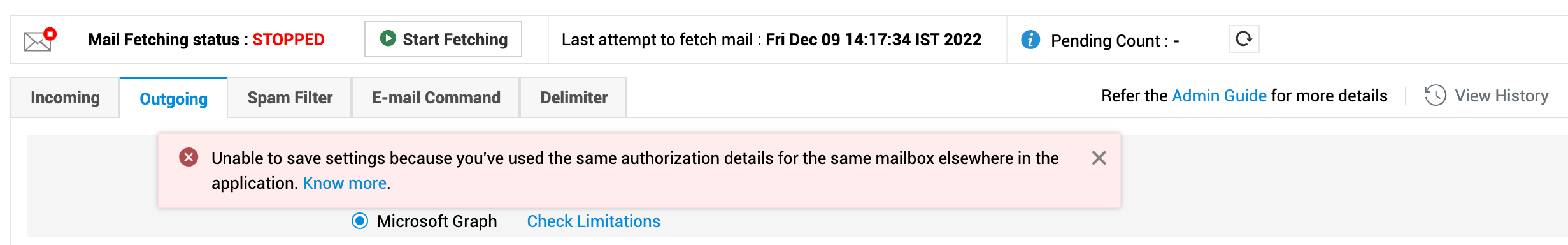

    Unable to save settings


    Mail throttling limits are evaluated for each application ID and mailbox combination. ServiceDesk Plus MSP prevents users from configuring the same Client ID and Reply Email for both Incoming and Outgoing Mail Server Settings.

    To use the same mailbox in both Incoming and Outgoing Mail Server Settings, create a separate application (with different client ID).

    Refer to microsoft documents for more details about throttling limits in Microsoft Graph API.
