Analyzing Lease and Lease History

There are two types of leases available in DDI Central: DHCP or dynamic leases and Static leases.

DHCP Leases

To access these DHCP lease records:

  • Navigate to the DHCP module. Select the Lease menu from the left inner menu bar.

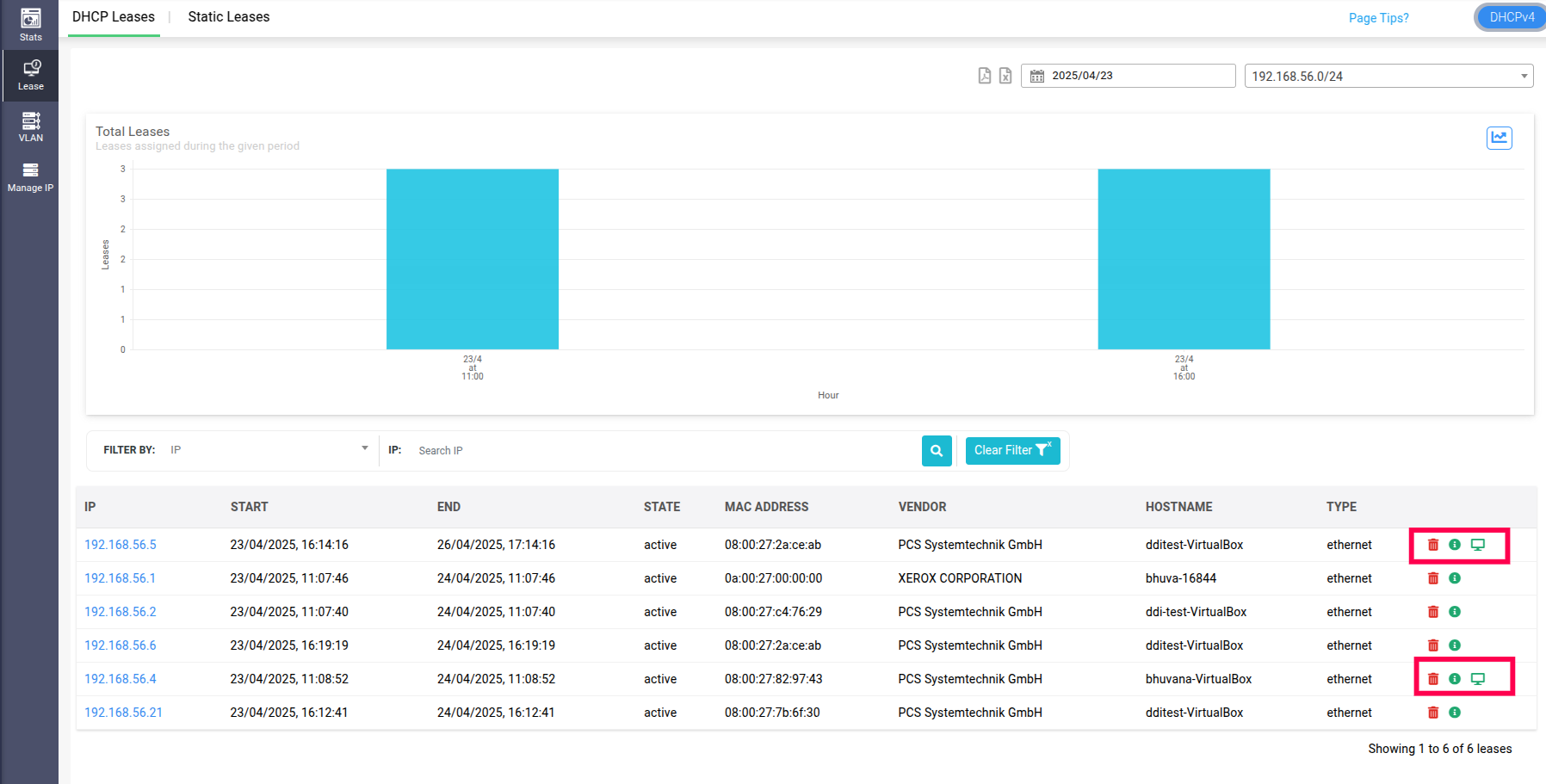

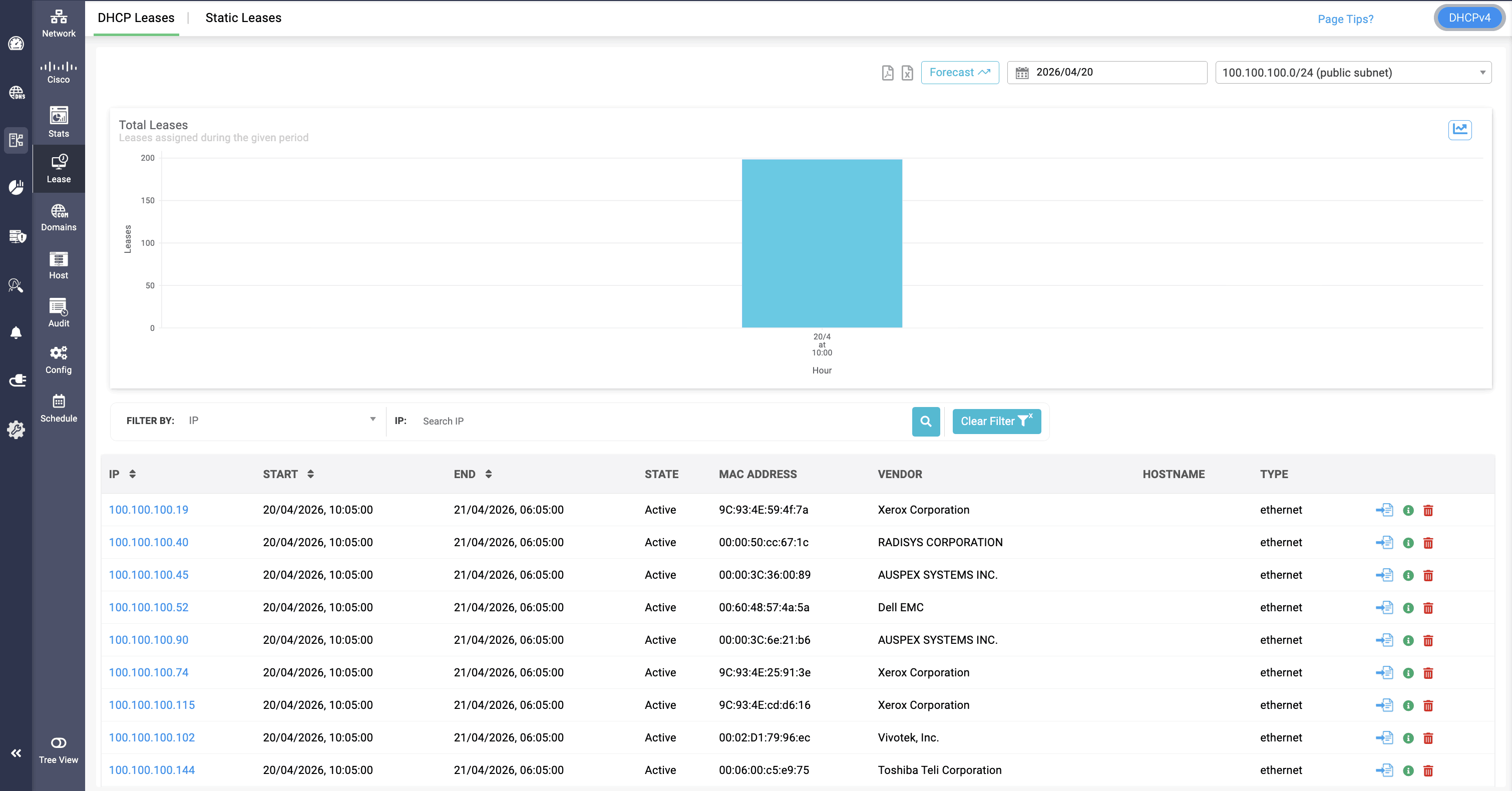

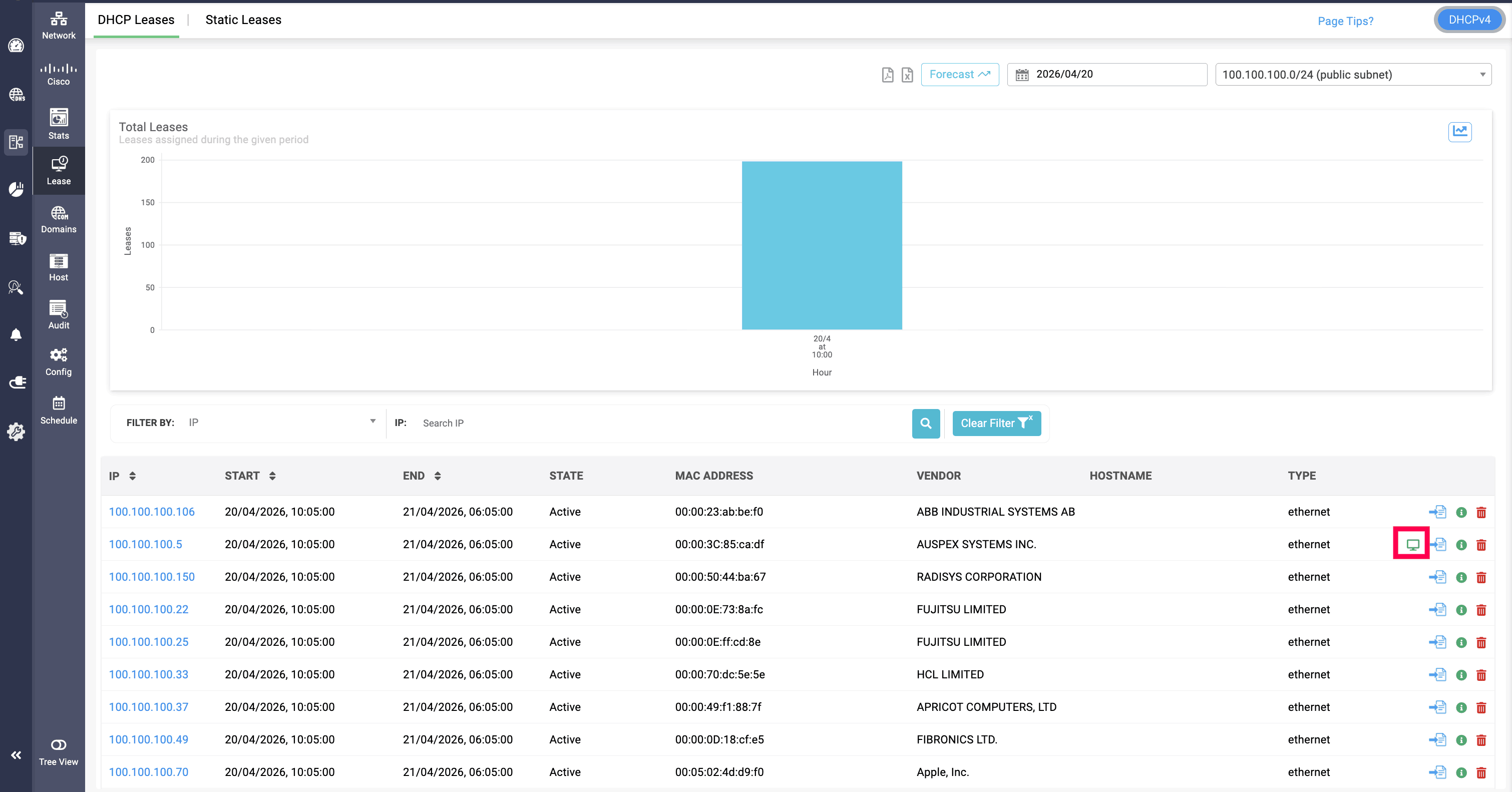

  • The Lease page appears with the DHCP leases tab selected, displaying a visual snapshot of the lease volume for that subnet along a particular timeline, the list of IP addresses leased by the DHCP server from a specific subnet at that period of time, the total lease duration, the current availability state of the IP,  the MAC address and the manufacturer details of the host device associated with the IP during the lease period and the type of connection.

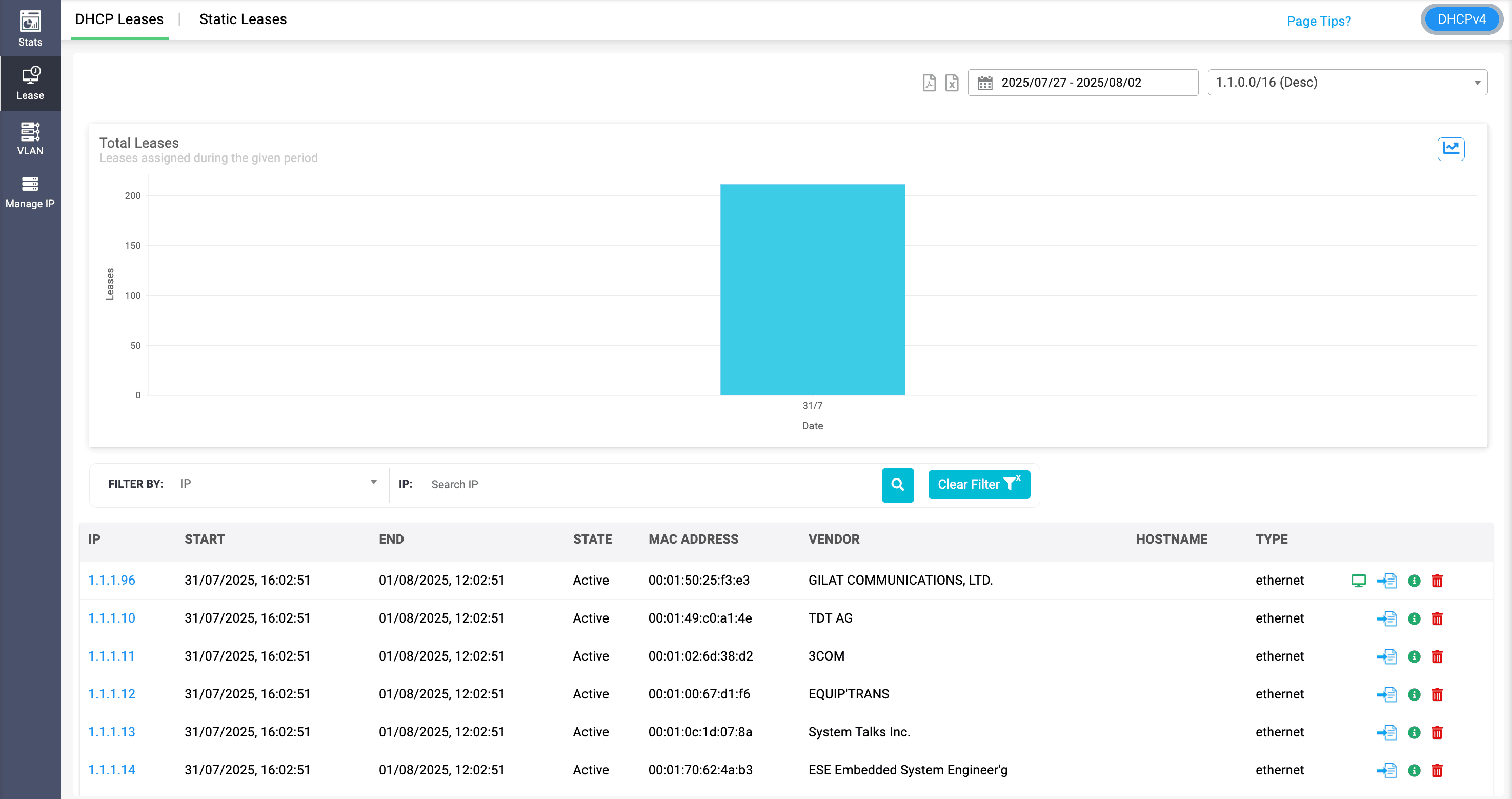

  • You can select the relevant subnet from the dropdown in the top right corner to view the leases within the selected subnet and adjust the timeline using the drop down calendar to visualize and list the leases from a specific point of time.

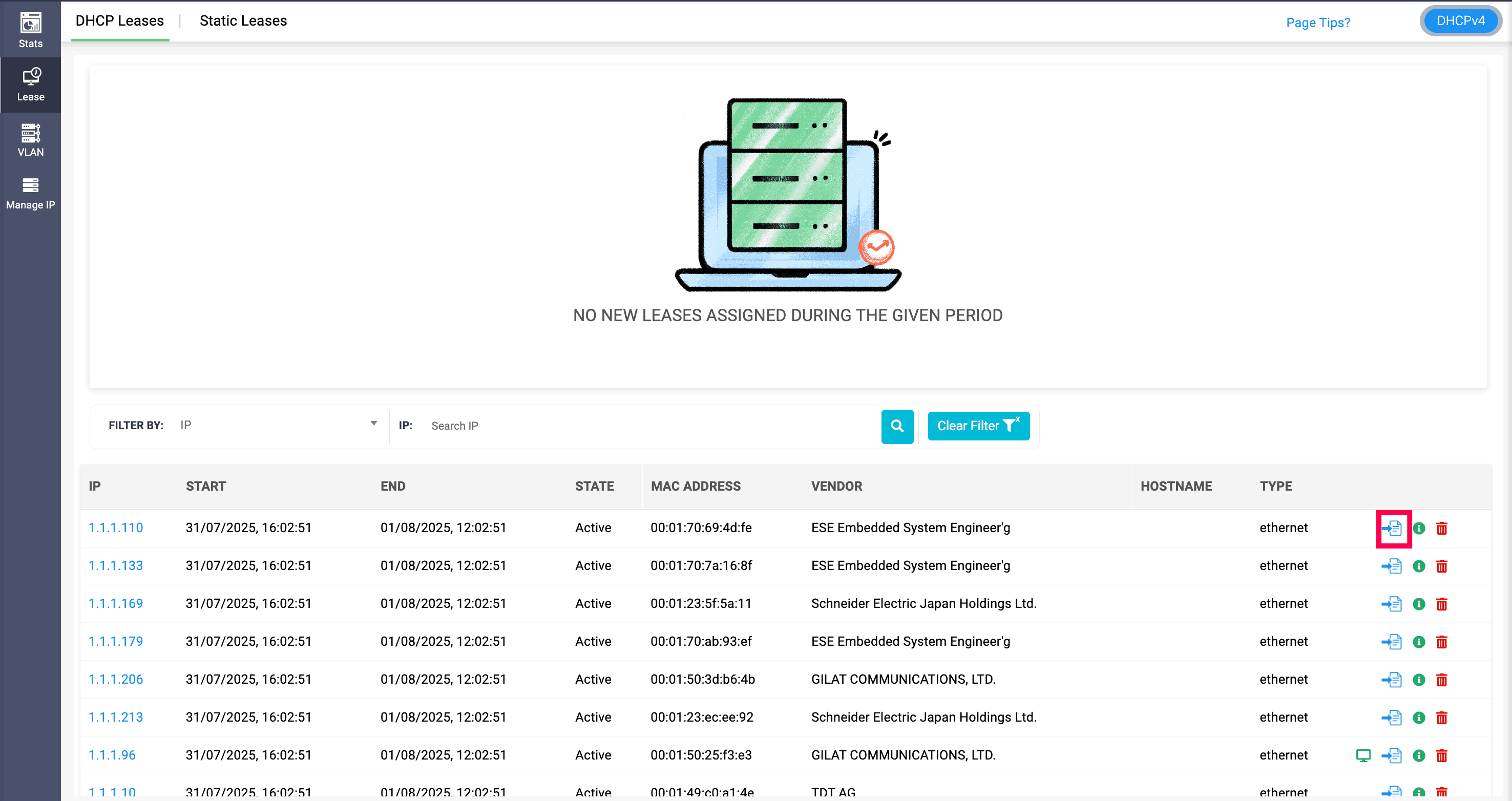

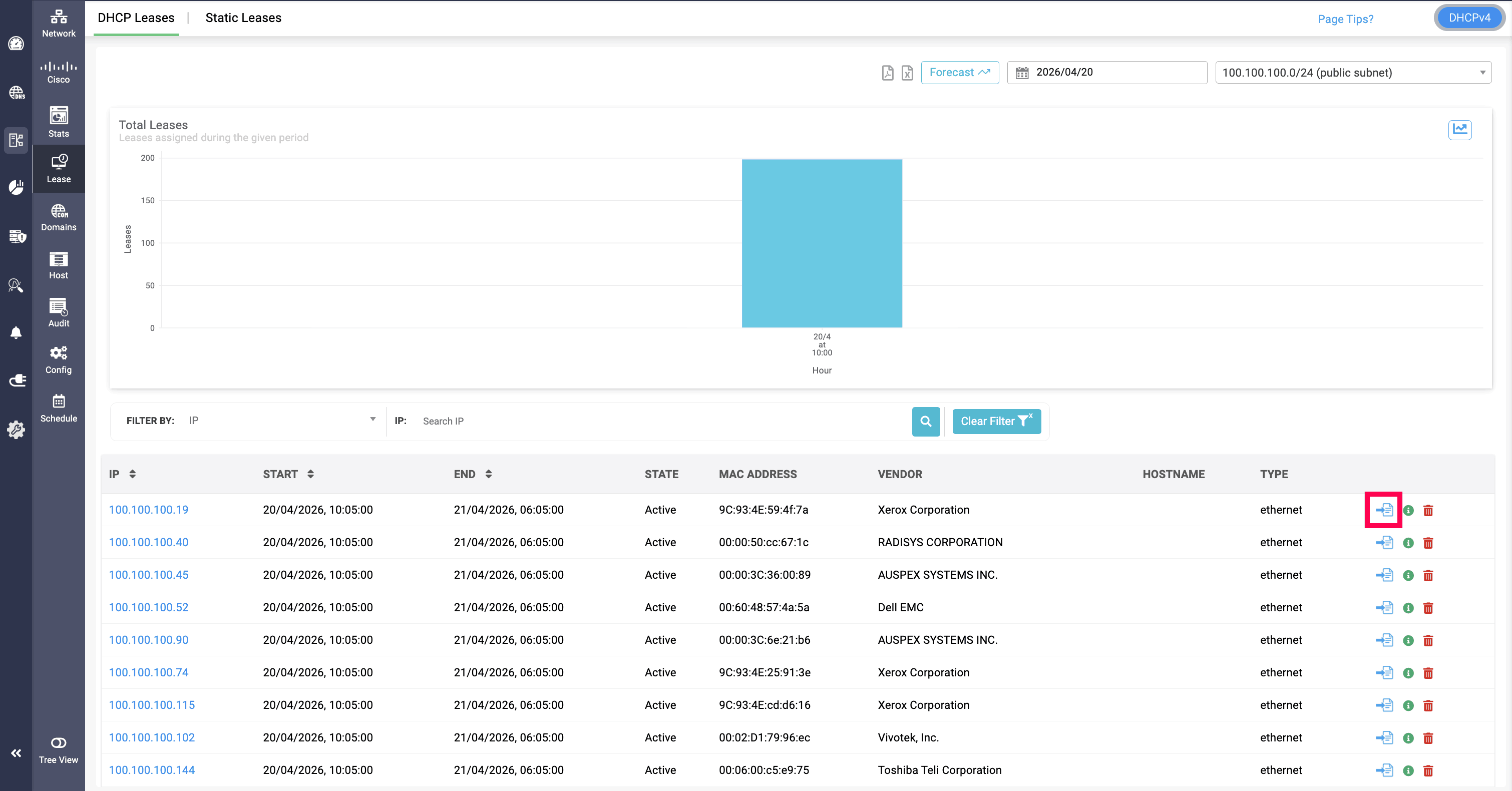

  • You can also click on the red Delete icon at the extreme right end to delete leases from both the DHCP lease file and the DDI Central's database. By doing this, the same lease will not be reassigned to that particular user; instead, the user will receive a random DHCP lease from the relevant subnet.


Note:

You can also export these lease records and download them as a CSV file for future references.

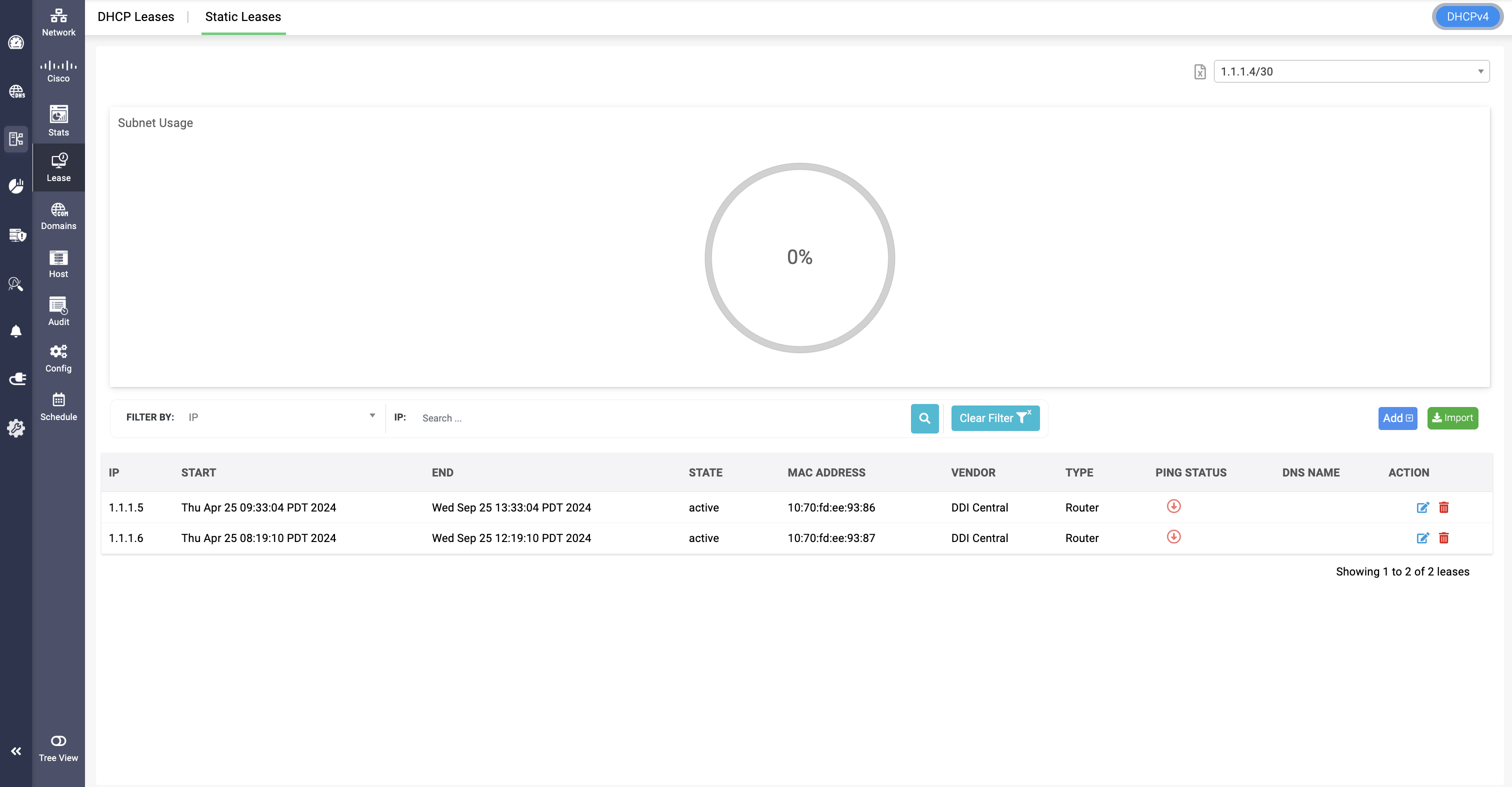

Static Leases

Static leases, also known as fixed or reserved IP addresses, refer to the assignment of a specific IP address to a device within a network that does not expire or renew. This practice is particularly useful for devices that are permanent fixtures of the network and require consistent addressing for reliable operation and easy access.

For instance, servers often have static IPs due to their critical role in network functionality, whereas client devices like smartphones can operate effectively with dynamic IPs. Static leases are meant for essential corporate devices like routers, printers, and Security Cameras. Static leases are often managed or maintained in a spreadsheet.

To enable network administrators to import, centralize, and simplify the management of all static leases along with the other dynamic leases, DDI Central allows admins to directly create new static subnets for a DHCP server directly from the DDI Central UI. And then it helps them easily import the active static subnet leases that they manage in a spreadsheet already created on the DHCP server. These static leases can be imported into DDI Central in two ways:

  • By clicking the Import button available in the DHCP-> Network-> Static Subnet page, or
  • By clicking the Import button available in the IPAM-> Lease-> Static Leases page



Importing static subnet leases without defining a static subnet

DDI Central enables you to directly import static leases without creating and defining the IP address space for your static subnet.

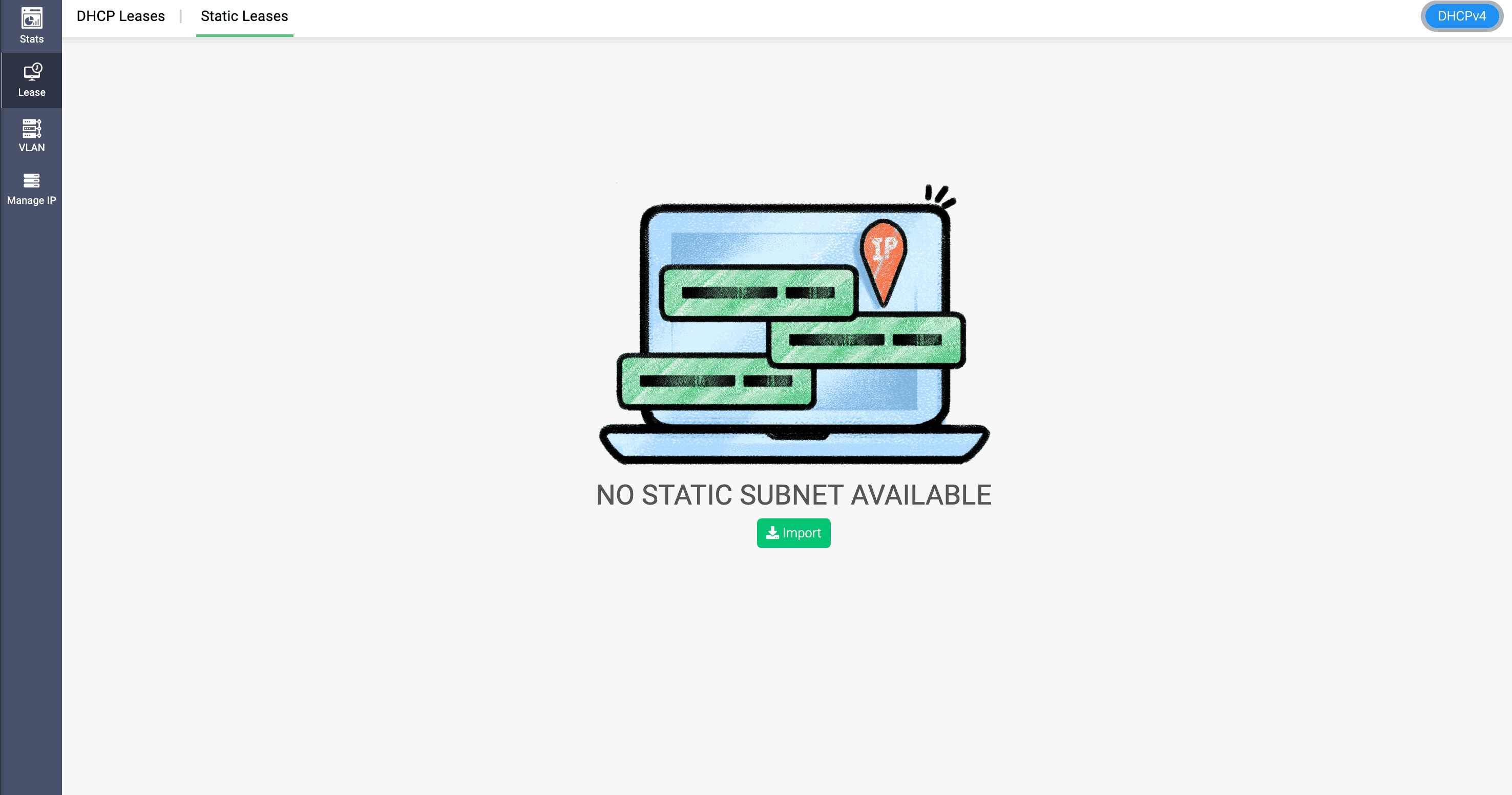

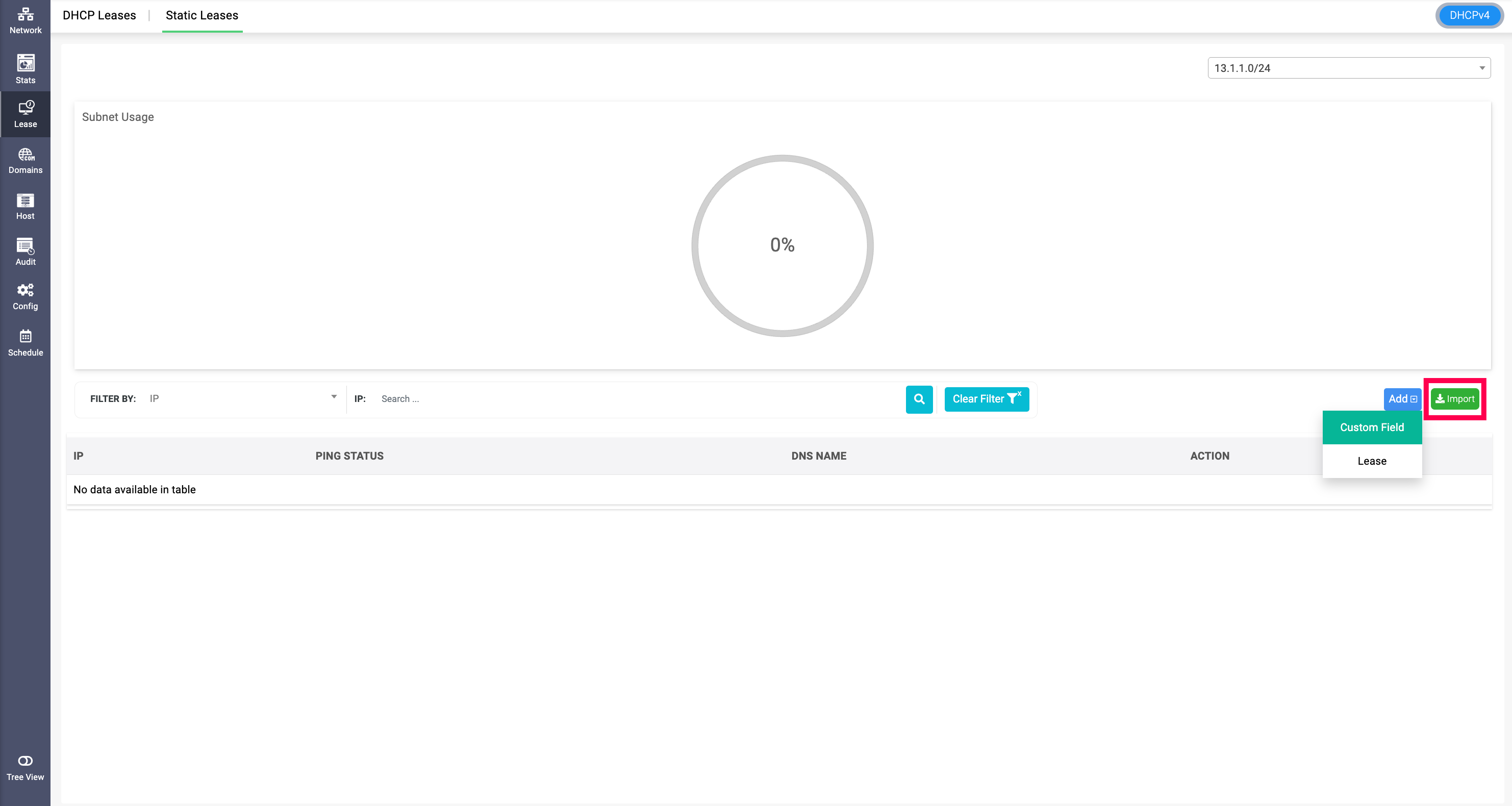

To import the static leases without a defined static subnet within DDI Central Select IPAM->Lease. On the Lease page, navigate to the Static Leases tab, which will be empty.  Just click on the Import button as shown below.

Note: While importing static leases from a spreadsheet file into DDI Central without a predefined static subnet, ensure that the first column of the spreadsheet corresponds to the network address of the static subnet. The subsequent columns can be in any order; these, along with their labels and data, will be imported as respective fields into DDI Central. The spreadsheets can be in .xlsx, .csv or .xls format.

Please have a look at the sample spreadsheet1 and sample spreadsheet2 for your reference.

Importing static subnet leases along with a static subnet

On the other hand, when importing static leases with a static subnet already defined under the DHCP->Network page, the columns, including the network address, can be in any order. DDI Central just imports the columns as respective fields and displays the data in the spreadsheet under the corresponding fields on the Static Leases page.

As you update the leases, ensure that the updates adhere to the column order defined in the spreadsheet; a mix-up in the order may lead to errors or prevent the import of static leases into DDI Central. The field configuration for static leases derived from the spreadsheet is cluster-specific. Ensure that the columns in all spreadsheets used for importing static leases maintain the same order as the file used for the initial import.

DDI Central also allows the following actions once static leases are imported:

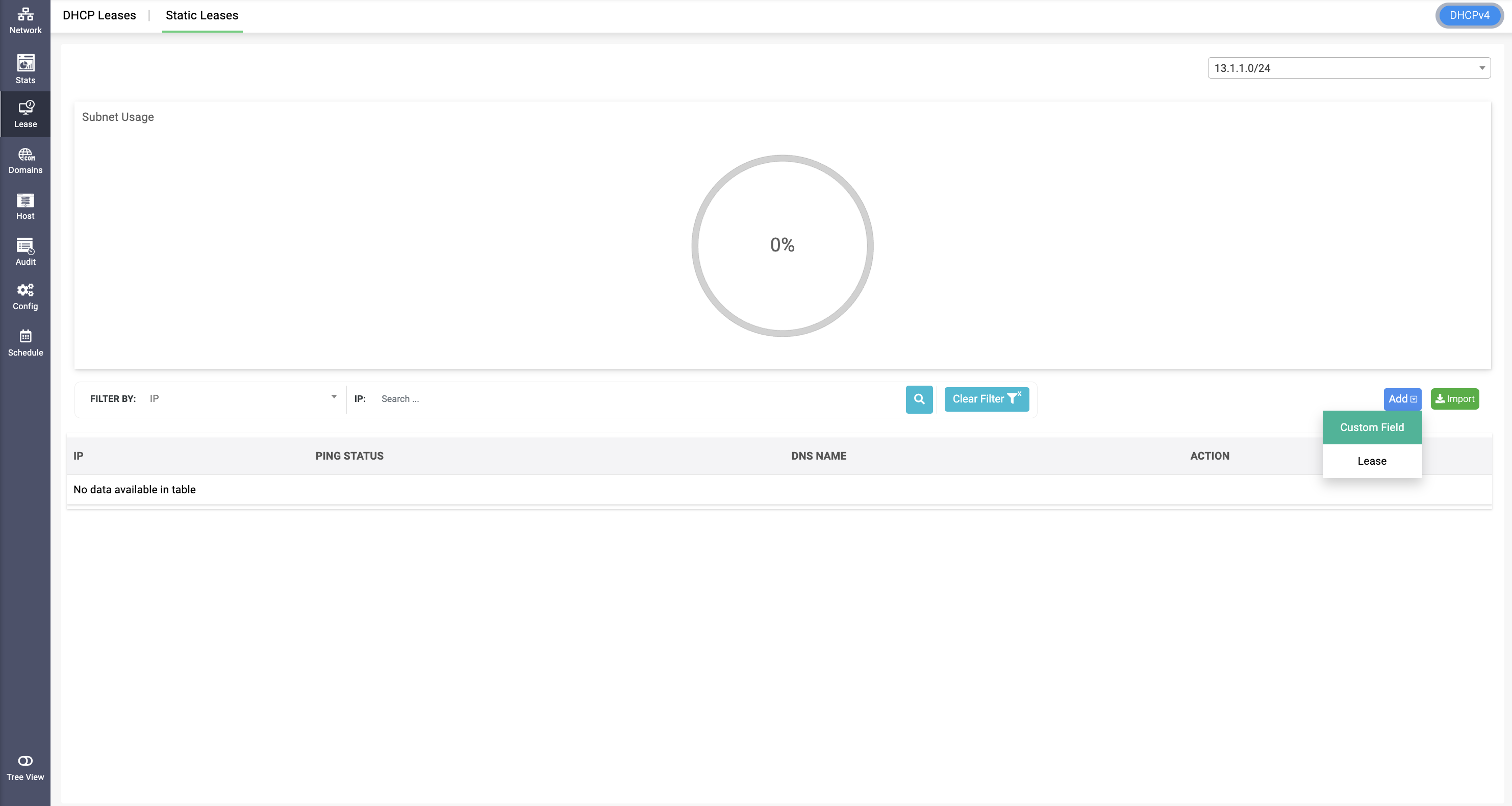

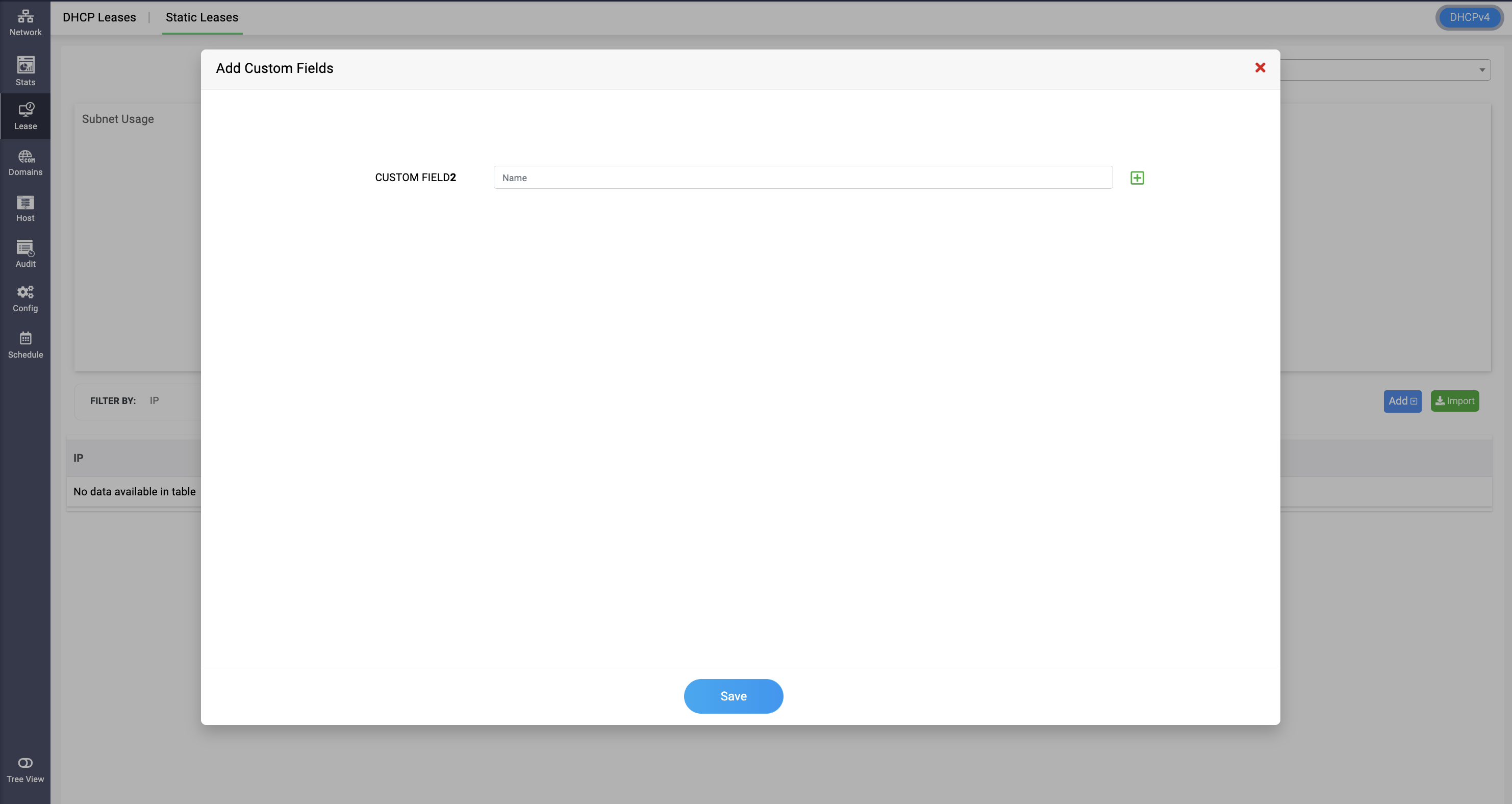

  • Click on the Add button and then select Custom field from the menu that appears to add a custom field, which will be appended to the fields already imported along with the spreadsheet.
  • You can add new leases individually using the 'Add' button and then select Static Lease from the menu that appears to add a  new static lease directly from the DDI Central console. All the fields defined in your spreadsheet file during the first import will appear as form fields, where you must enter all the values one by one and click 'Save'.
  • You can also edit the column label directly from the UI, by just hovering around it and click the edit button at the right end of each label.

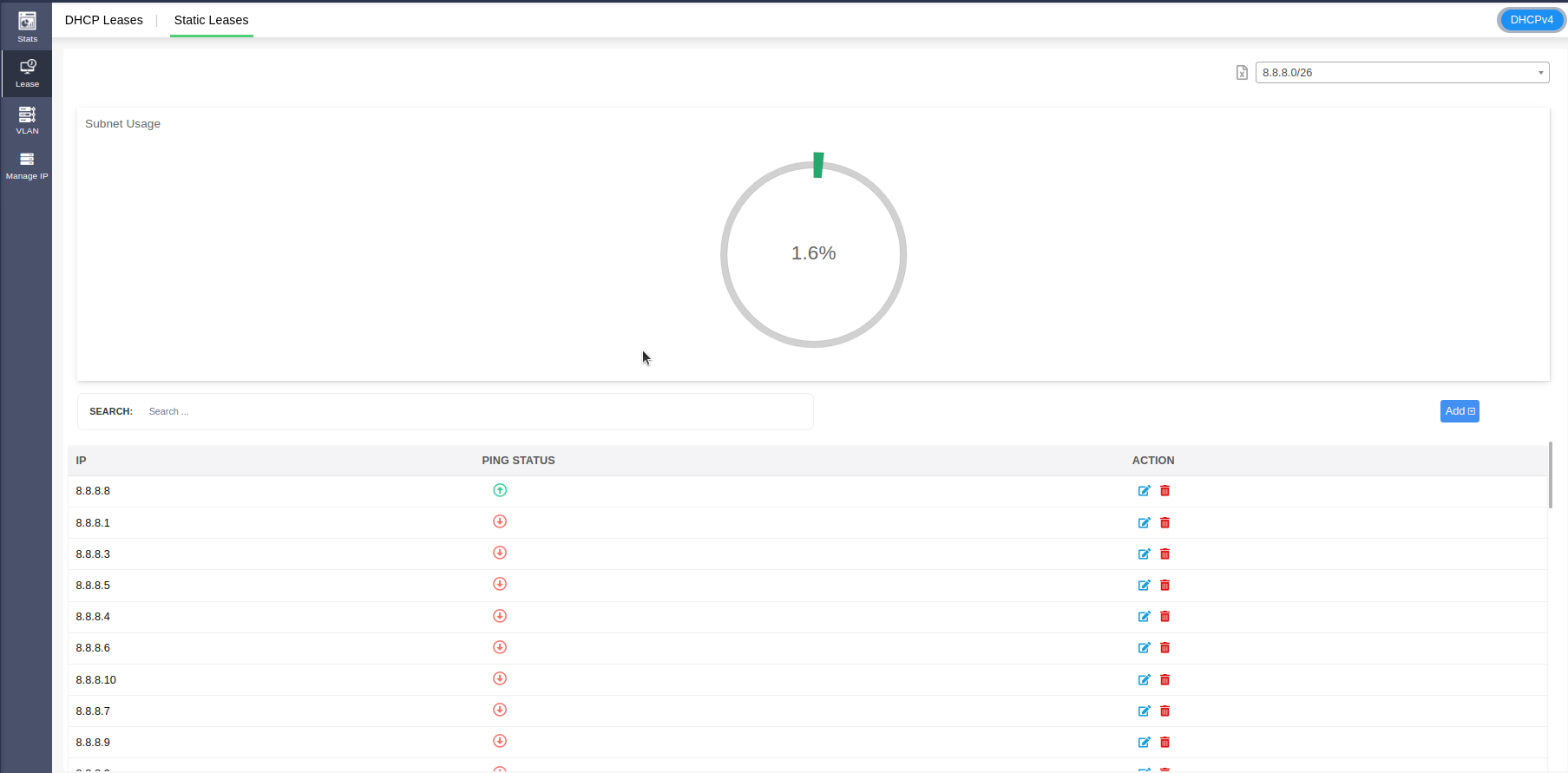

Once you start managing your static leases directly within DDI Central without using a spreadsheet, and if you need to export these static leases for further analysis or report generation, click on the small gray Spreadsheet icon located near the subnet dropdown list box in the top right corner of the page. This allows you to export and download your up-to-date static leases as a CSV file.



Analyzing the DHCP lease history

Click on an IP address to probe through the lease history of that particular address.

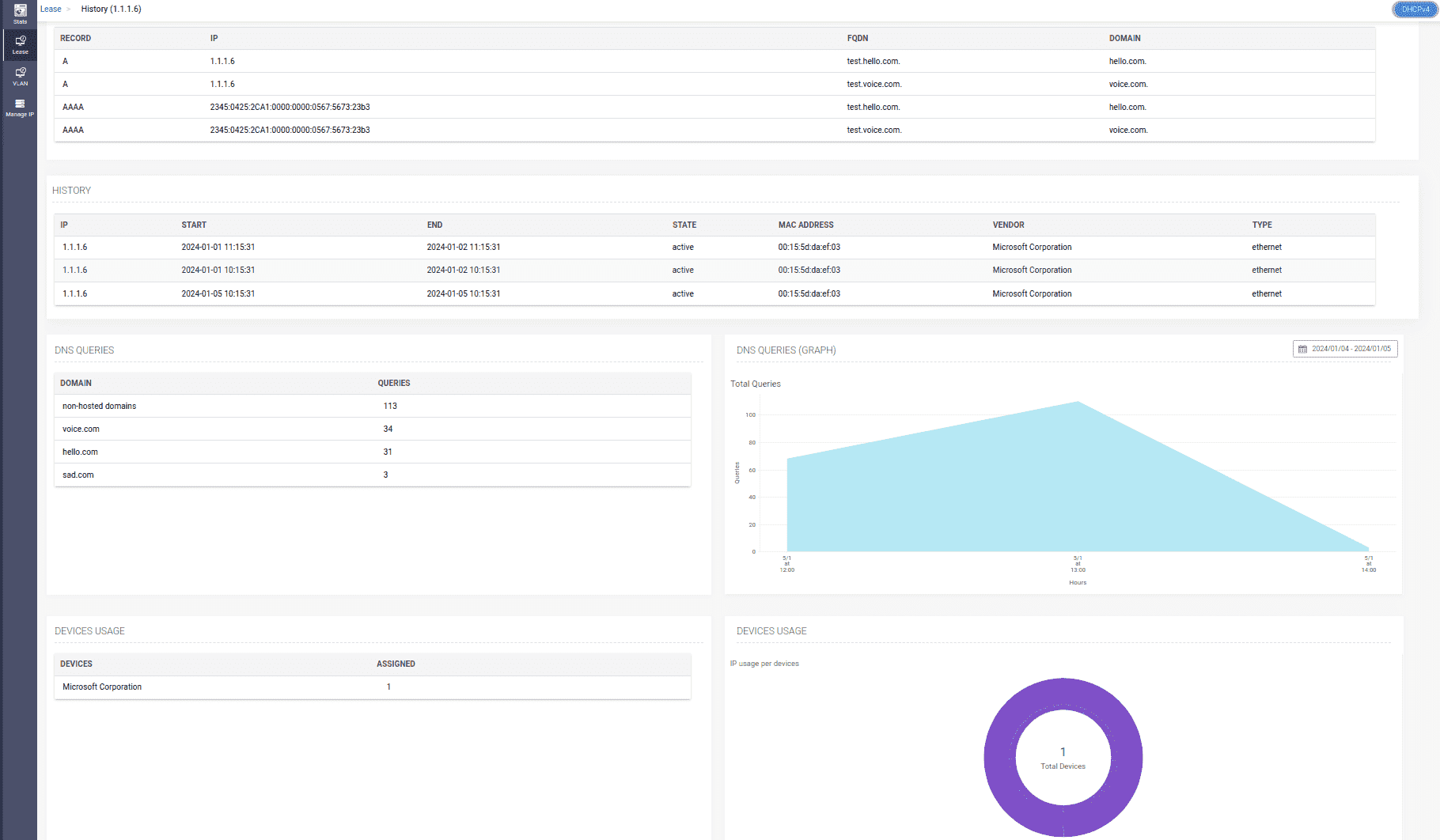

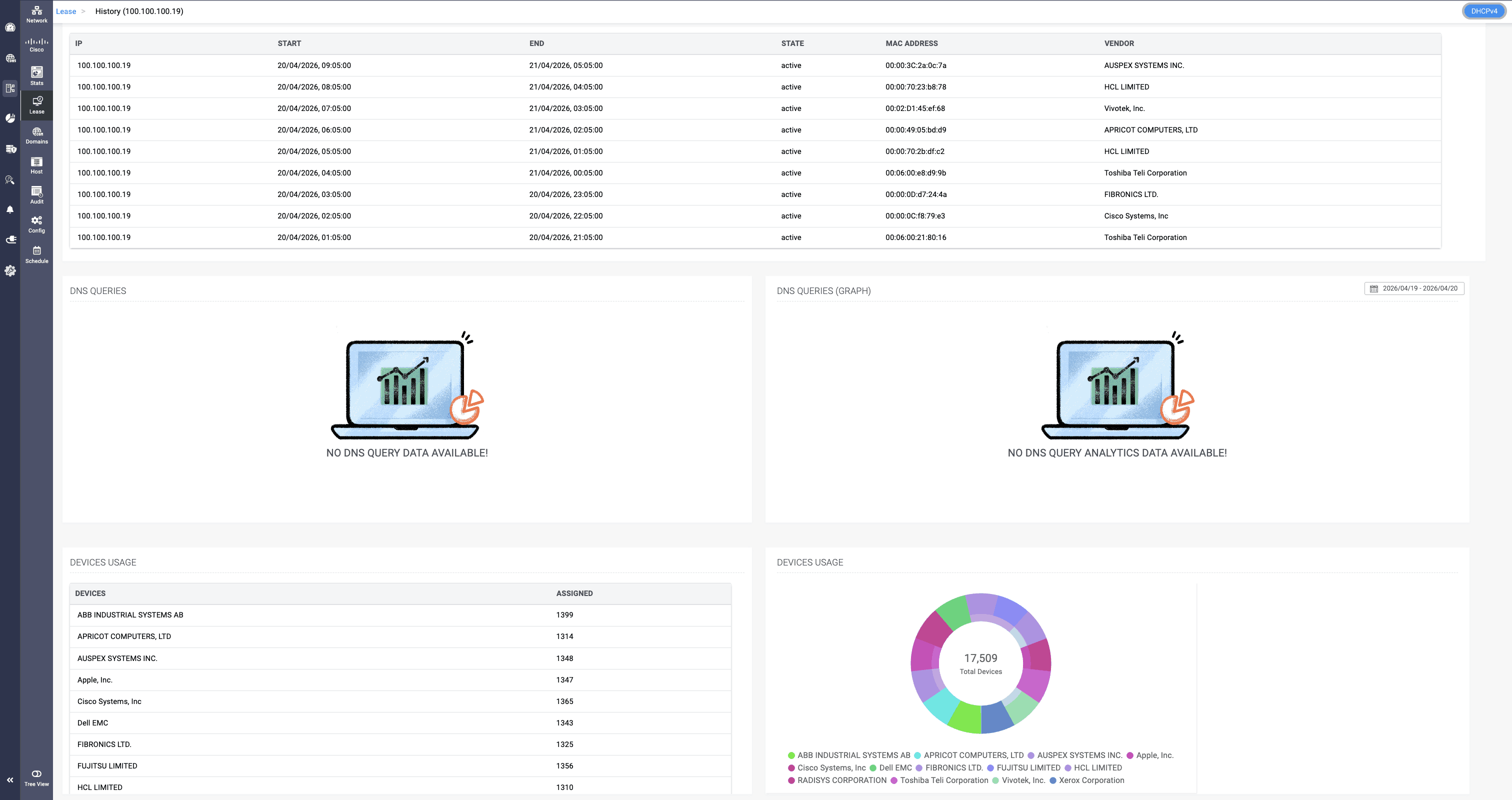

The History page for the IP address appears displaying the following sections:



DNS Relations

The DNS relations section displays a list of domain name records that was previously leased with the selected IP address. It includes information such as the type of record, the exact Fully Qualified Domain Name (FQDN) linked to the record, and the root domain of the record.

History

The history section provides a comprehensive audit trail detailing the evolution of the IP over time. It includes information on the host, identified by its MAC address and the manufacturer of the host device to which the IP was leased and the duration of that lease. Additionally, it records the type of connection and precisely indicates the availability state of the IP during the entire span of the lease.

DNS Queries

The DNS Queries provides two sections to help you quantify and visualize the query volume handled by the IP during its association with various FQDNs.

The section on the left,  lists a historical overview of the total query volume to each specific FQDNs when the IP was associated with them.

Additionally, the section on the right helps you visualize, in the form of line graphs, the hourly query volume handled by the IP when it was associated with different domain names along a custom time frame. To analyze these hourly readings more accurately, make sure you select a custom time frame from the drop down calendar at the left corner within the same section.
