Cisco Access Control List (ACL) in networking

In a network environment which consists of a large number of employees and network devices, there will be a lot of incoming and outgoing data traffic. This leads to bandwidth bottlenecks, which in turn affects the transmission of important data. In order to control this, you need to identify the network devices which consume a lot of bandwidth using a traffic monitoring tool. Once the devices are identified, you can apply the Access Control List (ACL) policies on the network devices to determine the priority of data during transmission. Network Configuration Manager serves this purpose since it allows you to apply ACL policies in multiple devices by bulk execution of configlets.

Now let us see certain guidelines to follow while configuring ACLs:

Cisco ACL configuration guidelines

  • Only one ACL per interface, per protocol, per direction is allowed.
  • ACLs are processed top-down; the most specific statements must go at the top of the list. Once a packet meets the ACL criteria, the ACL processing stops and the packet is either permitted or denied.
  • ACLs are created globally and then applied to interfaces.
  • An ACL in network configuration can filter traffic going through the router, or traffic to and from the router.

Want to learn about configuring Access Control Lists (ACLs) for Cisco? Learn for free from our technical expert!

Get personalized online demo >

How to configure Access Control List in Cisco router

It is important to configure ACL policy before applying it is pushed to the network devices. If the access list is not configured, then all the traffic will be permitted. Here, we have taken three examples to explain how different types of access lists can be pushed to a Cisco router to configure ACL on Cisco router using Network Configuration Manager.

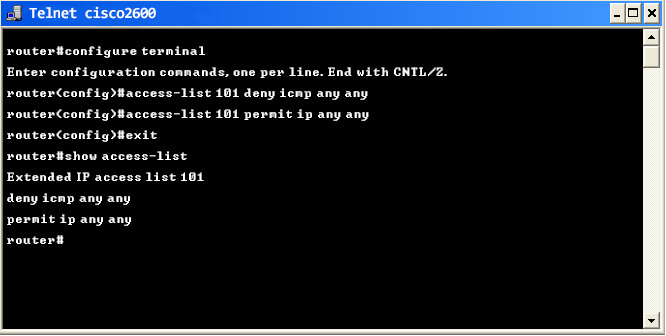

Example 1: If you want to block icmp traffic from any network but allow IP traffic, the following configuration commands can be used to configure ACL in Cisco router:

Cisco Access Control - ManageEngine Network Configuration Manager

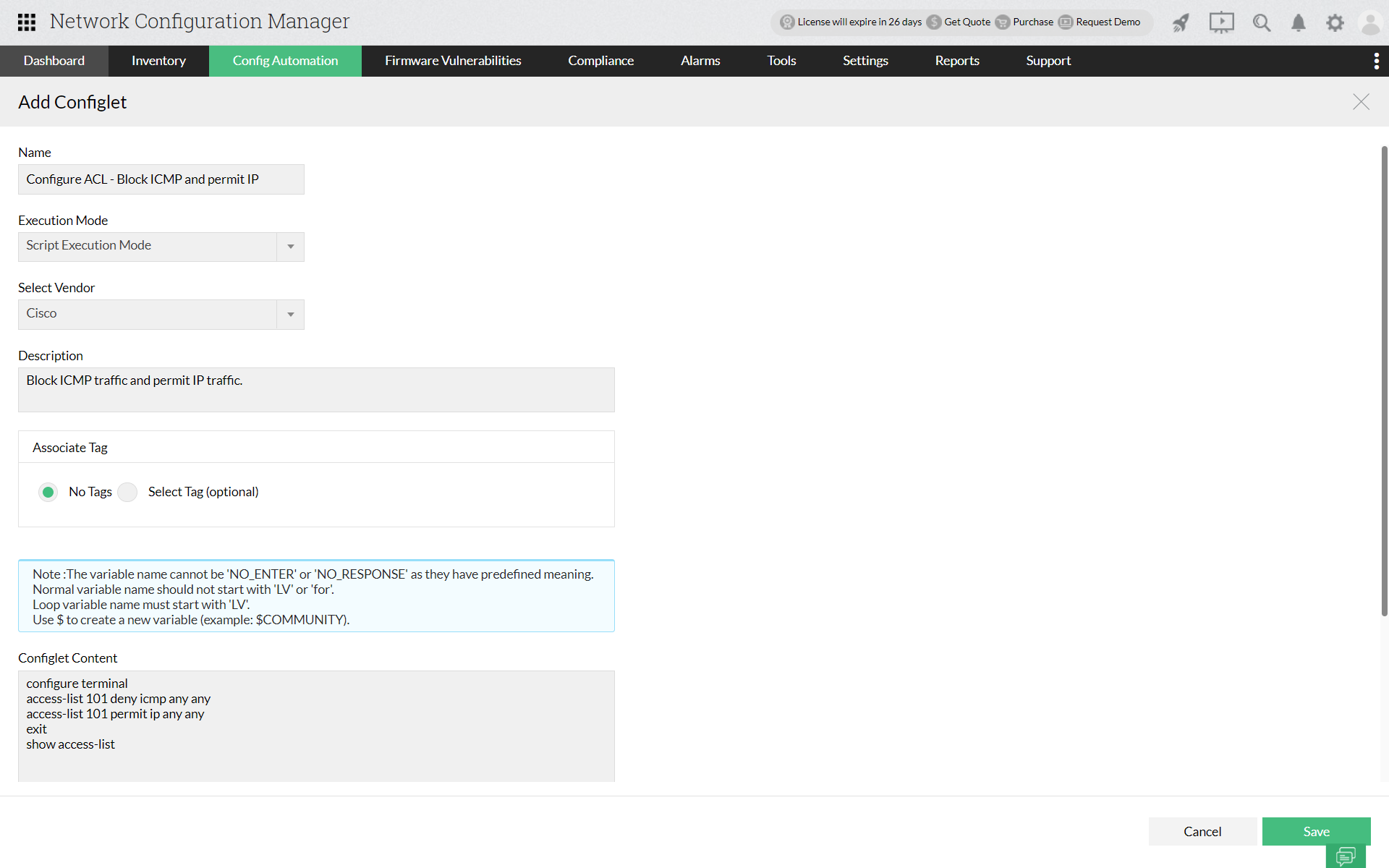

The corresponding configlet commands for executing the above commands in Network Configuration Manager:

Cisco Access Control List - ManageEngine Network Configuration Manager

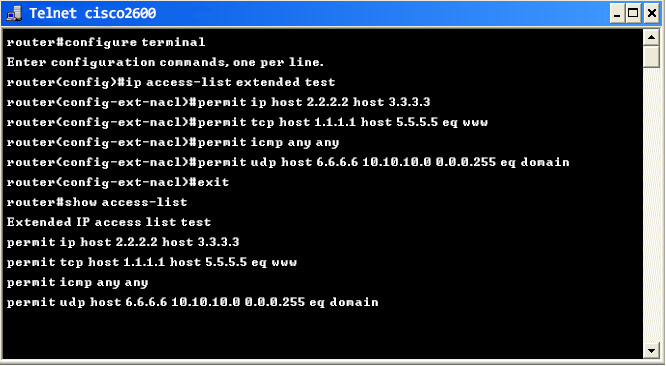

Example 2: If you wish to permit traffic between any two specific IP addresses, you can specify the necessary IP addressees. Further, you can also specify the transmission type as ip, tcp, icmp, udp, etc,. The terminal given below shows the configuration between two specific IPs along with the transmission type.

Cisco Access Control Software - ManageEngine Network Configuration Manager

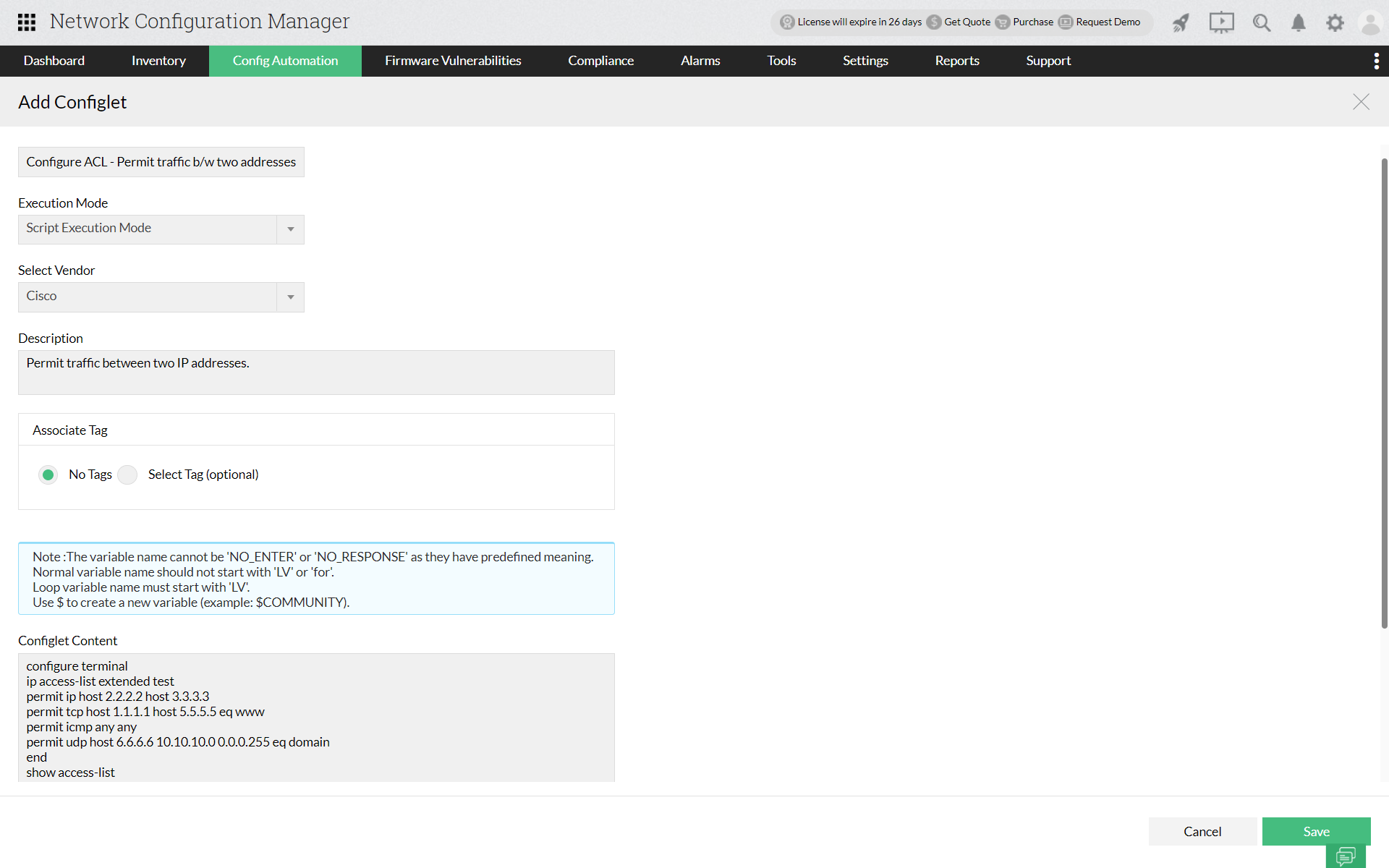

The corresponding configlet commands for executing the above commands in Network Configuration Manager:

Cisco Secure Access Control - ManageEngine Network Configuration Manager

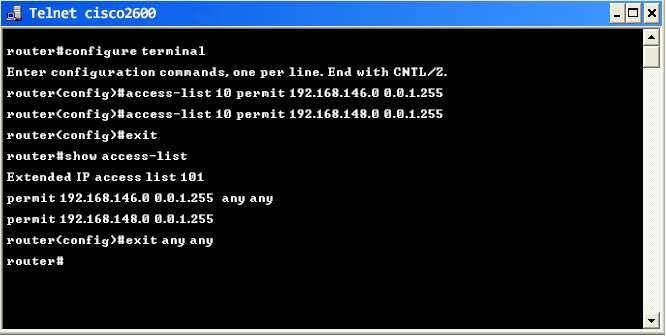

Example 3: If you wish to permit traffic from ip addresses which fall within a particular range, you can do so by specifying the start IP and the end IP.  Thus, you can ensure that all the IP ranges which fall in between receives and transmits data traffic. The terminal given below shows the configuration of ACL commands to permit traffic in all the IP's falling within a particular range.

ACL Networking Cisco - ManageEngine Network Configuration Manager

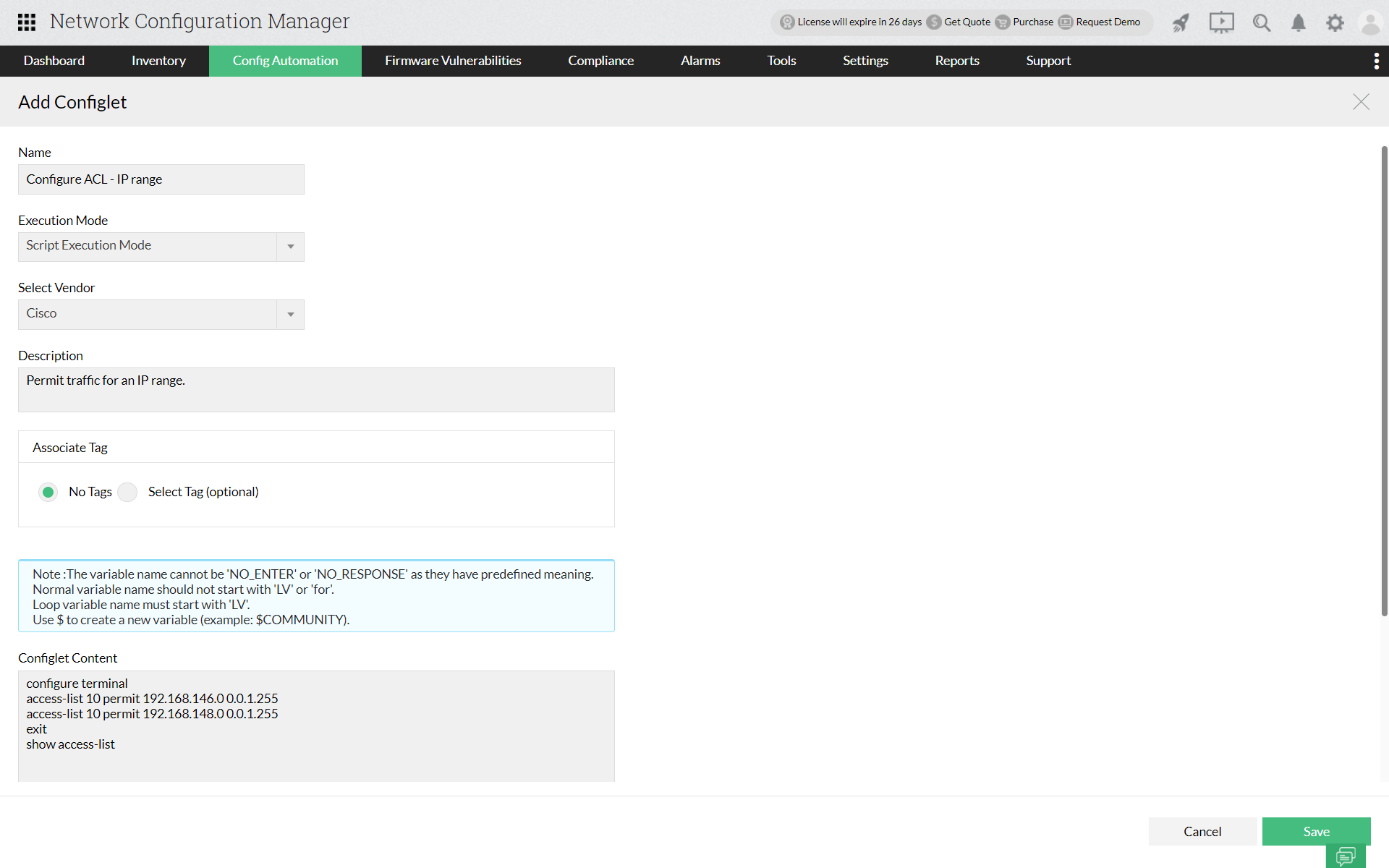

The corresponding configlet commands for executing the above commands in Network Configuration Manager:

Cisco Access Control - ManageEngine Network Configuration Manager

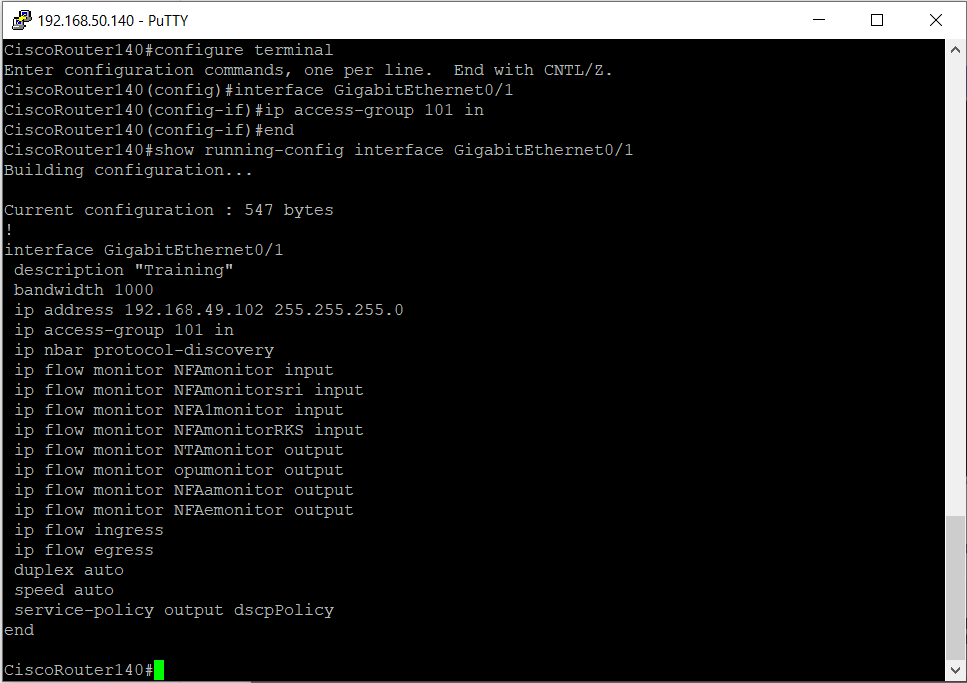

Example 4: If you want to apply an access list to an interface, you can do so by specifying the interface and the access list. The terminal given below shows the configuration of ACL commands to apply the access list created in Example 1 to an interface.

Access Control List in Networking - ManageEngine Network Configuration Manager

Executing ACL in Network Configuration Manager

Access Control List commands can be executed in Network Configuration manager using Configlets. The user can select the most suitable type of Access Control List based on their network needs. Network Configuration Manager primarily uses script execution mode to carry out ACL commands. Once the suitable ACL commands are entered in the "Configlet Content" box, that particular configlet can be pushed to multiple devices in bulk.Thus, Network Configuration Manager helps to keep network traffic under control along with saving users from manually executing commands for every single network device.

Not just that, with the help of configlets you can also upgrade firmware and execute commands to fix errors and to make bulk changes. Click here to know more about Configlets!
