Agent Installation

Installing agents is the first step to manage servers and computers. Agents can be installed manually or automatically. Installing agents manually on all the computers should be a tiring task, so you can automate the entire agent installation process in bulk. The different methods with which you can perform the agent installation is explained below.

Installing the Distribution Server

You can install the Distribution Server by following the steps mentioned below:

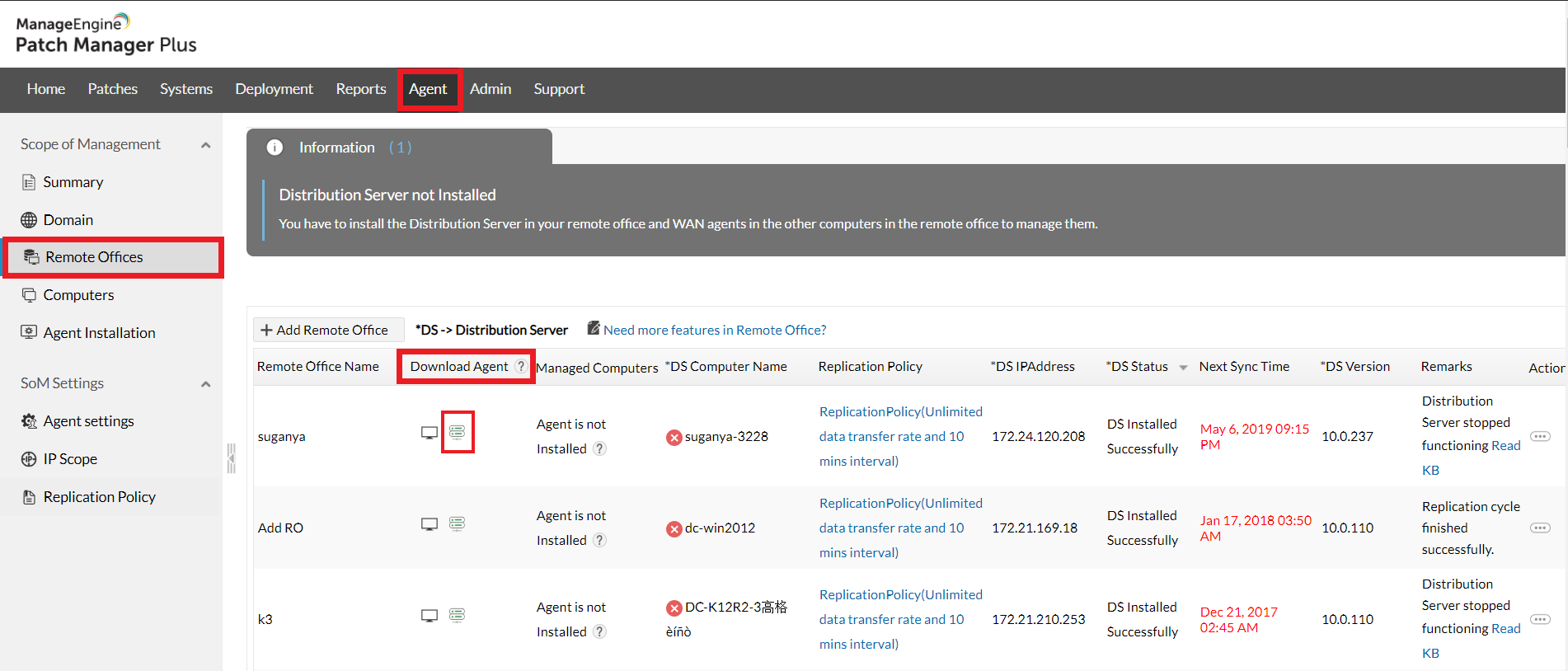

1. Log in to the web console and navigate to the Agent tab.

2. Choose Remote Offices under Scope of Management on the left tab.

3. Select a Remote Office and click on Download Distribution Server under Download Agent . This should be done on the computer, where the Distribution Server needs to be installed.

Download Distribution Server

4. Follow the installation instructions and the Distribution Server will be downloaded.

Installing the Distribution Server and Agents

1. Log in to the web console and navigate to the Agent tab.

2. Choose Agent installation under Scope of Management on the left tab.

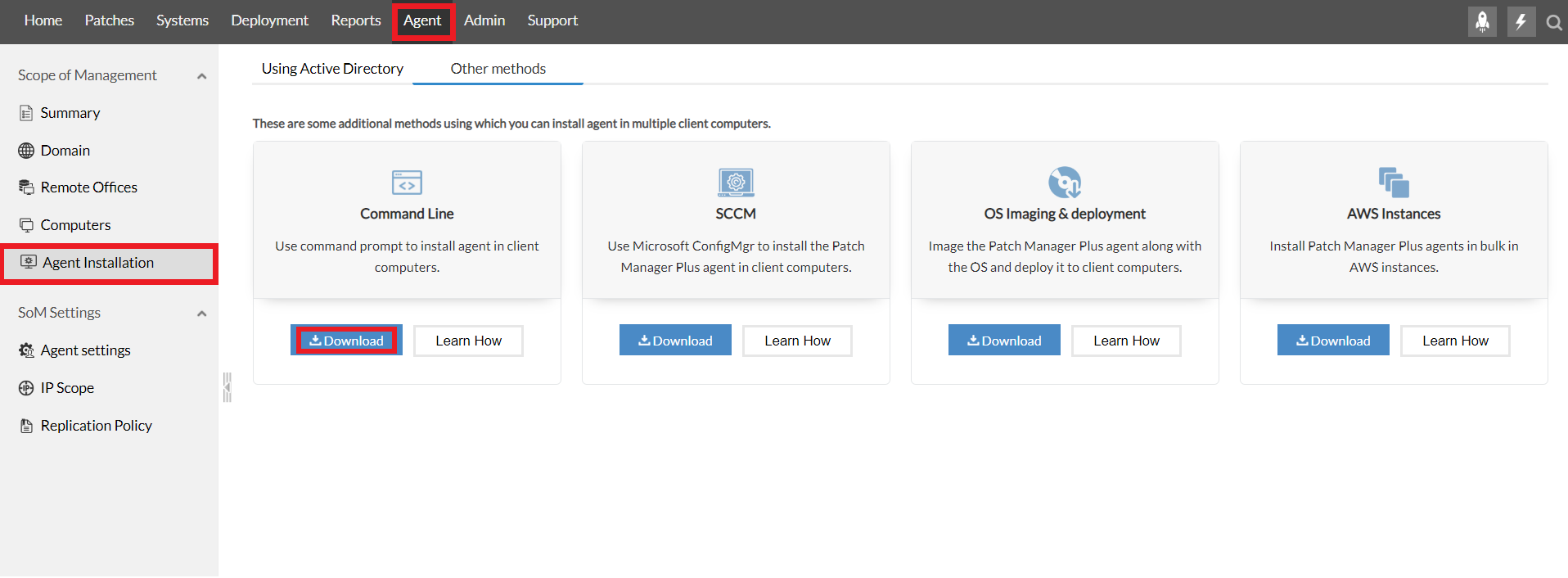

3. Navigate to Other methods and choose the Download option under Command Line tab.

Agent Installation

4. From the downloaded zip file, extract these 3 files and paste them in a shared path, which is accessible by all the computers. (Files to be extracted: i) UEMSAgent.msi (PatchManagerPlusAgent.msi for agent versions below 10.0.662) ii) UEMSAgent.mst (PatchManagerPlusAgent.mst for agent versions below 10.0.662) iii) DCAgentServerInfo.json)

5. From the extracted location, Compress the following files using 7-zip

  • a) UEMSAgent.msi (PatchManagerPlusAgent.msi for agent versions below 10.0.662)
  • b) UEMSAgent.mst (PatchManagerPlusAgent.mst for agent versions below 10.0.662)
  • c) DCAgentServerInfo.json
  • d) Setup.bat
  • 5. Once the download/installation is completed, you can right-click setup.bat and run as administrator to execute it.

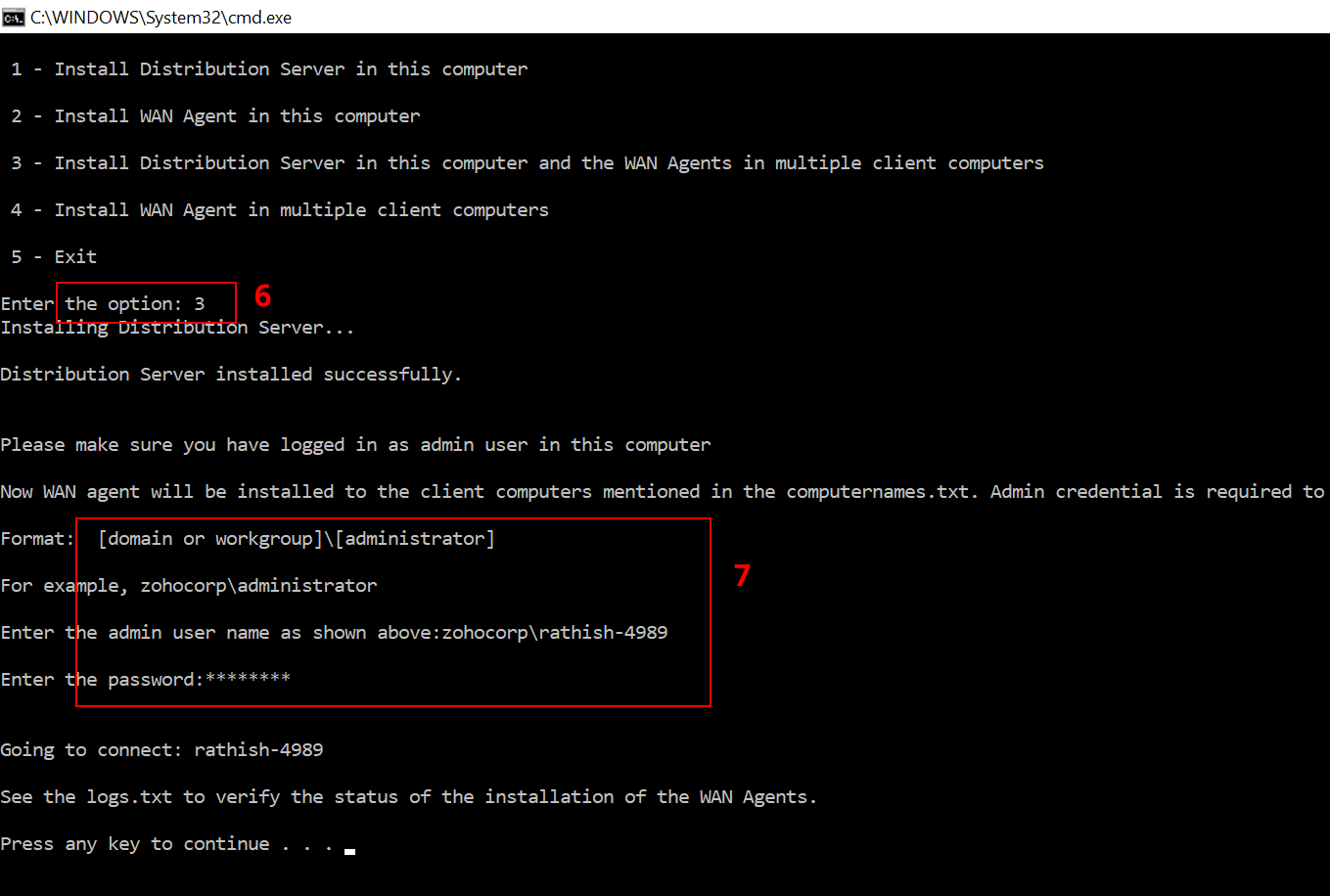

    6. You will be prompted to choose the below-listed options on the command prompt

    1. Install Distribution Server in the computer
    2. Install Agent in this computer
    3. Install Distribution Server in this computer and agents in multiple computers
    4. Install Agents in multiple computers
    5. You should add computer names or IP address in the computernames.txt file and keep them ready for agent installation.

      The admin$\Temp folder of the target machine must be reachable from the computer that we are trying to deploy the agent.

      7. You can choose option 3

      command prompt

      8. Providing the administrator credentials will invoke agent installations on all the target computers.

      If you have already downloaded the Distribution Server, then at step 6 in the command prompt choose option 4.

      9. The agents will be installed in the target computers, but in case you have enabled "Waiting for Approval" then, the further communication with the server occurs only if these target computers are approved from the Waiting for Approval tab that is present at Agent -> Computers -> Waiting for Approval.

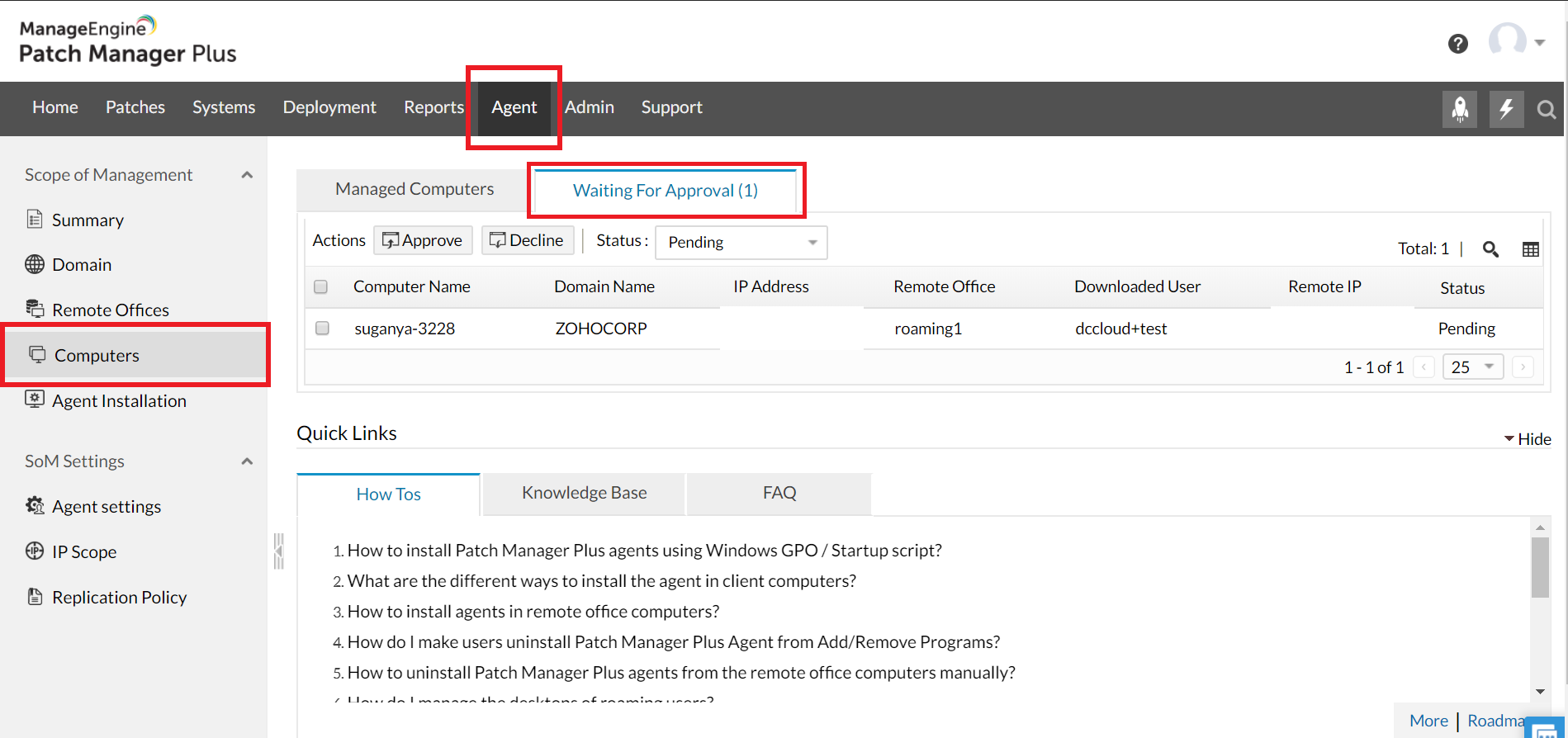

      Waiting for approval

      Note:

      • a) The Waiting for Approval feature is provided to enhance security and prevent the misuse of the product without Admin's knowledge. At this stage the target computer in which the agent is installed can also be declined by the Admin, thereby preventing further communication with the server.
      • b) If you Add Computers through the Managed Computers tab, and then install agents in these computers, the systems don't fall under the 'Waiting for Approval' tab.
      • Read this document to know more on "Waiting for Approval".
Roaming Agent Installation

You can install the Roaming Agents by following the steps mentioned below:

1. Log into web console and navigate to Agent tab.

2. Choose Remote Offices under Scope of Management on the left tab.

3. Select a Roaming agent and click Download WAN Agent under Download Agent.

For roaming agents, only the Download WAN agent option will be available.

4. Follow the on-screen installation instructions to complete the installation.

5. The agents will be installed in the target computers, but in case you have enabled "Waiting for Approval" further communication with the server occurs only if these target computers are approved from the Waiting for Approval tab that is present at Agent -> Computers -> Waiting for Approval.

Waiting for approval

Note:

  • a) The Waiting for Approval feature is provided to enhance security and prevent the misuse of the product without Admin's knowledge. At this stage the target computer in which the agent is installed can also be declined by the Admin, thereby preventing further communication with the server.
  • b) If you Add Computers through the Managed Computers tab, and then install agents in these computers, the systems don't fall under the 'Waiting for Approval' tab.
  • Read this document to know more on "Waiting for Approval".

Now you've successfully installed roaming agents on your target computers.

Agent Installation using GPO script

1. Download the Agent Zip file, extract it, and follow the steps given below:

  • a) Click the Admin tab.
  • b) In the Som Settings section, click Scope of Management.
  • c) Click Download Agent.
  • d) Select the required office.
  • Note: This can be a local office or a remote office depending on which computers you want to install agents in.

       2. Save the .msi, .mst &DCAgentServerInfo.json file in the network share that you've created.

       3. Click Start>Run.

       4. Enter gpmc.msc.

       5. Click OK.

       6. Right-click the domain and select Create and Link a GPO here.

       7. Specify a name for the GPO.

       8. Select the GPO.

       9. Note: If you want to install the agent on only a few client computers, follow the steps given below. To install the agent in all your client computers skip these steps.

  • a) Click the Scope tab.
  • b) In the Security Filtering section, click Add.
  • c) In the Select User, Computer, or Group dialog box, click Object Types.
  • d) Specify specific computer object types.
  • e) Click OK.
  • f) Specify the computer names.
  • g) Click Check Names.
  • h) Click OK.

     10. Right-click the GPO and click Edit.

     11. Expand Computer Configuration>Policies>Windows Settings>Scripts.

     12. Right-click Startup and click Properties.

     13. Click Show Files.

     14. Drag and drop the InstallAgent.vbs (download the .txt file and rename it as .vbs) UEMSAgent.msi UEMSAgent.mst DCAgentServerInfo.json to this location and Copy the location(Domain name\Sys Vol\Domain name\Policies\{ID}\Machine\Scripts\Startup) and close.

     15. In the Startup Properties dialog box, click Add.

     16. Browse and navigate to the location (Domain name\Sys Vol\Domain name\Policies\{ID}\Machine\Scripts\Startup) and select the InstallAgent.vbs script or specify the path (copied location) and the script as mentioned below: (Domain name\Sys Vol\Domain name\Policies\{ID}\Machine\Scripts\Startup)\InstallAgent.vbs.

     17. Specify the script parameters as mentioned below: UEMSAgent.msi UEMSAgent.mst.

     18. Click OK to close the Add a Script dialog box.

     19. Click OK to close the Startup Properties dialog box.

     20. Close the Group Policy Object Editor.

     21. Close the Group Policy Management dialog box.

     22. The agents will be installed in the target computers, but in case you have enabled "Waiting for Approval" then, the further communication with the server occurs only if these target computers are approved from the Waiting for Approval tab that is present at Agent -> Computers -> Waiting for Approval.

Waiting for approval

Note:

  • a) The Waiting for Approval feature is provided to enhance security and prevent the misuse of the product without Admin's knowledge. At this stage the target computer in which the agent is installed can also be declined by the Admin, thereby preventing further communication with the server.
  • b) If you Add Computers through the Managed Computers tab, and then install agents in these computers, the systems don't fall under the 'Waiting for Approval' tab.
  • Read this document to know more on "Waiting for Approval".
  • For agent versions below 10.0.662, replace UEMSAgent.msi with PatchManagerPlusAgent.msi and UEMSAgent.mst with PatchManagerPlusAgent.mst.

You've now installed an agent in client computers using GPO.

Agent Installation the agents using local AD

You can install agents using local AD by following the steps mentioned below:

Note: Distribution Server must be added and installed manually before proceeding with agent installation. To install Distribution Server manually, refer to Installing the Distribution Server and the agents.

1. Agent -> Computers -> Add Computers button. Select a AD connector and add a domain/workgroup.

2. Click the Select Computers link pertaining to a domain/workgroup. This opens the Select Computers dialog listing all the available computers of the domain/workgroup.

3. Select the computers that have to be managed through Patch Manager Plus Cloud and click Ok. You can also manually specify the computer names instead of choosing them from the list. The selected computers get added to the Selected Computers table in the Add Computers view.

4. Repeat steps 2 and 3 for adding computers from multiple domains/workgroups. Select the "Install Agent Immediately" checkbox to install the Patch Manager Plus agents in the selected computers immediately. When this option is not selected, the computers are only added. You need to install the agents later to manage them.

5. Click done to add the selected computers. All the selected computers get added to the Scope of Management.

The Computers page will list all the computers that are being managed by the Cloud along with the status of the agent installation and the agent version. Agents can also be installed at a later stage, by selecting the computers from Agent -> Computers page and clicking the Install Agent button.

Note: Roaming agents cannot be pushed and installed through the AD.



Use agent installation link

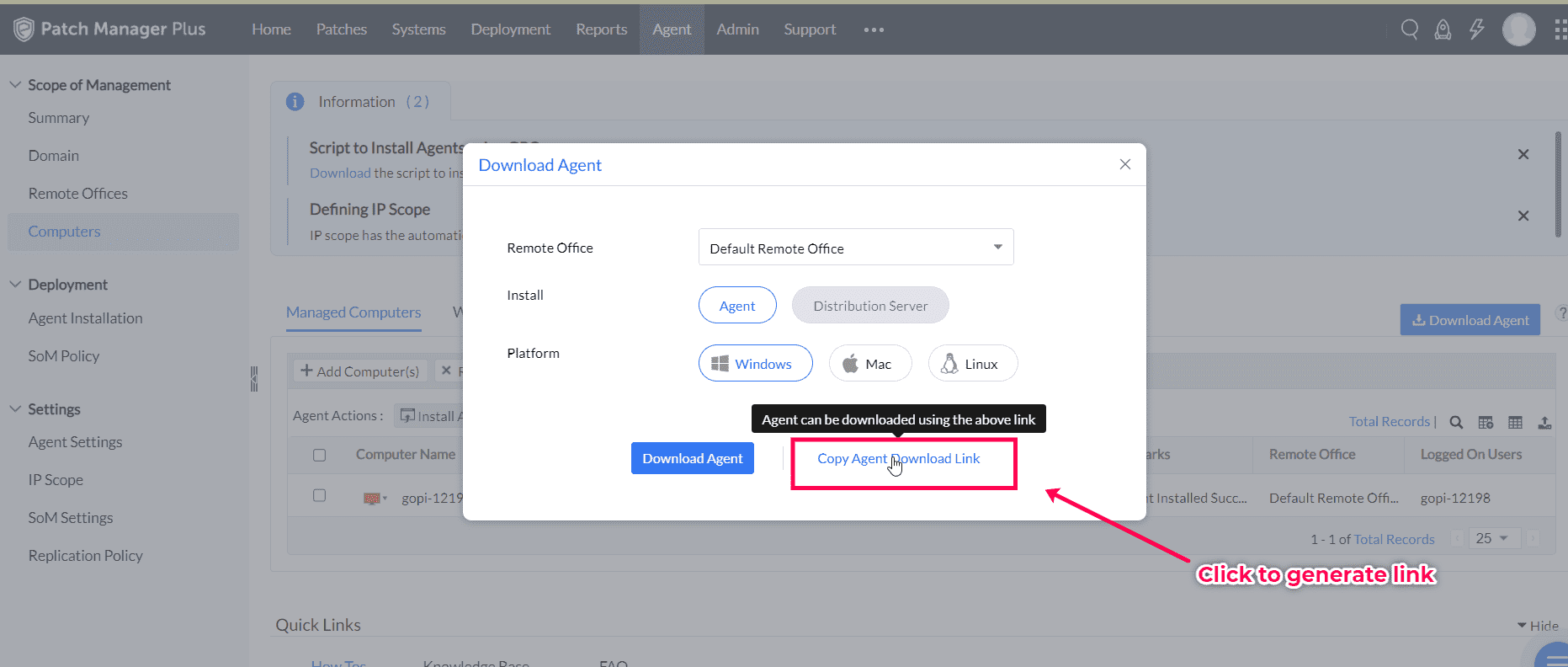

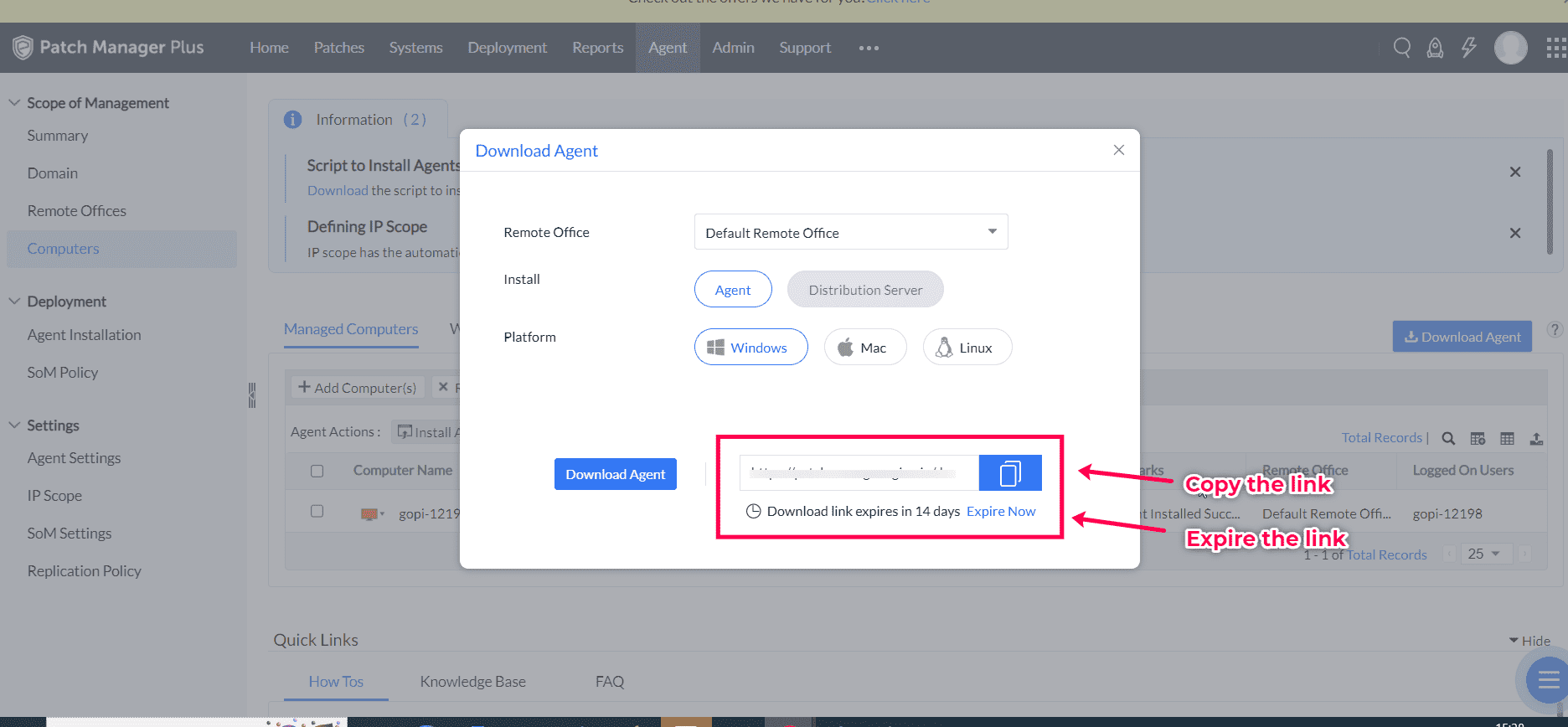

Patch Manager Plus agent can be downloaded from a copied link. The copied link can be shared to end users who could then download and install the agents in their machines. This option is available on clicking Download Agent from the Computers tab. On clicking copy option, the URL for the selected Remote Office will be created. The default expiry time of the URL is 15 days. Using the copied link, agent can be installed:

  • Directly from the browser
  • From the terminal

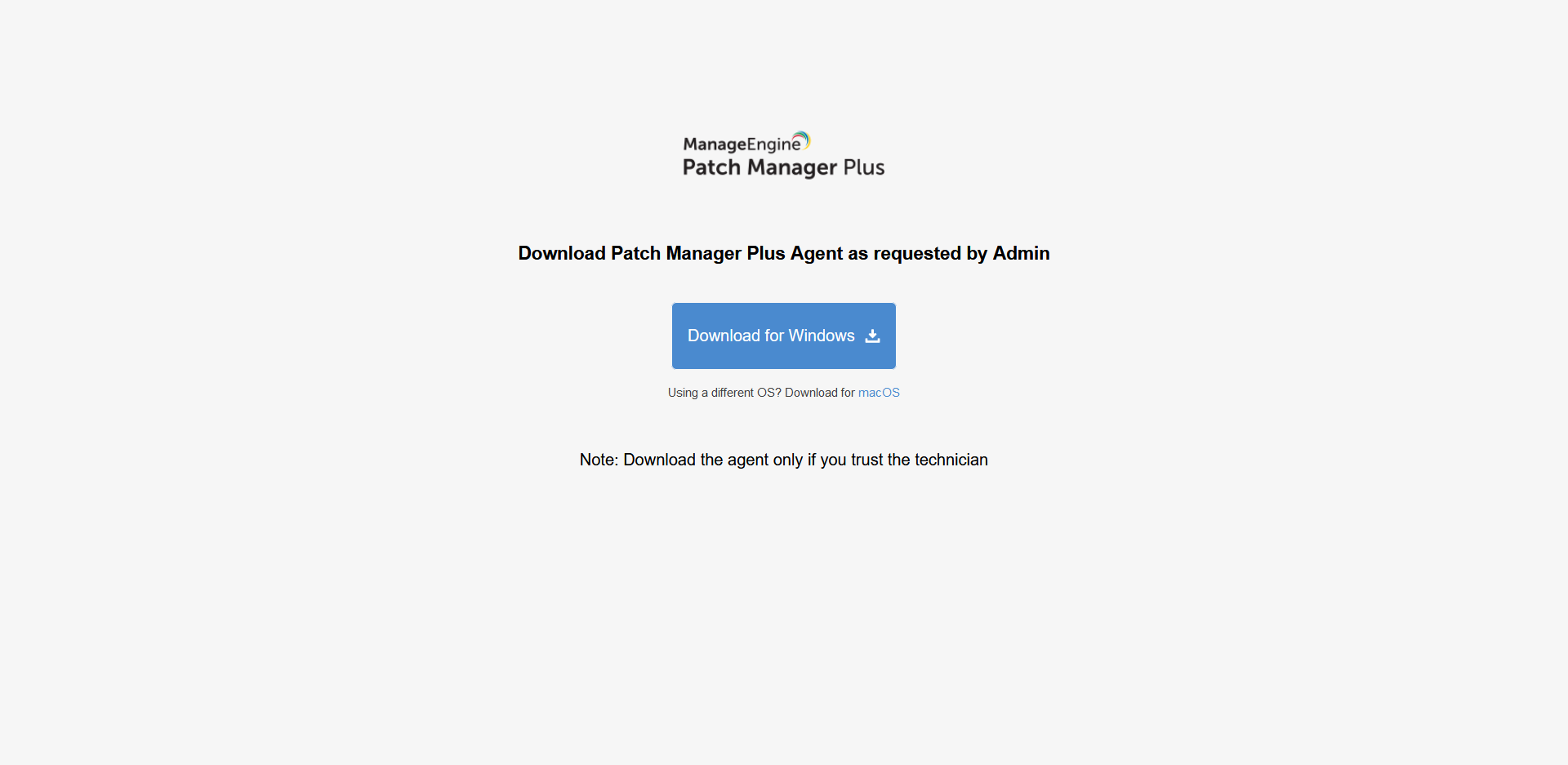

Directly from the browser:

On visiting the copied URL from the browser, the user will be presented with an option to download the agent. The user has to select the OS and the agent download will be initiated. If the user visits the URL from an unsupported browser, an error page will be displayed. If the user visits the copied URL from a supported browser post the expiry time, the error page will be displayed.

From the terminal:

In case the user wishes to download the agent via terminal, he/she can do so, by modifying the copied URL. The format of the copied URL from the console (for US Data Center) is:

https://patch.manageengine.in/link.do?actionToCall=download&encapiKey=<encapiKey>

For terminal based download, an extra OS parameter is required:

https://patch.manageengine.in/link.do?actionToCall=download&encapiKey=<encapiKey>&os=<supported-os>

Valid OS parameters are:

  • Windows
  • macOS
  • Linux
  • Note: OS must be supported for the product for which agent is downloaded.

    Agent can be downloaded using CURL. The CURL download command is:

    • curl "paste_copied_url_with_os_param" --output DCAgent.exe - (Windows)
    • curl "paste_copied_url_with_os_param" --output DCAgent.zip - (macOS or Linux)

    copy-link-1

    copy-link-2

    copy-link-3

    Silent Installation of Agent EXE (Windows):

    Once the URL is downloaded, the agent can be installed silently using EXE itself for Windows machines by adding "/silent" argument. The command to install agent is:

    DCAgent.exe /silent

    Alternatively, the installation process can be automated using a powershell script.

    1. Replace the url in the below script with the copied url
    2. Save the script as .ps1 filetype
    3. Run the powershell script

    Downloaded User:

    For additional security, on enabling waiting for approval option, we can get to know from which technician's shared link, the agent was installed. Based on this, we can approve the computers to be managed.

Agent Installation using SCCM

You can install agents using SCCM by following the steps mentioned below:

1. Go to Agent -> Agent installation -> Other Methods and click Download option under SCCM.

2. From the downloaded zip file, extract these 3 files and paste them in a shared path, which is accessible by all the computers. (Files to be extracted: i) UEMSAgent.msi (PatchManagerPlusAgent.msi for agent version below 10.0.662) ii) UEMSAgent.mst (PatchManagerPlusAgent.mst for agent version below 10.0.662) iii) DCAgentServerInfo.json)

3. Change the shared path location as mentioned in the batch file.

4. Create an SCCM package with this script.

5. Deploy the package.

6. The agents will be installed in the target computers, but in case you have enabled "Waiting for Approval" then, the further communication with the server occurs only if these target computers are approved from the Waiting for Approval tab that is present at Agent -> Computers -> Waiting for Approval.

Waiting for approval

Note:

a) The Waiting for Approval feature is provided to enhance security and prevent the misuse of the product without Admin's knowledge. At this stage the target computer in which the agent is installed can also be declined by the Admin, thereby preventing further communication with the server.

b) If you Add Computers through the Managed Computers tab, and then install agents in these computers, the systems don't fall under the 'Waiting for Approval' tab.

Read this document to know more on "Waiting for Approval".

Agent Installation using Microsoft Intune

You can install agents using Microsoft Intune by following the steps mentioned below:

  1. Open the Patch Manager Plus admin console
  2. Click on Scope of Management
  3. Click on
  4. Install the executable <RemoteofficeName>_Agent.exe manually in a machine without an agent (test machine). If the agent installation fails in this machine, retrace the steps again. If the installation succeeds then proceed.
  5. Download the zip from this GIT page.
  6. Extract IntuneWinAppUtil.exe from the downloaded zip.
  7. Double click the IntuneWinAppUtil.exe and provide the following input
    • Source folder: <directory_of_agent.exe>
    • Setup file: <RemoteofficeName>_Agent.exe
    • Output folder: <output_directory>
    • Do you want to specify catalog folder (Y/N)? N
  8. agent.intunewin will be created in the specified <output_directory>
  9. Use the agent.intunewin app package for deployment in Intune.
    To configure the app package :
    Install Command : <remoteoffice_name>_Agent.exe /silent
    Example:LocalOffice_Agent.exe /silent
    Uninstall Command : msiexec.exe /x{6AD2231F-FF48-4D59-AC26-405AFAE23DB7} /qn
    (The Uninstall command is same for all .exe files and is not remote office specific)
    Detection Rule : Manually configure detection rule.
    Rule type : MSI
    MSI product code : {6AD2231F-FF48-4D59-AC26-405AFAE23DB7}
    MSI product version check : No
  10. Now you can deploy the agent through Microsoft Intune to the machines in your network.
  11. The agents will be installed in the target computers, but in case you have enabled "Waiting for Approval" then, the further communication with the server occurs only if these target computers are approved from the Waiting for Approval tab that is present at Agent -> Computers -> Waiting for Approval.

    Note:

    • a) The Waiting for Approval feature is provided to enhance security and prevent the misuse of the product without Admin's knowledge. At this stage the target computer in which the agent is installed can also be declined by the Admin, thereby preventing further communication with the server.
    • b) If you Add Computers through the Managed Computers tab, and then install agents in these computers, the systems don't fall under the 'Waiting for Approval' tab.
    • Read this document to know more on "Waiting for Approval".
Bulk Installation of Agents in AWS Instances

The following are the steps to install agents in bulk in AWS Instances

  1. Create S3 Bucket in the region you want to deploy the Agents.
  2. Upload all files from the downloaded Agent zip folder to the created bucket and set the permission as public.
  3. Create IAM role for SSM.
    • a) In the IAM console navigate to Roles -> Create Roles.
    • b) In the Select type of trusted entity, choose AWS service.
    • c) Choose the service EC2.
    • d) If the specified service has only one use case, it is selected automatically after which choose NEXT: Permissions.
    • NOTE: Use cases are defined by the service to include the trust policy that the service requires.

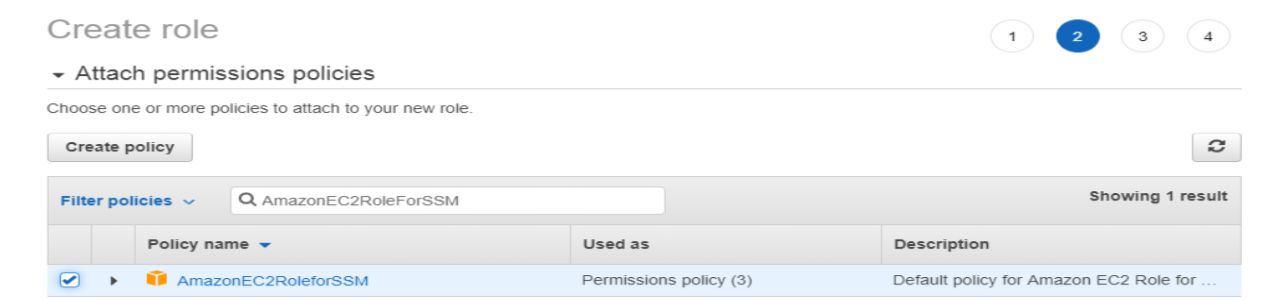

    • e) In the Create role window as given in the figure below, search for AmazonEC2RoleForSSM and select it.
    • Agent Installation-AWS instances

      Note: You can also add AmazonEC2RoleForSSM in the already existing IAM role.

    • f) Choose NEXT: Review.
  4. Change EC2 settings.
    • a) Select the existing instance.
    • b) Choose Action at the top of the screen.
    • c) Choose Instance settings and assign the created role.
  5. Run the command to install the agents in AWS Instances.
    • a) In the AWS System Manager console, choose Run Command
    • b) Run the following command :
    • Note: BUCKETPATH is object URL.
      New-Item -ItemType directory -Path C:\\LocalOffice\\localsetup
      $WebClient = New-Object System.Net.WebClient $WebClient.DownloadFile("BUCKETPATH/DCAgentServerInfo.json","LOCALPATH/DCAgentServerInfo.json") $WebClient.DownloadFile("BUCKETPATH/UEMSAgent.msi","LOCALPATH/UEMSAgent.msi") $WebClient.DownloadFile("BUCKETPATH/UEMSAgent.mst","LOCALPATH/UEMSAgent.mst") $WebClient.DownloadFile("BUCKETPATH/setup.bat","LOCALPATH/setup.bat") cmd /c msiexec /i C:\\LocalOffice\\localsetup\\UEMSAgent.msi REBOOT="REALLYSUPPRESS" MSIRESTARTMANAGERCONTROL="Disable" TRANSFORMS=C:\\LocalOffice\\localsetup\\UEMSAgent.mst ENABLESILENT=yes /qn
  6. For agent versions below 10.0.662, replace UEMSAgent.msi and UEMSAgent.mst with PatchManagerPlusAgent.msi and PatchManagerPlusAgent.mst respectively

  7. The agents will be installed in the target computers, but in case you have enabled "Waiting for Approval" then, the further communication with the server occurs only if these target computers are approved from the Waiting for Approval tab that is present at Agent -> Computers -> Waiting for Approval.

Waiting for approval

Note:

  • a) The Waiting for Approval feature is provided to enhance security and prevent the misuse of the product without Admin's knowledge. At this stage the target computer in which the agent is installed can also be declined by the Admin, thereby preventing further communication with the server.
  • b) If you Add Computers through the Managed Computers tab, and then install agents in these computers, the systems don't fall under the 'Waiting for Approval' tab.
  • Read this document to know more on "Waiting for Approval".
