Setting Path



Path is an environment variable that contains the path prefixes that certain applications, utilities, and functions use for searching an executable file. The Path Configuration enables you to add path prefixes to this variable.

Step 1: Name the Configuration

Provide a name and description for the Path Configuration

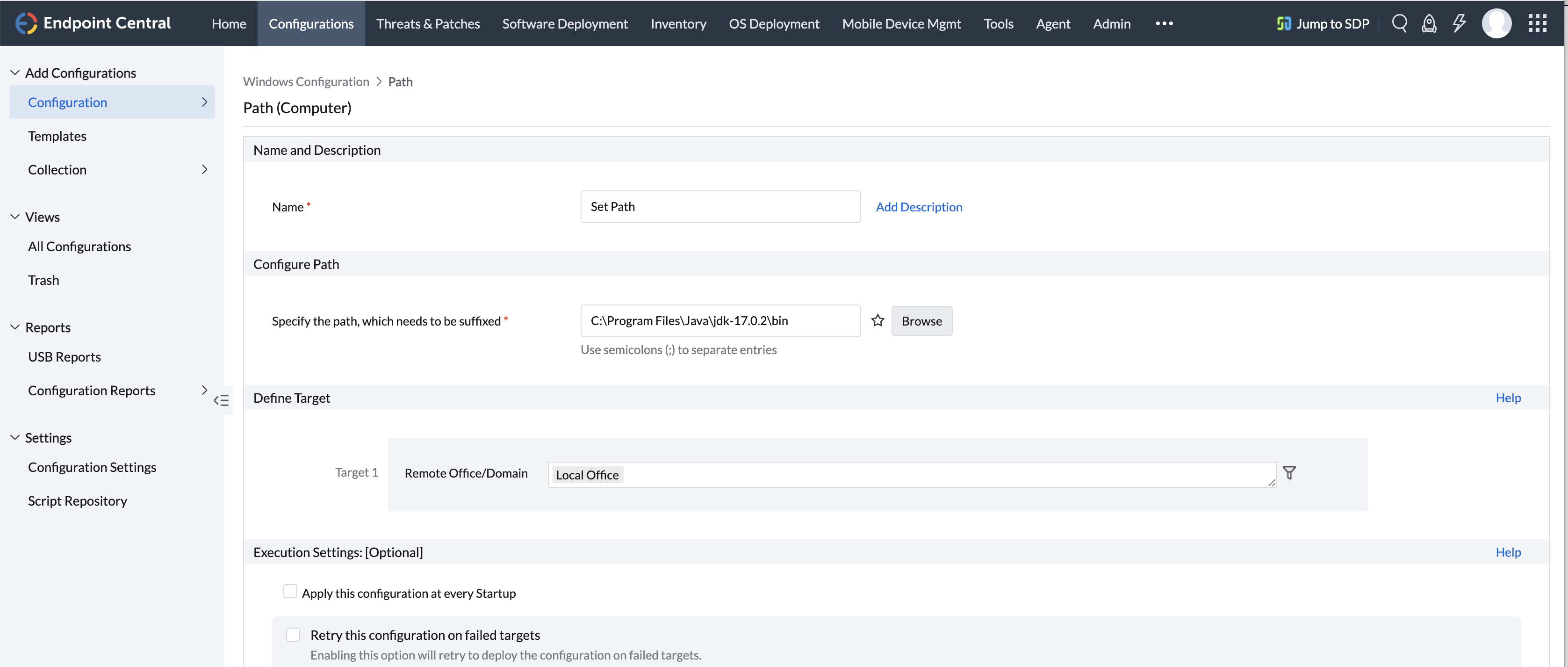

Step 2: Define Configuration

Specify the path to be added to the environment variables. Multiple paths can be specified separated by a semi-colon (;). Click the icon to select and assign a dynamic variable to the Path variable.

Step 3: Define Target

Using  the Defining Targets procedure, define the targets for deploying the Path Configuration.

Step 4: Deploy Configuration

Click the Deploy button to deploy the defined Path Configuration in the targets defined. The configurations will take effect during the next system startup.

To save the configuration as draft, click Save as Draft.
