NetScreen reports

EventLog Analyzer supports NetScreen Firewall and provides out-of-the-box reports for the following categories of events:

• NetScreen events: Detailed information on all events on NetScreen devices.
• Firewall Allowed and Denied Traffic: Provides insights on traffic based on source, destination, protocol and port, also provides a report on traffic trends.
• Firewall Website Traffic: Traffic reports based on source, destination, and website traffic trend.
• Successful and Failed Logons: Provides source and user based reports, trend reports.
• Firewall Accounts Management: Provides reports on administrator added, deleted or modified.
• Firewall Policy Management: Provides information on policies added, deleted, or modified.
• Firewall IDS/IPS Events: Provides insights on attacks based on source and destination IP address, also provides a report on attack trends.
• System Events: Provides reports on configuration changes, clock update, system status, start and stop of services.
• Failed VPN Logon Reports: Monitors the VPN activities from pfSense logs and offers out-of-the-box reports for failed VPN logons.
• Device Severity Reports: Provides reports on emergency, alerts, critical, error, warning, and notice events.

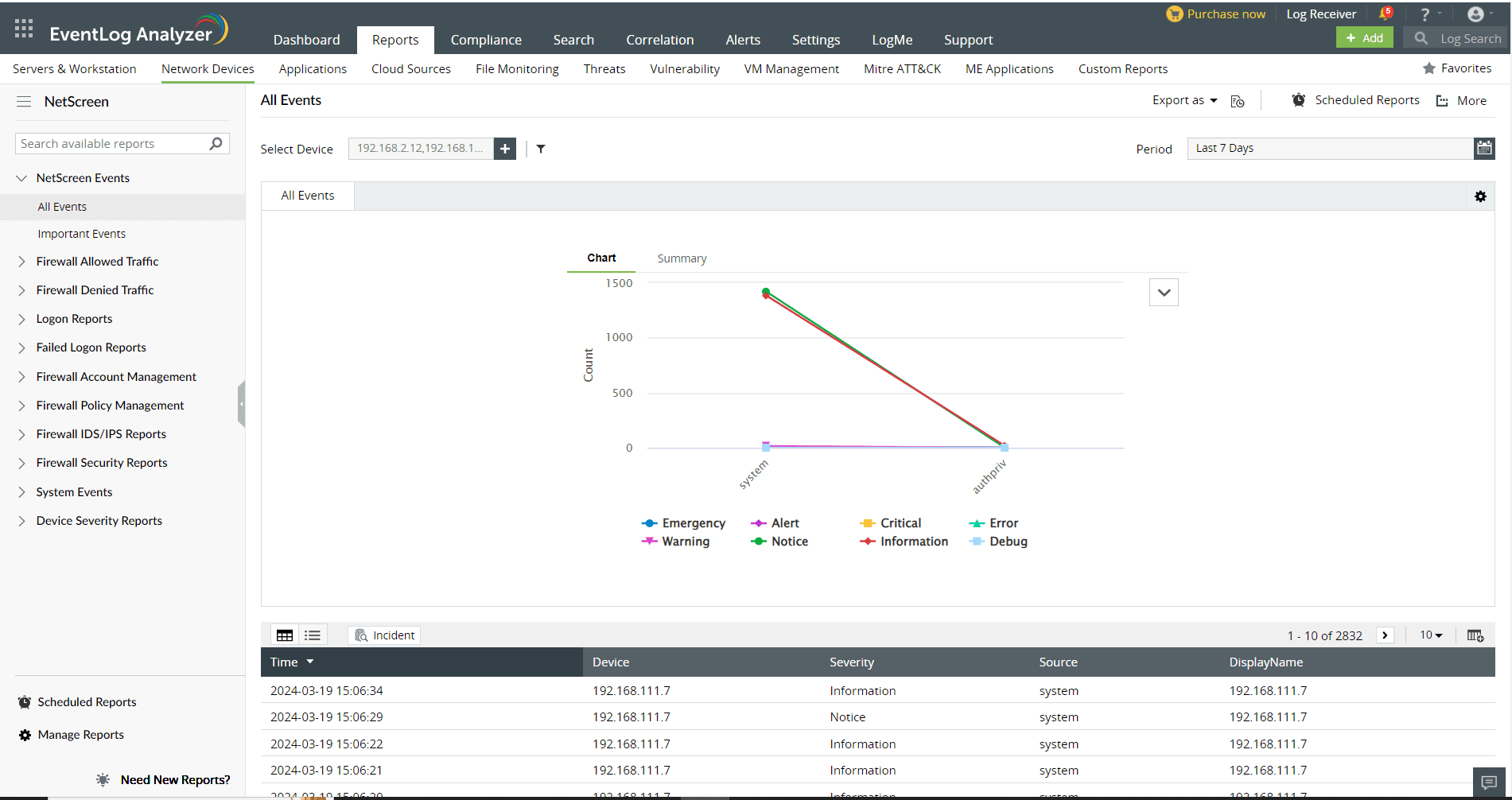

NetScreen Reports Dashboard

• Go to the Reports section. Select NetScreen from the displayed list of vendors.
• In the left pane, all the available out-of-the-box reports for NetScreen will be listed. Select the report you want to view.
• To generate reports for a specific NetScreen device, click Select Device drop down list on the right pane and choose the needed NetScreen devices. Click Add.

• You can further generate reports based on Source, Severity and Device. Use logical operators as required.

• If you want to generate the reports for a specific time period, select the Period calendar option from the top right corner, specify the time period, and then click Apply.

• To export a report, click Export as and choose the format. The solution allows you to export the reports in PDF and CSV formats.

• To generate and redistribute the reports over email at periodic time intervals, you can use the Schedule Reports option.

• The More link at the top right corner provides you the below customization options:
1. Set as Default: Allows you to set the selected report as the default report.
2. Add to Favorites: Marks the selected report as favorite.
3. Pin to dashboard: Pins the selected report to the dashboard in the Home page.
