Configuring D-Link Devices


Firewall Analyzer supports Cyberoam Firewall Version: 9.5.4 build 66 onwards

Configure D-Link Devices

To configure D-Link device to forward syslogs to Firewall Analyzer, carry out the procedure given below.

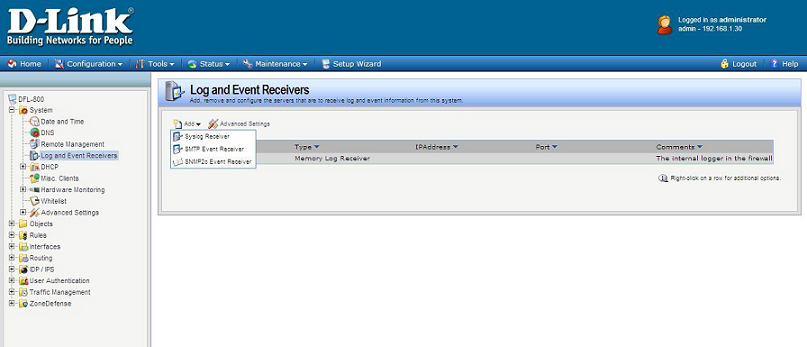

  1. Navigate to System > Log and Event Receivers > Add

D-Link CS1



  1. Select 'Syslog Receiver' and configure the following:
    • Name: syslog_client
    • IP Address: 192.168.1.30 (In this case IP address of Firewall Analyzer host machine is 192.168.1.30)
    • Facility: local0 (default)
    • Port: 514 (default)

D-Link CS2

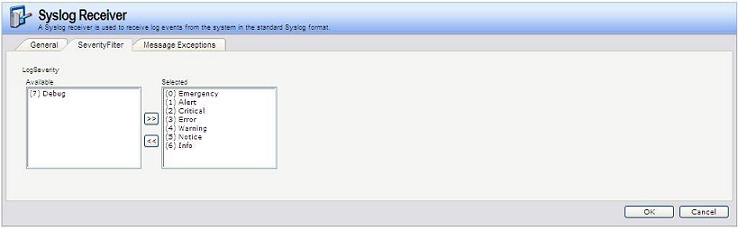

  1. Select Severity filter



  1. Configure SNMP

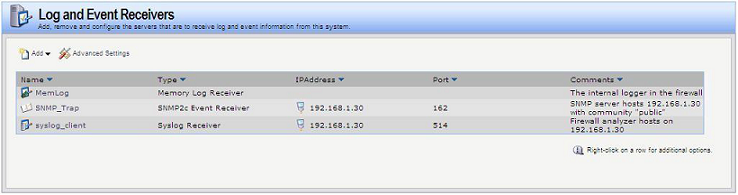

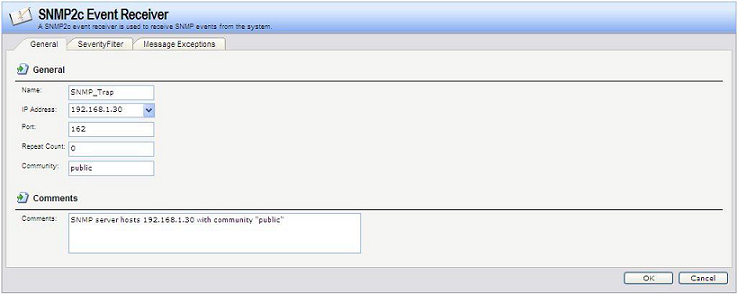

    Navigate to System > Log and Event Receivers > Add again to add a SNMP2c Event receiver as given below in the image:



    Name: SNMP_Trap

    IP Address: 192.168.1.30 (In this case IP address of Firewall Analyzer host machine is 192.168.1.30)

    Port: 162

    Repeat Count: 0

    Community: public

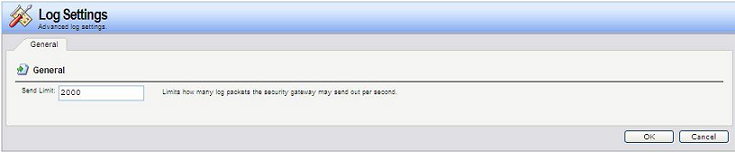

  1. If syslog count goes beyond 2000 logs/second, navigate to System > Log and Event Receivers > Advanced Settings

Advanced Settings
