Network Packet Sensor

Network Packet Sensor is an agent installation that can operate as a NetFlow Generator, NetSpeed Tracker, and Deep Packet Inspection(DPI) engine. With Network Packet Sensor, servers, and network traffic can be monitored and also conduct deep packet inspection. NetFlow Generator passively captures and converts network packets into NetFlow Packets and monitors for devices that don't support flow. With DPI Engine, server traffic is monitored and packet level inspection is conducted to track Application Response Time and Network Response Time. NetSpeed Tracker is an agent installation for NetFlow Analyzer that analyzes and keeps track of the internet speed provided by an ISP. In particular, it monitors the upload and download volume of data at different time intervals and provides insights into jitter and latency issues.

Download Network Packet Sensor Agent

Establish that NetFlow Analyzer is running in HTTPs mode. Network Packet Sensor only works if NetFlow Analyzer running in HTTPs mode. Network Packet Sensor package runs as NetFlow Generator, DPI Engine, and NetSpeed Tracker. As per your monitoring needs, you can enable or disable the functioning modes or choose all three. However, during Installation, you can only choose either NetFlow Generator, DPI Engine, or NetSpeed Tracker.

Click here to learn more about the prerequisites for installing Network Packet Sensor

1. In the NetFlow Analyzer console, navigate to Settings > ITOM Agent > Network Packet Sensor.
2. Enable SSL certificate. Click here to learn how to enable SSL Certificate.
3. Remote in or login to the server that needs to install Network Packet Sensor and open NFA GUI.
4. Navigate to Settings > ITOM Agent > Network Packet Sensor.
5. Download Network Packet Sensors for Windows or for Linux at the bottom of the Network Packet Sensor Page as shown in the image below.



6. Once the download is complete, proceed with the installation of Network Packet Sensor.

Installing Network Packet Sensor in Microsoft Windows

1. Launch Network Packet Sensor installation (.exe) file and click Next to start the installation




2. Verify and Accept the license agreement and click next




3. Choose the destination folder location (optional) or click Next to continue




4. A pop up message to verify the pre-requisites will appear. Click OK to proceed, if the prerequisites are met




5. Review the installation path details shown and then click Next




6. Select the operation as NetFlow Generator, Deep Packet Inspection, or NetSpeed Tracker depending upon your requirement and click Next




7. In the communication panel, enter the Host name, HTTPs Port, Sensor Name and Sensor Installation Key. You can copy the Sensor Installation Key details from the NetFlow Analyzer GUI under Settings > ITOM Agent > Network Packet Sensor.




   Host Name	Host name of the server in which NetFlow Analyzer is running
   HTTPs Port	Port Number that NetFlow Analyzer runs on
   Sensor Name	Device name for Network Packet Sensor
   Sensor Installation Key	The Key displayed in NetFlow Analyzer GUI

8. Once the communication between NetFlow Analyzer and Network Packet Sensor is complete, a message "Network Packet Sensor has successfully registered with NetFlow Analyzer server will pop up. Click ok to proceed




9. Select Ethernet Card from the drop down list box




10. Click Finish to close the installation wizard, and launch the application




Once the installation is complete, Network Packet Sensor will run as a service in the background.

Installing Network Packet Sensor in Linux (Console)

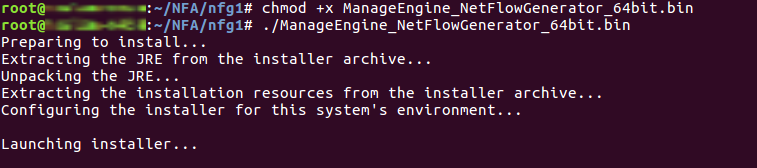

• To launch the installer, type the following commands
  chmod +x ManageEngine_NetworkPacketSensor_64bit.bin
  ./ManageEngine_NetFlowGenerator_64bit.bin-i console
  where ManageEngine_NetworkPacketSensor_64bit is the name of the downloaded BIN file




• Once the introduction appears, press Enter to continue




• Now the license agreement part is displayed, press Enter to continue




• Verify the installation folder, and type "Y" to continue




• After confirming the pre-installation summary, press enter to start installing




• Select the operation as NetFlow Generator, Deep Packet Inspection, or NetSpeed Tracker depending upon your requirement and enter the number of your choice or press to accept the default.
• In the communication details section, type in the following details

  Host Name	Host name of the server in which NetFlow Analyzer is running
  HTTPs Port	Port Number that NetFlow Analyzer runs on
  Sensor Name	Device name for Network Packet Sensor
  Sensor Installation Key	The Key displayed in NetFlow Analyzer GUI


• Once the installation key is verified and communication with NetFlow Analyzer server is established, Ethernet card details will be shown, select the Ethernet card option number to be used for capturing network packets, from the displayed options

• Once this is done, the installation will complete and the Network Packet Sensor will start running as a service.

Installing NetFlow Generator in Linux(GUI Mode)

• Type the following command in the terminal to convert the binary file to executable file
  chmod +x ManageEngine_NetworkPacketSensor_64bit.bin
• To launch the executable file type the following command
  ./ManageEngine_NetworkPacketSensor_64bit.bin
• Once the installation wizard opens, click next to begin installation

• Click on the "I accept the terms of the License Agreement" radio button, and click Next

• Select the installation directory by clicking on the "Choose" button and click Next
• Verify the pre-installation summary and click the install button to begin extraction

• Select the operation as NetFlow Generator, Deep Packet Inspection, or NetSpeed Tracker depending upon your requirement and click Next.




• After the Server type selection, type in the Communication details, which includes


  Host Name	Host name of the server in which NetFlow Analyzer is running
  HTTPs Port	Port Number that NetFlow Analyzer runs on
  Sensor Name	Device name for Network Packet Sensor
  Sensor Installation Key	The Key displayed in NetFlow Analyzer GUI



• Type in the Ethernet card number in the textbox for capturing network packets, from the Ethernet adapter box, and click next to finish up the installation




• Once you click the finish button, the installation will complete and the Network Packet Sensor starts running as a service.

Starting Network Packet Sensor as a service in Windows

1. Open Services in taskbar and double click ManageEngine Network Packet Sensor that you intend to start.
2. Click the Start button.

Once the steps are complete, ManageEngine Network Packet Sensor will start running on the device.

Stopping Network Packet Sensor as a service in Windows

1. Open Services in taskbar and double click ManageEngine Network Packet Sensor that you intend to stop.
2. Click the Stop button.

Once the steps are complete, ManageEngine Network Packet Sensor will stop running on the device.

Uninstalling Network Packet Sensor as a service in Windows

1. Open Control Panel and navigate to Add/Remove programs in which Network Packet Sensor is listed.
2. Click the ManageEngine Network Packet Sensor program and click Uninstall or right click on the ManageEngine Network Packet Sensor program and click Uninstall.

Once the steps are complete ManageEngine Network Packet Sensor will be uninstalled from the device.

Starting or stopping Network Packet Sensor as service in Linux

1. Execute .linkAsService.sh from PacketSensor/bin with root login
2. Start Network Packet Sensor by executing systemctl start PacketSensor.service or /etc/init.d/PacketSensor.service start files, depending on your OS version.
3. Check the status of Network Packet Sensor by executing the systemctl status PacketSensor.service or /etc/init.d/PacketSensor.service status commands.
4. Network Packet Sensor will now start as a service and start showing server traffic data.
5. Stop Network Packet Sensor by executing the systemctl stop PacketSensor.service or the /etc/init.d/PacketSensor.service stop commands.

Uninstalling Network Packet Sensor as a service in Linux

1. Open installed folder PacketSensor /bin directory.
2. Type the following command ./SensorService stop and type Delete the folder.

Network Packet Sensor will be removed from your device.
