Device control Plus provides an option to create custom group of computers and users, which can be used as targets for applying the configurations. The advantages of custom groups are,
In version 10.0.598 and above, custom groups can be created by technicians with write permission for deployment activities. However these custom groups can be created only on the basis of computers and not users. The managed computers can be filtered by the created custom groups using custom group Filters.
In version 11.2.2331.01 and above, custom groups can be created from Active Directory groups. Replicate organizational structure as exists in the Active Directory into the scope of the product, instead of repeating the process of defining individual groups. Predefined objects in the AD will be created and reflected as different groups in the product.
Custom Group creation can also be done on the basis of Domains/Organizational Units (OUs)/AD Groups that exist in the Active Directory. Any sub-objects/ child OUs present under the selected domain/parent OUs will be automatically created as separate custom unique groups.
This document will explain you on the three types of custom groups, they are:
The following links will help you in creation of custom groups:
You can define a static group, when you have a definite set of users/computers to be added to this group. If you want to add or remove users/computers in this group, it has to be done manually. A computer can be a part of more than one static custom group. These groups are created as target, for deploying configurations.
Static custom groups can also be created by directly choosing the pre-existing subgroups from the AD. All the available groups under the AD will be listed in the product, and the necessary groups can be selected and created into a separate custom groups. Existing subgroups in the selected objects of the AD will be created as individual custom groups (if they aren't already a custom group in the product), with the following naming pattern: AD Group Name - Parent OU - Domain. In the case that the provided name already exists, sequential numbers will be added at the end. [Eg: AD Group Name - Parent OU - Domain (1)]
A Static unique group is a static group, where the computers belonging to this group cannot be added to any other groups. Computers added to a Static Unique group once, will not be listed, when you try to create another group of the same kind. The main purpose of the creating a Static unique group is to associate these groups as Scope for the users. All the privileges to manage this group can be defined only by the administrator.
The creation of static unique custom groups can also be done by syncing the AD with Device Control Plus server. By selecting the Domain/Organizational Unit (OU) while creating the static unique group, all the computers listed under that domain/OU will be associated into that static unique group. If a computer already exists in another group, it will not be added to the new static unique group. Only one particular Domain/OU can be mapped to a custom group. Sub OUs in the selected OU of the AD will be created as individual custom groups (if they aren't already a custom group in the product), with the following naming pattern: AD OU - Parent OU - Domain The Sub-OU based CGs will be mapped to the parent OU CGs.
NOTE: You can also import a csv file to add computers to a static or static unique group. The csv should contain the name of the computer followed by the domain name as explained below:
Computer Name, Domain Name
system101,companyorg
A Dynamic Group is the one that is created with a set of rules or criteria. Based on the defined criteria, the computers gets automatically added to this group. Any new computer matching the criteria will automatically get added to this group. The computers belonging to this group are generated only during the execution configuration. The defined queries will be applied and the result will be published as the Dynamic Custom Group.

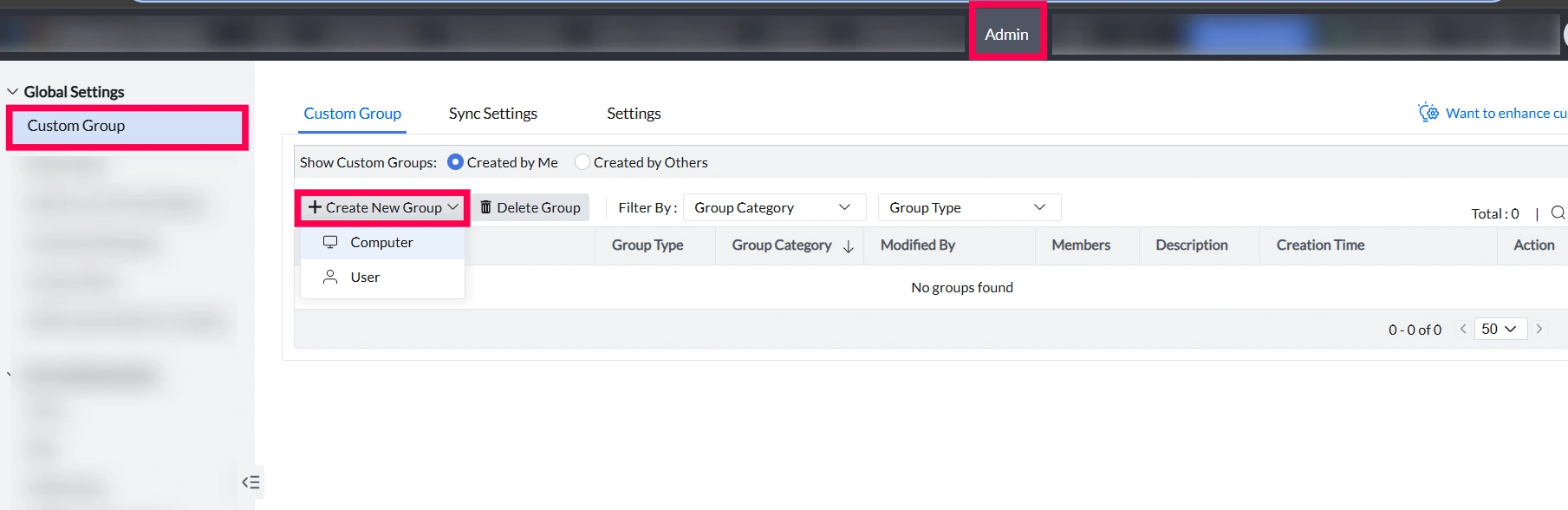

To create a custom group, follow the steps below:
NOTE: By default, the users/computers will be displayed in Tree View. Use List View link to view users/computers as a list. Manual entry of computers/users is possible using Manual Input option.
NOTE: Administrators and technicians can create Custom Groups with computers that belong to their scope.
Custom groups can be created automatically using Active Directory objects by configuring the sync setting as follows:
You have now automated custom group creation from the Active Directory.
Note: A sync between the AD and Device Control Plus server happens everyday at particular time intervals each day (can be configured by the administrator). To reflect the AD changes immediately in the product, the sync can be initiated manually as well. The maximum number of tries for manual sync between the product and the Active Directory is limited to 4 times a day.
Note: Incorrect User/Computer will not be added and the application will throw an error. In that case, specify the correct User/Computer name and add it again.
You have successfully created a custom group, which can be used for management purposes.
