Patch Management - Knowledge base

Description

This document provides solutions for some of the common error codes that you might face while installing Windows 11.

Errors you might encounter while installing Windows 11

Error Codes
Cause
Workaround

  • Unknown error code : 50001

Error due to can't get the data from the ISO

Logs are necessary to find what is the exact reason.

  • Incorrect Function

  • Unknown error code : 50002

  • Unknown error code : 50004

  • Invalid function

  • The system cannot find the file specified

Corrupted ISO File

Delete the existing ISO File from the patch store. Then, re-download the ISO file from MS365 Admin Center or using the media creation tool and rename and copy the ISO file in the patches store and re-deploy the feature pack update.
  • Unknown error code: 50003
 Edition Mismatch
This error occurs if you have the Enterprise edition of Windows 11 but try to deploy the ISO file of other editions.		 Kindly download and deploy the ISO file that applies to your edition.
  • Access is denied
  • Unknown error code: 50005
 You might have configured GPO / Antivirus / Endpoint Security to block external drives and launching of setup.exe [OR] Access was denied to migrate the data. Follow the below steps to resolve the issue.
  1. Allow external drives mounting and launching of setup.exe in your GPO / Antivirus / Endpoint Security.
  2. Make sure that you have given read/write access to the following folders (C:\Users\USERNAME\AppData, C:\Windows\System3 & C:\Apps)
  3. Go to C: drive in the file explorer.
  4. Click View and check the Hidden Files check box.
  5. Rename the folder named $WINDOWS. ~ BT.
  6. Redeploy the feature pack.
  • Unknown error code: 50006
  • Unknown error code: 1047526908
 Language Mismatch
This error occurs if you've downloaded the ISO file in a different language than your system's native language.		 Kindly download the ISO file in your correct applicable language.
  • Unknown error code: 50007
 Version Mismatch
This issue occurs if you've downloaded the ISO file mismatches with the system's OS version. Say, you've downloaded the ISO file for Windows 10 20H2 but deployed it to Windows 11.		 To resolve this issue, kindly download the ISO file that applies to your OS version.
  • Unknown error code: 50008
 Unable to retrieve the mounted drive letter
You might have configured GPO / Antivirus / Endpoint Security to block PowerShell commands.		 Allow PowerShell commands in the GPO / Antivirus / Endpoint Security and then re-deploy the feature pack.
  • Unknown error code: 50009
 ISO file placed in the patches folder/ patch store is less than 3 GB for Windows 11 x64 bit machine.

To resolve the issue, delete the ISO file in the patches folder of the client machine and redeploy the feature pack. If the size of the ISO file present in the patch store is also lesser than the prescribed size then delete the existing ISO File from the patch store.

Then, redownload the ISO file from Microsoft 365 admin centre or use the media creation tool and rename and copy the ISO file in the patches store and redeploy the feature pack update.
  • Unknown error code: 50010
 TPM Required
The System TPM Version is not Compatible with Windows 11.		 For Windows 11, the minimum required TPM version is 2.0 and above.
  • Unknown error code: 50011
 Processor Incompatible
The System doesn't have a required processor.		 For Windows 11, the minimum requirement is 1 gigahertz (GHz) or faster with 2 or more cores on a compatible 64-bit processor or System on a Chip (SoC).
  • Unknown error code: 50012
 Not Enough RAM
The System doesn't have enough RAM.		 For Windows 11, the minimum requirement of RAM is 4 gigabytes (GB).
  • Unknown error code: 50013
 Firmware Incompatible
The System doesn't have UEFI & Secure Boot.		 For Windows 11, UEFI & Secure Boot capability is needed.
  • Unknown error code: 50015
 Extraction of ISO has failed before proceeding for installation.

In the Affected Agent machine,

  • Extract the uploaded Iso manually to check if the ISO is corrupted.
  • If manual extraction failed, reupload the ISO and redeploy.
  • If manual extraction succeeded, contact support.

Steps to extract ISO:

  • Place the ISO in

    <Agent Installed Dir>\patches

    folder as "Windows.iso"
  • Open cmd prompt as Administrator
  • Execute this cmd:

    "<Agent installed Dir>\bin\7z.exe" x -y "<Agent Installed Dir>\patches\Windows.iso"

  • Wait till the extraction is completed and check the extraction status.

  • Unknown error code : 50016

Restart Pending from the previous Feature Pack Installation.

Restart the system to complete the windows feature upgrade​.

  • Unknown error code: 50019

This error represents the failure of the extraction of the ISO. This can be caused by multiple reasons, such as Access denied, Corrupted file

Logs are necessary to find what is the exact reason

  • Unknown error code: 50030

This error occurs If the given ISO file has ESD

  1. Extract "1" folder from the ESD.
  2. Once Extracted Check if the "sources" folder is present there or not.
  3. Copy the .iso to "sources" folder and save as "install.esd".
  4. Once completed, move all the files to a "Windows" folder.
  5. Once moved. Finally, delete the "1" folder which is extracted initially.
If any of the steps causes failure, this error will be returned.



Logs are necessary to find what is the exact reason for the failure of processing of ESD.

  • Unknown error code : 50031

This error occurs if the system already has the same version of the feature pack successfully installed.

To resolve this error, the feature pack reinstallation will be automatically skipped as the same version has already been installed successfully.



  • Unknown error code: 50032

If the failure of the construction of the scheduler.xml which is essential for creating the process for setup.exe using task scheduler or failed to get the result from the executed setup.exe

Logs are necessary to find what is the exact reason for the failure of this error code

  • Unknown error code: 50033

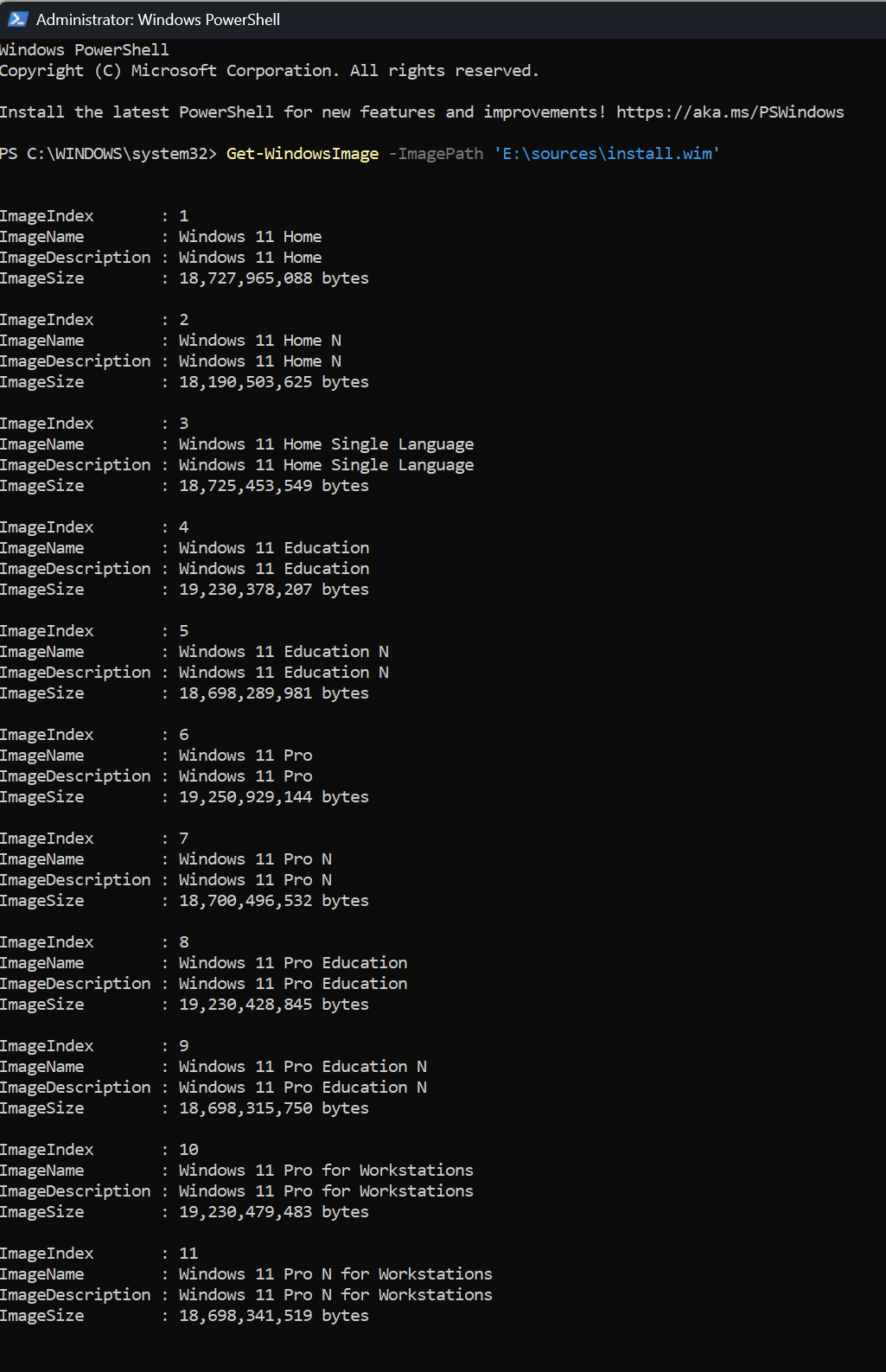

During the initial validation of ISO, after extraction search for install.wim or install.esd. If either of them was not found, this error will be thrown

Need to check the ISO file whether it is the proper Windows ISO. kindly mount the uploaded ISO file and go to sources folder then check install.esd / install.wim file is present or not.If the file is not present, you need to download the new ISO file.
  • Unknown error code: 183
  • Cannot create a file when that file already exists.
  • The process cannot access the file because it is being used by another process.
  • Unknown error code: 2147023278
 setup.exe might be already running in the background. To fix this issue, open Task Manager and check whether the following tasks are running:
  1. setup.exe
  2. setup host.exe
  3. windows installer
  4. windows setup
  5. Modern setup host

If any of the above tasks are running, kill the tasks and try deploying the feature pack again.
  • Unknown error code: 1047526904
 Incompatible apps present in the system are blocking the upgrade.

Navigate to \logs\panther
Open scanresult.xml and Compatdata.xml and search for CompatibilityInfo BlockingType="Hard". You will be able to find all the incompatible apps installed on the computer.
  • Unknown error code: 1047526912

  • Unknown error code: 1047526910
 Your PC doesn’t meet the minimum requirements to download or install the upgrade to Windows 11.
  1. Navigate to \logs\panther
  2. Open scanresult.xml and Compatdata.xml and search for CompatibilityInfo BlockingType="Hard". You will be able to find the system requirement that is not satisfied.

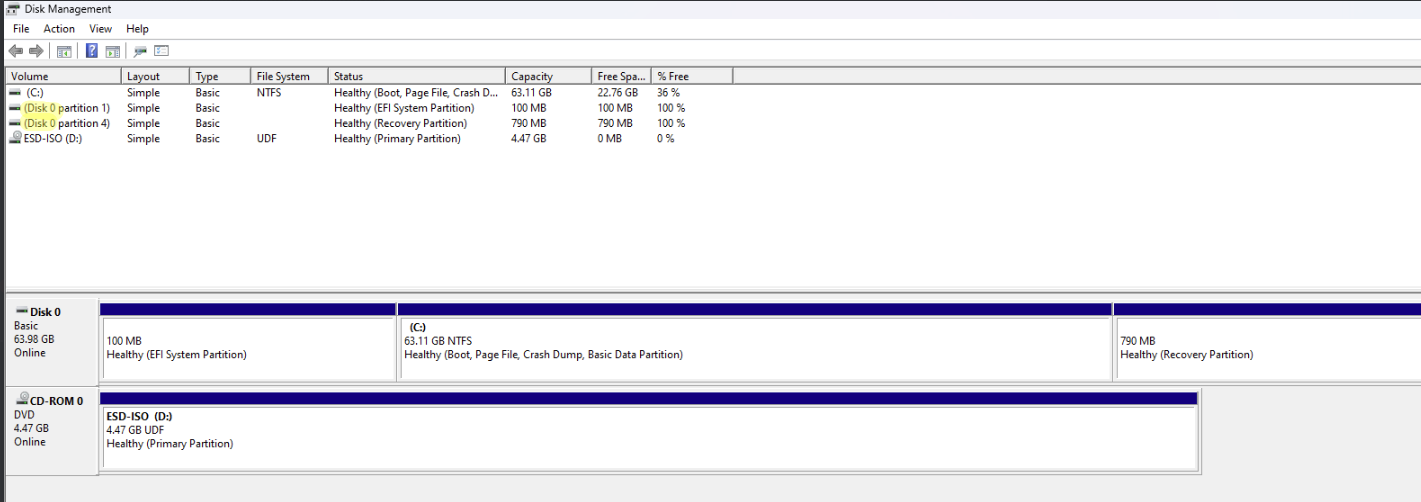

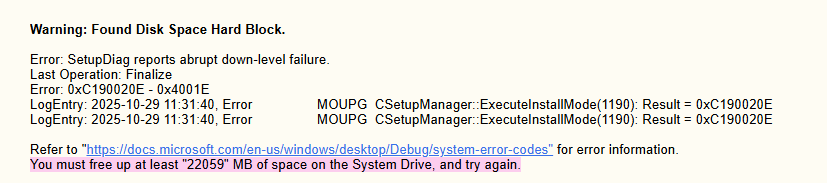

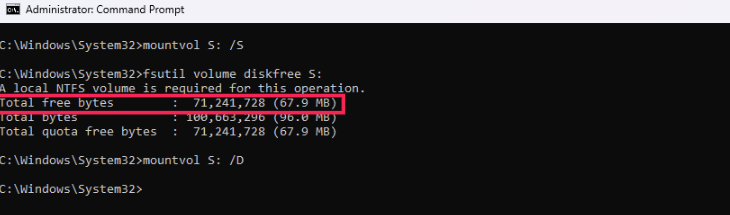

  3. Setup_InsufficientSystemPartitionDiskSpace indicates "Your system reserved partition does not have enough space for the upgrade", So extend the system reserved partition space.
  4. Setup_HostIsBootedFromVHD indicates "Your Operating system running in the native Boot VHD (Virtual Hard Disk) where OS upgradation is not possible".
  5. Setup_PendingFirmwareUpdateWithPower - If a firmware update is pending because of power this error may occur, Update the firmware and then deploy the feature pack.
  6. Learn more about the minimum requirements for Windows 11
  • Unknown error code: 1047527161
 The Unknown error code: 1047527161 (0xC1900107) indicates "A cleanup operation from a previous installation attempt is still pending, and a system restart is required to continue the upgrade." Method 1:
Restart the system and redeploy the feature pack update.
Method 2:
  1. Go to C: drive in the file explorer.
  2. Click View and check the "Hidden Files" check box.
  3. Rename the folder named $WINDOWS. ~ BT.
  4. Perform Disk Cleanup. Refer: https://support.microsoft.com/en-in/help/4026616/windows-10-disk-cleanup
  5. Redeploy the feature pack update.
  • %1 is not a valid Win32 application
 This error occurs when you have deployed the dependency patch of the feature pack. Scan the systems and check the missing patches list. Deploy the patch where its description starts with Feature Pack Update.
  • Unable to download the dependency file from the server
 There might be a connectivity issue between the server and the agent. Redeploy the feature pack update. If the problem persists, contact support
  • Unknown error code: 2147010798
 A file needed by Windows Update is likely damaged or missing. Try repairing your system files.
  1. Open an elevated command prompt.
  2. Copy and paste the below command:
    DISM.exe/Online/Cleanup-image/Restorehealth and hit enter.
  3. Redeploy the feature pack update.
  • Unknown error code: 1047527167
 A driver caused a problem.
  1. Disable or remove all third-party antivirus or antispyware from your system. Disconnect all peripheral devices that are connected to the system, except for the mouse, keyboard, and display.
  2. Update installed drivers.
  3. Redeploy the feature pack.
  • Unknown error code: 1047526939
  • Unknown error code: 1047526940
  • Unknown error code: 1047526941
  • Unknown error code: 1047526942
 A pre-install script failed to execute or returned an error. You are using a custom script(s) that can set up a few things right along with the installation. These scripts can install software, apply group policy, and so on. If you are receiving any of these error codes, then there is a problem with the script(s).
  • Unknown error code: 1073741819
  • Unknown error code: 1073740940
  • Unknown error code: 1073741584
  • Unknown error code: 1047527137
 An unexpected crash of the deployment executable files (setup.exe & setuphost.exe)

Upgrade the system by uploading January 2024 released ISO or later. The user can download ISO from Microsoft 365 admin centre or else using Media Creation Tool manually.
  • Unknown error code: 1047527154
 The user has not accepted the license agreement as the installation process requires that user accept it.

The user should add the /EULA accept switch in arguments



You can also refer to the official Microsoft documents attached below:

If the problem persists, contact support

Check the errors you might encounter while installing Windows 10
