This View provides top DSCP based qos information that is collected from the flow export by the devices monitored in NetFlow Analyzer.

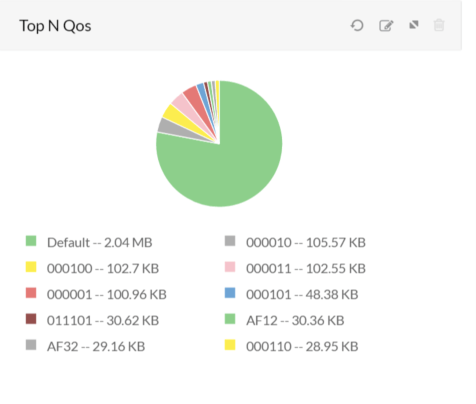

The table gives a glance about the top 10 DSCP and its utilization across multiple Devices, Interfaces or IPGroups. By default the widget will show the top DSCP based information from all the devices monitored in NetFlow Analyzer.

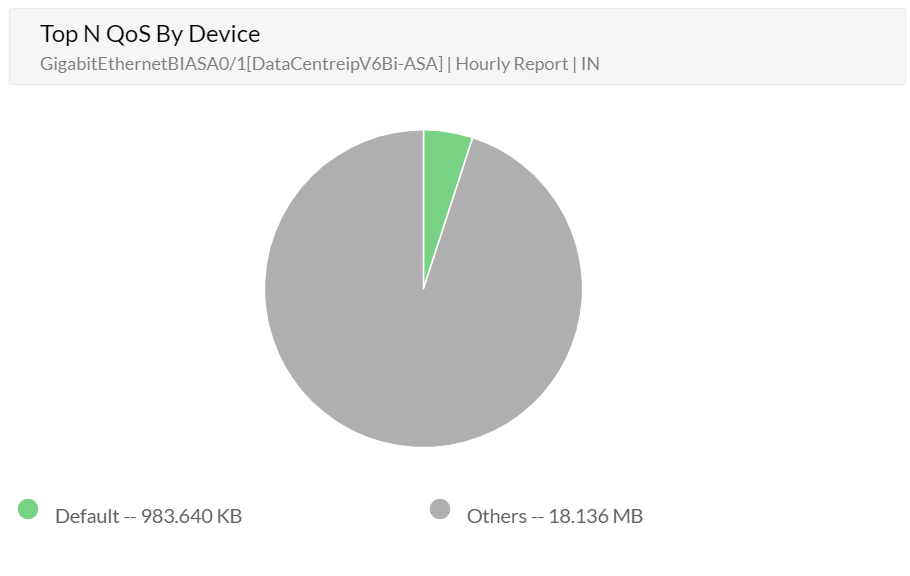

The widget gives a glance about the top 10 DSCP and its utilization based on the Device, Interfaces, Interface group or IPGroups for both IN and OUT direction by selecting the Flow Type option by clicking on the edit icon the right top of the Widget.

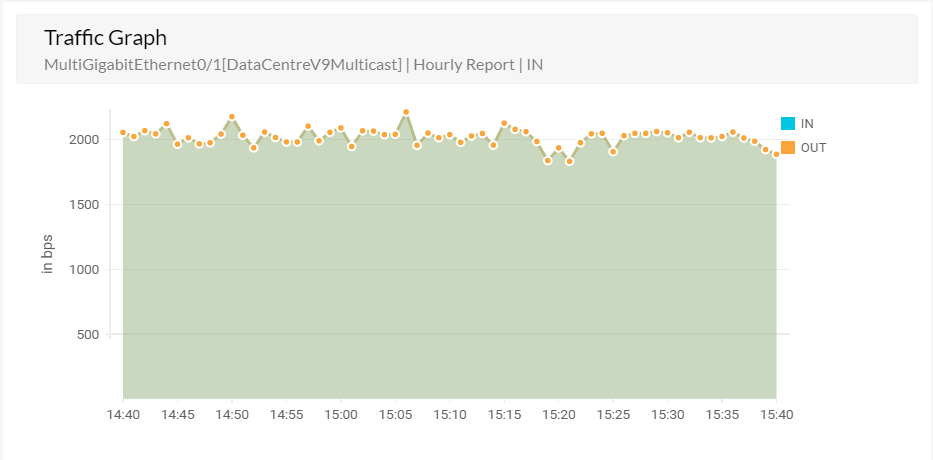

The graph gives a glance of all the top In and Out traffic based on the Devices, Interfaces, Interface groups or IPGroups. The default value of the graph is bps.
