<text>

The <text> tag defines a text area, that can hold multiline characters. The contents entered here, can be customized using the text attributes.

Parent tag : <pc>

Child tag : <prefix>, <suffix>

Note: You'll have to encode the following characters to make the <text> tag display them in your ZML snippets:

Encode & (ampersand) as & or &
Encode < (less than) as < or <
Encode > (greater than) as > or >
Encode ' (single quotes) as ' or '

You can use the built-in replaceAll() Deluge function to replace each of these characters with their encoded value. For example, the following code snippet encodes the ampersand (&) character present in the Product Description field so that it's displayed as-is in the ZML snippet:

<%
var_content = Products[ID=3888833000000119021].Product_Description;
var_encoded_content = replaceAll(var_content, "&", "&");
%>
<text type='Text' renderAsHtml='true' value='<%=var_encoded_content%>' size='5' color='#333333'></text>

Attributes

type The type attribute specifies the kind of text to be displayed.

Possible Values

Text
Form Data

Default Value

Text

value The value attribute defines the specific value to be displayed in the text area.

Possible Values

type	value	Example
Text	Specify a static string	<text type='Text' value='Hello World'/>
Form Data	Fetches a value from a ManageEngine AppCreator application's form, based on the said aggregate.	<text type='Form Data' value='appLinkName.componentLinkname.fieldLinkName.aggregate'/>#

Note:

#An aggregate must be specifies for the Form Data attribute.
The aggregate values that can be computed are: sum, minimum, maximum, median, average, count, distinctCount

Aggregate	Description	Syntax
sum	Computes the sum of all the values in a specified form field.	<text type='Form Data' value='appLinkName.formlinkname.fieldlinkname.sum'/>
minimum	Computes the minimum of all values in a specified form field.	<text type='Form Data' value='appLinkName.formlinkname.fieldlinkname.minimum'/>
maximum	Computes the maximum of all values in a specified form field.	<text type='Form Data' value='appLinkName.formlinkname.fieldlinkname.maximum'/>
median	Computes the median of all values in a specified form field.	<text type='Form Data' value='appLinkName.formlinkname.fieldlinkname.median'/>
average	Computes the average of all values in a specified form field.	<text type='Form Data' value='appLinkName.formlinkname.fieldlinkname.average'/>
count	Computes the count of all the records in a specified form.	<text type='Form Data' value='appLinkName.formlinkname.ID.count'/>
distinctCount	Computes the distinct number of occurances of a value in a specified form field.	<text type='Form Data' value='appLinkName.formlinkname.fieldlinkname.dictinctCount'/>

value acts as a source attribute. i.e: Attributes including size, bold, italic, fontFamily, color and bgColor are styling attributes for the text content and applicable only when a value is specified.

criteria The criteria attribute specifies a fetching criteria for filtering the text to be displayed.

Syntax

Note:

criteria attribute is optional.
criteria attribute can be used to add an additional filter to display a specified aggregate.

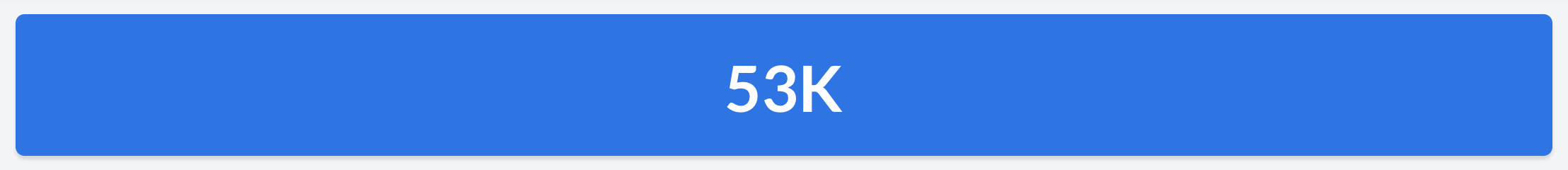

numberScale The numberScale attribute adds a pseudo-metric symbol to the numeric value in the text.

Possible Values

K (Thousand)
M (Million)
B (Billion)

Example

Syntax	<text value='thisapp.Products.Unit_Price.sum' numberScale='K'/>
Output

Note:

numberScale attribute is optional.

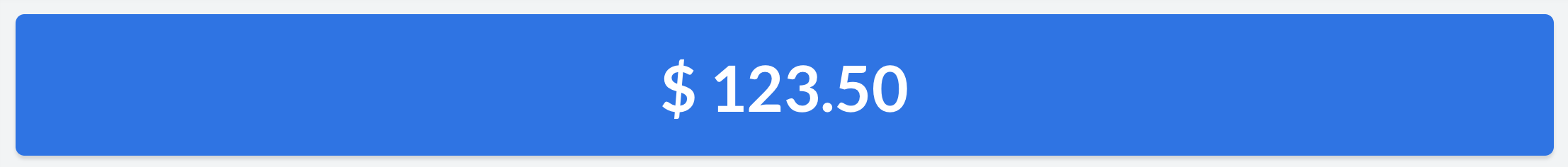

decimalPlaces The decimalPlaces attribute specifies the number of digits to be displayed after a decimal point.

Possible Values

A number from 0-3.

Example

Syntax	<text value='thisapp.Products.Unit_Price.sum' decimalPlaces='2'/>
Output

Note:

decimalPlaces attribute is optional.

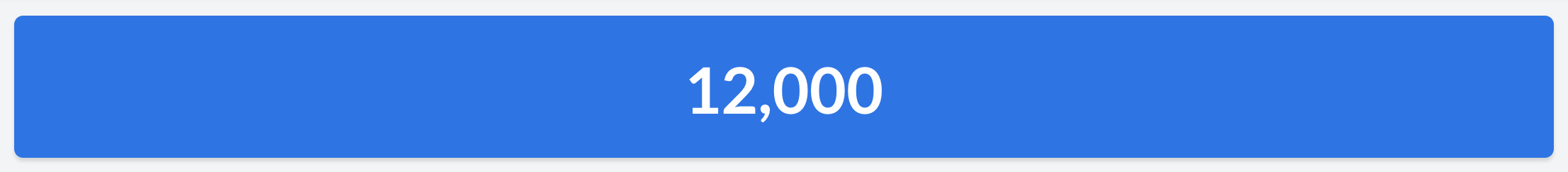

thousandsSeparator The thousandsSeparator attribute specifies the symbol to be used to separate each group of thousands.

Possible Values

, (Comma symbol)
. (Period symbol )

Example

Syntax	<text value='thisapp.Products.Unit_Price.sum' thousandSeparator=','/>
Output

Note:

thousandseparator attribute is optional.

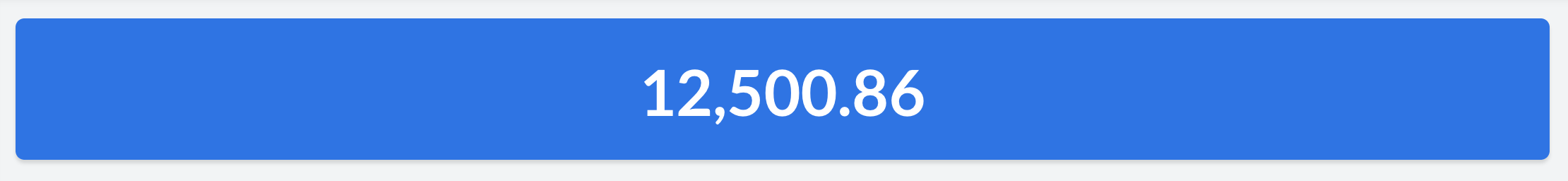

decimalSeparator The decialSeparator attribute specifies a symbol to be used to separate the integer part of a number from the fractinal part.

Possible Values

, (Comma symbol)
. (Period symbol)

Example

Syntax	<text value='thisapp.Products.Unit_Price.sum' decimalSeparator='.'/>
Output

Note:

decimalseparator attribute is optional.

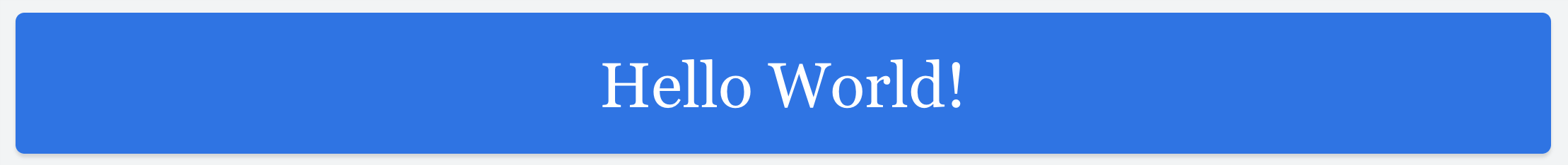

fontFamily The fontFamily attribute specifies a font style for the text.

Possible Values

Arial
Georgia
Lato
Roboto
Roboto slab

Example

Syntax	<text type='Text' value='Hello World' fontFamily='Georgia'/>
Output

Note:

fontFamily attribute is optional. Applicable only when a value is specified.
If no fontFamily is specified for a value, the text acquires the fontFamily of the application theme. Each application theme uses a different fontFamily.

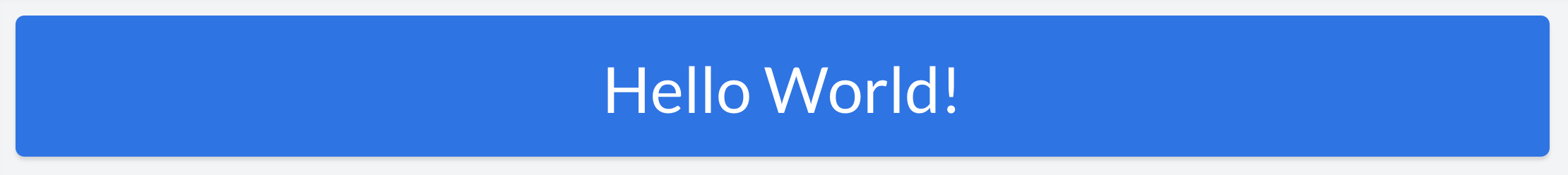

size The size attribute defines a font size for the text.

Possible Values

A number from 1 - 9 that defines the size of the text.

Default Value

Example

Syntax	<text type='Text' value='Hello World' size='8'/>
Output

Syntax

Output

Note:

size attribute is optional.

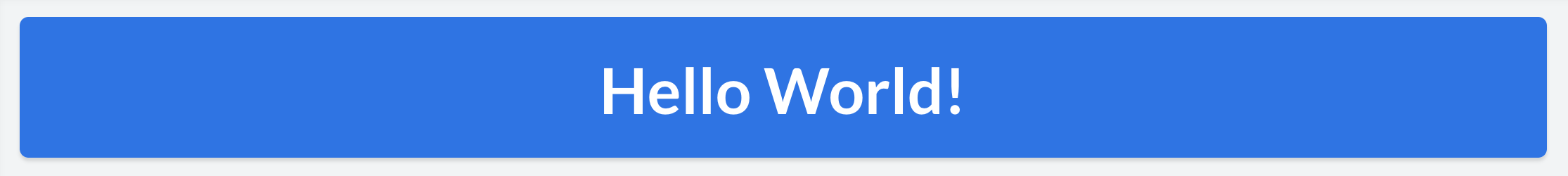

bold The bold attribute adds a bold font style to the text.

Possible Values

true
false

Default Value

false

Example

Syntax	<text type='Text' value='Hello World' bold='true'/>
Output

Note:

bold attribute is optional.

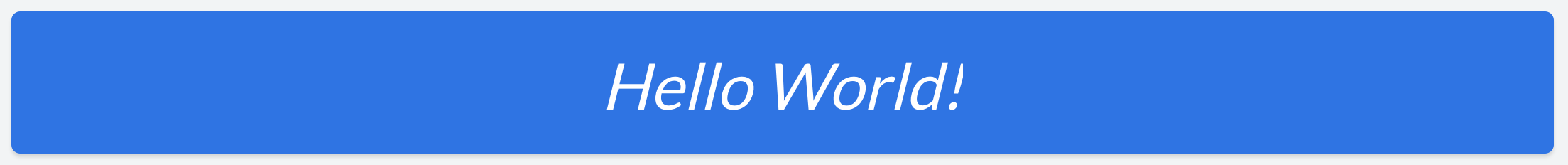

italic The italic attribute italicizes the font.

Possible Values

true
false

Default Value

false

Example

Syntax	<text type='Text' value='Hello World' italic='true'/>
Output

Note:

italic attribute is optional.

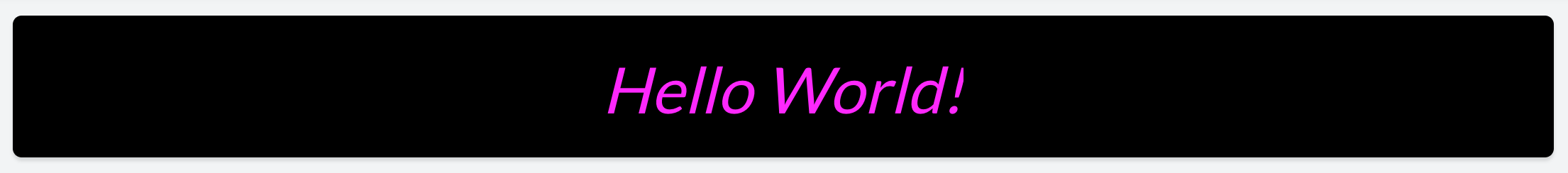

color The color attribute specifies a font color for the text.

Possible Values

A hexadecimal color value. You can refer this page for hexadecimal color codes.

Example

Syntax	<text type='Text' value='Hello World' color='#FF00FF'/>
Output

Note:

color attribute is optional.

bgColor The bgColor attribute specifies a background color for the <text> element.

Possible Values

A hexadecimal color value. Refer this page for hexadecimal color codes.

Example

Syntax	<text value='Hello World' bgColor='#047B33'/>
Output

Note:

bgColor attribute is optional. Applicable only when a value is specified.

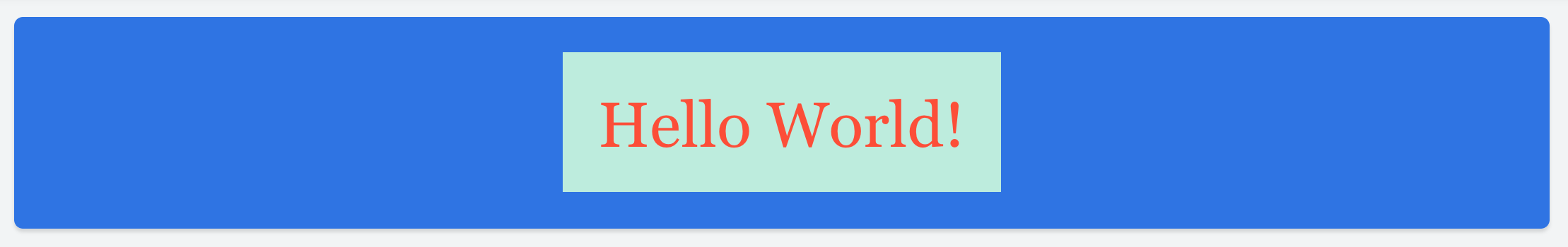

padding The padding attribute generates a specified amount of space between all sides of the text content and it's container.

Possible Values

A numeric value in pixels

Syntax	<text value='Hello World' padding='20px'/>
Output

Note:

padding attribute is optional.

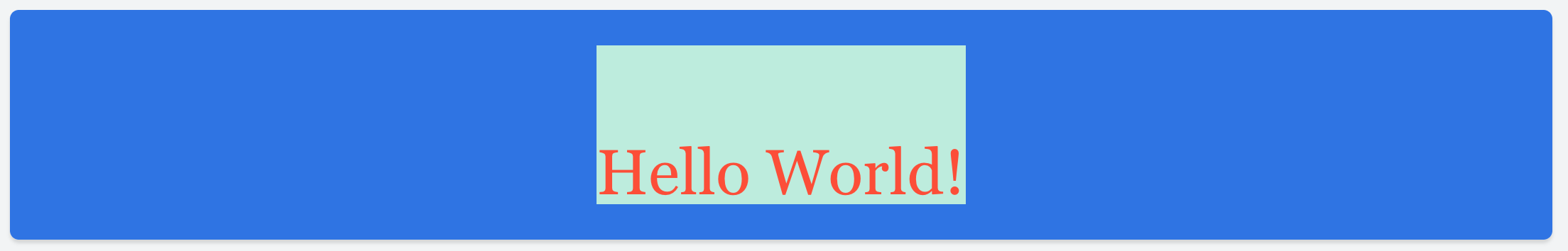

paddingTop The paddingTop attribute generates a specified amount of space between the top of the text content and it's container.

Possible Values

A numeric value in pixels

Syntax	<text value='Hello World' paddingTop='50px'/>
Output

Note:

paddingTop attribute is optional.

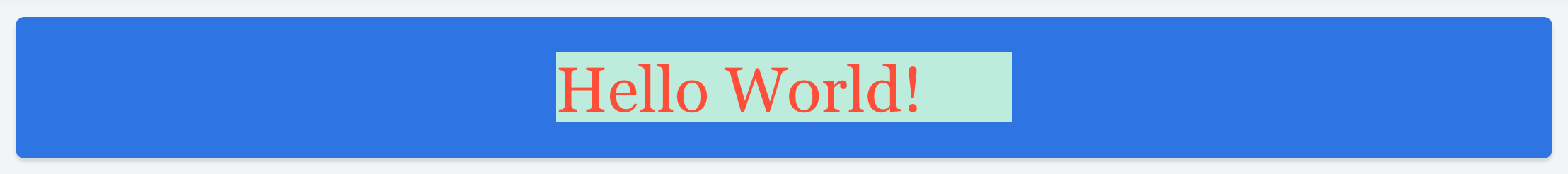

paddingRight The paddingRight attribute generates a specified amount of space between the right of the text content and it's container.

Possible Values

A numeric value in pixels

Syntax	<text value='Hello World' paddingRight='20px'/>
Output

Note:

paddingRight attribute is optional.

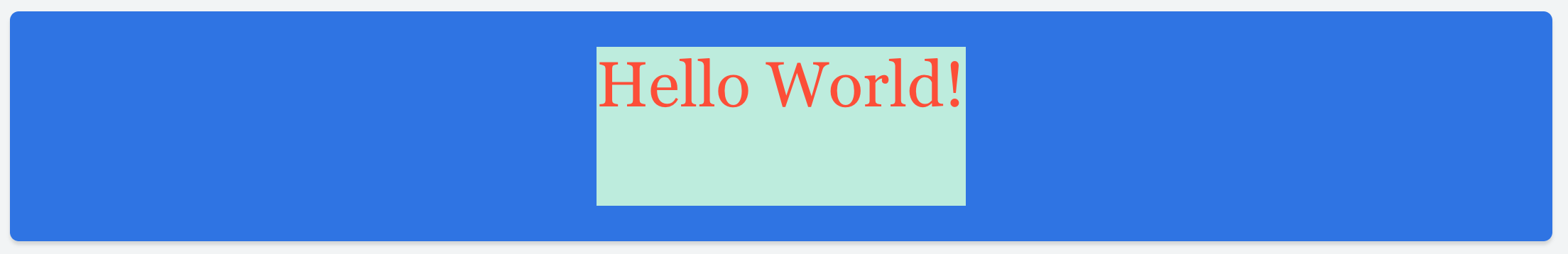

paddingBottom The paddingBottom attribute generates a specified amount of space between the bottom of the text content and it's container.

Possible Values

A numeric value in pixels

Syntax	<text value='Hello World' margin='50px'/>
Output

Note:

paddingBottom attribute is optional

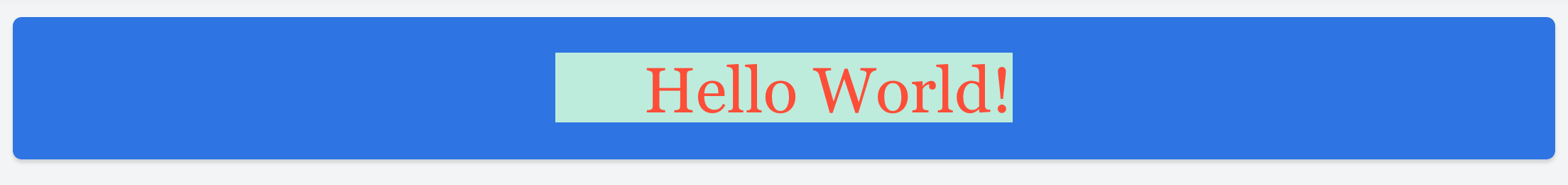

paddingLeft The paddingLeft attribute generates a specified amount of space between the left of teh text content and it's container.

Possible Values

A numeric value in pixels

Syntax	<text value='Hello World' margin='20px'/>
Output

Note:

paddingLeft attribute is optional

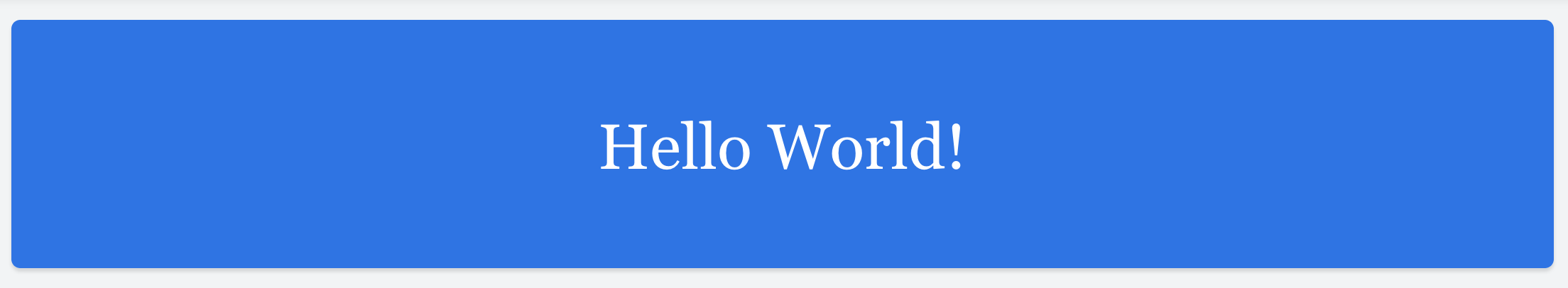

margin The margin attribute generates a specified amount of space between all sides of the text container and it's parent.

Possible Values

A numeric value in pixels

Example

Syntax	<text value='Hello World' margin='50px'/>
Output

Note:

margin attribute is optional

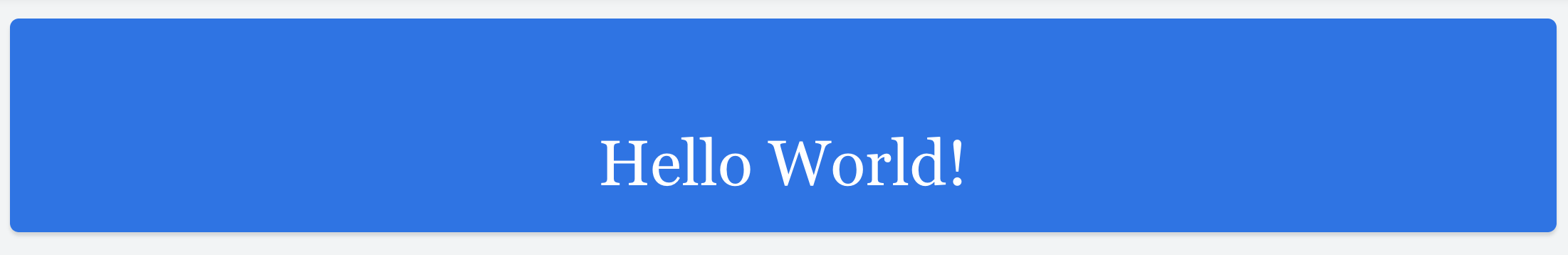

marginTop The marginTop attribute generates a specified amount of space between the top of the text container and it's parent.

Possible Values

A numeric value in pixels

Example

Syntax	<text value='Hello World' marginTop='50px'/>
Output

Note:

marginTop attribute is optional

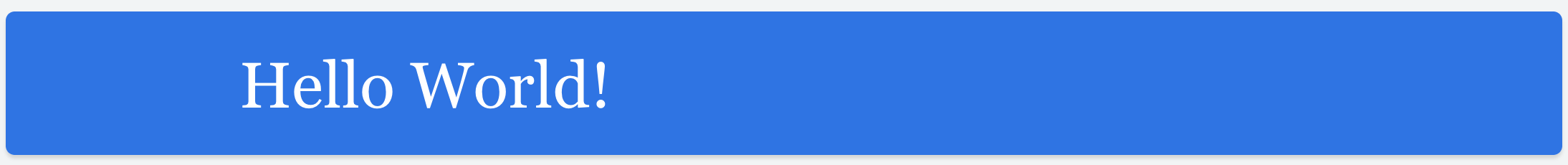

marginRight The marginRight attribute generates a specified amount of space between the right of the text container and it's parent.

Possible Values

A numeric value in pixels

Example

Syntax	<text value='Hello World' marginRight='400px'/>
Output

Note:

marginRight attribute is optional

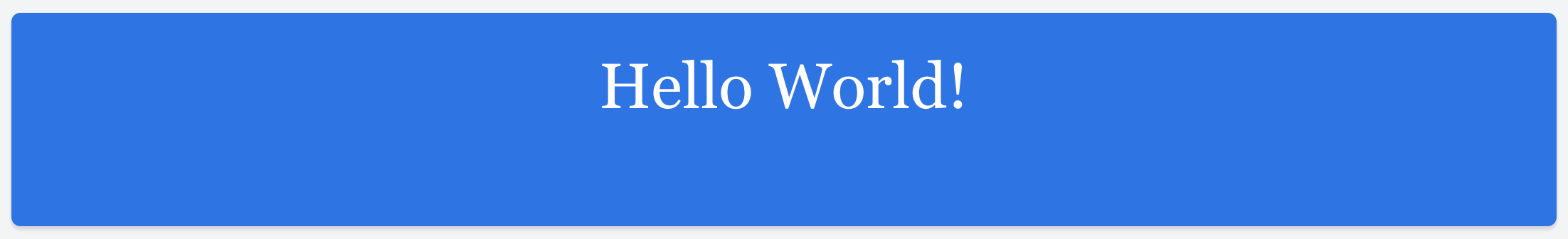

marginBottom The marginBottom attribute generates a specified amount of space between the bottom of the text container and it's parent.

Possible Values

A numeric value in pixels

Example

Syntax	<text value='Hello World'' marginBottom='50px'/>
Output

Note:

marginBottom attribute is optional

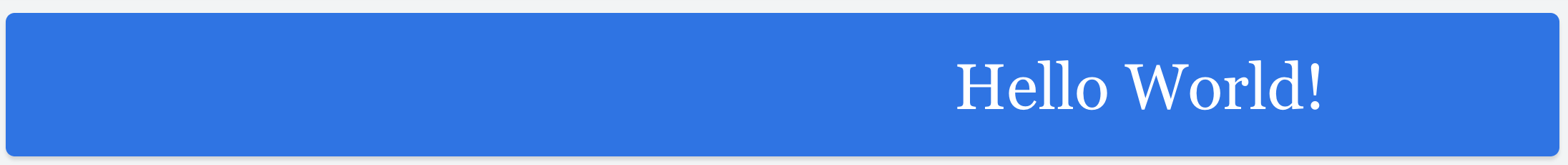

marginLeft The marginLeft attribute generates a specified amount of space between the left of the text container and it's parent.

Possible Values

A numeric value in pixels

Example

Syntax	<text value='Hello World' marginLeft='400px'/>
Output

Note:

marginLeft attribute is optional

action The action attribute specifies the action to be triggered on click of the text.

Possible Values

Link
Form
Report
Page
Function

Example

action	Syntax
Link	<text value='Hello World' action='Link' url='A URL to be opened '/>*
Form	<text value='Hello World' action='Form' componentLinkName='linkname of the ManangeEngine AppCreator form to be opened' appLinkName='linkname of the ManangeEngine AppCreator application to which the form belongs' />*
Report	<text value='Hello World' action='Report' componentLinkName='linkname of the ManangeEngine AppCreator report to be opened' appLinkName='linkname of the ManangeEngine AppCreator application to which the report belongs' />*
Page	<text value='Hello World' action='Page' componentLinkName='linkname of the ManangeEngine AppCreator page to be opened' appLinkName='linkname of the ManangeEngine AppCreator application to which the page belongs' />*
Function	<text value='Hello World' action='Function' functionName='Name of the custom function to be triggered' />*

* Learn in detail about each of the action types in the following sections.

Note:

action attribute is optional.
The action attribute acts as a source attribute. i.e: One or more of the following attributes viz: url, componentLinkName, appLinkName, functionName, parameters, successMessage, target, popupWidth and popupHeight will be applicable only when an action is specified.

url The url attribute specifies the resource location to be opened on click of the text.

Possible Values

A url pointing to another website
A url pointing to a component within your ManangeEngine AppCreator Account

Example

<text action='Link' url='https://www.zoho.com/creator/'>

Note:

url attribute is optional.
It is applicable only when <action='Link'>

componentLinkName The componentLinkName attribute specifies the link name of the ManangeEngine AppCreator component to be opened on click of the text.

Possible Values

Linkname of the ManangeEngine AppCreator Application component to be opened.

Example

action	Syntax
Form	<text value='Hello World' action='Form' componentLinkName='User_Details'/>
Report	<text value='Hello World' action='Report' componentLinkName='User_Details_Report'/
Page	<text value='Hello World' action='Page' componentLinkName='User_Dashboard'/>

Note:

componentLinkName attribute is optional.
It is applicable only when <action='Form'/'Report'/'Page'>

appLinkName The appLinkName attribute specifies the name of the ManangeEngine AppCreator application to which the associated component belongs.

Possible Values

Linkname of the ManangeEngine AppCreator Application to be opened.

Example

action	Syntax
Form	<text value='Hello World' action='Form' componentLinkName='User_Details' appLinkName='Resource_management'/>
Report	<text value='Hello World' action='Report' componentLinkName='User_Details_Report' appLinkName='Resource_management'/>
Page	<text value='Hello World' action='Page' componentLinkName='User_Dashboard' appLinkName='Resource_management'/>

Note:

appLinkName attribute is optional. You do not need to specify appLinkName if the component you are associating to the action, belongs to the same application you are currently in.
It is applicable only when <action='Form'/'Report'/'Page'/'Function'>

functionName The functionName attribute specifies the name of the custom function in the ManangeEngine AppCreator application to be triggered on click of the text.

Possible Values

A custom function defined in any of your ManangeEngine AppCreator Applications. To get the list of custom functions in your application: Go to Settings -> Extensions -> Custom Functions

Example

<text value='Hello World' action='Function' functionName='send_email'/>

Note:

The functionName can belong to a default namespace or a custom namespace.
If the function belongs to a custom namespace : <functionName='namespace_name.function_name'>
functionName attribute is optional.
It is applicable only when <action='Function'> and a function name must be specified.

parameters The parameters attribute specifies the parameter to be associated to an action.

Possible Values

When <action='Form' / 'Report' / 'Page'>, parameters refers to the query string that will be appended to the corresponding component's permalink. Refer to this page to learn about using query strings in permalinks of forms, reports and pages.
When <action='Function'>, parameters refers to an argument of the selected custom function.

Example

action	Syntax
Form	<text value='Hello World' action='Form' componentLinkName='User_Details' appLinkName='Resource_management' parameters='App_name=${name}'/> OR <text value='Hello World' action='Form' componentLinkName='User_Details' appLinkName='Resource_management' parameters='App_name=Zoho Creator'/>
Report	<text value='Hello World' action='Report' componentLinkName='User_Details' appLinkName='Resource_management' parameters='App_name=${name}' /> or <text value='Hello World' action='Form' componentLinkName='User_Details' appLinkName='Resource_management' parameters='User_Name='Rob'/>
Page	<text value='Hello World' action='Page' componentLinkName='linkname of the ManangeEngine AppCreator page to be opened' appLinkName='linkname of the ManangeEngine AppCreator application to which the page belongs' parameters='App_name=${name}' />*

action

Syntax

Form

Report

Page

<text value='Hello World' action='Page' componentLinkName='linkname of the ManangeEngine AppCreator page to be opened' appLinkName='linkname of the ManangeEngine AppCreator application to which the page belongs' parameters='App_name=${name}' />*

Note:

parameter attribute is optional.
It is applicable only when <action='Form'/'Report'/'Page'/'Function'>
parameters can either be a static value like: Name='Rob' or a page parameter.
Page parameter must be specified as : App_name=${name}, where name is the page parameter.

successMessage The successMessage attribute specifies the message to be displayed on successful execution of the specified function.

Possible Values

A string

Example

<text value='Hello World' action='Function' functionName='send_email' successMessage='Sent Successfully!'/>

Note:

successMessage attribute is optional.
It is applicable only when <action='Function'>

target The target attribute specifies the location where the linked action will open on click of the text.

Possible Values

new-window
same-window
popup

Default Value

new-window

Note:

It is applicable only when <action='Link'/'Form'/'Report'/'Page'>

popupWidth The popupWidth attribute specifies a width for the pop-up window where the link will be opened.

Possible Values

A numeric value in percentage or pixels

popupHeight The popupHeight attribute specifies a height for the pop-up window where the link will be opened.

Possible Values

A numeric value in percentage or pixels

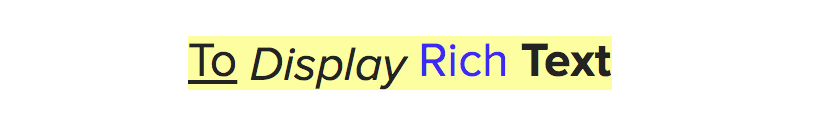

renderAsHtml Adding this attribute allows the <text> element to display rich text.

Possible Values

true
false

Example

Below are sample ZML snippets to display a product's description (which is stored in a Rich Text field) and a static text that contains HTML tags. Note that you'll have to encode certain characters (as mentioned near the start of this page) to ensure that they are rendered in the ZML snippet.

Syntax (to display data from a field)	<% var_content = Products[ID=3888833000000119021].Product_Description; var_encoded_content = replaceAll(var_content, "<", "<"); var_encoded_content = replaceAll(var_encoded_content, ">", ">"); %> <text type='Text' renderAsHtml='true' value='<%=var_encoded_content%>' size='5' color='#333333'></text>
Syntax (to display static text)	<% var_content = "<div><span class=\"highlight\" style=\"background-color: rgb(255, 255, 153)\"><u>To</u> <i>Display</i> <span class=\"colour\" style=\"color: rgb(51, 51, 255)\">Rich</span> <b>Text</b></span></div>"; %> <text type='Text' renderAsHtml='true' value='<%=var_content%>' size='5' color='#333333'></text>
Output (showing the static text)

Was this article helpful? Yes, thanks!Not really

Share this post : FacebookTwitter

Top

Still can't find what you're looking for?

Write to us: appcreator-support@manageengine.com

&lt;text&gt;

Was this article helpful? Yes, thanks!Not really

Still can't find what you're looking for?

<text>
