Configuring object level auditing

Automatic configuration

Object level auditing must be configured to ensure that events are logged whenever any Active Directory object related activity occurs. On providing Domain Admin credentials, Log360 Cloud automatically configures the required object level auditing for Active Directory auditing.

Note: Automatic object level auditing configuration is not done without the users consent.

To configure object level auditing:

• Login to Log360 Cloud web console.
• Go to Reports → GPO Management → GPO History.
• In GPO History, click on Object level auditing and Audit policy needs to be configured to view related reports → Know More.
• In the Object level auditing needs to be configured to view related reports message, click on Configure.



• In the user consent warning, click Confirm to configure object level auditing.

You can also configure object level auditing with the following steps:

• Login to Log360 Cloud web console.
• Go to Domain Settings and click on Object Level Audit: Configure.



• In the user consent warning, click Confirm to configure object level auditing.

Manual configuration

Object level auditing must be configured to ensure that events are logged whenever any Active Directory object related activity occurs.

To configure auditing for OU, GPO, user, group, computer, and contact objects

• Login to any computer that has the Active Directory Users and Computers (ADUC), with Domain Admin credentials.
• Open ADUC.
• Click on View and ensure that Advanced Features is enabled. This will display the advanced security settings for selected objects in Active Directory Users and Computers.
• Right-click on Domain and go to Properties → Security → Advanced → Auditing → Add.
• In the Auditing Entry window, select a principal: Everyone → Type: Success and select the appropriate permissions, as directed in the table below.

Auditing Entry number	Auditing Entry for	Access	Apply onto
			Windows Server 2003	Windows Server 2008 and above
1 & 2	OU	Create Organizational Unit objects Delete Organizational Unit objects	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions	Organizational Unit objects	Descendant Organizational Unit objects
3 & 4	GPO	Create groupPolicyContainer Objects Delete groupPolicyContainer Objects	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions	groupPolicyContainer objects	Descendant groupPolicyContainer objects
5 & 6	User	Create User Objects Delete User Objects Write All Properties Delete Modify Permissions All Extended Rights	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions All Extended Rights	User objects	Descendant User objects
7 & 8	Group	Create Group Objects Delete Group Objects	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions All Extended Rights	Group objects	Descendant Group objects
9 & 10	Computer	Create Computer Objects Delete Computer Objects	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions All Extended Rights	Computer objects	Descendant Computer objects
11 & 12	Contact	Create Contact Objects Delete Contact Objects	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions	Contact objects	Descendant Computer objects

Image showing: Auditing Entry number 1.

To audit container objects:

• Login to any computer that has the Active Directory Service Interfaces snap-in.
• Open the ADSI Edit console, right-click on ADSI Edit and select Connect to.
• In the Connection Settings window, under Select a Well-Known Naming Context, select Default Naming Context.
• Navigate to the left panel, click on Default naming context.
• Right-click on domains distinguished name, select Properties and go to Security → Advanced → Auditing → Add.
• In the Auditing Entry window, select a principal: Everyone → Type: Success, and select the appropriate permissions, as directed in the table below.

Auditing Entry number	Access	Apply onto
		Windows Server 2003	Windows Server 2008 and above
Container	Write All Properties Delete Modify Permissions	Container objects	Descendant Container objects

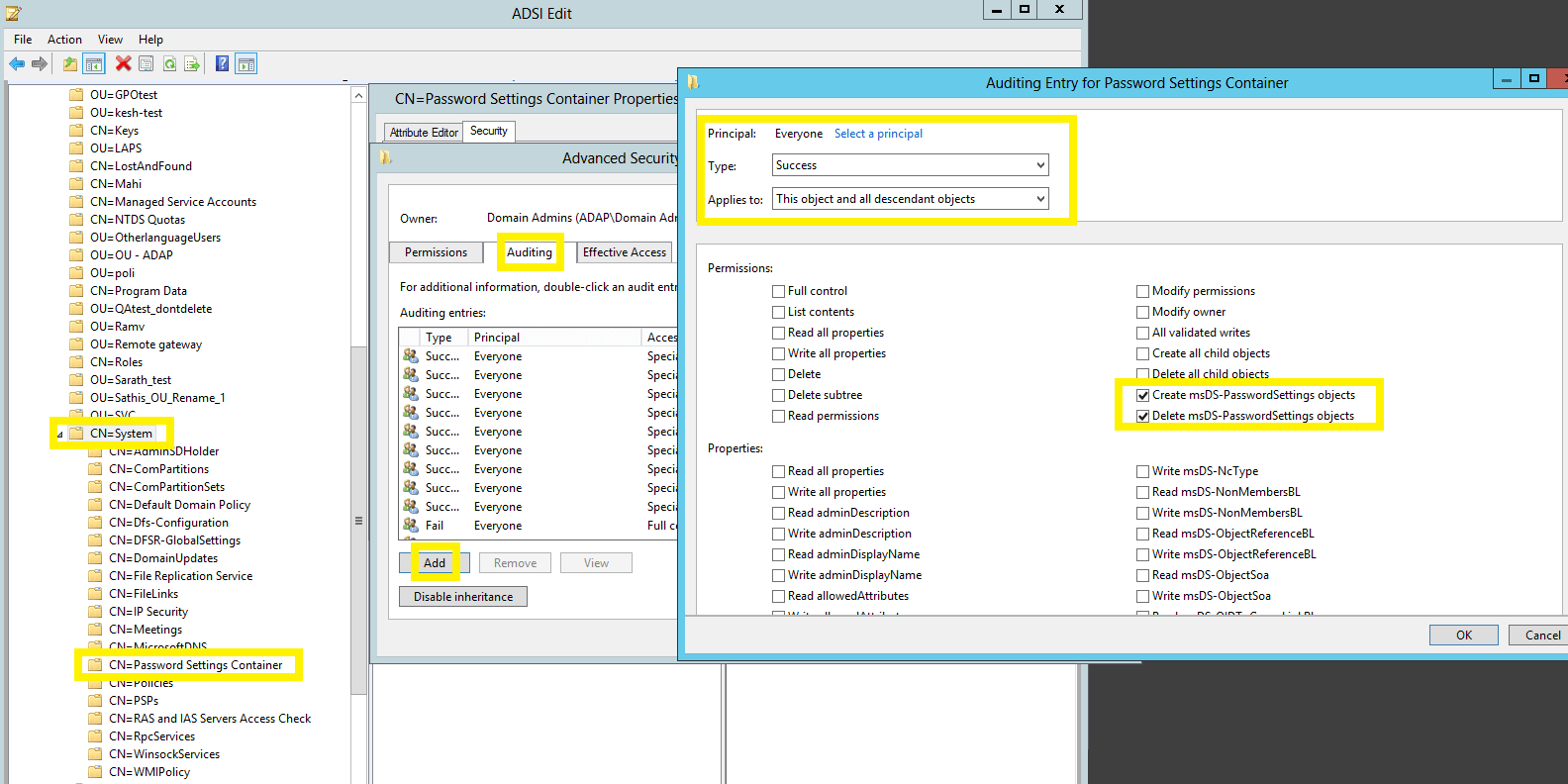

To configure auditing for password setting objects:

• Login to any computer that has the Active Directory Service Interfaces snap-in.
• Open the ADSI Edit console, right-click on ADSI Edit and select Connect to.
• In the Connection Settings window, under Select a Well-Known Naming Context, select Default Naming Context.
• Navigate to the left pane, click on Default naming context. go to Expand the domain → Expand the System container.
• Right-click on the Password Settings Container and go to Properties → Security → Advanced → Auditing → Add.
• In the Auditing Entry window, select a principal: Everyone → Type: Success and select the appropriate permissions, as directed in the table below.

Auditing Entry number	Auditing Entry for	Access	Apply onto
			Windows Server 2003	Windows Server 2008 and above
1&2	Password Settings Container	Create msDS-PasswordSettings objects Delete msDS-PasswordSetting objects	Not Applicable	This object and all descendant objects
		Write All Properties Delete Modify Permissions	Not Applicable	Descendant msDS-PasswordSettings objects

Image showing: Auditing Entry number 1.

To configure auditing for configuration objects:

• Login to any computer that has the Active Directory Service Interfaces snap-in.
• Open the ADSI Edit console.
• Right-click on ADSI Edit and select Connect to.
• In the Connection Settings window, under Select a Well-Known Naming Context, select Configuration.
• Navigate to the left panel, click on Configuration, right-click on Configuration naming context.
• Select Properties, and go to Security → Advanced → Auditing → Add.
• In the Auditing Entry window, select a principal: Everyone → Type: Success, and select the appropriate permissions, as directed in the table below.

Auditing Entry for	Access	Apply onto
		Windows Server 2003	Windows Server 2008 and above
Configuration	Create All Child objects Write All Properties Delete All child objects Delete Modify Permissions All Extended Rights	This object and all child objects	This object and all

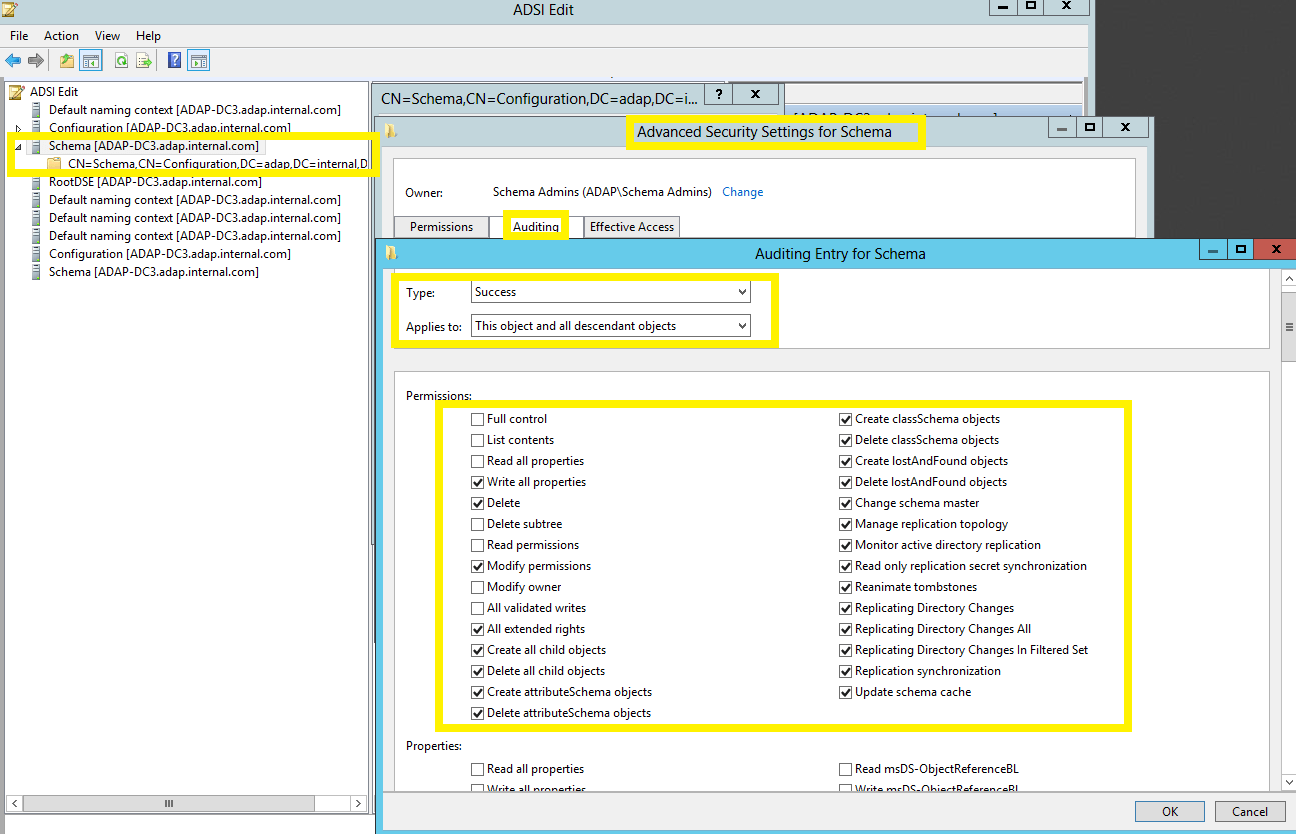

To configure auditing for schema objects:

• Login to any computer that has the Active Directory Service Interfaces snap-in.
• Open the ADSI Edit console.
• Right-click on ADSI Edit, and select Connect to.
• In the Connection Settings window, under Select a Well-Known Naming Context, select Schema.
• Navigate to the left pane, click on Schema.
• Right-click on Schema naming context, select Properties and go to Security → Advanced → Auditing → Add.
• In the Auditing Entry window, select a principal: Everyone → Type: Success, and select the appropriate permissions, as directed in the table below.

Auditing Entry for	Access	Apply onto
		Windows Server 2003	Windows Server 2008 and above
Schema	Create All Child objects Write All Properties Delete All child objects Delete Modify Permissions All Extended Rights	This object and all child objects	This object and all descendant objects

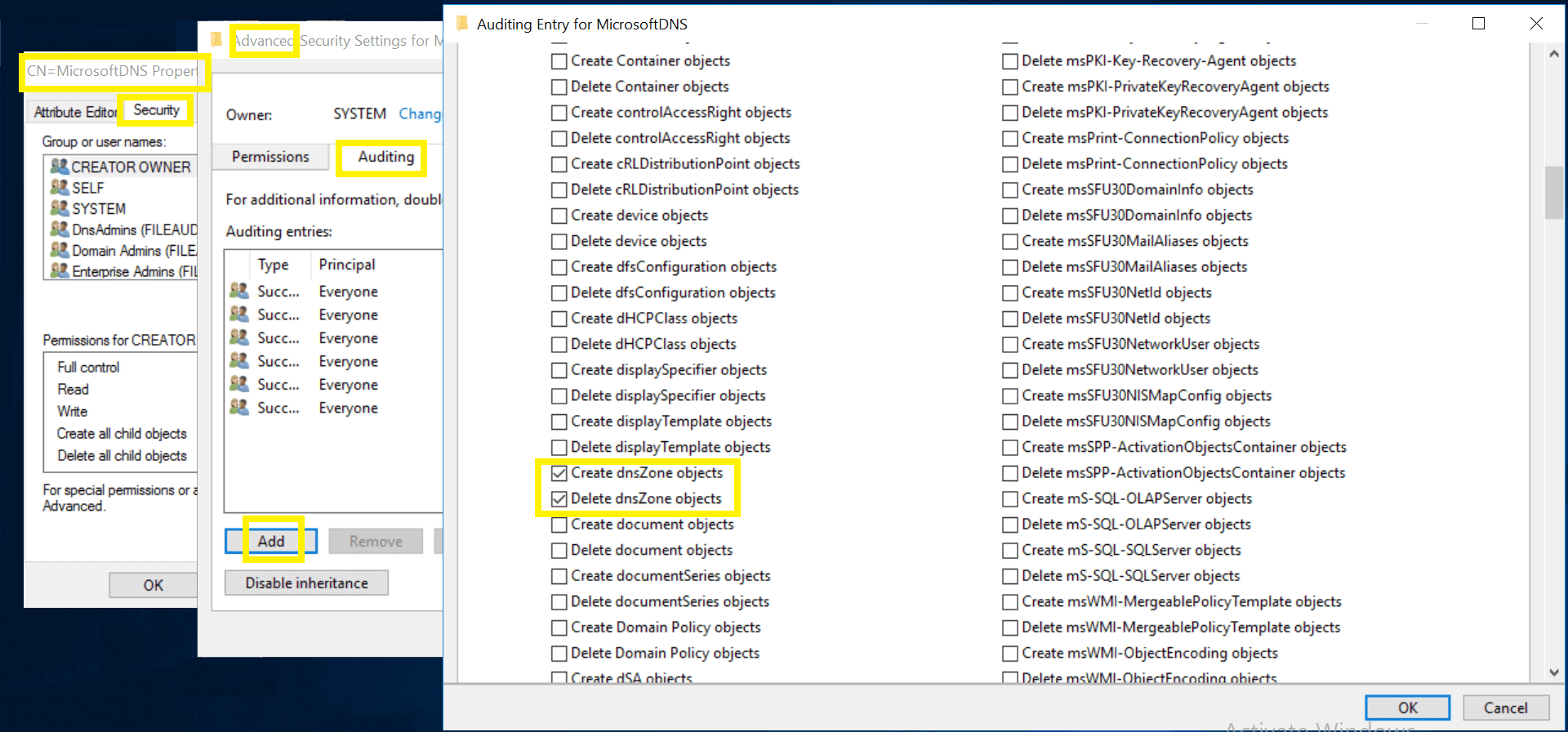

To configure auditing for DNS objects

• Login to any computer that has the Active Directory Service Interfaces snap-in.
• Open the ADSI Edit console.
• Right-click on ADSI Edit, and select Connect to.
• In the Connection Settings window, under Select or type a Distinguished Name or Naming Context, type the distinguished name, as per your domain name and the partition where the zone is stored.
• Type DC=adap, DC=internal,DC=com as the Distinguished Name. (This partition is generally loaded in Adsiedit by default)
• Type DC=DomainDNSZones,DC=adap,DC=internal,DC=com as the Distinguished Name.
• Type DC=ForestDNSZones,DC=adap,DC=internal,DC=com as the Distinguished Name.





• Navigate to the left pane, click on Default naming context.
• Right-click on MicrosoftDNS, select Properties and go to Security → Advanced → Auditing → Add.
• In the Auditing Entry window, select a principal: Everyone, Type: Success, and select the appropriate permissions, as directed in the table below.

Auditing Entry number	Auditing Entries for	Access	Apply onto
			Windows Server 2003	Windows Server 2008 and above
1 & 2	DNS Zones	Create DNS Zones objects Delete DNS Zones objects Write All Properties Delete Modify Permissions	This object and all child objects	This object and all descendant objects
		Write All Properties Delete Modify Permissions	DNS Zone objects	Descendant DNS Zone objects
3 & 4	DNS Nodes	Create DNS Nodes objects Delete DNS Nodes objects	This object and all child objects	Descendant DNS Zone objects
		Write All Properties Delete Modify Permissions	DNS Node objects	Descendant DNS Node objects
