OpManager offers REST APIs for adding and fetching data from OpManager. Using these APIs, you can integrate OpManager with 3rd party IT management/service desk software.

How OpManager REST APIs work?

The APIs work with an API key. The API key is unique for each OpManager account and is mandatory for all API requests. Learn how to enable or disable Rest API keys

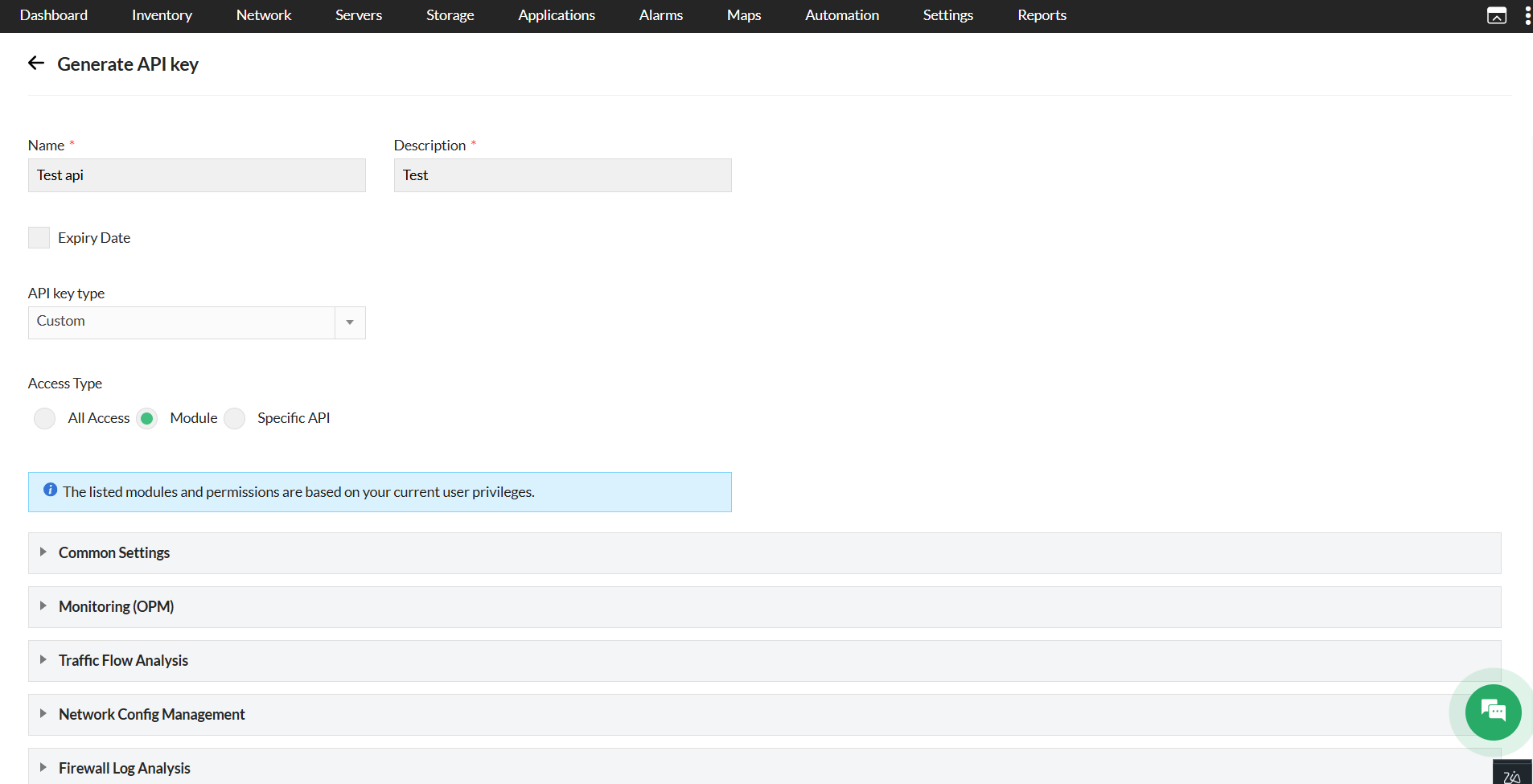

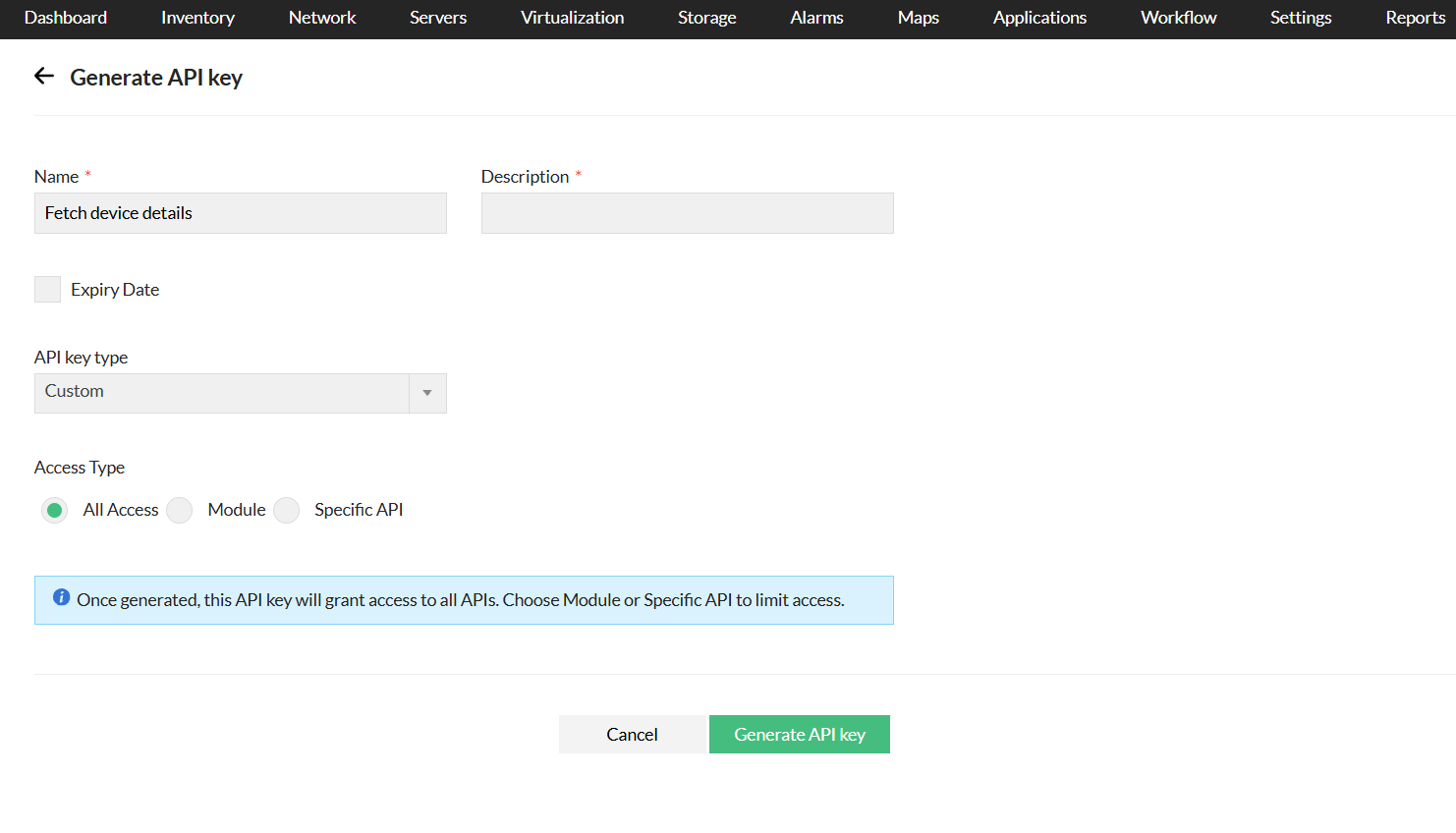

How to view an API Key?

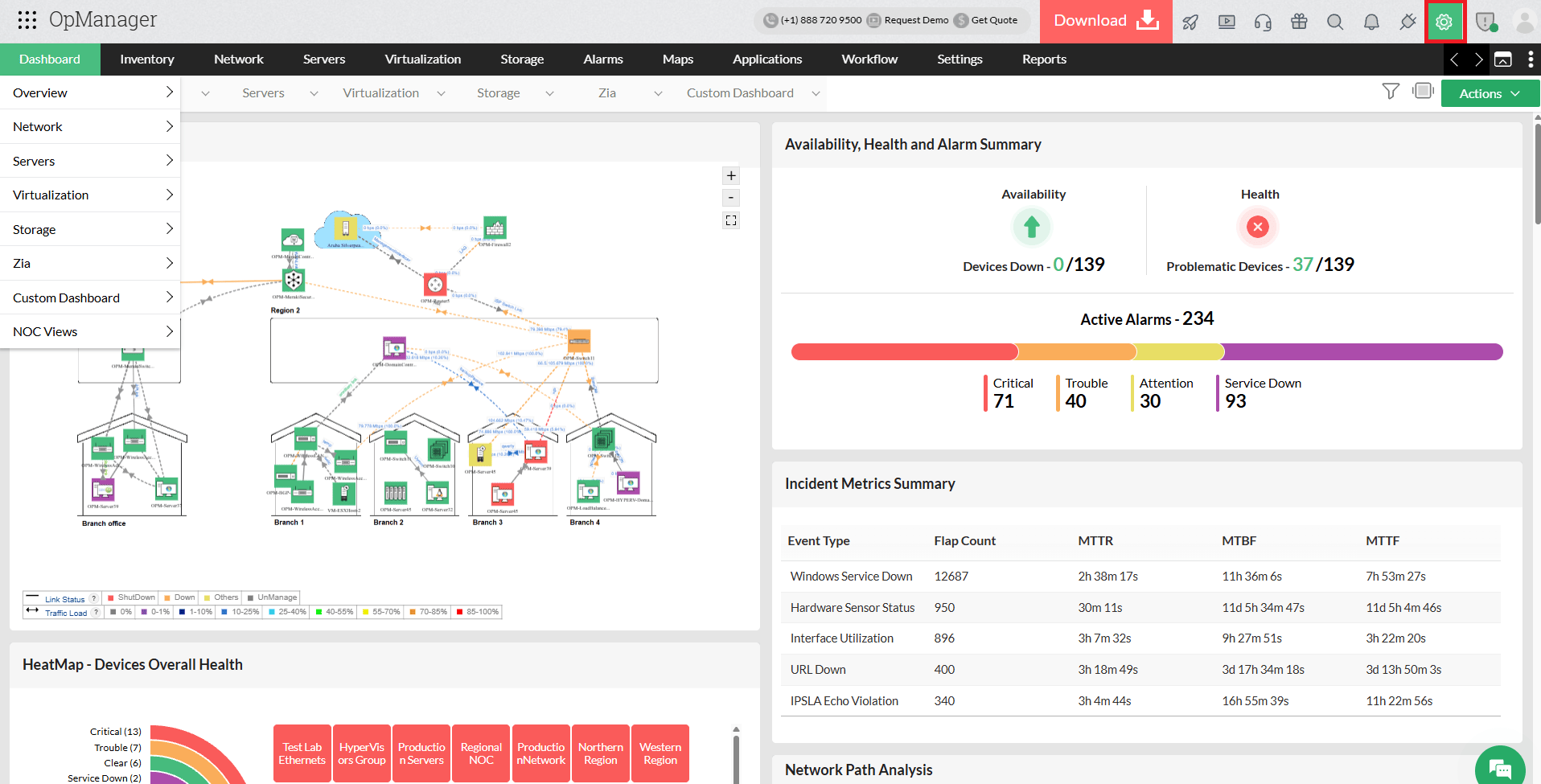

To view or copy an API key, go to Quick links > Rest API Key option in OpManager web client.(The quick link option is the Gear icon on the top right corner)

​How to send an apiKey?

​The functionality of request parameter-based apiKey authentication has been deprecated. Before version, 128100, the apiKey can be sent via the request parameter. From version 128100, the apiKey can now be sent either in the request header or as a request parameter.

Note: The support for request parameter based apiKey authentication will be ended soon. The following list of URLs should be called with apiKey only via the request header. ApiKey authentication based on request parameters will not work for these URLs.

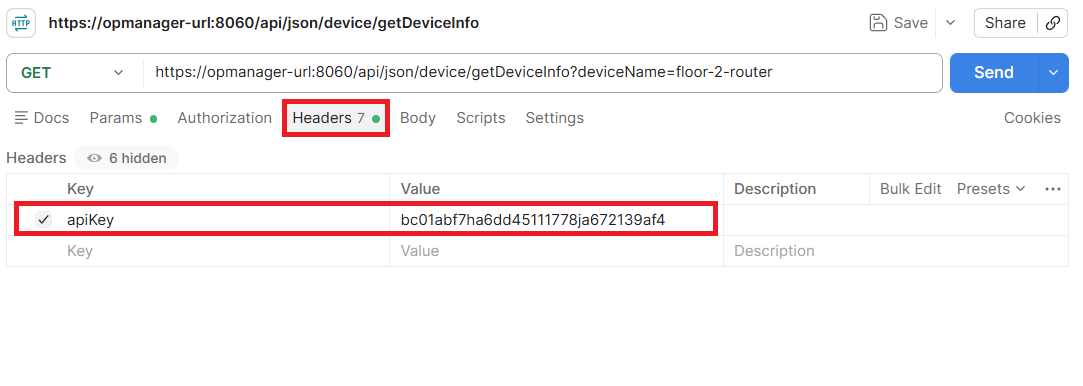

A Sample configuration with header:

Enable / Disable Rest API access

From version 127131, the option to enable/disable Rest API has been added.

What has changed?

• Rest API access will be disabled by default for the new users created under User Management. An administrator with complete access to all the modules and devices will be able to edit the user under User Management and provide Rest API access if required.



• If the RestApikey access has been enabled for the users, Rest API menu under Quick links will display the RestApikey, and external Rest API calls will be allowed only if the Rest API access has been enabled for the user.



• If the Rest API access has been disabled, the Rest API menu under Quick links will display "Contact the administrator user".

listAlarms

Method: GET

Description: Lists all the alarms generated in OpManager.

Sample URL: http://localhost:8060/api/json/alarm/listAlarms?apiKey=********&deviceName=test1.zoho.com&severity=1&category=Device_Category&entity=sample_entity&alertType=ActiveAlarms&fromTime=2022-05-02 08:00:00&toTime=2022-06-02 18:30:00

Sample Response: [{"severity":"<img src='/images/devices/status3.gif'> Attention","numericSeverity":3,"severityString":"Attention","statusStr":"Attention","displayName":"opm-server1","message":"CPU Utilization is 0%, threshold value for this monitor is 4%: Top 3 Processes:-MEEDRInferenceEngine - 1.299%;svchost#42 - 0.812%;WmiPrvSE#3 - 0.65%","deviceName":"opm-server1","statusNum":3,"modTimeLong":1709902027793,"modTime":"8 Mar 2024 06:17:07 PM IST","alarmId":"1","category":"Desktop","entity":"3_CPUUSAGE","status":3,"who":"Unacknowledged"},{"severity":" Critical","numericSeverity":1,"severityString":"Critical","statusStr":"Critical","displayName":"opm-server1","message":"Disk Utilization is 54%, threshold value for this monitor is 6%","deviceName":"opm-server1","statusNum":1,"modTimeLong":1709875112703,"modTime":"8 Mar 2024 10:48:32 AM IST","alarmId":"3","category":"Desktop","entity":"5_DiskUtilization","status":1,"who":"Unacknowledged"},{"severity":"<img src='/images/devices/status2.gif'> Trouble","numericSeverity":2,"severityString":"Trouble","statusStr":"Trouble","displayName":"opm-server1","message":"IO Read and Write Rate is 1258 Operations/Sec, threshold value for this monitor is 5 Operations/Sec","deviceName":"opm-server1","statusNum":2,"modTimeLong":1709875109126,"modTime":"8 Mar 2024 10:48:29 AM IST","alarmId":"2","category":"Desktop","entity":"10","status":2,"who":"Unacknowledged"}]

alarmProperties

Method: GET

Description: To list alarm properties of the particular alarm

Sample URL: https://localhost:8060/api/json/alarm/alarmProperties?apiKey=***************&entity=sample_entity

Sample Response: { "statusStr": "Critical", "displayName": "opm-server1", "PRIORITY": "0", "workflows": [ { "logSeverity": 5, "moDispName": "opm-server1", "logMessage": "Workflow has been executed successfully.", "rbName": "workflow1", "taskList": [ { "logSeverity": 5, "logMessage": "Ping command used was : C:\\WINDOWS\\System32\\ping -n 4 -w 1000 -l 32 127.0.0.1", "logSeverityStr": "Info", "taskName": "Ping Device", "logTimeLong": "2022-10-26 17:34:18.481", "logTime": "26 Oct 2022 05:34:18 PM IST" }, { "logSeverity": 5, "logMessage": "Ping output : \nPinging 127.0.0.1 with 32 bytes of data:\nReply from 127.0.0.1: bytes=32 time<1ms TTL=128\nReply from 127.0.0.1: bytes=32 time<1ms TTL=128\nReply from 127.0.0.1: bytes=32 time<1ms TTL=128\nReply from 127.0.0.1: bytes=32 time<1ms TTL=128\n\nPing statistics for 127.0.0.1:\n Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),\nApproximate round trip times in milli-seconds:\n Minimum = 0ms, Maximum = 0ms, Average = 0ms\n", "logSeverityStr": "Info", "taskName": "Ping Device", "logTimeLong": "2022-10-26 17:34:18.481", "logTime": "26 Oct 2022 05:34:18 PM IST" }, { "logSeverity": 5, "logMessage": "Ping was successful.", "logSeverityStr": "Info", "taskName": "Ping Device", "logTimeLong": "2022-10-26 17:34:18.481", "logTime": "26 Oct 2022 05:34:18 PM IST" } ], "rbID": 301, "moID": 302, "logTime": "26 Oct 2022 05:34:18 PM IST" } ], "source": "opm-server1", "stringseverity": "Critical", "GROUPNAME": "", "strCreateTime": "26 Oct 2022 05:27:50 PM IST", "id": "5", "events": [ { "severity": "Critical", "statusStr": "Critical", "source": "opm-server1", "id": "5", "time": "26 Oct 2022 05:27:50 PM IST", "text": "Disk Utilization is 44%, threshold value for this monitor is 5%", "category": "Desktop", "imgsrc": "/images/devices/status1.gif", "entity": "37_DiskUtilization", "statusNum": "1" } ], "severity": "/images/devices/status1.gif", "WEBNMS": "", "strModTime": "26 Oct 2022 05:27:50 PM IST", "ALARMCODE": "THRESHOLD-DOWN_WMI-DiskUtilization", "message": "Disk Utilization is 44%, threshold value for this monitor is 5%", "previousSeverity": "-1", "priority": "0", "deviceID": 302, "OWNERNAME": "", "statusNum": "1", "MAPNAME": "", "EVENTTYPE": "Threshold Down", "stage": "0", "modTime": "1666785470844", "createTime": "1666785470844", "pollid": "37", "category": "Desktop", "entity": "37_DiskUtilization", "stringpreviousseverity": "", "who": "Unacknowledge" }

addNotes

Method: POST

Description: This API is used to add notes to an alarm

Sample URL: https://localhost:8060/api/json/alarm/addNotes?apiKey=***************&entity=sample_entity

Sample Response: { "result": { "message": "Successfully Added" } }

acknowledgeAlarm

Method: POST

Description: This API is used to acknowledge an alarm

Sample URL: https://localhost:8060/api/json/alarm/acknowledgeAlarm?apiKey=***************&entity=sample_entity

Sample Response: { "result": { "message": "Alarm has been successfully Acknowledged" } }

unAcknowledgeAlarm

Method: POST

Description: This API is used to unacknowledge an alarm

Sample URL: http://localhost:8060/api/json/alarm/unAcknowledgeAlarm?apiKey=********&entity=sample_entity

Sample Response: { "result": { "message": "Alarm has been successfully UnAcknowledged" } }

clearAlarm

Method: POST

Description: This API is used to clear an Alarm.

Sample URL: https://localhost:8060/api/json/alarm/clearAlarm?apiKey=***************&entity=sample_entity

Sample Response: { "result": { "message": "Alarm has been successfully Cleared!" } }

deleteAlarm

Method: POST

Description: This API is to delete an alarm

Sample URL: https://localhost:8060/api/json/alarm/deleteAlarm?apiKey=***************&entity=sample_entity

Sample Response: { "result": { "message": "Alarm has been successfully Deleted!" } }

getTopDevicesByAlarms

Method: GET

Description: This API is to get alarms based on devices

Sample URL: https://localhost:8060/api/json/alarm/getTopDevicesByAlarms?apiKey=***************&entity=sample_entity

Sample Response: [ { "ipaddress": "127.0.0.1", "moname": "opm-server1", "devicename": "opm-server1", "alarmcount": 162, "type": "Windows 10", "category": "Desktop", "mapname": "Desktops_Map.netmap", "status": 1 }, { "ipaddress": "127.0.0.1", "moname": "opm-server2", "devicename": "opm-server2", "alarmcount": 2, "type": "Windows 2019", "category": "Server", "mapname": "Servers_Map.netmap", "status": 1 } ]

getAnnotation

Method: GET

Description: This API is to get notes of the alarms

Sample URL: https://localhost:8060/api/json/alarm/getAnnotation?apiKey=***************&entity=sample_entity

Sample Response: [ { "notes": "This is a test note", "modTime": 1666786020066, "noteID": 1, "modTimeStr": "26 Oct 2022 05:37:00 PM IST", "entity": "37_DiskUtilization", "who": "admin" } ]

getPingResponse

Method: POST

Description: ICMP/Ping response for the given device.

Sample URL: https://localhost:8060/api/json/device/getPingResponse?apiKey=***************&deviceName=xxx.xxx.xx.x

Sample Response: {"PingResponse":{"Details":"\nPinging 127.0.0.1 with 32 bytes of data:\nReply from 127.0.0.1: bytes=32 time=21ms TTL=251\n\nPing statistics for 127.0.0.1:\n Packets: Sent = 1, Received = 1, Lost = 0 (0% loss),\nApproximate round trip times in milli-seconds:\n Minimum = 21ms, Maximum = 21ms, Average = 21ms\n"}}

getTraceResponse

Method: POST

Description: Trace route command response for the given device

Sample URL: https://localhost:8060/api/json/device/getTraceResponse?apiKey=***************&deviceName=xxx.xxx.xx.x

Sample Response: {"TraceResponse":{"Details":"\nTracing route to 127.0.0.1 over a maximum of 30 hops\n\n 1 8 ms 9 ms 3 ms 127.0.0.1 \n 2 1 ms 1 ms 1 ms 127.0.0.1 \n 3 20 ms 20 ms 20 ms 127.0.0.1 \n 4 22 ms 21 ms 22 ms 127.0.0.1 \n 5 21 ms 20 ms 20 ms 127.0.0.1 \n\nTrace complete.\n"}}

getDownDevices

Method: GET

Description: Lists the devices that are currently in down state and having device status as 'critical'

Sample URL: https://localhost:8060/api/json/discovery/getDownDevices?apiKey=******************

Sample Response: {"DownDevices":{"Details":[{"name":"127.0.0.1","type":"HPSwitch 3900X","category":"Switch","displayName":"SwitchDevice_SP"},{"name":"127.0.0.2","type":"Windows Server 2018","category":"Server","displayName":"AppServer-04"},{"name":"UserPC_Michael","type":"Linux RedHat","category":"Server","displayName":"127.0.0.3"}]}}

getAvailabilityGraphData

Method: GET

Description: Fetches the Availability graphs for the given device or interface.

Sample URL: https://localhost:8060/api/json/device/getAvailabilityGraphData?apiKey=******************&isFluidic=true&name=opmserver.mydomain.com

Sample Response: {"uptimeData":{"Today":100,"This week":100,"Last week":99,"Last 30 days":99,"Last month":0,"This month":99,"Last 24 hours":100,"Yesterday":100,"Last 7 days":99,"Last 12 hours":100},"graphData":[{"seriesname":"Up","data":[["Last 12 hours",100],["Today",100],["Last 24 hours",100],["Yesterday",100],["This week",100],["Last 7 days",99.093],["Last week",98.867],["This month",99.269],["Last 30 days",99.093],["Last month",0]]},{"seriesname":"On Maintenance","data":[["Last 12 hours",0],["Today",0],["Last 24 hours",0],["Yesterday",0],["This week",0],["Last 7 days",0],["Last week",0],["This month",0],["Last 30 days",0],["Last month",0]]},{"seriesname":"Dependent Unavailable","data":[["Last 12 hours",0],["Today",0],["Last 24 hours",0],["Yesterday",0],["This week",0],["Last 7 days",0],["Last week",0],["This month",0],["Last 30 days",0],["Last month",0]]},{"seriesname":"On Hold","data":[["Last 12 hours",0],["Today",0],["Last 24 hours",0],["Yesterday",0],["This week",0],["Last 7 days",0],["Last week",0],["This month",0],["Last 30 days",0],["Last month",0]]},{"seriesname":"Down","data":[["Last 12 hours",0],["Today",0],["Last 24 hours",0],["Yesterday",0],["This week",0],["Last 7 days",0],["Last week",0],["This month",0],["Last 30 days",0],["Last month",0]]},{"seriesname":"Not Monitored","data":[["Last 12 hours",0],["Today",0],["Last 24 hours",0],["Yesterday",0],["This week",0],["Last 7 days",0.907],["Last week",1.133],["This month",0.731],["Last 30 days",0.907],["Last month",100]]}]}

listDownTimeSchedules

Method: GET

Description: Provides the list of downtime schedules created in OpManager.

Sample URL: https://localhost:8060/api/json/admin/listDownTimeSchedules?apiKey=****************

Sample Response: [{"name":"Test","id":"1","type":"Once","nextscheduledtime":"Mon, Nov 28, 2022 13:00:00","statusNum":"1","status":"Enabled"}]

addDowntimeSchedule

Method: POST

Description: Allows you to schedule downtimes for groups and devices.

Sample URL: https://localhost:8060/api/json/admin/addDowntimeSchedule?apiKey=&operation=Add&scheduleName=FirmwareUpgrade&status=Enabled&scheduleDesc= &recurrence=OnceOnly&selectDevicesMethod=Device&once_startat=2024-07-10 00:00&once_endate=2024-07-11 04:00&selectedDevices=172.21.191.167,30.30.30.6,opm-sql

Sample Response: {"result":{"message":"Downtime Scheduler has been added successfully."}}

updateDowntimeSchedule

Method: POST

Description: Used to update downtime schedule.

Sample URL: http://localhost/api/json/admin/updateDowntimeSchedule?operation=Edit&MS_INSTANCEID=14&scheduleId=14

Sample Response: [{"name":"Test","id":"1","type":"Once","nextscheduledtime":"Mon, Nov 28, 2022 13:00:00","statusNum":"1","status":"Enabled"}]

getDowntimeSchedule

Method: GET

Description: Used to get the downtime scheduler details

Sample URL: http://localhost/api/json/admin/getDowntimeSchedule?scheduleName=test&_=1564738493372

Sample Response: [{"name":"Test","id":"1","type":"Once","nextscheduledtime":"Mon, Nov 28, 2022 13:00:00","statusNum":"1","status":"Enabled"}]

setManaged

Method: POST

Description: Manage or Unmanage the devices,interfaces or URL monitors that are currently added in OpManager.

Sample URL: https://localhost:8060/api/json/device/setManaged?manage=true&apiKey=***************

Sample Response: {"result":{"message":"Device is being managed."}}

getBusinessView

Method: GET

Description: Lists all the business views created in OpManager.

Sample URL: https://localhost:8060/api/json/businessview/getBusinessView?apiKey=***************

Sample Response: {"BusinessView":{"Details":[{"name":"New BusinessView_bv","total":"3","error":"0","displayName":"New BusinessView","status":"5","alarms":"0"}]}}

getBusinessDetailsView

Method: GET

Description: Lists all the devices available in the given business view

Sample URL: https://localhost:8060/api/json/businessview/getBusinessDetailsView?apiKey=***************&bvName=ProductionSite_bv

Sample Response: {"BusinessDetailsView":{"Details":[{"severity":"5","MemUtilization":0,"CPUUtilization":0,"displayName":"OPMSwitch_TeamA","name":"OPMSwitch","IpAddress":"127.0.0.1","type":"Unknown","status":"Clear"},{"severity":"5","MemUtilization":0,"CPUUtilization":0,"displayName":"OPMRouter_TeamA","name":"OPMRouter","IpAddress":"127.0.0.1","type":"Unknown","status":"Clear"},{"severity":"5","MemUtilization":0,"CPUUtilization":0,"displayName":"OPMServer_AD","name":"OPMServer_Domaincontroller","IpAddress":"127.0.0.1","type":"Unknown","status":"Clear"}],"TotalRecords":"3"}}

getWidgetData

Method: GET

Description: This API is used to fetch the data to be loaded for a given widget id.

Sample URL: https://localhost:8060/api/json/v2/dashboard/getWidgetData?apiKey=***************&widgetID=495

Sample Response: {"623": {"WidgetName": "Devices by Availability","WidgetForwardPage": "availDetails","WidgetAdditionalData": {},"WidgetData": [{"parentKey":"NULL","onHold":"0s","displayName":"OPM-Firewall1","dependentUnavailable":"0s","ipAddress":"y.y.y.y","availability":"100","downPercent":"0","deviceName":"y.y.y.y","maintenance":"0s","down":"0s","NOTMONITORED":"0s","uptime":"1d"},{"parentKey":"NULL","onHold":"0s","displayName":"OPM-Firewall2","dependentUnavailable":"0s","ipAddress":"x.x.x.x","availability":"100","downPercent":"0","deviceName":"x.x.x.x","maintenance":"0s","down":"0s","NOTMONITORED":"0s","uptime":"1d"}],"Period": "twfourhours","WidgetType": "Grid","WidgetHeaders": ["Name","IPAddress","Up","On Hold","Maintenance","Dependent Unavailable","Down","Not Monitored","Availability(%)"],"Name": "widget.name.topnavail"}}

getWidgetsList

Method: GET

Description: This API is used to list the widgets to be loaded for a given dashboard.

Sample URL: https://localhost:8060/api/json/dashboard/getWidgetsList?apiKey=***************&dashboardName=dashboardname

Sample Response: {"dashName": "Enterprise Dashboard","dashboardID": "31","isDashPropsAvailable": true,"isDefaultDashboard": true,"dashDesc": "contains widgets from all products","noOfCols": "4","colWidths": [{"colWidth": "50","colID": "1"},{"colWidth": "50","colID": "2"}],"configureWidget": true,"editDashboard": false,"widgetList": [{"widgetID": "277","name": "Infrastructure Snapshot","width": "2","x": "0","y": "15","id": "619","type": "Grid","desc": "Infrastructure Snapshot","widgetUniqueName": "widget.name.infrasnap","height": "43"},{"widgetID":"9006","name":"Tree View","width":"2","x":"0","y":"58","id":"9007","type":"DeviceTree","desc":"Tree view of elements","widgetUniqueName":"widget.name.treeView","height":"48"},{"widgetID":"266","name":"HeatMap","width":"2","x":"2","y":"0","id":"618","type":"Heatmap","desc":"HeatMap","widgetUniqueName":"widget.name.heatmap","height":"15"},//and other widget data in above format]}

listDevices

Method: GET

Description: Lists all the devices added in OpManager.

Sample URL: https://localhost:8060/api/json/device/listDevices?apiKey=****************&

Sample Response: {"total":1,"page":1,"rows":[{"isSNMP":true,"ipaddress":"127.0.0.1","statusStr":"Critical","prettyTime":"10 minutes ago","displayName":"OPMRouterDevice","isNew":false,"type":"Cisco 2900 IS Series","vendorName":"Cisco","deviceName":"127.0.0.1","statusNum":"1","addedTime":"28 Nov 2022 01:08:41 PM IST","interfaceCount":14,"category":"Router"},{"isSNMP":false,"ipaddress":"127.0.0.1","statusStr":"Clear","prettyTime":"50 minutes ago","displayName":"OPMSwitch_Site1","isNew":false,"type":"Unknown","vendorName":"Unknown","deviceName":"127.0.0.1","statusNum":"5","addedTime":"28 Nov 2022 12:29:06 PM IST","interfaceCount":0,"category":"Unknown"}],"records":2}

getDeviceInfo

Method: GET

Description: Provides the Hardware Informations of a device

Sample URL: https://localhost:8060/api/json/device/getDeviceInfo?apiKey=***************&deviceName=xxx.xxx.xx.x

Sample Response: {"OperatingSystem":"Windows", "MACAddress":"00:00:00:11:11:11", "SoftwareVersion":"10.0.1", "SerialNumber":"RKQTHT", "ServiceTag":"ADRFB126", "Model":"ProLiant BL460c", Manufacturer:"HP", "HDD":"512", "RAM":"16384", ...}

setDeviceInfo

Method: POST

Description: API to update the Hardware Information of any device.

Sample URL: https://localhost:8060/api/json/device/setDeviceInfo?apiKey=***************&deviceName=xxx.xxx.xx.x

Sample Body: values=[{"metricName":"SoftwareVersion","metricValue":"12345"},{"metricName":"RAM","metricValue":"800"}, ...]

Sample Response: {"Hardware details updated successfully."}

getDeviceNotes

Method: GET

Description: Provides custom field values associated to the given device such as Building, Cabinet, Serial number, etc.

Sample URL: https://localhost:8060/api/json/device/getDeviceNotes?apiKey=***************&name=xxx.xxx.xx.x

Sample Response: [{"FIELDVALUE":"","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Building where the device is present","FIELDNAME":"Building","ALIASNAME":"UDF2","FIELDLENGTH":100},{"FIELDVALUE":"","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Cabinet where the device is located","FIELDNAME":"Cabinet","ALIASNAME":"UDF4","FIELDLENGTH":100},{"FIELDVALUE":"","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Comments about the device","FIELDNAME":"Comments","ALIASNAME":"UDF8","FIELDLENGTH":800},{"FIELDVALUE":"user-DevTeam","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Contact person for the device","FIELDNAME":"Contact Name","ALIASNAME":"UDF6","FIELDLENGTH":100},{"FIELDVALUE":"","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Department for which the device services","FIELDNAME":"Department","ALIASNAME":"UDF5","FIELDLENGTH":100},{"FIELDVALUE":"","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Floor where the device is located","FIELDNAME":"Floor","ALIASNAME":"UDF3","FIELDLENGTH":100},{"FIELDVALUE":"FGL120A10AY","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Serial Number of the device","FIELDNAME":"SerialNumber","ALIASNAME":"UDF1","FIELDLENGTH":100},{"FIELDVALUE":"","DATATYPE":"Text","ISEDITABLE":true,"DESCRIPTION":"Contact number for this device","FIELDNAME":"Telephone Number","ALIASNAME":"UDF7","FIELDLENGTH":100}]

getInfrastructureDetailsView

Method: GET

Description: Provides categorywise details of devices such as device name, device displayname, status, IP Address, Device type and the associated performance monitor values.

Sample URL: https://localhost:8060/api/json/discovery/getInfrastructureDetailsView?apiKey=**************&categoryName=Server

Sample Response: {"InfrastructureDetailsView":{"Details":[{"intfCount":"0","severity":"5","displayName":"127.0.0.1","name":"127.0.0.1","IpAddress":"127.0.0.1","type":"Unknown","monitors":{"DiskUtilization":0,"CPUUtilization":0,"MemoryUtilization":0},"status":"Clear"},{"intfCount":"0","severity":"5","displayName":"127.0.0.1","name":"127.0.0.1","IpAddress":"127.0.0.1","type":"Windows 2016","monitors":{"DiskUtilization":0,"CPUUtilization":0,"MemoryUtilization":0},"status":"Clear"}],"TotalRecords":"2"}}

getDeviceSummary

Method: GET

Description: Provides the device details as in the Device snapshot page

Sample URL: https://localhost:8060/api/json/device/getDeviceSummary?apiKey=**************&name=opmserver.testdomain.com

Sample Response: {"NFA_ID":"","recBandwidth":"1","IntfIpaddress":"127.0.0.1","instance":"101","displayName":"ciscostackswitchdevice874","Util":"5","availability":{"Down":0,"Dependent Unavailable":0,"On Hold":0,"Not Monitored":0,"Parent Down":98.34,"On Maintenance":0,"Up":1.66},"avgOutPackets":"500 ","outTraffic":"0.008 ","moID":"10000000310","isIPAvailable":true,"inSpeedDisplayValue":"1 bps","intfDisplayName":"GigabitEthernet1/0/1","txUtil":"0.89","typeIdDescr":"Ethernet (6)","operStateImg":"","isSubInterface":"false","managed":"true","snapDetails":{"snapList":[{"indexCount":0,"ondemandWidget":false,"refresh":false,"type":"IntfSummary","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceSummary","rowNum":1,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.summary","header":false,"id":10000000081,"snapid":10000000081,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[],"sizey":12,"timeSelection":false,"desc":"dashboard.name.nwconfig"},{"indexCount":1,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":13,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000082,"snapid":10000000082,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"totalPackets"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.devices.details.totalbytes"},{"indexCount":2,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":15,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000083,"snapid":10000000083,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"traffic"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Interface.Traffic"},{"indexCount":3,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":17,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000084,"snapid":10000000084,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"utilization"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Interface.Utilization"},{"indexCount":4,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":19,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000085,"snapid":10000000085,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"errors"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.devices.details.errndiscards"},{"indexCount":5,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":21,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000086,"snapid":10000000086,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"discardRate"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Discard.Rate"},{"indexCount":6,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":23,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000087,"snapid":10000000087,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"packets"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"opu.views.PACKETS"},{"indexCount":7,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":25,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000088,"snapid":10000000088,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"errorRate"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Error.Rate"},{"indexCount":8,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceMonitors","rowNum":50,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.monitors","header":true,"id":10000000089,"snapid":10000000089,"snapshotData":{"colModelList":[{"name":"monitorName","index":"monitorName"},{"name":"interval","index":"interval"},{"name":"collectionTime","index":"collectionTime"},{"formatter":"intfValuesWithUnits","name":"value","index":"value"},{"hidden":true,"name":"displayName","index":"displayName"},{"hidden":true,"name":"unit","index":"unit"}],"colNamesList":["webclient.devices.details.monitors","webclient.map.edit.interval","webclient.devices.details.lastpoll","webclient.action.currVal","",""],"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[],"sizey":14,"timeSelection":false,"desc":"webclient.admin.url.monitors"},{"indexCount":9,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceMonitors","rowNum":50,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.monitors","header":true,"id":10000000971,"snapid":10000000971,"snapshotData":{"colModelList":[{"name":"monitorName","index":"monitorName"},{"name":"interval","index":"interval"},{"name":"collectionTime","index":"collectionTime"},{"formatter":"intfValuesWithUnits","name":"value","index":"value"},{"hidden":true,"name":"displayName","index":"displayName"},{"hidden":true,"name":"unit","index":"unit"}],"colNamesList":["webclient.devices.details.monitors","webclient.map.edit.interval","webclient.devices.details.lastpoll","webclient.action.currVal","",""],"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[],"sizey":14,"timeSelection":false,"desc":"webclient.admin.url.monitors"},{"indexCount":10,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceNotes","rowNum":64,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.notes","header":true,"id":10000000090,"snapid":10000000090,"snapshotData":{"colModelList":[{"hidden":true,"classes":"GridColHidden","name":"ALIASNAME","width":"0","index":"ALIASNAME","key":true},{"hidden":true,"classes":"GridColHidden","name":"DATATYPE","width":"0","index":"DATATYPE","key":true},{"formatter":"custField_escapeHtmlTags","name":"FIELDNAME","index":"FIELDNAME"},{"formatter":"custField_escapeHtmlTags","name":"DESCRIPTION","index":"DESCRIPTION"},{"formatter":"custField_escapeHtmlTags","name":"FIELDVALUE","index":"FIELDVALUE"}],"actionurls":[{"name":"Edit","url":"InterfaceNotes"}],"colNamesList":["","","webclient.devices.customfields.fieldname","webclient.devices.customfields.description","webclient.widget.value"]},"expandtime":false,"parameters":[],"sizey":14,"timeSelection":false,"desc":"webclient.commontext.customfields"}],"snapshotID":"10000000005","snapshotDesc":"snapshot.desc.Interface","snapshotName":"OPMInterface","tabs":{"tabs":[{"tabid":10000000026,"name":"webclient.snapshot.testlinks.summary","order":1},{"tabid":10000000027,"name":"webclient.snapshot.name.Interface.Graphs","order":2},{"tabid":10000000028,"name":"webclient.admin.url.monitors","order":3}],"tabWidgets":{"10000000028":[{"ROW":50,"ASSOCIATIONID":10000000089}],"10000000027":[{"ROW":13,"ASSOCIATIONID":10000000082},{"ROW":15,"ASSOCIATIONID":10000000083},{"ROW":17,"ASSOCIATIONID":10000000084},{"ROW":19,"ASSOCIATIONID":10000000085},{"ROW":21,"ASSOCIATIONID":10000000086},{"ROW":23,"ASSOCIATIONID":10000000087},{"ROW":25,"ASSOCIATIONID":10000000088}],"10000000026":[{"ROW":1,"ASSOCIATIONID":10000000081},{"ROW":64,"ASSOCIATIONID":10000000090}]}},"timeSelectionNeeded":true,"yScale":25,"maxColumns":10},"ifPhysAddr":"20","adminState":"Up","transBandwidth":"1","statusPolledVia":"SNMP","outSpeedDisplayValue":"1 bps","rstime":"1 bps","availabilityTimeLine":["ParentDown,1670178610981,1670233674317","ParentDown,1670234394000,1670234514150","UP,1670234514150,1670237050981","UP,1670233674317,1670234394000"],"rxPackets":"0.005 ","ifAdminStatus":"1","rxUtil":"0.89","ifSpeedIn":"1","isAddedToNFA":"false","Discards":"2","stringStatus":"Down","txPackets":"0.002 ","Errors":"2","ifSpeedOut":"1","inTraffic":"0.008 ","operState":"Up","intfmanaged":"true","name":"xxx.xxx.x.xx.10000000001","typeId":"6","ifOperStatus":"1","category":"Switch","adminStateImg":"","avgInPackets":"200 ","status":"2","desc":"GigabitEthernet1/0/1","trafficCounter":"32 bit"}

getDeviceCompleteDetails

Method: GET

Description: Lists the basic details and availability of the device

Sample URL: https://localhost:8060/api/json/v2/device/getDeviceCompleteDetails?apiKey=***************&name=devicename

Sample Response: { "nfadetails":{"NFAStatus":"Not Added"}, "statusStr":"Critical", "responseTime":"001ms", "format":"dd-MM-yy HH:mm:ss", "dnsName":"xxx.xxx.xxx.xx", "timeZone":"Asia/Calcutta", "availability":["DownTime,1672597848117,1672654248117"], "todayTimeAvail":{"todayStartTime":"1672597848132","endTimeVal":"1672654248132"}, "type":"Cisco 2800 Series", "vendorName":"Cisco", "statusNum":"1", "isStorage":false, "ncmdetails":{"SUMMARY_NOT_AVAILABLE":true}, "packetLoss":"11", "configBackup":{"RunningConfig":{},"StartupConfig":{}}, "opmdetails":{ "Type":"Cisco 2800 Series", "dependentDisplayName":"None", "Category":"Server", "hardwareInfo":{"HW_MANUFACTURER":"Cisco","HW_SERIALNUMBER":"FHK1112F402","IS_ALARM_SUPPRESSED":"false","ISPDPresent":false,"HW_MODEL":"CISCO2801","LAST_UPDATED_TIME":"May 10, 2018 05:39 AM","MOID":8438,"IS_MONITORED":"true"}, "displayCategory":"Servers", "PollInterval":"7", "IPAddress":"xxx.xxx.xx.xx", "DNSName":"xxx.xxx.xx.xx", "SysDescription":"Cisco IOS Software, 2801 Software (C2801-ADVENTERPRISEK9-M), Version 15.1(3)T1, RELEASE SOFTWARE (fc2)\r\nTechnical Support: http://www.cisco.com/techsupport\r\nCopyright (c) 1986-2011 by Cisco Systems, Inc.\r\nCompiled Sun 27-Mar-11 07:15 by prod_rel_team", "Monitoring":"ICMP", "UpLinkDependency":"None" }, "state":"2", "availdata":{"Down":100,"Dependent Unavailable":0,"On Hold":0,"Not Monitored":0,"Parent Down":0,"On Maintenance":0,"Up":0} }

listVirtualDevices

Method: GET

Description: Lists all the entities of selected virtual type.

Sample URL: https://localhost:8060/api/json/device/listVirtualDevices?apiKey=***************&virtualDeviceType=VM

Sample Response: {"VENDOR_NAME":"VMware, Inc.","BUILD_INFO":"VMware ESXi 6.7.0 build-8169922","CPU_PACKAGES":2,"TotalDataStores":2,"NUM_PNIC":2,"OS_TYPE":"vmnix-x86","CPU_MODEL":"Intel(R) Xeon(R) Silver 4114 CPU @ 2.20GHz","MAINTENANCE_MODE":false,"TotalVms":11,"VCENTERDISPLAYNAME":"opm-user-vc","SYSUPTIME":"2021-09-19 21:24:17.745","CONNECTION_STATUS":"connected","CPU_THREADS":40,"CPU_SPEED_MHZ":2194,"HARDWARE_VENDOR":"Dell Inc.","NUM_HBA":3,"CPU_CORES":"20 x 2.20GHz","LASTUPDATEDTIME":"2023-01-09 17:47:25.159","MEM_CAPACITY_MB":"127 GB ","VCENTERNAME":"opm-user-vc.xxx.usercorpin.com","UUID":"4c4c4544-0047-4b10-8043-c4c04f305432","HARDWARE_MODEL":"PowerEdge C6420","ENTITYNAME":"xxx.xx.xxx.xx","POWER_STATE":"On"}

getVMWareHosts

Method: GET

Description: Lists all the VMware ESX Host for a particular vCenter

Sample URL: http://localhost:8060/api/json/device/getVMWareHosts?apiKey=***************&name=vCenter-1

Sample Response: [{"DISPLAYNAME":"ESXHost-2","STATUS_STR":"Critical","NUM_PNIC":2,"OS":"ESXServer","OS_TYPE":"vmnix-x86","SYSUPTIME":"Apr 22, 2023 21:52 PM","CONNECTION_STATUS":"connected","NAME":"ESXHost-2","VHOST_ID":23703,"STATUS":"1","CPU_SPEED_MHZ":2195,"MEM_CAPACITY_MB":130698,"POWER_STATE":"On"},{"DISPLAYNAME":"ESXHost-1","STATUS_STR":"Clear","NUM_PNIC":2,"OS":"ESXServer","OS_TYPE":"vmnix-x86","SYSUPTIME":"Apr 23, 2023 01:53 AM","CONNECTION_STATUS":"connected","NAME":"ESXHost-1","VHOST_ID":22505,"STATUS":"5","CPU_SPEED_MHZ":2195,"MEM_CAPACITY_MB":130698,"POWER_STATE":"On"}]

getDataCenterDetails

Method: GET

Description: Lists all the Datacenters present in a particular vCenter

Sample URL: http://localhost:8060/api/json/device/getDataCenterDetails?apiKey=***************&moID=13

Sample Response: [{"NO_OF_DATASTORES":5,"STATUS_STR":"Unknown","STATUS":"7","NO_OF_NETWORKS":3,"ENTITY_NAME":"Datacenter"},{"NO_OF_DATASTORES":0,"STATUS_STR":"Unknown","STATUS":"7","NO_OF_NETWORKS":0,"ENTITY_NAME":"Datacenter 2"},{"NO_OF_DATASTORES":0,"STATUS_STR":"Unknown","STATUS":"7","NO_OF_NETWORKS":0,"ENTITY_NAME":"Datacenter 1"}]

getClusterDetails

Method: GET

Description: Lists all the Clusters present in a particular vCenter

Sample URL: http://localhost:8060/api/json/device/getClusterDetails?apiKey=***************&moID=13

Sample Response: [{"NO_OF_DATASTORES":5,"STATUS_STR":"Clear","STATUS":"5","NO_OF_NETWORKS":2,"EFFECTIVE_CPU":76780,"NO_OF_HOSTS":2,"TOTAL_CPU_GHZ":86,"DRS_ENABLED":false,"DAS_ENABLED":true,"EFFECTIVE_MEMORY":208229,"ENTITY_NAME":"VSANLab","TOTAL_MEMORY_GB":255}]

getVMWareVMs

Method: GET

Description: Lists all the Virtual Machines present in the given entity type

Sample URL: http://localhost:8060/api/json/device/getVMWareVMs?apiKey=***************&name=esx2&type=HOST

Sample Response: [{"VM_CONNECTIONSTATE":"connected","DISPLAYNAME":"VMware-vm1","VM_ID":33002,"VIRTUAL_TYPE":"VMware-VM","NUM_ETHERNET":1,"VM_POWERSTATE":"Off","OS_NAME":"CentOS 4/5 or later (32-bit)","NUM_VDISK":1,"VHOST_ID":22505,"MEMORY_MB":1024,"MOID":-4,"IS_ORPHANED":"false","NUM_VCPU":1},{"VM_CONNECTIONSTATE":"connected","DISPLAYNAME":"VMware-VM2","STATUS_STR":"Trouble","VM_ID":23716,"VIRTUAL_TYPE":"VMware-VM","NUM_ETHERNET":1,"VM_POWERSTATE":"On","MAX_CPU_MHZ":17560,"IPADDRESS":"172.24.141.242","OS_NAME":"Microsoft Windows Server 2016 (64-bit)","NUM_VDISK":1,"NAME":"VMware-VM-3","VHOST_ID":23703,"MEMORY_MB":16384,"STATUS":"2","MOID":27302,"MAX_MEMORY_MB":16384,"IS_ORPHANED":"false","NUM_VCPU":8}]

getVMWareDataStores

Method: GET

Description: Lists all the Datastores present in the given entity type

Sample URL: http://localhost:8060/api/json/device/getVMWareDataStores?apiKey=***************&name=esxHost2&type=HOST

Sample Response: [{"HostCount":1,"DATASTORENAME":"VMDatastorage (1)","Datastore_ID":23719,"FILESYSTEM_TYPE":"VMFS","CAPACITY_MB":3224,"DATASTORE_URL":"ds:///vmfs/volumes/442ec0fc-67dad2ec-386f-b496913ce490/","MOID":48373,"FREESPACE_MB":615,"deviceName":"device1_com_datastore-1923","IS_ACCESSIBLE":"5"},{"HostCount":1,"DATASTORENAME":"VMFSdatastore (3)","Datastore_ID":23718,"FILESYSTEM_TYPE":"VMFS","CAPACITY_MB":492,"DATASTORE_URL":"ds:///vmfs/volumes/342ebecc-2b289b6a-dd6e-b496913ce490/","MOID":48372,"FREESPACE_MB":427,"deviceName":"device2_datastore-1922","IS_ACCESSIBLE":"5"},{"HostCount":2,"DATASTORENAME":"VSANDatastore","Datastore_ID":32101,"FILESYSTEM_TYPE":"vsan","CAPACITY_MB":1862,"DATASTORE_URL":"ds:///vmfs/volumes/vsan:56f4a7b4df993895-66fa8c0ed80efd32/","MOID":61801,"FREESPACE_MB":1840,"deviceName":"device3_datastore-2718","IS_ACCESSIBLE":"5"}]

getNutanixVDisks

Method: GET

Description: Lists all the Virtual disks present in the given entity type

Sample URL: http://localhost:8060/api/json/device/getNutanixVDisks?apiKey=***************&name=Nutanix-VM-8

Sample Response: [{"CAPACITY":"150","NFSFILEPATH":"/General/.acropolis/vmdisk/343e6469-b11d-e321-b30a-1598371a20f8","VDISK_ID":1,"DISKADDRESS":"scsi.0","UUID":"343e6469-b11d-e321-b30a-1598371a20f8"}]

getNutanixDetails

Method: GET

Description: Lists all the Virtual disks present in the given entity type

Sample URL: http://localhost:8060/api/json/device/getNutanixDetails?apiKey=***************&deviceName=Nutanix-VM8&entityType=Nutanix-VM

Sample Response: {"DISPLAYNAME":"NutanixVM2","clusterMoName":"Nutanix-Cluster-1","hostName":"Nutanix-Host-1","VCPUCOUNT":2,"VM_ID":21,"statusStr":"Clear","TOOLSMOUNTED":false,"TOOLSVERSION":"1.2.0.3","VM_POWERSTATE":"Powered On","DISKCAPACITY":"150","IPADDRESS":"172.24.151.114","uuid":"3af940cd-b453-485d-89ab-2cab95aba188","deviceName":"Nutanix-VM-1","MEMORYCAPACITY":"6","statusNum":5,"ISCONTROLLERVM":"False","STATUS":" Clear","NOOFNETWORKADAPTERS":1,"clusterName":"Nutanix-Cluster-1","hostMoName":"Nutanix-Host-1","MOID":307,"MEMRESERVEDCAPACITY":"6","ENTITYNAME":"Nutanix-VM-2"}

addDevice

Method: POST

Description: Allows you to add individual devices to OpManager for monitoring.

Sample URL: https://localhost:8060/api/json/discovery/addDevice?apiKey=***************&name=opmserver.mydomain.com

Sample Response: {"device":{"deviceIp":"127.0.0.1","message":"Device added successfully.","deviceName":"127.0.0.1","moid":365}}

listProbes

Method: GET

Description: This API is to list all the probes

Sample URL: https://localhost:8060/api/json/admin/listProbes?apiKey=***************

Sample Response: [ { "severity": "1", "serverMode": "PRIMARY", "serverStatus": "Server down", "contactEmail": "opm@user1.com", "deviceCount": "1", "natProtocol": "http", "probeID": "10000000001", "isConnected": "false", "contactPerson": "OpmUser1", "statusImg": "images/status1.gif", "ipslaCount": "0", "lastContact": "26 Oct 2022 12:42:59 PM IST", "natName": "opm-probe1", "name": "Probe1", "probeDisplayName": "Probe1", "ncmCount": "-1", "attr": { "deviceCount": { "rowspan": "1" }, "name": { "rowspan": "1" }, "lastContact": { "rowspan": "1" } }, "natPort": "8062", "status": "Critical" } ]

listEvents

Method: GET

Description: Lists event history.

Sample URL: https://localhost:8060/api/json/events/listEvents?apiKey=***************

Sample Response: { "severityVsCount": { "Trouble": 1, "Critical": 2, "Attention": 3 }, "List": [ { "modTimeLong": "1666786290075", "statusStr": "Attention", "prettyTime": "5 minutes ago", "displayname": "opm-server1", "text": "CPU Utilization is 12%, threshold value for this monitor is 2%: Top 3 Processes:-WmiPrvSE#4 - 1.467%;CynetMS - 1.381%;Code#4 - 0.69%", "category": "Desktop", "statusNum": "3" }, { "modTimeLong": "1666785470844", "statusStr": "Critical", "prettyTime": "19 minutes ago", "displayname": "opm-server1", "text": "Disk Utilization is 44%, threshold value for this monitor is 5%", "category": "Desktop", "statusNum": "1" }, { "modTimeLong": "1666785450689", "statusStr": "Trouble", "prettyTime": "19 minutes ago", "displayname": "opm-server1", "text": "Memory Utilization is 75%, threshold value for this monitor is 4%: Top 3 Processes:-java.exe - 7.247%;CynetMS.exe - 3.791%;explorer.exe - 3.216%", "category": "Desktop", "statusNum": "2" }, { "modTimeLong": "1666785429095", "statusStr": "Attention", "prettyTime": "20 minutes ago", "displayname": "opm-server1", "text": "CPU Utilization is 21%, threshold value for this monitor is 2%: Top 3 Processes:-svchost#25 - 12.362%;MEARWService - 6.266%;msedge#7 - 2.371%", "category": "Desktop", "statusNum": "3" }, { "modTimeLong": "1666091221235", "statusStr": "Critical", "prettyTime": "8 days ago", "displayname": "System", "text": "File Integrity : New files were found during the last scan.", "category": "Security settings", "statusNum": "1" }, { "modTimeLong": "1666090716359", "statusStr": "Attention", "prettyTime": "8 days ago", "displayname": "opm-server1", "text": "CPU Utilization is 9%, threshold value for this monitor is 2%: Top 3 Processes:-java - 6.377%;svchost#21 - 6.207%;msedge#6 - 1.616%", "category": "Desktop", "statusNum": "3" } ], "Details": { "Desktop": [ { "value": 3, "status": 3, "label": "Attention" }, { "value": 1, "status": 2, "label": "Trouble" }, { "value": 1, "status": 1, "label": "Critical" } ], "Security settings": [ { "value": 1, "status": 1, "label": "Critical" } ] } }

listAllLogicalGroups

Method: GET

Description: Lists all the groups available in OpManager. Also provides basic group information such as members count and group health.

Sample URL: https://localhost:8060/api/json/admin/listAllLogicalGroups?apiKey=***************

Sample Response: [{"groupDisplayName":"Devices","groupType":"Device","groupName":"devices-363","device_Count":"2","groupID":"363","count":"2","description":"No Description","availability":"NA","statusImg":"/images/devices/status1.gif","displayGroupType":"Device","statusLabel":"Critical","status":"1"}]

getLogicalGroupInfo

Method: GET

Description: Provides details (such as members count, group status, etc.) of the given group.

Sample URL: https://localhost:8060/api/json/admin/getLogicalGroupInfo?apiKey=***************&groupName=NorthBayRegion-4201&period=3&snapType=LogicalDeviceGroup

Sample Response: {"GroupDetails":{"groupType":"Device","groupID":"363","count":"2","description":"No Description","statusImg":"/images/devices/status1.gif","deviceDevice_Count":"2","statusLabel":"Critical","groupDisplayName":"Devices","groupName":"devices-363","alertCount":3,"statusChangeCount":2,"displayGroupType":"Device","status":"1"},"snapDetails":{"snapList":[{"indexCount":0,"ondemandWidget":false,"refresh":false,"type":"GroupSummary","sizex":10,"expand":false,"apiurl":"/client/api/json/admin/getLogicalGroupInfo","rowNum":1,"parameter":"groupName","isEnabled":true,"colNum":1,"name":"opm.intfGroup.Summary","header":true,"id":884,"snapid":884,"expandtime":false,"parameters":[{"param":"period","paramData":[],"value":"3"}],"sizey":9,"timeSelection":false,"desc":"webclient.storage.summary"},{"indexCount":1,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":5,"expand":false,"apiurl":"/client/api/json/admin/getLogicalGroupAlerts","rowNum":12,"parameter":"groupName","isEnabled":true,"colNum":1,"name":"opm.devicegrouping.Alarms","header":true,"id":885,"snapid":885,"snapshotData":{"colModelList":[{"formatter":"opm_linkToElementAlarmSnapshot","classes":"pointer","name":"message","index":"message"},{"hidden":true,"name":"severity","index":"severity"},{"formatter":"opm_gElemAlarmToElemSnap","classes":"pointer","name":"displayName","index":"displayName"},{"hidden":true,"name":"groupType","index":"groupType"},{"hidden":true,"name":"name","index":"name"},{"hidden":true,"name":"entity","index":"entity"},{"hidden":true,"name":"status","index":"status"},{"name":"modTime","index":"modTime"},{"hidden":true,"name":"alarmId","index":"alarmId"}],"colNamesList":["webclient.admin.traps.message","","webclient.fault.event.displayName","","","","","webclient.fault.details.properties.modttime","alarmid"],"onselectfunction":"opm_groupsAlert"},"expandtime":false,"parameters":[],"sizey":2,"timeSelection":false,"desc":"webclient.logicDevfGroup.deviceAlarms"},{"indexCount":2,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":5,"expand":false,"apiurl":"/client/api/json/admin/listLogicalGroupMembers","rowNum":12,"parameter":"groupName","isEnabled":true,"colNum":6,"name":"opm.grouping.devices","header":true,"id":886,"snapid":886,"snapshotData":{"colModelList":[{"formatter":"opm_linkToGroupSnap","classes":"pointer","name":"displayname","index":"displayname"},{"hidden":true,"name":"statusNum","index":"statusNum"},{"name":"type","index":"type"},{"hidden":true,"name":"name","index":"name"},{"hidden":true,"name":"moid","index":"moid"},{"hidden":true,"name":"groupType","index":"groupType"}],"colNamesList":["webclient.fault.addnotes.device_name","","webclient.topo.objectdetails.type","","",""],"onselectfunction":"opm_groupsElements"},"expandtime":false,"parameters":[],"sizey":2,"timeSelection":false,"desc":"webclient.grouping.device.list"}],"snapshotID":"89","snapshotDesc":"snapshot.desc.groupsummary","snapshotName":"LogicalDeviceGroup","tabs":{"tabs":[{"tabid":383,"name":"webclient.group.summary","order":1}],"tabWidgets":{"383":[{"ROW":1,"ASSOCIATIONID":884},{"ROW":12,"ASSOCIATIONID":885},{"ROW":12,"ASSOCIATIONID":886}]}},"timeSelectionNeeded":false,"yScale":25,"maxColumns":10}}

getLogicalGroupAlerts

Method: GET

Description: Fetches the alarms generated from the members (devices/interfaces) of the given group.

Sample URL: https://localhost:8060/api/json/admin/getLogicalGroupAlerts?apiKey=***************&groupName=bvgcty-4201

Sample Response: [{"severity":"Critical","groupType":"device","severityString":"/images/devices/status1.gif","modTime":"25 Nov 2022 02:27:11 PM IST","displayName":"Pradh","name":"opm-server","alarmId":1,"type":"device","message":"Device Down: No response from device for last 5 polls","entity":"opm-server_Poll","status":1},{"severity":"Attention","groupType":"device","severityString":"/images/devices/status3.gif","modTime":"25 Nov 2022 07:17:49 PM IST","displayName":"HPswitch9","name":"127.0.0.1","alarmId":33,"type":"device","message":"Device not responding: Probably down or busy","entity":"127.0.0.1_Poll","status":3},{"severity":"Attention","groupType":"device","severityString":"/images/devices/status3.gif","modTime":"25 Nov 2022 02:50:59 PM IST","displayName":"HPswitch9","name":"127.0.0.1","alarmId":26,"type":"device","message":"Response Time is 21 ms, threshold value for this device is 10 ms","entity":"154_Device","status":3}]

listLogicalGroupMembers

Method: GET

Description: Provides information on the members available in the given group.

Sample URL: https://localhost:8060/api/json/admin/listLogicalGroupMembers?apiKey=***************&groupName=NorthBayRegion-4201

Sample Response: [{"groupType":"Device","statusStr":"Clear","displayname":"OPMServer","name":"OPMServer","type":"Device","moid":"10","statusNum":"5"},{"groupType":"Device","statusStr":"Attention","displayname":"HPswitch","name":"127.0.0.1","type":"Device","moid":"362","statusNum":"3"}]

addToGroup

Method: POST

Description: Allows you to add device(s) to the specified Group.

Sample URL: https://localhost:8060/api/json/device/addToGroup?apiKey=***************&groupType=device&selectedMembers=10.1.1.20,opmserver

Sample Response: {"result":{"message":"The Device(s) have been associated to the group successfully."}}

listInterfaces

Method: GET

Description: Lists all the interfaces monitored in OpManager

Sample URL: https://localhost:8060/api/json/device/listInterfaces?apiKey=***************&isFluidic=true&rows=100&page=1&sortByColumn=statusNum&sortByType=desc

Sample Response: {"total":"1","records":"5","page":"1","rows":[{"interfaceDisplayName":"Loopback55-\"Loop Back 55\"","statusStr":"Clear","displayName":"OPMRouterDevice","ipAddress":"","outSpeed":"8 Gbps","inSpeed":"8 Gbps","type":"Software Loopback","deviceName":"127.0.0.1","interfaceStatus":5,"statusNum":5,"adminStatus":"Up","operStatus":"Up","id":"1","interfaceName":"IF-127.0.0.1-415"},{"interfaceDisplayName":"Loopback51-Lo51","statusStr":"Clear","displayName":"OPMRouterDevice","ipAddress":"","outSpeed":"8 Gbps","inSpeed":"8 Gbps","type":"Software Loopback","deviceName":"127.0.0.1","interfaceStatus":5,"statusNum":5,"adminStatus":"Up","operStatus":"Up","id":"2","interfaceName":"IF-127.0.0.1-417"}]}

getInterfaceSummary

Method: GET

Description: Provides basic details of the interface such as ifIndex, ifName, ifDesc, ifAlias, parent device, Rx/Tx Traffic, etc.

Sample URL: https://localhost:8060/api/json/device/getInterfaceSummary?apiKey=***************&interfaceName=IF-172.24.146.225-4429

Sample Response: {"NFA_ID":"","recBandwidth":"1","IntfIpaddress":"127.0.0.1","instance":"101","displayName":"ciscostackswitchdevice874","Util":"5","availability":{"Down":0,"Dependent Unavailable":0,"On Hold":0,"Not Monitored":0,"Parent Down":98.34,"On Maintenance":0,"Up":1.66},"avgOutPackets":"500 ","outTraffic":"0.008 ","moID":"10000000310","isIPAvailable":true,"inSpeedDisplayValue":"1 bps","intfDisplayName":"GigabitEthernet1/0/1","txUtil":"0.89","typeIdDescr":"Ethernet (6)","operStateImg":"","isSubInterface":"false","managed":"true","snapDetails":{"snapList":[{"indexCount":0,"ondemandWidget":false,"refresh":false,"type":"IntfSummary","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceSummary","rowNum":1,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.summary","header":false,"id":10000000081,"snapid":10000000081,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[],"sizey":12,"timeSelection":false,"desc":"dashboard.name.nwconfig"},{"indexCount":1,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":13,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000082,"snapid":10000000082,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"totalPackets"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.devices.details.totalbytes"},{"indexCount":2,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":15,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000083,"snapid":10000000083,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"traffic"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Interface.Traffic"},{"indexCount":3,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":17,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000084,"snapid":10000000084,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"utilization"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Interface.Utilization"},{"indexCount":4,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":19,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000085,"snapid":10000000085,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"errors"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.devices.details.errndiscards"},{"indexCount":5,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":21,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000086,"snapid":10000000086,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"discardRate"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Discard.Rate"},{"indexCount":6,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":23,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000087,"snapid":10000000087,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"packets"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"opu.views.PACKETS"},{"indexCount":7,"ondemandWidget":false,"refresh":false,"type":"IntfGraphs","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceGraphs","rowNum":25,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.graphs","header":true,"id":10000000088,"snapid":10000000088,"snapshotData":{"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[{"param":"graphName","paramData":[],"value":"errorRate"},{"param":"isFluidic","paramData":[],"value":"true"},{"paramType":"opmtime","param":"period","paramData":[],"value":"Today"}],"sizey":13,"timeSelection":true,"desc":"webclient.snapshot.name.Error.Rate"},{"indexCount":8,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceMonitors","rowNum":50,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.monitors","header":true,"id":10000000089,"snapid":10000000089,"snapshotData":{"colModelList":[{"name":"monitorName","index":"monitorName"},{"name":"interval","index":"interval"},{"name":"collectionTime","index":"collectionTime"},{"formatter":"intfValuesWithUnits","name":"value","index":"value"},{"hidden":true,"name":"displayName","index":"displayName"},{"hidden":true,"name":"unit","index":"unit"}],"colNamesList":["webclient.devices.details.monitors","webclient.map.edit.interval","webclient.devices.details.lastpoll","webclient.action.currVal","",""],"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[],"sizey":14,"timeSelection":false,"desc":"webclient.admin.url.monitors"},{"indexCount":9,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceMonitors","rowNum":50,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.monitors","header":true,"id":10000000971,"snapid":10000000971,"snapshotData":{"colModelList":[{"name":"monitorName","index":"monitorName"},{"name":"interval","index":"interval"},{"name":"collectionTime","index":"collectionTime"},{"formatter":"intfValuesWithUnits","name":"value","index":"value"},{"hidden":true,"name":"displayName","index":"displayName"},{"hidden":true,"name":"unit","index":"unit"}],"colNamesList":["webclient.devices.details.monitors","webclient.map.edit.interval","webclient.devices.details.lastpoll","webclient.action.currVal","",""],"EE_PROBE_REQ":"true"},"expandtime":false,"parameters":[],"sizey":14,"timeSelection":false,"desc":"webclient.admin.url.monitors"},{"indexCount":10,"ondemandWidget":false,"refresh":false,"type":"Grid","sizex":10,"expand":false,"apiurl":"/client/api/json/device/getInterfaceNotes","rowNum":64,"parameter":"interfaceName","isEnabled":true,"colNum":1,"name":"opm.interface.notes","header":true,"id":10000000090,"snapid":10000000090,"snapshotData":{"colModelList":[{"hidden":true,"classes":"GridColHidden","name":"ALIASNAME","width":"0","index":"ALIASNAME","key":true},{"hidden":true,"classes":"GridColHidden","name":"DATATYPE","width":"0","index":"DATATYPE","key":true},{"formatter":"custField_escapeHtmlTags","name":"FIELDNAME","index":"FIELDNAME"},{"formatter":"custField_escapeHtmlTags","name":"DESCRIPTION","index":"DESCRIPTION"},{"formatter":"custField_escapeHtmlTags","name":"FIELDVALUE","index":"FIELDVALUE"}],"actionurls":[{"name":"Edit","url":"InterfaceNotes"}],"colNamesList":["","","webclient.devices.customfields.fieldname","webclient.devices.customfields.description","webclient.widget.value"]},"expandtime":false,"parameters":[],"sizey":14,"timeSelection":false,"desc":"webclient.commontext.customfields"}],"snapshotID":"10000000005","snapshotDesc":"snapshot.desc.Interface","snapshotName":"OPMInterface","tabs":{"tabs":[{"tabid":10000000026,"name":"webclient.snapshot.testlinks.summary","order":1},{"tabid":10000000027,"name":"webclient.snapshot.name.Interface.Graphs","order":2},{"tabid":10000000028,"name":"webclient.admin.url.monitors","order":3}],"tabWidgets":{"10000000028":[{"ROW":50,"ASSOCIATIONID":10000000089}],"10000000027":[{"ROW":13,"ASSOCIATIONID":10000000082},{"ROW":15,"ASSOCIATIONID":10000000083},{"ROW":17,"ASSOCIATIONID":10000000084},{"ROW":19,"ASSOCIATIONID":10000000085},{"ROW":21,"ASSOCIATIONID":10000000086},{"ROW":23,"ASSOCIATIONID":10000000087},{"ROW":25,"ASSOCIATIONID":10000000088}],"10000000026":[{"ROW":1,"ASSOCIATIONID":10000000081},{"ROW":64,"ASSOCIATIONID":10000000090}]}},"timeSelectionNeeded":true,"yScale":25,"maxColumns":10},"ifPhysAddr":"20","adminState":"Up","transBandwidth":"1","statusPolledVia":"SNMP","outSpeedDisplayValue":"1 bps","rstime":"1 bps","availabilityTimeLine":["ParentDown,1670178610981,1670233674317","ParentDown,1670234394000,1670234514150","UP,1670234514150,1670237050981","UP,1670233674317,1670234394000"],"rxPackets":"0.005 ","ifAdminStatus":"1","rxUtil":"0.89","ifSpeedIn":"1","isAddedToNFA":"false","Discards":"2","stringStatus":"Down","txPackets":"0.002 ","Errors":"2","ifSpeedOut":"1","inTraffic":"0.008 ","operState":"Up","intfmanaged":"true","name":"xxx.xxx.x.xx.10000000001","typeId":"6","ifOperStatus":"1","category":"Switch","adminStateImg":"","avgInPackets":"200 ","status":"2","desc":"GigabitEthernet1/0/1","trafficCounter":"32 bit"}

getIntfAtAGlanceReportDetails

Method: GET

Description: Provides a consolidated availability and performance monitoring health report data for the given interface.

Sample URL: https://localhost:8060/api/json/v2/device/getIntfAtAGlanceReportDetails?apiKey=***************&InterfaceName=IF-xxx.xxx.xx.4-3820&period=Today

Sample Response: {"intfDisplayName":"VLAN555-VLAN555","InterfaceCategory":"LAN","Details":{"Parent Name":"HPswitch9","IfDescr":"VLAN555","IfAlias":"VLAN555","IfIndex":"1132","Receive Bandwidth":"0 bps","IfName":"VLAN555","Transmit Bandwidth":"0 bps","Circuit ID":"-"},"repType":7,"graphData":{"Errors":[{"seriesname":"inErrors","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Errors/sec"],"yaxiscolumnorder":[0],"suffix":""},{"seriesname":"outErrors","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Errors/sec"],"yaxiscolumnorder":[0],"suffix":""}],"Unicast":[{"seriesname":"broadcast","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","%"],"yaxiscolumnorder":[0],"suffix":""},{"seriesname":"unicast","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","%"],"yaxiscolumnorder":[0],"suffix":""}],"outBytes":[{"seriesname":"outBytes","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time",""],"yaxiscolumnorder":[0],"suffix":""}],"inTraffic":[{"seriesname":"inTraffic","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","bps"],"yaxiscolumnorder":[0],"suffix":""}],"inBytes":[{"seriesname":"inBytes","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bytes/sec"],"yaxiscolumnorder":[0],"suffix":""}],"inUtilization":[{"seriesname":"inUtilization","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Percentage"],"yaxiscolumnorder":[0],"suffix":""}],"outUtilization":[{"seriesname":"outUtilization","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Percentage"],"yaxiscolumnorder":[0],"suffix":""}],"Discards":[{"seriesname":"inDiscards","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Discards/sec"],"yaxiscolumnorder":[0],"suffix":""},{"seriesname":"outDiscards","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Discards/sec"],"yaxiscolumnorder":[0],"suffix":""}],"totalUtilization":[{"seriesname":"totalUtilization","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Percentage"],"yaxiscolumnorder":[0],"suffix":""}],"inFrames":[{"seriesname":"inFrames","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Frames/sec"],"yaxiscolumnorder":[0],"suffix":""}],"outFrames":[{"seriesname":"outFrames","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Frames/sec"],"yaxiscolumnorder":[0],"suffix":""}],"outTraffic":[{"seriesname":"outTraffic","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","bps"],"yaxiscolumnorder":[0],"suffix":""}]}}

getIntfBWOutageReportDetails

Method: GET

Description: Provides data for consolidated Bandwidth report (Rx/Tx Traffic) for the given interface.

Sample URL: https://localhost:8060/api/json/v2/device/getIntfBWOutageReportDetails?apiKey=***************&interfaceName=IF-xxx.xxx.xx.x-3836&period=Today

Sample Response: {"InSpeed":"0 bps","IfDesc":"VLAN555","repType":9,"consolidatedValues":{"Total":{"95thpercentileValue":"0 ( 0.0 % )","minCollectionTime":"1669619780249","maxVal":"0 ( 0.0 % )","currVal":"0 ( 0.0 % )","minVal":"0 ( 0.0 % )","seriesName":"Total","95thpercRawVal":"0.0","avgVal":"0 ( 0.0 % )","95thperc":"0 ( 0.0 % )","maxCollectionTime":"1669619780249","95thpercVal":"0.0"},"InTraffic":{"95thpercentileValue":"0 ( 0.0 % )","minCollectionTime":"1669619780249","maxVal":"0 ( 0.0 % )","currVal":"0 ( 0.0 % )","minVal":"0 ( 0.0 % )","seriesName":"InTraffic","95thpercRawVal":"0.0","avgVal":"0 ( 0.0 % )","95thperc":"0 ( 0.0 % )","maxCollectionTime":"1669619780249","95thpercVal":"0.0"},"OutTraffic":{"95thpercentileValue":"0 ( 0.0 % )","minCollectionTime":"1669619780249","maxVal":"0 ( 0.0 % )","currVal":"0 ( 0.0 % )","minVal":"0 ( 0.0 % )","seriesName":"OutTraffic","95thpercRawVal":"0.0","avgVal":"0 ( 0.0 % )","95thperc":"0 ( 0.0 % )","maxCollectionTime":"1669619780249","95thpercVal":"0.0"}},"seriesNames":["OutTraffic","OutTraffic-95th","Total","Total-95th","InTraffic","InTraffic-95th"],"bwChartData":[{"seriesname":"OutTraffic","isRaw":true,"data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bits per Second"]},{"seriesname":"OutTraffic-95th","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bits per Second"]},{"seriesname":"Total","isRaw":true,"data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bits per Second"]},{"seriesname":"Total-95th","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bits per Second"]},{"seriesname":"InTraffic","isRaw":true,"data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bits per Second"]},{"seriesname":"InTraffic-95th","data":[[1669619780249,0,"0 "],[1669620680708,0,"0 "]],"xyTitles":["Time","Bits per Second"]}],"InterfaceDisplayName":"VLAN555-VLAN555","IfAlias":"VLAN555","suffix":"","availData":{"Down":100,"Dependent Unavailable":0,"On Hold":0,"Not Monitored":0,"Parent Down":0,"On Maintenance":0,"Up":0},"deviceName":"IF-127.0.0.1-353","interfaceDetails":{"Parent Name":"HPswitch9","IfDescr":"VLAN555","IfIndex":"1132","IfAlias":"VLAN555","IfName":"VLAN555","Circuit ID":"-"},"OutSpeed":"0 bps","name":"HPswitch9","CircuitID":"-","IfIndex":"1132","InterfaceName":"IF-127.0.0.1-353","IfName":"VLAN555"}

getInterfaces

Method: GET

Description: Provides the list of interfaces monitored in a device.

Sample URL: https://localhost:8060/api/json/device/getInterfaces?apiKey=***************&name=opmserver.testdomain.com

Sample Response: {"downCount":"0","interfaces":[{"ifIndex":"1","ifAdminStatus":"1","ifIndexNum":1,"statusStr":"Clear","ifType":"Ethernet","displayName":"Backplane-GigabitEthernet0/3-Ba0/3","imagePath":"/apiclient/ember/images/intfTypes/ifType6.gif","RouterPortType":"","trimmedDispName":"Backplane-GigabitEtherne...","outSpeed":"1 G","inSpeed":"1 G","type":"Interface","moid":"301","outTraffic":"0 (0.0%)","nfEnabled":"false","statusNum":"5","bgColor":"00ff00","inTraffic":"0 (0.0%)","isSubInterface":"false","statusString":"Clear","name":"IF-http://127.0.0.1-301","ifOperStatus":"1","errors":"0","status":"5"},{"ifIndex":"4","ifAdminStatus":"1","ifIndexNum":4,"statusStr":"Clear","ifType":"Ethernet","displayName":"GigabitEthernet0/2-Gi0/2","imagePath":"/apiclient/ember/images/intfTypes/ifType6.gif","RouterPortType":"","trimmedDispName":"GigabitEthernet0/2-Gi0/2","outSpeed":"1 G","inSpeed":"1 G","type":"Interface","moid":"305","outTraffic":"160.279 K (0.02%)","nfEnabled":"false","statusNum":"5","bgColor":"00ff00","inTraffic":"32.239 K (0.0%)","isSubInterface":"false","statusString":"Clear","name":"IF-http://127.0.0.1-305","ifOperStatus":"1","errors":"0","status":"5"}],"interfaceCount":"2"}

getInterfaceNotes

Method: GET

Description: Fetches the custom field values associated to the given interface.

Sample URL: https://opmserver:8060/api/json/device/getInterfaceNotes?apiKey=************&interfaceName=IF-opmserver.testdomain.com-4505

Sample Response: [{"CUSTOMFIELDID":"16","DATATYPE":"Text","DESCRIPTION":"Circuit ID","FIELDNAME":"Circuit ID","ALIASNAME":"UDF1","FIELDLENGTH":250},{"CUSTOMFIELDID":"20","DATATYPE":"Text","DESCRIPTION":"Any comments about the interface","FIELDNAME":"Comments","ALIASNAME":"UDF5","FIELDLENGTH":800},{"CUSTOMFIELDID":"21","DATATYPE":"Text","DESCRIPTION":"Contact person","FIELDNAME":"Contact Name","ALIASNAME":"UDF3","FIELDLENGTH":100},{"CUSTOMFIELDID":"18","DATATYPE":"Text","DESCRIPTION":"SLA related details","FIELDNAME":"SLA","ALIASNAME":"UDF2","FIELDLENGTH":250},{"CUSTOMFIELDID":"22","DATATYPE":"Text","DESCRIPTION":"Contact number","FIELDNAME":"Telephone Number","ALIASNAME":"UDF4","FIELDLENGTH":100}]

getInterfaceGraphs

Method: GET

Description: Fetches the collected data (such as traffic, errors & discards, etc.) for the given interface.

Sample URL: https://localhost:8060/api/json/device/getInterfaceGraphs?apiKey=***************&interfaceName=IF-xxx.xxx.xx.xxx-329&graphName=rxutilization

Sample Response: {"interfaceDetails":{"Parent Name":"OPMRouter1","IfDescr":"GigabitEthernet0/2","IfIndex":"4","IfAlias":"-","IfName":"Gi0/2","Circuit ID":"-"},"displayName":"Total Bytes Transfered","consolidatedValues":{"Total Bytes":{"95thpercentileValue":"61.616 M","minCollectionTime":"1669383479403","maxVal":"61.616 M","currVal":"21.658 M","minVal":"21.658 M","seriesName":"Total Bytes","95thpercRawVal":"5.02440515E7","avgVal":"51.868 M","95thperc":"50.244 M","maxCollectionTime":"1669371779404","95thpercVal":"50.2440515"},"Rx Bytes":{"95thpercentileValue":"14.783 M","minCollectionTime":"1669383479403","maxVal":"14.783 M","currVal":"3.626 M","minVal":"3.626 M","seriesName":"Rx Bytes","95thpercRawVal":"1.1226045333333334E7","avgVal":"11.734 M","95thperc":"11.226 M","maxCollectionTime":"1669364579398","95thpercVal":"11.226045333333333"},"Tx Bytes":{"95thpercentileValue":"48.097 M","minCollectionTime":"1669383479403","maxVal":"48.097 M","currVal":"18.031 M","minVal":"18.031 M","seriesName":"Tx Bytes","95thpercRawVal":"3.8807332333333336E7","avgVal":"40.134 M","95thperc":"38.807 M","maxCollectionTime":"1669371779404","95thpercVal":"38.807332333333335"}},"seriesNames":["Rx Bytes","Tx Bytes","Total Bytes"],"xyTitles":["Time","Bytes"],"graphData":[{"seriesname":"Rx Bytes","data":[[1669364579398,14.783359,"14.783 M"],[1669368179398,11.846604,"11.846 M"],[1669371779404,13.519316,"13.519 M"],[1669375379404,12.7214,"12.721 M"],[1669378979402,13.057771,"13.057 M"],[1669382579404,12.584193,"12.584 M"],[1669383479403,3.626988,"3.626 M"]]},{"seriesname":"Tx Bytes","data":[[1669364579398,46.577838,"46.577 M"],[1669368179398,38.532922,"38.532 M"],[1669371779404,48.097261,"48.097 M"],[1669375379404,41.533208,"41.533 M"],[1669378979402,44.321489,"44.321 M"],[1669382579404,43.847161,"43.847 M"],[1669383479403,18.031376,"18.031 M"]]},{"seriesname":"Total Bytes","data":[[1669364579398,61.361197,"61.361 M"],[1669368179398,50.379526,"50.379 M"],[1669371779404,61.616577,"61.616 M"],[1669375379404,54.254608,"54.254 M"],[1669378979402,57.37926,"57.379 M"],[1669382579404,56.431354,"56.431 M"],[1669383479403,21.658364,"21.658 M"]]}],"suffix":"M"}

getDeviceAssociatedMonitors

Method: GET

Description: Lists all the monitors associated to the device

Sample URL: https://localhost:8060/api/json/device/getDeviceAssociatedMonitors?apiKey=***************&name=devicename

Sample Response: {"performanceMonitors":{"total":6,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"DISPLAYNAME":"CPU Utilization","YAXISTEXT":"Percentage","graphType":"multiple","checkNumeric":"true","data":[{"instance":"-1","value":98}],"policyName":"WMI-CPUUtilization","Instance":"","THRESHOLDENABLED":"true","GRAPHID":"203","thresholdStatus":"Normal","isMultiple":"true","sSave":"true","type":"multiple","thresholdImg":"images/thresholdConOK.gif","lastCollectedTime":"16 Nov 2022 12:27:48 PM IST","DisplayColumn":"","pollId":"124","name":"WMI-CPUUtilization","numericType":"1","interval":"15","Protocol":"WMI"},{"DISPLAYNAME":"Memory Utilization","YAXISTEXT":"Percentage","graphType":"multiple","checkNumeric":"true","data":[{"instance":"-1","value":85}],"policyName":"WMI-MemoryUtilization","Instance":"","THRESHOLDENABLED":"true","GRAPHID":"204","thresholdStatus":"Normal","isMultiple":"true","sSave":"true","type":"multiple","thresholdImg":"images/thresholdConOK.gif","lastCollectedTime":"16 Nov 2022 12:27:33 PM IST","DisplayColumn":"","pollId":"125","name":"WMI-MemoryUtilization","numericType":"1","interval":"15","Protocol":"WMI"},{"DISPLAYNAME":"Partition Details of the Device(%)-C:","YAXISTEXT":"Percentage","graphType":"multiplenode","checkNumeric":"true","data":[{"instance":"-1","value":99}],"policyName":"WMI-PartitionDetails","Instance":"","THRESHOLDENABLED":"false","GRAPHID":"304","thresholdStatus":"Not Enabled","isMultiple":"false","sSave":"true","type":"node","thresholdImg":"images/thresholdNonConfigured.gif","lastCollectedTime":"16 Nov 2022 11:57:16 AM IST","DisplayColumn":"","pollId":"123","name":"C:","numericType":"1","interval":"60","Protocol":"WMI"},{"DISPLAYNAME":"Disk Utilization","YAXISTEXT":"Percentage","graphType":"multiple","checkNumeric":"true","data":[{"instance":"-1","value":99}],"policyName":"WMI-DiskUtilization","Instance":"","THRESHOLDENABLED":"false","GRAPHID":"205","thresholdStatus":"Not Enabled","isMultiple":"true","sSave":"true","type":"multiple","thresholdImg":"images/thresholdNonConfigured.gif","lastCollectedTime":"16 Nov 2022 11:57:16 AM IST","DisplayColumn":"","pollId":"122","name":"WMI-DiskUtilization","numericType":"1","interval":"60","Protocol":"WMI"}]},"deviceProtocol":"WMI","ntServiceMonitors":{"total":2,"statusIcon":"images/servicestatus1.gif","down":1,"monitors":[{"statusStr":"Clear","name":"DNS Server","serviceName":"DNS","serviceID":"4","moid":"405","status":"/images/devices/status5.gif","statusNum":"5"},{"statusStr":"Critical","name":"Telnet","serviceName":"TlntSvr","serviceID":"12","moid":"404","status":"/images/devices/status4.gif","statusNum":"1"}]},"fileMonitors":{"total":0,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[]},"adMonitors":{"total":39,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"YAXISTEXT":"Sessions","checkNumeric":"true","Description":"This monitor shows the number of connected Address Book client sessions.","data":[{"instance":"-1","value":0}],"statusStr":"Clear","severityIcon":"images/thresholdNonConfigured.gif","displayName":"AB Client Sessions","THRESHOLDENABLED":"false","GRAPHID":"605","groupingName":"Network","oid":"AD.Perf.ABClientSessions","PREVIOUSSEVERITY":"5","ID":"129","Protocol":"WMI","DISPLAYNAME":"AB Client Sessions","graphType":"node","thresholdFontColor":"#999999","policyName":"ABClientSessions","encodedName":"ABClientSessions","thresholdStatus":"Not Enabled","sSave":"true","statusNum":"5","lastCollectedTime":"16 Nov 2022 12:32:33 PM IST","name":"ABClientSessions","numericType":"1","interval":"15"}]},"folderMonitors":{"total":1,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"foldermonitorid":"259","folderpath":"C:\\Program Files","monitorname":"Local Directory","statusStr":"Clear","statusIcon":"/webclient/devices/images/servicestatus5.gif","state":"1","status":"5","statusNum":5}]},"isVM":false,"isHost":false,"serverMonitors":{"total":1,"down":0,"monitors":[{"portNo":"53","failureThreshold":1,"statusStr":"Clear","responseTime":"50","statusText":"Up","name":"DNS","THRESHOLDENABLED":"false","thresholdStatus":"Not Enabled","moid":"402","statusNum":"5"}]},"urlMonitors":{"total":1,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"compactURL":"http://localhost:8060/","availPercentage":"100.0","urlName":"localhost","stringstatus":"Clear","name":"localhost_URL","RESPONSETIME":"NA","completeURL":"http://localhost:8060/","deviceName":"localhost","url":"http://localhost:8060/","statusNum":"5"}]},"processMonitors":{"total":2,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"path":"C:\\Windows\\system32\\svchost.exe","statusStr":"Clear","cmdLineArgs":"-k UnistackSvcGroup","statusIcon":"/webclient/devices/images/servicestatus5.gif","name":"svchost.exe","state":"1","id":"407","proName":"svchost.exe","trimName":"svchost.exe","status":"5","statusNum":"5"},{"path":"C:\\Windows\\system32\\winlogon.exe","statusStr":"Clear","cmdLineArgs":"winlogon.exe","statusIcon":"/webclient/devices/images/servicestatus5.gif","name":"winlogon.exe","state":"1","id":"408","proName":"winlogon.exe","trimName":"winlogon.exe","status":"5","statusNum":"5"}]},"exchangeMonitors":{"total":30,"exchangeVersion":"Exchange 2016","statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"YAXISTEXT":"Calls","checkNumeric":"true","Description":"This monitor shows the number of calls disconnected after an internal system error occurred.","data":[{"instance":"-1","value":0}],"statusStr":"Clear","severityIcon":"images/thresholdNonConfigured.gif","displayName":"Calls Disconnected on Irrecoverable Internal Error","THRESHOLDENABLED":"false","GRAPHID":"1030","groupingName":"Unified Messaging Performance","oid":"Exchange.UMAvailability.CallsDisconnectedonIrrecoverableInternalError","PREVIOUSSEVERITY":"5","ID":"194","Protocol":"WMI","DISPLAYNAME":"Calls Disconnected on Irrecoverable Internal Error","graphType":"node","thresholdFontColor":"#999999","policyName":"CallsDisconnectedonIrrecoverableInternalError","encodedName":"CallsDisconnectedonIrrecoverableInternalError","thresholdStatus":"Not Enabled","sSave":"true","statusNum":"5","lastCollectedTime":"16 Nov 2022 12:27:39 PM IST","name":"CallsDisconnectedonIrrecoverableInternalError","numericType":"1","interval":"15"},{"YAXISTEXT":"%","checkNumeric":"true","Description":"This monitor shows the percentage of mailbox connection attempts that have failed in the last hour.","data":[{"instance":"-1","value":0}],"statusStr":"Clear","severityIcon":"images/thresholdNonConfigured.gif","displayName":"Percent of Failed Mailbox Connection Attempts Over the Last Hour","THRESHOLDENABLED":"false","GRAPHID":"1028","groupingName":"Unified Messaging Performance","oid":"Exchange.UMAvailability.PercentofFailedMailboxConnectionAttemptsOvertheLastHour","PREVIOUSSEVERITY":"5","ID":"185","Protocol":"WMI","DISPLAYNAME":"Percent of Failed Mailbox Connection Attempts Over the Last Hour","graphType":"node","thresholdFontColor":"#999999","policyName":"PercentofFailedMailboxConnectionAttemptsOvertheLastHour","encodedName":"PercentofFailedMailboxConnectionAttemptsOvertheLastHour","thresholdStatus":"Not Enabled","sSave":"true","statusNum":"5","lastCollectedTime":"16 Nov 2022 12:27:41 PM IST","name":"PercentofFailedMailboxConnectionAttemptsOvertheLastHour","numericType":"1","interval":"15"}]},"exchangeServices":{"total":15,"statusIcon":"images/servicestatus1.gif","down":14,"monitors":[{"displayName":"Microsoft Exchange Compliance Audit","description":"The Microsoft Exchange Compliance Audit service.","serviceMOID":368,"state":2,"serviceName":"MSComplianceAudit","serviceID":22,"status":4},{"displayName":"Microsoft Exchange Compliance Service","description":"Host for Compliance Services.","serviceMOID":369,"state":2,"serviceName":"MSExchangeCompliance","serviceID":23,"status":4},{"displayName":"Microsoft Exchange Health Manager Recovery","description":"Recovery Service for Health Manager","serviceMOID":370,"state":2,"serviceName":"MSExchangeHMRecovery","serviceID":24,"status":4},{"displayName":"Microsoft Exchange Mailbox Assistants","description":"Performs background processing of mailboxes in the Exchange store.","serviceMOID":361,"state":2,"serviceName":"MSExchangeMailboxAssistants","serviceID":15,"status":4},{"displayName":"Microsoft Exchange Monitoring","description":"Allows applications to call the Exchange diagnostic cmdlets.","serviceMOID":362,"state":2,"serviceName":"MSExchangeMonitoring","serviceID":16,"status":4},{"displayName":"Microsoft Exchange Notifications Broker","description":"The Microsoft Exchange Notifications Broker service provides generation and routing of Exchange notifications to local and remote Exchange processes.","serviceMOID":371,"state":2,"serviceName":"MSExchangeNotificationsBroker","serviceID":25,"status":4},{"displayName":"Microsoft Exchange Service Host","description":"Provides a host for several Exchange services.","serviceMOID":364,"state":2,"serviceName":"MSExchangeServiceHost","serviceID":18,"status":4},{"displayName":"Microsoft Exchange Throttling","description":"Limits the rate of user operations.","serviceMOID":365,"state":2,"serviceName":"MSExchangeThrottling","serviceID":19,"status":4},{"displayName":"Microsoft Exchange Unified Messaging Service","description":"Enables Microsoft Exchange Unified Messaging features.","serviceMOID":367,"state":2,"serviceName":"MSExchangeUM","serviceID":21,"status":4},{"displayName":"Microsoft Filtering Management Service","description":"Manages the queuing and dispatching of scan requests.","serviceMOID":372,"state":1,"serviceName":"FMS","serviceID":26,"status":5},{"displayName":"MS Exchange Active Directory Topology Service","description":"Provides Active Directory topology information to Exchange services.","serviceMOID":359,"state":2,"serviceName":"MSExchangeADTopology","serviceID":13,"status":4},{"displayName":"MS Exchange IMAP4","description":"Provides IMAP4 service to clients.","serviceMOID":360,"state":2,"serviceName":"MSExchangeImap4","serviceID":14,"status":4},{"displayName":"MS Exchange Information Store","description":"Information Store service - Stores all the user information, documents, messages and other informations. It contains user mail boxes where it stores user mails.","serviceMOID":358,"state":2,"serviceName":"MSExchangeIS","serviceID":12,"status":4},{"displayName":"MS Exchange POP3","description":"Provides POP3 service to clients.","serviceMOID":363,"state":2,"serviceName":"MSExchangePop3","serviceID":17,"status":4},{"displayName":"MS Exchange Transport","description":"The Microsoft Exchange Transport Service.","serviceMOID":366,"state":2,"serviceName":"MSExchangeTransport","serviceID":20,"status":4}]},"eventlogMonitors":{"period":"300","total":2,"statusIcon":"images/servicestatus5.gif","isActive":"true","down":0,"monitors":[{"ruleName":"Any Application failure","id":"2"},{"ruleName":"Any Directory Service failure","id":"45"}]},"scriptMonitors":{"total":1,"statusIcon":"images/servicestatus5.gif","down":0,"monitors":[{"checkNumeric":"true","data":[{"instance":"count","value":"17"}],"statusStr":"Clear","displayName":"Instance Count","thresholdSeverity":"Not Enabled","OID":"301","sSave":"true","statusNum":"5","lastCollectedTime":"16 Nov 2022 12:37:36 PM IST","pollid":"258","interval":"15","thresholdSevFont":"#999999","numericType":"1"}]},"adServices":{"total":11,"statusIcon":"images/servicestatus1.gif","down":1,"monitors":[{"displayName":"DFS Replication","description":"This service enables synchronizing folders on multiple servers across local or WAN network","serviceMOID":"346","serviceName":"DFSR","serviceID":"1","status":"5"},{"displayName":"DNS Client Service","description":"This service resolves and caches (Domain Name Server) DNS names.","serviceMOID":"347","serviceName":"Dnscache","serviceID":"2","status":"5"},{"displayName":"File Replication Service","description":"This service maintains file synchronization of file directory contents among multiple servers.","serviceMOID":"348","serviceName":"NtFrs","serviceID":"3","status":"4"},{"displayName":"Intersite Messaging Service","description":"This service is used for mail-based replication between sites. Active Directory includes support for replication between sites by using SMTP over IP transport.","serviceMOID":"349","serviceName":"IsmServ","serviceID":"4","status":"5"},{"displayName":"Kerberos Key Distribution Center Service","description":"This service enables users to log on to the network using the Kerberos version 5 authentication protocol.","serviceMOID":"350","serviceName":"kdc","serviceID":"5","status":"5"},{"displayName":"Net Logon Service","description":"This service supports pass-through authentication of account logon events for computers in a domain. ","serviceMOID":"351","serviceName":"Netlogon","serviceID":"6","status":"5"},{"displayName":"Remote Procedure Call (RPC) Service","description":"This service provides the name services for RPC clients.","serviceMOID":"352","serviceName":"RpcSs","serviceID":"7","status":"5"},{"displayName":"Security Accounts Manager Service","description":"This service signals other services that the Security Accounts Manager subsystem is ready to accept requests.","serviceMOID":"353","serviceName":"SamSs","serviceID":"8","status":"5"},{"displayName":"Server Service","description":"This service enables the computer to connect to other computers on the network based on the SMB protocol.","serviceMOID":"354","serviceName":"lanmanserver","serviceID":"9","status":"5"},{"displayName":"Windows Time service","description":"The service synchronizes the time between domain controllers, which prevents time skews from occurring.","serviceMOID":"355","serviceName":"W32Time","serviceID":"10","status":"5"},{"displayName":"Workstation Service","description":"This service provides network connections and communications.","serviceMOID":"356","serviceName":"lanmanworkstation","serviceID":"11","status":"5"}]}}

getPerformanceMonitors

Method: GET

Description: Lists all the available performance monitors for a particular device (based on the device's category and type)

Sample URL: https://localhost:8060/api/json/device/getPerformanceMonitors?apiKey=***************&deviceName=devicename&category=Desktop&type=Windows 2008 R2

Sample Response: {"General Monitors":[{"DISPLAYNAME":"SysUpTime","Description":"The time (in hundredths of a second) since the network management portion of the system was last re-initialized","name":"SysUpTime","isSelected":"false","GRAPHID":1166,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"General Monitors"},{"DISPLAYNAME":"Network Interfaces","Description":"The number of network interfaces (regardless of their current state) present on this system","name":"Number of Network Interfaces","isSelected":"false","GRAPHID":1167,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"General Monitors"},{"DISPLAYNAME":"IP Routing discards","Description":"The number of routing entries which were chosen to be discarded even though they are valid","name":"ipRoutingDiscards","isSelected":"false","GRAPHID":1168,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"General Monitors"}],"Performance Monitors":[{"DISPLAYNAME":"File Access Violations","Description":"Monitors the number of access permission violations encountered on this server.","name":"Win-FileAccessViolations","isSelected":"false","GRAPHID":4604,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Number of System Errors","Description":"Monitors the number of system errors encountered on the server.","name":"Win-NumberOfSystemErrors","isSelected":"false","GRAPHID":4605,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Number of installed services","Description":"Monitors the number of network services installed on this server.","name":"Win-NumberOfInstalledServices","isSelected":"false","GRAPHID":4606,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Number of Shared Resources","Description":"Monitors the number of shared resources on this server.","name":"Win-NumberOfSharedResources","isSelected":"false","GRAPHID":4607,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Number of Print Queued Jobs","Description":"Monitors the total number of print jobs that have been spooled on the server.","name":"Win-NumberOfPrintQueuedJobs","isSelected":"false","GRAPHID":4609,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Logical Drive status","Description":"Monitors the status of logical drives. KEY: 2 - Ok, 3 - Failed, 10 - Overheating, 11 - Shutdown, 13 - notAvailable","name":"Win-LogicalDriveStatus","isSelected":"false","GRAPHID":4603,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Number of Opened Files","Description":"Monitors the total number of files that have been opened on the server.","name":"Win-NumberOfOpenedFiles","isSelected":"false","GRAPHID":4608,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"},{"DISPLAYNAME":"Number of Failed Logins","Description":"Monitors the number of password violations encountered on the server.","name":"WinFailedLogins","isSelected":"false","GRAPHID":4610,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"false"}],"HOST-RESOURCES Monitors":[{"DISPLAYNAME":"CPU Utilization","Description":"Monitors the CPU Utilization based on HOSTRESOURCE MIB","name":"Win-CPUUtilization","isSelected":"false","GRAPHID":35,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Memory Utilization","Description":"Monitors the Memory Utilization","name":"Win-MemoryUtilization","isSelected":"false","GRAPHID":36,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Disk Utilization","Description":"Monitors the Disk Utilization","name":"DiskUtilization","isSelected":"false","GRAPHID":37,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Free Disk Space in GB","Description":"Monitors the free disk space in GB using SNMP","name":"Win-FreeDiskSpaceInGB","isSelected":"false","GRAPHID":276,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Free Disk Space in MB","Description":"Monitors the Free disk space in MB using SNMP","name":"Win-FreeDiskSpaceInMB","isSelected":"false","GRAPHID":277,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Used Disk Space in GB","Description":"Monitors the used disk space in GB","name":"Win-UsedDiskSpaceInGB","isSelected":"false","GRAPHID":278,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Used Disk Space in MB","Description":"Monitors the used disk space in MB using SNMP","name":"Win-UsedDiskSpaceInMB","isSelected":"false","GRAPHID":279,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Partition Details of the Device (%)","Description":"Monitoring the usage in each partition of the Device.","name":"PartitionWiseDiskDetails","isSelected":"false","GRAPHID":280,"interval":"3600","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"CPU Utilization(UCD SNMP MIB)","Description":"Monitors the CPU Utilization based on UCD SNMP MIB","name":"Lin-CPUUtilization","isSelected":"false","GRAPHID":330,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Process Count","Description":"Monitors the Number of Processes running in a machine.","name":"ProcessCount","isSelected":"false","GRAPHID":375,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"},{"DISPLAYNAME":"Memory Utilization(UCD SNMP MIB)","Description":"Monitors the Memory utilization based on UCD SNMP MIB","name":"Lin-MemoryUtilization","isSelected":"false","GRAPHID":549,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","STANDARDNAME":"HOST-RESOURCES Monitors"}],"Custom Monitor":[{"DISPLAYNAME":"ifSpeed","Description":"ifSpeed","name":"ifSpeed","isSelected":"false","GRAPHID":4646,"interval":"900","Protocol":"SNMP","thresholdEnabled":"false","isCustomGraph":"true"}]}

getPerformanceMonitorDetails

Method: GET

Description: Lists the details of an associated performance monitor from a particular device

Sample URL: https://localhost:8060/api/json/device/getPerformanceMonitorDetails?apiKey=***************&name=devicename&policyName=WMI-CPUUtilization&graphName=WMI-CPUUtilization&checkNumeric=true

Sample Response: {"statsList":[{"minimumValue":"84","averageValue":"85","instance":"PhysicalMemUtilization","percentile":"85","lastPolledValue":"86","maximumValue":"86"}],"monitors":{"YAXISTEXT":"Percentage","checkNumeric":"true","Description":"Monitors the Memory Utilization using WMI","Instance":"","THRESHOLDENABLED":"true","GRAPHID":"204","oid":"Memory Utilization","type":"multiple","PREVIOUSSEVERITY":"5","defaultMessage_AT":"$MONITOR is $CURRENTVALUE $UNITS,Expected value for this monitor is $EXPECTEDVALUE $UNITS, current adaptive threshold is $THRESHOLDVALUE $UNITS","defaultMessage":"$MONITOR is $CURRENTVALUE%, threshold value for this monitor is $THRESHOLDVALUE%","id":"125","Protocol":"WMI","FAILURETHRESHOLD":"1","DISPLAYNAME":"Memory Utilization","thresholdSet":[{"severity":"2","clrMessage":"$MONITOR is now back to normal, current value is $CURRENTVALUE $UNITS","troubleThresholdType":"max","troubleThresholdName":"1668514350868814042","troubleMessage":"$MONITOR is $CURRENTVALUE $UNITS,Expected value for this monitor is $EXPECTEDVALUE $UNITS, current adaptive threshold is $THRESHOLDVALUE $UNITS","oidType":"","rearmValue":"0","troubleThresholdValue":"15"},{"severity":"1","clrMessage":"$MONITOR is now back to normal, current value is $CURRENTVALUE $UNITS","criticalThresholdName":"1668514350869567781","criticalMessage":"$MONITOR is $CURRENTVALUE $UNITS,Expected value for this monitor is $EXPECTEDVALUE $UNITS, current adaptive threshold is $THRESHOLDVALUE $UNITS","criticalThresholdValue":"20","oidType":"","rearmValue":"0","isAtEnabled":true,"criticalThresholdType":"max"},{"severity":"3","clrMessage":"$MONITOR is now back to normal, current value is $CURRENTVALUE $UNITS","warningThresholdName":"1668514350867431743","warningMessage":"$MONITOR is $CURRENTVALUE $UNITS,Expected value for this monitor is $EXPECTEDVALUE $UNITS, current adaptive threshold is $THRESHOLDVALUE $UNITS","warningThresholdType":"max","oidType":"","warningThresholdValue":"10","rearmValue":"0","isAtEnabled":true}],"graphType":"multiple","policyName":"WMI-MemoryUtilization","agentName":"localhost","isMultiple":"true","sSave":"true","defaultClrMessage":"$MONITOR is now back to normal, current value is $CURRENTVALUE%","DisplayColumn":"","name":"WMI-MemoryUtilization","numericType":"1","interval":"15","Id":"125","isAtEnabled":true}}

addPerformanceMonitors

Method: POST

Description: Adds a new performance monitor (or multiple performance monitors) to the device

Sample URL: https://localhost:8060/api/json/device/addPerformanceMonitors?apiKey=***************&name=devicename&selectedMonitors=1166,3337,304,204,205,203,3327

Sample Response: {"result":{"message":"Monitor added successfully"}}

deletePerformanceMonitors

Method: POST

Description: Deletes performance monitor(s) from the device

Sample URL: https://localhost:8060/api/json/device/deletePerformanceMonitors?apiKey=***************&name=devicename&pollId=332,213

Sample Response: {"result":{"message":"The monitor(s) will be deleted. Please check after sometime."}}

TestMonitor

Method: POST

Description: Tests a performance monitor in a particular device

Sample URL: https://localhost:8060/api/json/device/TestMonitor?apiKey=***************&name=devicename&policyName=WMI-MemoryUtilization&graphName=WMI-MemoryUtilization

Sample Response: {"protocol":"SNMP","checkNumeric":"true","reasons":[],"monitorname":"Win-MemoryUtilization","data":[89],"displayName":"Memory Utilization","isMultiple":"false","oid":".1.3.6.1.2.1.25.5.1.1.2","units":"Percentage","deviceName":"localhost"}

getAssociatedProcessMonitors

Method: GET

Description: Fetches the list of process monitors that have been associated to a device

Sample URL: https://localhost:8060/api/json/device/getAssociatedProcessMonitors?apiKey=***************&deviceName=devicename

Sample Response: {"protocol":"WMI","Templates":[{"protocol":"CLI","associatedDeviceCount":"0","templateName":"httpd","displayName":"httpd","description":"Process Template for httpd","templateId":"2"},{"protocol":"WMI","associatedDeviceCount":"2","templateName":"sqlservr.exe","displayName":"MSSQL","description":"Process Template for MSSQL","templateId":"1"}],"AssignedMonitors":[{"path":"C:\\Program Files\\Microsoft SQL Server\\MSSQL\\Binn\\sqlservr.exe","statusStr":"Clear","cmdLineArgs":"","statusIcon":"/webclient/devices/images/servicestatus5.gif","name":"MSSQL","state":"1","id":"611","proName":"sqlservr.exe","trimName":"MSSQL","status":"5","statusNum":"5"}],"ActiveProcesses":{"7244":{"path":"C:\\Windows\\System32\\msdtc.exe","trimArgs":"","trimPath":"C:\\Windows\\System32\\msdtc.exe","cmdLineArgs":"","name":"msdtc.exe","trimName":"msdtc.exe"},"3680":{"path":"C:\\Windows\\system32\\SearchIndexer.exe","trimArgs":"/Embedding","trimPath":"C:\\Windows\\system32\\SearchIndexer.exe","cmdLineArgs":"/Embedding","name":"SearchIndexer.exe","trimName":"SearchIndexer.exe"},"4692":{"path":"-","trimArgs":"","trimPath":"-","cmdLineArgs":"","name":"csrss.exe","trimName":"csrss.exe"},"1473196":{"path":"C:\\Program Files (x86)\\DesktopCentral_Agent\\appctrl\\bin\\DriverCtrl.exe","trimArgs":" ","trimPath":"C:\\Program Files (x86)\\DesktopCentral_Ag...","cmdLineArgs":" ","name":"DriverCtrl.exe","trimName":"DriverCtrl.exe"},"4652":{"path":"C:\\Windows\\system32\\winlogon.exe","trimArgs":"winlogon.exe","trimPath":"C:\\Windows\\system32\\winlogon.exe","cmdLineArgs":"winlogon.exe","name":"winlogon.exe","trimName":"winlogon.exe"},"1473196":{"path":"C:\\Program Files (x86)\\DesktopCentral_Agent\\appctrl\\bin\\DriverCtrl.exe","trimArgs":" ","trimPath":"C:\\Program Files (x86)\\DesktopCentral_Ag...","cmdLineArgs":" ","name":"DriverCtrl.exe","trimName":"DriverCtrl.exe"},"4652":{"path":"C:\\Windows\\system32\\winlogon.exe","trimArgs":"winlogon.exe","trimPath":"C:\\Windows\\system32\\winlogon.exe","cmdLineArgs":"winlogon.exe","name":"winlogon.exe","trimName":"winlogon.exe"}},"deviceName":"localhost"}

associateProcessMonitor

Method: POST

Description: Associates process monitor(s) to a device

Sample URL: https://localhost:8060/api/json/device/associateProcessMonitor?apiKey=***************&deviceName=devicename&processId=408,8,68&protocol=WMI

Sample Response: {"result":{"message":"Process monitor(s) associated successfully."}}

getAssociatedServiceMonitors

Method: GET

Description: Fetches the list of service monitors that have been associated to a device

Sample URL: https://localhost:8060/api/json/device/getAssociatedServiceMonitors?apiKey=***************&name=devicename

Sample Response: {"remainingServices":["DNS(53)","Echo(7)","FTP(21)","HTTPS(443)","IMAP(143)","LDAP(389)","MSSQL(1433)","MySQL(3306)","NNTP(119)","Oracle(1521)","POP(110)","SMTP(25)","Telnet(23)","Web(80)","WebLogic(7001)"],"selectedServices":["MSSQL(1433)"]}

associateServiceMonitor

Method: POST

Description: Associates service monitor(s) to a device

Sample URL: https://localhost:8060/api/json/admin/associateServiceMonitor?apiKey=***************&deviceName=devicename&serviceName=DNS,FTP,Echo

Sample Response: {"result":{"message":"Service Monitor associated successfully"}}

getDeviceAssociatedWindowsServiceMonitors

Method: GET

Description: Lists the associated Windows Service Monitors for a device

Sample URL: https://localhost:8060/api/json/device/getDeviceAssociatedWindowsServiceMonitors?apiKey=***************&name=devicename

Sample Response: [{"displayName": "Diagnostic Service Host","serviceName": "WdiServiceHost","serviceID": "349","status": "Critical"},{"displayName": "Diagnostic System Host","serviceName": "WdiSystemHost","serviceID": "350","status": "Critical"},{"displayName": "Print Spooler","serviceName": "Spooler","serviceID": "1","status": "Clear"}]

listURLMonitors

Method: GET

Description: Lists all the global URL monitors available in OpManager

Sample URL: https://localhost:8060/api/json/admin/listURLMonitors?apiKey=***************

Sample Response: {"List":[{"availPercentage":0,"urlName":"Google","statusStr":"Service Down","name":"Google_URL","RESPONSETIME":"No Response","url":"http://www.google.com","moID":961,"statusNum":4},{"availPercentage":0,"urlName":"HTTP Url","statusStr":"Service Down","name":"HTTP Url_URL","RESPONSETIME":"No Response","url":"http://localhost:8060","moID":996,"statusNum":4},{"availPercentage":0,"urlName":"HTTPS Url","statusStr":"Service Down","name":"HTTPS Url_URL","RESPONSETIME":"No Response","url":"https://www.zoho.com","moID":997,"statusNum":4}],"Details":{"00-10%":[{"Status":4,"Label":"Service Down","Count":6}]},"DialCounter":[{"title":"Service Down","value":6,"status":4}]}

listAllDevicesSpecificURLs

Method: GET

Description: Lists all the device-specific URL monitors available in OpManager

Sample URL: https://localhost:8061/api/json/admin/listAllDevicesSpecificURLs?apiKey=***************

Sample Response: {"List":[{"parentName":"localhost","urlName":"URL_1","stringstatus":"Clear","parentDispName":"localhost","name":"URL_1_URL","url":"https://google.com","status":"5","statusNum":"5"},{"parentName":"localhost","urlName":"URL_2","stringstatus":"Clear","parentDispName":"localhost","name":"URL_2_URL","url":"https://google.com","status":"5","statusNum":"5"}]

listScriptMonitors

Method: GET

Description: Lists all the script templates available in OpManager

Sample URL: https://localhost:8060/api/json/admin/listScriptMonitors?apiKey=***************

Sample Response: [{"graphName":"Cache Memory","scriptID":"102","executeFrom":"1","graphDesc":"Perl Script to get cache memory of a linux system","graphID":"1207"},{"graphName":"File Size","scriptID":"103","executeFrom":"1","graphDesc":"Shell script to get memory size of a file in linux system","graphID":"1208"},{"graphName":"Instance Count","scriptID":"101","executeFrom":"0","graphDesc":"VBScript to get number of instances running for a given process","graphID":"1206"},{"graphName":"Thread Count","scriptID":"104","executeFrom":"0","graphDesc":"Powershell script to get thread count of a process","graphID":"1209"}]

listNotificationProfiles

Method: GET

Description: This API is used to list all the Notification Profiles created in OpManager.

Sample URL: https://localhost:8060/api/json/admin/listNotificationProfiles?apiKey=***************&isGlobal=true&profileFilter=All&deviceName=devicename

Sample Response: [{"profileName":"Play Sound","hasSubProfiles":false,"profileType":"Run Program","profileLabel":"Run Program","profileID":"1","hasCriteria":false,"isDevice":false,"status":"true"}, {"profileName":"testProfile","hasSubProfiles":false,"profileType":"Send Email","profileLabel":"Send Email","profileID":"301","isDevice":false,"hasAssociated":true,"status":"true"}]

Note:

1. The API gives expected results, only with two parameters selected. The parameter apiKey is a mandatory parameter, and select one of the remaining three parameters and use it as per your requirement.
2. Notification Profiles that are created from Inventory->Device->Device Snapshot page->Click on the mail icon from top right panel->Add option are called as Device Specific profiles.
3. Notification Profiles that are created from Settings->Notification->Add option are called as Global profiles.

associateNotificationProfiles

Method: POST

Description: This API is used to associate notification profiles to devices.

Sample URL: https://localhost:8060/api/json/admin/associateNotificationProfiles?apiKey=***************&deviceName=devicename&profiles=501

Sample Response: {"result":{"message":"Notification Profile has been associated successfully"}}

updateNotificationProfileStatus

Method: POST

Description: This API is used to enable/disable notification profiles. This API will be available from OpManager version 127189

Sample URL: https://localhost:8060/api/json/admin/updateNotificationProfileStatus?apiKey=***************&profileName=testprofile&profileId=301&status=disable

Sample Response:{"message":"Notification Profile(s) enabled successfully"} or {"message":"Notification Profile(s) disabled successfully"}

getNotificationProfiles

Method: GET

Description: This API is used to list notification profiles specific to the device.

Sample URL: https://localhost:8060/api/json/device/getNotificationProfiles?apiKey=***************&name=devicename

Sample Response:[{"profileName":"Default Notification Profile","actionDisplayName":"Send Email","profileLabel":"Send Email","criteriaId":"301","profileId":"601","isGlobal":true,"actionName":"Send Email","status":"true"}]

getAdvancedReportData

Method: GET

Description: getAdvancedReportData functions based on lazy loading. When the first API call is made, it will give the count of the rows present in the report as a response. The subsequent API calls will bring the appropriate response based on the specified params.

Example:
Make the listAllAdvancedReports API call to get the reportId data. Then make the getAdvancedReportData API call subsequently.

First API Call: https://<Host>:<port>/api/json/reports/getAdvancedReportData?getColumnDetails=true&reportID=901&apiKey=***********************************

Params: getColumnDetails=true, reportID=901, apiKey=**********************************************

Sample Response: { "headers": [ "Availability (%)", "Up time", "On Hold time", "Maintenance Time", "Parent Down Time", "Dependent Down Time", "Down time" ], "total": 1, "groupByCount": 0, "reportID": "6903", "reportName": "sdfsf", "records": 1, "totalColumns": 7, "groupHeader": [] }

Response:
{
deviceNameIndex: 0
groupByCount: 0
groupHeader: []
headers: ["Device Name", "Status", "Availability (%)"]
moduleId: "1"
records: 4289
total: 86
totalColumns: 3
}

Note: Records represent the total number of rows present in the report. Depending on the records (the number of rows) you can decide the number of API calls to be made. In a single API call, you can get up to 1000 rows. So, if your report has 5000 rows totally, you have to make 5 consecutive API calls to get the complete data.

Consecutive API calls

https://<Host>:<port>/api/json/reports/getAdvancedReportData?fetchFromRowNumber=1&rowsToFetch=1000&reportId=901&apiKey=***********************************
https://<Host>:<port>/api/json/reports/getAdvancedReportData?fetchFromRowNumber=1001&rowsToFetch=1000&reportId=901&apiKey=***********************************
https://<Host>:<port>/api/json/reports/getAdvancedReportData?fetchFromRowNumber=2001&rowsToFetch=1000&reportId=901&apiKey=***********************************
https://<Host>:<port>/api/json/reports/getAdvancedReportData?fetchFromRowNumber=3001&rowsToFetch=1000&reportId=901&apiKey=***********************************
https://<Host>:<port>/api/json/reports/getAdvancedReportData?fetchFromRowNumber=4001&rowsToFetch=289&reportId=901&apiKey=***********************************

Sample Response: { "total": 1, "reportID": "6903", "reportName": "Report 1", "records": 1, "page": "1", "rows": [ { "Maintenance Time": "0 seconds", "Maintenance Time": "0 seconds", "Availability (%)": "0", "name": "Ground Floor ADServer", "On Hold time": "0 seconds", "Down time": "23 hours 0 minutes 0 seconds", "Dependent Down Time": "0 seconds", "Up time": "0 seconds", "moName": "xxx.xx.xxx.xxx.x0000000001", "moid": 20000049227 } ], "headerKeyVsTypeMap": { "Maintenance Time": 2, "Parent Down Time": 2, "Availability (%)": 2, "name": 12, "On Hold time": 2, "Down time": 2, "Dependent Down Time": 2, "Up time": 2, "moid": -5 } }

getReportsList

Method: GET

Description: This API is to list all the reports

Sample URL: https://localhost:8060/api/json/reports/getReportsList?apiKey=***************&isFavouriteNeeded=true&hideintegratedReports=true&hideHardwareReport=true

Sample Response: [ { "displayName": "System", "list": [ { "list": [ { "customStatus": "False", "displayName": "Notification Profiles Triggered", "isCustom": "false", "id": 6, "url": "/reports/GenerateReports.do?firstTime=true&reportID=6", "Name": "Notification Profiles Triggered", "desc": "Get report of notification profiles triggered" }, { "customStatus": "False", "displayName": "Downtime Scheduler Log", "isCustom": "false", "id": 7, "url": "/reports/GenerateReports.do?firstTime=true&reportID=7", "Name": "Downtime Scheduler Log", "desc": "Get report of downtime scheduler log" }, { "customStatus": "False", "displayName": "Schedule Reports Log", "isCustom": "false", "id": 8, "url": "/reports/GenerateReports.do?firstTime=true&reportID=8", "Name": "Schedule Reports Log", "desc": "Get report of schedule reports log" }, { "customStatus": "False", "displayName": "All Down Events", "isCustom": "false", "id": 2, "url": "/reports/GenerateReports.do?firstTime=true&reportID=2", "Name": "All Down Events", "desc": "Get report for all down events" }, { "customStatus": "False", "displayName": "All Alerts", "isCustom": "false", "id": 84, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=84", "Name": "All Alerts", "desc": "Get report for all alerts" }, { "customStatus": "False", "displayName": "All Events", "isCustom": "false", "id": 1, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=1", "Name": "All Events", "desc": "Get report for all events" }, { "customStatus": "False", "displayName": "All Down Alerts", "isCustom": "false", "id": 85, "url": "/reports/GenerateReports.do?firstTime=true&reportID=85", "Name": "All Down Alerts", "desc": "Get report for all down alerts" }, { "customStatus": "False", "displayName": "SNMP Trap Log", "isCustom": "false", "id": 3, "url": "/reports/GenerateReports.do?firstTime=true&reportID=3", "Name": "SNMP Trap Log", "desc": "Get SNMP trap log report" }, { "customStatus": "False", "displayName": "Windows Event Log", "isCustom": "false", "id": 4, "url": "/reports/GenerateReports.do?firstTime=true&reportID=4", "Name": "Windows Event Log", "desc": "Get windows event log report" }, { "customStatus": "False", "displayName": "Performance Monitor Error Log", "isCustom": "false", "id": 5, "url": "/reports/GenerateReports.do?firstTime=true&reportID=5", "Name": "Performance Monitor Error Log", "desc": "Get performance monitor error log report" }, { "customStatus": "False", "displayName": "All Alerts with Notes", "isCustom": "false", "id": 721, "url": "/reports/GenerateReports.do?firstTime=true&reportID=721", "Name": "All Alerts with Notes", "desc": "Get report for all alerts with Notes" }, { "customStatus": "False", "displayName": "Top SysLog Count by Source", "isCustom": "false", "id": 95, "url": "/reports/GenerateReports.do?firstTime=true&reportID=95", "Name": "webclient.top.syslog.reports", "desc": "Top N devices with most number of SysLogs" }, { "customStatus": "False", "displayName": "Top EventLog Count by Source", "isCustom": "false", "id": 94, "url": "/reports/GenerateReports.do?firstTime=true&reportID=94", "Name": "webclient.top.eventlog.reports", "desc": "Top N devices with most number of EventLogs" }, { "customStatus": "False", "displayName": "Top Trap Count by Source", "isCustom": "false", "id": 93, "url": "/reports/GenerateReports.do?firstTime=true&reportID=93", "Name": "webclient.top.trap.reports", "desc": "Top N devices with most number of Traps" }, { "customStatus": "False", "displayName": "Suppressed Devices", "isCustom": "false", "id": 92, "url": "/reports/GenerateReports.do?firstTime=true&reportID=92", "Name": "webclient.suppress.devices.reports", "desc": "Get report for suppressed devices" }, { "customStatus": "False", "displayName": "DataCollection Error Logs", "isCustom": "false", "id": 151, "url": "/reports/GenerateReports.do?firstTime=true&reportID=151", "Name": "widget.name.dataCollectionLog", "desc": "Get datacollection failure details" }, { "customStatus": "False", "displayName": "Active Alerts", "isCustom": "false", "id": 149, "url": "/reports/GenerateReports.do?firstTime=true&reportID=149", "Name": "webclient.report.name.activealarms", "desc": "Get report for active alerts" }, { "customStatus": "False", "displayName": "Workflow Logs", "isCustom": "false", "id": 90, "url": "/reports/GenerateReports.do?firstTime=true&reportID=90", "Name": "Workflow Logs", "desc": "Workflow logs report" }, { "customStatus": "False", "displayName": "Syslog Events", "isCustom": "false", "id": 88, "url": "/reports/GenerateReports.do?firstTime=true&reportID=88", "Name": "Syslog Events", "desc": "Get Syslog events report " }, { "displayName": "DataCollection Error Logs for N Consecutive Time(s)", "id": "ServerHealthReport", "desc": "Get datacollection failure details for N consecutive times" }, { "displayName": "Audit Report", "id": "Audit", "url": "/reports/AuditReport.do", "desc": "Audit Report" } ], "title": "" } ], "Name": "System" }, { "displayName": "Health and Performance", "list": [ { "list": [ { "customStatus": "True", "displayName": "Servers by Rx Utilization", "isCustom": "true", "id": 28, "url": "/reports/GenerateReports.do?firstTime=true&reportID=28", "Name": "Servers by Rx Utilization", "desc": "Identify servers with heavy incoming traffic utilization" }, { "customStatus": "True", "displayName": "Servers by Tx Utilization", "isCustom": "true", "id": 29, "url": "/reports/GenerateReports.do?firstTime=true&reportID=29", "Name": "Servers by Tx Utilization", "desc": "Identify servers with heavy outgoing traffic utilization" }, { "customStatus": "True", "displayName": "Volumes with Least Free Space", "isCustom": "true", "id": 30, "url": "/reports/GenerateReports.do?firstTime=true&reportID=30", "Name": "Volumes with Least Free Space", "desc": "Identify disk partitions with least free space" }, { "customStatus": "True", "displayName": "Volumes with Most Free Space", "isCustom": "true", "id": 31, "url": "/reports/GenerateReports.do?firstTime=true&reportID=31", "Name": "Volumes with Most Free Space", "desc": "Identify disk partitions with most free space" }, { "customStatus": "True", "displayName": "All Servers Disk Usage Report", "isCustom": "true", "id": 32, "url": "/reports/GenerateReports.do?firstTime=true&reportID=32", "Name": "All Servers Disk Usage Report", "desc": "Get partition wise disk usage report for all servers" }, { "customStatus": "True", "displayName": "Routers Health Report", "isCustom": "true", "id": 33, "url": "/reports/GenerateReports.do?firstTime=true&reportID=33", "Name": "Routers Health Report", "desc": "Get health report of routers" }, { "customStatus": "True", "displayName": "Routers by CPU Utilization", "isCustom": "true", "id": 34, "url": "/reports/GenerateReports.do?firstTime=true&reportID=34", "Name": "Routers by CPU Utilization", "desc": "Identify busy routers with high CPU Utilization" }, { "customStatus": "True", "displayName": "Routers by Memory Utilization", "isCustom": "true", "id": 35, "url": "/reports/GenerateReports.do?firstTime=true&reportID=35", "Name": "Routers by Memory Utilization", "desc": "Identify overloaded routers with high Memory Utilization" }, { "customStatus": "True", "displayName": "Router Interfaces by Rx Traffic", "isCustom": "true", "id": 36, "url": "/reports/GenerateReports.do?firstTime=true&reportID=36", "Name": "Router Interfaces by Rx Traffic", "desc": "Identify interfaces with heavy incoming traffic" }, { "customStatus": "True", "displayName": "Router Interfaces by Tx Traffic", "isCustom": "true", "id": 37, "url": "/reports/GenerateReports.do?firstTime=true&reportID=37", "Name": "Router Interfaces by Tx Traffic", "desc": "Identify interfaces with heavy outgoing traffic" }, { "customStatus": "True", "displayName": "Router Interfaces by Rx Errors", "isCustom": "true", "id": 38, "url": "/reports/GenerateReports.do?firstTime=true&reportID=38", "Name": "Router Interfaces by Rx Errors", "desc": "Identify interfaces with high incoming errors" }, { "customStatus": "True", "displayName": "Router Interfaces by Tx Errors", "isCustom": "true", "id": 39, "url": "/reports/GenerateReports.do?firstTime=true&reportID=39", "Name": "Router Interfaces by Tx Errors", "desc": "Identify interfaces with high incoming errors" }, { "customStatus": "True", "displayName": "Router Interfaces by Rx Utilization", "isCustom": "true", "id": 40, "url": "/reports/GenerateReports.do?firstTime=true&reportID=40", "Name": "Router Interfaces by Rx Utilization", "desc": "Identify interfaces with high % Receive utilization" }, { "customStatus": "True", "displayName": "Router Interfaces by Tx Utilization", "isCustom": "true", "id": 41, "url": "/reports/GenerateReports.do?firstTime=true&reportID=41", "Name": "Router Interfaces by Tx Utilization", "desc": "Identify interfaces with high % Transmit utilization" }, { "customStatus": "True", "displayName": "Switches Health Report", "isCustom": "true", "id": 42, "url": "/reports/GenerateReports.do?firstTime=true&reportID=42", "Name": "Switches Health Report", "desc": "Get health report of switches" }, { "customStatus": "True", "displayName": "Ports by Rx Traffic", "isCustom": "true", "id": 43, "url": "/reports/GenerateReports.do?firstTime=true&reportID=43", "Name": "Ports by Rx Traffic", "desc": "Identify ports with heavy incoming traffic" }, { "customStatus": "True", "displayName": "Ports by Tx Traffic", "isCustom": "true", "id": 44, "url": "/reports/GenerateReports.do?firstTime=true&reportID=44", "Name": "Ports by Tx Traffic", "desc": "Identify ports with heavy outgoing traffic" }, { "customStatus": "True", "displayName": "Ports by Rx Errors", "isCustom": "true", "id": 45, "url": "/reports/GenerateReports.do?firstTime=true&reportID=45", "Name": "Ports by Rx Errors", "desc": "Identify ports with most Receive errors" }, { "customStatus": "True", "displayName": "Ports by Tx Errors", "isCustom": "true", "id": 46, "url": "/reports/GenerateReports.do?firstTime=true&reportID=46", "Name": "Ports by Tx Errors", "desc": "Identify ports with most Transmit errors" }, { "customStatus": "True", "displayName": "Ports by Tx Utilization", "isCustom": "true", "id": 48, "url": "/reports/GenerateReports.do?firstTime=true&reportID=48", "Name": "Ports by Tx Utilization", "desc": "Identify ports with high % Transmit utilization" }, { "customStatus": "True", "displayName": "DCs by CPU Utilization", "isCustom": "true", "id": 49, "url": "/reports/GenerateReports.do?firstTime=true&reportID=49", "Name": "DCs by CPU Utilization", "desc": "Identify busy DCs with high CPU Utilization" }, { "customStatus": "True", "displayName": "DCs by Memory Utilization", "isCustom": "true", "id": 50, "url": "/reports/GenerateReports.do?firstTime=true&reportID=50", "Name": "DCs by Memory Utilization", "desc": "Identify overloaded DCs with high Memory Utilization" }, { "customStatus": "True", "displayName": "DCs by Disk Utilization", "isCustom": "true", "id": 51, "url": "/reports/GenerateReports.do?firstTime=true&reportID=51", "Name": "DCs by Disk Utilization", "desc": "Identify overloaded DCs with high Disk Utilization" }, { "customStatus": "True", "displayName": "Ports by Rx Utilization", "isCustom": "true", "id": 47, "url": "/reports/GenerateReports.do?firstTime=true&reportID=47", "Name": "Ports by Rx Utilization", "desc": "Identify ports with high % Receive utilization" }, { "customStatus": "False", "displayName": "Health Report", "isCustom": "false", "id": 9, "url": "/reports/GenerateReports.do?firstTime=true&reportID=9", "Name": "Health Report", "desc": "Get health report of all devices" }, { "customStatus": "False", "displayName": "Devices by CPU Utilization", "isCustom": "false", "id": 10, "url": "/reports/GenerateReports.do?firstTime=true&reportID=10", "Name": "Devices by CPU Utilization", "desc": "Identify overloaded devices with high CPU Utilization" }, { "customStatus": "False", "displayName": "Devices by Memory Utilization", "isCustom": "false", "id": 11, "url": "/reports/GenerateReports.do?firstTime=true&reportID=11", "Name": "Devices by Memory Utilization", "desc": "Identify overloaded devices with high Memory Utilization" }, { "customStatus": "False", "displayName": "Devices by Disk Utilization", "isCustom": "false", "id": 12, "url": "/reports/GenerateReports.do?firstTime=true&reportID=12", "Name": "Devices by Disk Utilization", "desc": "Identify overloaded devices with high Disk Utilization" }, { "customStatus": "False", "displayName": "Disk Usage by Drives", "isCustom": "false", "id": 13, "url": "/reports/GenerateReports.do?firstTime=true&reportID=13", "Name": "Disk Usage by Drives", "desc": "Identify overloaded devices with high Disk Utilization by drives" }, { "customStatus": "False", "displayName": "All Interfaces by Utilization", "isCustom": "false", "id": 14, "url": "/reports/GenerateReports.do?firstTime=true&reportID=14", "Name": "All Interfaces by Utilization", "desc": "Identify devices with heavy traffic utilization" }, { "customStatus": "False", "displayName": "WAN Links by Utilization", "isCustom": "false", "id": 15, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=15", "Name": "WAN Links by Utilization", "desc": "Identify WAN links with heavy traffic utilization" }, { "customStatus": "False", "displayName": "Interfaces by Rx Traffic", "isCustom": "false", "id": 16, "url": "/reports/GenerateReports.do?firstTime=true&reportID=16", "Name": "Interfaces by Rx Traffic", "desc": "Identify devices with heavy incoming traffic" }, { "customStatus": "False", "displayName": "Interfaces by Tx Traffic", "isCustom": "false", "id": 17, "url": "/reports/GenerateReports.do?firstTime=true&reportID=17", "Name": "Interfaces by Tx Traffic", "desc": "Identify devices with heavy outgoing traffic" }, { "customStatus": "False", "displayName": "Interfaces by Rx Utilization", "isCustom": "false", "id": 18, "url": "/reports/GenerateReports.do?firstTime=true&reportID=18", "Name": "Interfaces by Rx Utilization", "desc": "Identify devices with heavy incoming traffic utilization" }, { "customStatus": "False", "displayName": "Interfaces by Tx Utilization", "isCustom": "false", "id": 19, "url": "/reports/GenerateReports.do?firstTime=true&reportID=19", "Name": "Interfaces by Tx Utilization", "desc": "Identify devices with heavy outgoing traffic utilization" }, { "customStatus": "False", "displayName": "Interfaces by Rx Errors", "isCustom": "false", "id": 20, "url": "/reports/GenerateReports.do?firstTime=true&reportID=20", "Name": "Interfaces by Rx Errors", "desc": "Identify interfaces with high incoming errors" }, { "customStatus": "False", "displayName": "Interfaces by Tx Errors", "isCustom": "false", "id": 21, "url": "/reports/GenerateReports.do?firstTime=true&reportID=21", "Name": "Interfaces by Tx Errors", "desc": "Identify interfaces with high outgoing errors" }, { "customStatus": "True", "displayName": "Servers Health Report", "isCustom": "true", "id": 22, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=22", "Name": "Servers Health Report", "desc": "Get health report of servers" }, { "customStatus": "True", "displayName": "Servers by CPU Utilization", "isCustom": "true", "id": 23, "url": "/reports/GenerateReports.do?firstTime=true&reportID=23", "Name": "Servers by CPU Utilization", "desc": "Identify busy servers with high CPU Utilization" }, { "customStatus": "True", "displayName": "Servers by Memory Utilization", "isCustom": "true", "id": 24, "url": "/reports/GenerateReports.do?firstTime=true&reportID=24", "Name": "Servers by Memory Utilization", "desc": "Identify overloaded servers with high Memory Utilization" }, { "customStatus": "True", "displayName": "Servers by Disk Utilization", "isCustom": "true", "id": 25, "url": "/reports/GenerateReports.do?firstTime=true&reportID=25", "Name": "Servers by Disk Utilization", "desc": "Identify overloaded servers with high Disk Utilization" }, { "customStatus": "True", "displayName": "Servers by Rx Traffic", "isCustom": "true", "id": 26, "url": "/reports/GenerateReports.do?firstTime=true&reportID=26", "Name": "Servers by Rx Traffic", "desc": "Identify servers with heavy incoming traffic" }, { "customStatus": "True", "displayName": "Servers by Tx Traffic", "isCustom": "true", "id": 27, "url": "/reports/GenerateReports.do?firstTime=true&reportID=27", "Name": "Servers by Tx Traffic", "desc": "Identify servers with heavy outgoing traffic" }, { "customStatus": "True", "displayName": "All Interfaces By Traffic", "isCustom": "true", "id": 81, "url": "/reports/GenerateReports.do?firstTime=true&reportID=81", "Name": "All Interfaces By Traffic", "desc": "Get traffic report of all interfaces" }, { "customStatus": "True", "displayName": "Volumes With Low Disk Utilization", "isCustom": "true", "id": 82, "url": "/reports/GenerateReports.do?firstTime=true&reportID=82", "Name": "Volumes With Low Disk Utilization", "desc": "Identify volumes with low disk utilization" }, { "customStatus": "True", "displayName": "Volumes With High Disk Utilization", "isCustom": "true", "id": 83, "url": "/reports/GenerateReports.do?firstTime=true&reportID=83", "Name": "Volumes With High Disk Utilization", "desc": "Identify volumes with high disk utilization" }, { "customStatus": "False", "displayName": "Top N Errors And Discards", "isCustom": "false", "id": 86, "url": "/reports/GenerateReports.do?firstTime=true&reportID=86", "Name": "Top N Errors And Discards", "desc": "Identify interfaces with high errors and discards" }, { "customStatus": "False", "displayName": "Interfaces By TotalBytes Transfered", "isCustom": "false", "id": 89, "url": "/reports/GenerateReports.do?firstTime=true&reportID=89", "Name": "Interfaces By TotalBytes Transfered", "desc": "Identify interfaces with high total bytes transfered" }, { "customStatus": "False", "displayName": "Hardware Health Report", "isCustom": "false", "id": 142, "url": "/reports/GenerateReports.do?firstTime=true&reportID=142", "Name": "webclient.reports.hardware.title", "desc": "Get Hardware Health Report" }, { "customStatus": "True", "displayName": "Processes by CPU Utilization", "isCustom": "true", "id": 144, "url": "/reports/GenerateReports.do?firstTime=true&reportID=144", "Name": "Processes by CPU Utilization", "desc": "Identify processes with high CPU Utilization" }, { "customStatus": "True", "displayName": "Processes by Memory Utilization", "isCustom": "true", "id": 145, "url": "/reports/GenerateReports.do?firstTime=true&reportID=145", "Name": "Processes by Memory Utilization", "desc": "Identify processes with high Memory Utilization" }, { "customStatus": "True", "displayName": "Processes by Absolute Memory", "isCustom": "true", "id": 148, "url": "/reports/GenerateReports.do?firstTime=true&reportID=148", "Name": "Processes by Absolute Memory", "desc": "Identify absolute memory value of the Process" }, { "customStatus": "False", "displayName": "Flap Count Summary", "isCustom": "false", "id": 768, "url": "/reports/GenerateReports.do?firstTime=true&reportID=768", "Name": "webclient.bgp.title.flapCount", "desc": "Get Flap Count Summary for BGP Peers" }, { "customStatus": "False", "displayName": "Flap Summary", "isCustom": "false", "id": 769, "url": "/reports/GenerateReports.do?firstTime=true&reportID=769", "Name": "webclient.bgp.title.flapSummary", "desc": "Flap Summary for each BGP Peers" }, { "customStatus": "False", "displayName": "Devices with Performance Monitors", "isCustom": "false", "id": 772, "url": "/reports/GenerateReports.do?firstTime=true&reportID=772", "Name": "webclient.perf.monitors.report", "desc": "Get report for devices with Perforamance monitors" }, { "customStatus": "False", "displayName": "Devices with File Monitors", "isCustom": "false", "id": 773, "url": "/reports/GenerateReports.do?firstTime=true&reportID=773", "Name": "webclient.file.monitors.report", "desc": "Get report for devices with File monitors" }, { "customStatus": "False", "displayName": "Devices with Folder Monitors", "isCustom": "false", "id": 774, "url": "/reports/GenerateReports.do?firstTime=true&reportID=774", "Name": "webclient.folder.monitors.report", "desc": "Get report for devices with Folder monitors" }, { "customStatus": "False", "displayName": "Devices with Process Monitors", "isCustom": "false", "id": 775, "url": "/reports/GenerateReports.do?firstTime=true&reportID=775", "Name": "webclient.process.monitors.report", "desc": "Get report for devices with Process monitors" }, { "customStatus": "False", "displayName": "Devices with AD Monitors", "isCustom": "false", "id": 776, "url": "/reports/GenerateReports.do?firstTime=true&reportID=776", "Name": "webclient.AD.monitors.report", "desc": "Get report for devices with AD monitors" }, { "customStatus": "False", "displayName": "Devices with Exchange Monitors", "isCustom": "false", "id": 777, "url": "/reports/GenerateReports.do?firstTime=true&reportID=777", "Name": "webclient.exchange.monitors.report", "desc": "Get report for devices with Exchange monitors" }, { "customStatus": "False", "displayName": "Devices with MSSQL Monitors", "isCustom": "false", "id": 778, "url": "/reports/GenerateReports.do?firstTime=true&reportID=778", "Name": "webclient.mssql.monitors.report", "desc": "Get report for devices with MSSQL monitors" }, { "customStatus": "False", "displayName": "Devices with AD Service Monitors", "isCustom": "false", "id": 779, "url": "/reports/GenerateReports.do?firstTime=true&reportID=779", "Name": "webclient.ADService.monitors.report", "desc": "Get report for devices with AD Service monitors" }, { "customStatus": "False", "displayName": "Devices with MSSQL Service Monitors", "isCustom": "false", "id": 780, "url": "/reports/GenerateReports.do?firstTime=true&reportID=780", "Name": "webclient.mssqlservice.monitors.report", "desc": "Get report for devices with MSSQL Service monitors" }, { "customStatus": "False", "displayName": "Devices with Exchange Service Monitors", "isCustom": "false", "id": 781, "url": "/reports/GenerateReports.do?firstTime=true&reportID=781", "Name": "webclient.exchangeservice.monitors.report", "desc": "Get report for devices with Exchange Service monitors" }, { "customStatus": "False", "displayName": "Devices with NT Service Monitors", "isCustom": "false", "id": 782, "url": "/reports/GenerateReports.do?firstTime=true&reportID=782", "Name": "webclient.ntservice.monitors.report", "desc": "Get report for devices with NT Service monitors" }, { "customStatus": "False", "displayName": "Devices with URL Monitors", "isCustom": "false", "id": 783, "url": "/reports/GenerateReports.do?firstTime=true&reportID=783", "Name": "webclient.url.monitors.report", "desc": "Get report for devices with URL monitors" }, { "customStatus": "False", "displayName": "Devices with Service Monitors", "isCustom": "false", "id": 784, "url": "/reports/GenerateReports.do?firstTime=true&reportID=784", "Name": "webclient.service.monitors.report", "desc": "Get report for devices with Service monitors" }, { "customStatus": "False", "displayName": "VPN Summary", "isCustom": "false", "id": 895, "url": "/reports/GenerateReports.do?firstTime=true&reportID=895", "Name": "webclient.opm.reports.vpnSummary", "desc": "Get summary report for Site-to-Site VPN devices." } ], "title": "" } ], "Name": "Health and Performance" }, { "displayName": "Availability and Response", "list": [ { "list": [ { "customStatus": "True", "displayName": "SMTP Servers by Response Time", "isCustom": "true", "id": 65, "url": "/reports/GenerateReports.do?firstTime=true&reportID=65", "Name": "SMTP Servers by Response Time", "desc": "Identify SMTP servers with high Response Time" }, { "customStatus": "True", "displayName": "Process Monitors Availability", "isCustom": "true", "id": 146, "url": "/reports/GenerateReports.do?firstTime=true&reportID=146", "Name": "Process Monitors Availability", "desc": "Get availability report for all process monitors" }, { "customStatus": "True", "displayName": "Windows Service Monitors Availability", "isCustom": "true", "id": 147, "url": "/reports/GenerateReports.do?firstTime=true&reportID=147", "Name": "Windows Service Monitors Availability", "desc": "Get availability report for all windows service monitors" }, { "customStatus": "True", "displayName": "HTTP Servers by Response Time", "isCustom": "true", "id": 64, "url": "/reports/GenerateReports.do?firstTime=true&reportID=64", "Name": "HTTP Servers by Response Time", "desc": "Identify Web servers with high Response Time" }, { "customStatus": "False", "displayName": "Devices by Packet Loss", "isCustom": "false", "id": 58, "url": "/reports/GenerateReports.do?firstTime=true&reportID=58", "Name": "Devices by Packet Loss", "desc": "Identify devices with high packet loss" }, { "customStatus": "False", "displayName": "Devices by Response Time", "isCustom": "false", "id": 57, "url": "/reports/GenerateReports.do?firstTime=true&reportID=57", "Name": "Devices by Response Time", "desc": "Identify devices with high response time" }, { "customStatus": "True", "displayName": "Web Servers Availability", "isCustom": "true", "id": 63, "url": "/reports/GenerateReports.do?firstTime=true&reportID=63", "Name": "Web Servers Availability", "desc": "Get availability report for all web servers" }, { "customStatus": "False", "displayName": "WAN Links Availability", "isCustom": "false", "id": 54, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=54", "Name": "WAN Links Availability", "desc": "Get availability report for all interfaces" }, { "customStatus": "False", "displayName": "All Interfaces Availability", "isCustom": "false", "id": 87, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=87", "Name": "All Interfaces Availability", "desc": "Get availability report for all interfaces" }, { "customStatus": "False", "displayName": "URLs Availability", "isCustom": "false", "id": 55, "url": "/reports/GenerateReports.do?firstTime=true&reportID=55", "Name": "URLs Availability", "desc": "Get availability report for all URLs" }, { "customStatus": "False", "displayName": "Service Monitors Availability", "isCustom": "false", "id": 56, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=56", "Name": "Service Monitors Availability", "desc": "Get availability report for all service monitors" }, { "customStatus": "True", "displayName": "DCs Availability Report", "isCustom": "true", "id": 62, "url": "/reports/GenerateReports.do?firstTime=true&reportID=62", "Name": "DCs Availability Report", "desc": "Get availability report for all DCs" }, { "customStatus": "True", "displayName": "Servers Availability Report", "isCustom": "true", "id": 61, "url": "/reports/GenerateReports.do?firstTime=true&reportID=61", "Name": "Servers Availability Report", "desc": "Get availability report for all services" }, { "customStatus": "False", "displayName": "Devices Availability", "isCustom": "false", "id": 52, "url": "/reports/GenerateReports.do?firstTime=true&reportID=52", "Name": "Devices Availability", "desc": "Get availability report for all devices" }, { "customStatus": "False", "displayName": "Devices Availability Dashboard", "isCustom": "false", "id": 53, "url": "/reports/GenerateReports.do?firstTime=true&reportID=53", "Name": "Devices Availability Dashboard", "desc": "Get availability report for all devices" }, { "customStatus": "False", "displayName": "DownTime Report For Interfaces", "isCustom": "false", "id": 724, "url": "/reports/GenerateReports.do?firstTime=true&reportID=724", "Name": "DownTime Report For Interfaces", "desc": "DownTime history for all interfaces" }, { "customStatus": "False", "displayName": "Services by Response Time", "isCustom": "false", "id": 60, "url": "/reports/GenerateReports.do?firstTime=true&reportID=60", "Name": "Services by Response Time", "desc": "Identify services with high response time" }, { "customStatus": "False", "displayName": "URLs by Response Time", "isCustom": "false", "id": 59, "url": "/reports/GenerateReports.do?firstTime=true&reportID=59", "Name": "URLs by Response Time", "desc": "Identify URLs with high response time" }, { "customStatus": "True", "displayName": "Telnet Servers by Response Time", "isCustom": "true", "id": 68, "url": "/reports/GenerateReports.do?firstTime=true&reportID=68", "Name": "Telnet Servers by Response Time", "desc": "Identify Telnet servers with high Response Time" }, { "customStatus": "False", "displayName": "DownTime Report", "isCustom": "false", "id": 91, "url": "/reports/GenerateReports.do?firstTime=true&reportID=91", "Name": "DownTime Report", "desc": "DownTime history for all devices" }, { "customStatus": "True", "displayName": "FTP Servers by Response Time", "isCustom": "true", "id": 67, "url": "/reports/GenerateReports.do?firstTime=true&reportID=67", "Name": "FTP Servers by Response Time", "desc": "Identify FTP servers with high Response Time" }, { "customStatus": "True", "displayName": "MySQL Servers by Response Time", "isCustom": "true", "id": 66, "url": "/reports/GenerateReports.do?firstTime=true&reportID=66", "Name": "MySQL Servers by Response Time", "desc": "Identify MySQL servers with high Response Time" } ], "title": "" } ], "Name": "Availability and Response" }, { "displayName": "Inventory", "list": [ { "list": [ { "customStatus": "True", "displayName": "Devices Down", "isCustom": "true", "id": 722, "url": "/reports/GenerateReports.do?firstTime=true&reportID=722", "Name": "widget.name.devicesdown", "desc": "Get report for all devices down" }, { "customStatus": "False", "displayName": "Notification Profiles Applied by Type", "isCustom": "false", "id": 72, "url": "/reports/GenerateReports.do?firstTime=true&reportID=72", "Name": "Notification Profiles Applied by Type", "desc": "Get report of all notification profiles applied by profile type" }, { "customStatus": "False", "displayName": "Notification Profiles Applied", "isCustom": "false", "id": 71, "url": "/reports/GenerateReports.do?firstTime=true&reportID=71", "Name": "Notification Profiles Applied", "desc": "Get report of all notification profiles applied" }, { "customStatus": "False", "displayName": "Devices by Category", "isCustom": "false", "id": 70, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=70", "Name": "Devices by Category", "desc": "Get inventory report of devices by device category" }, { "customStatus": "False", "displayName": "Devices by Device Type", "isCustom": "false", "id": 69, "url": "/reports/GenerateReports.do?firstTime=true&reportID=69", "Name": "Devices by Device Type", "desc": "Get inventory report of devices by device type" }, { "customStatus": "False", "displayName": "Hardware Information", "isCustom": "false", "id": 155, "url": "/reports/GenerateReports.do?firstTime=true&reportID=155", "Name": "webclient.reports.hardwareinfo.title", "desc": "Get report of Hardware Information" }, { "customStatus": "True", "displayName": "Non SNMP Devices", "isCustom": "true", "id": 80, "url": "/reports/GenerateReports.do?firstTime=true&reportID=80", "Name": "Non SNMP Devices", "desc": "Get inventory report of all SNMP not enabled devices" }, { "customStatus": "True", "displayName": "SNMP Enabled Devices", "isCustom": "true", "id": 79, "url": "/reports/GenerateReports.do?firstTime=true&reportID=79", "Name": "SNMP Enabled Devices", "desc": "Get inventory report of all SNMP enabled devices" }, { "customStatus": "True", "displayName": "Desktop", "isCustom": "true", "id": 78, "url": "/reports/GenerateReports.do?firstTime=true&reportID=78", "Name": "Desktops", "desc": "Get inventory report of desktops" }, { "customStatus": "True", "displayName": "Server", "isCustom": "true", "id": 77, "url": "/reports/GenerateReports.do?firstTime=true&reportID=77", "Name": "Servers", "desc": "Get inventory report of servers" }, { "customStatus": "False", "displayName": "Threshold Details of Devices", "isCustom": "false", "id": 150, "url": "/reports/GenerateReports.do?firstTime=true&reportID=150", "Name": "webclient.report.name.thresholdreports", "desc": "Get report of all thresholds configured" }, { "customStatus": "True", "displayName": "All Devices", "isCustom": "true", "id": 76, "url": "/reports/GenerateReports.do?firstTime=true&reportID=76", "Name": "All Devices", "desc": "Get inventory report of all devices" }, { "customStatus": "False", "displayName": "Interfaces by Type", "isCustom": "false", "id": 75, "url": "/reports/GenerateReports.do?firstTime=true&reportID=75", "Name": "Interfaces by Type", "desc": "Get report of all interfaces by type" }, { "customStatus": "False", "displayName": "Interface Speed Report", "isCustom": "false", "id": 74, "url": "/reports/GenerateReports.do?firstTime=true&reportID=74", "Name": "Interface Speed Report", "desc": "Get report of interface bandwidth" }, { "customStatus": "False", "displayName": "Notification Profiles Applied by Device", "isCustom": "false", "id": 73, "url": "/reports/GenerateReports.do?firstTime=true&reportID=73", "Name": "Notification Profiles Applied by Device", "desc": "Get report of all notification profiles applied by device" }, { "customStatus": "False", "displayName": "Devices by Added Time", "isCustom": "false", "id": 725, "url": "/reports/GenerateReports.do?firstTime=true&reportID=725", "Name": "Devices by Added Time", "desc": "Get Devices with its Added Time" }, { "customStatus": "False", "displayName": "Uplink Dependency Devices", "isCustom": "false", "id": 727, "url": "/reports/GenerateReports.do?firstTime=true&reportID=727", "Name": "Up Link Dependency Devices", "desc": "Get inventory report of all dependent devices" }, { "customStatus": "False", "displayName": "Credentials Associated Devices", "isCustom": "false", "id": 761, "url": "/reports/GenerateReports.do?firstTime=true&reportID=761", "Name": "webclient.credential.devices.report", "desc": "Get report of credentials associated to devices" }, { "customStatus": "False", "displayName": "Agent-monitored devices", "isCustom": "false", "id": 862, "url": "/reports/GenerateReports.do?firstTime=true&reportID=862", "Name": "Agent Devices", "desc": "Get an Inventory report of all agent-monitored devices" }, { "customStatus": "False", "displayName": "IPMI Information", "isCustom": "false", "id": 723, "url": "/reports/GenerateReports.do?firstTime=true&reportID=723", "Name": "webclient.reports.ipmi.info.title", "desc": "Get a report of your IPMI devices and related hardware" } ], "title": "" } ], "Name": "Inventory" }, { "displayName": "WAN RTT Monitors", "list": [ { "list": [ { "customStatus": "False", "displayName": "Top N Paths with Maximum RTT", "isCustom": "false", "id": 101, "url": "/reports/GenerateReports.do?firstTime=true&reportID=101", "Name": "Top N Paths with Maximum RTT", "desc": "Top paths with maximum Round Trip Time" }, { "customStatus": "False", "displayName": "Round Trip Time History Report", "isCustom": "false", "id": 97, "url": "/reports/GenerateReports.do?firstTime=true&reportID=97", "Name": "Round Trip Time Trend Report", "desc": "Show RTT of icmp packets between source and destination host" }, { "customStatus": "False", "displayName": "Availability History", "isCustom": "false", "id": 98, "url": "/reports/GenerateReports.do?firstTime=true&reportID=98", "Name": "Link Availability and Error Statistics", "desc": "Show availability of destination also show type of errors in case of failed operation" }, { "customStatus": "False", "displayName": "RTT Threshold Violation Report", "isCustom": "false", "id": 96, "url": "/reports/GenerateReports.do?firstTime=true&reportID=96", "Name": "RTT Threshold Violation Report", "desc": "Shows threshold violation of icmp packets between source and destination host" }, { "customStatus": "False", "displayName": "Top N Least Available Paths", "isCustom": "false", "id": 99, "url": "/reports/GenerateReports.do?firstTime=true&reportID=99", "Name": "Top N Least Available Paths", "desc": "Top paths with least availability" }, { "customStatus": "False", "displayName": "Top N Paths with Maximum Threshold Violation", "isCustom": "false", "id": 100, "url": "/reports/GenerateReports.do?firstTime=true&reportID=100", "Name": "Top N Paths with Maximum Threshold Violation", "desc": "Top paths with maximum threshold violation" } ], "title": "" } ], "Name": "WAN RTT Monitors" }, { "displayName": "VoIP Monitors", "list": [ { "list": [ { "customStatus": "False", "displayName": "Round Trip Time History Report", "isCustom": "false", "id": 107, "url": "/reports/GenerateReports.do?firstTime=true&reportID=107", "Name": "Round Trip Time History Report", "desc": "Shows RTT (Round Trip Time) of VoIP packets in both directions" }, { "customStatus": "False", "displayName": "Top N Call Paths by Jitter", "isCustom": "false", "id": 110, "url": "/reports/GenerateReports.do?firstTime=true&reportID=110", "Name": "Top N Call Paths by Jitter", "desc": "Top call paths with maximum Jitter" }, { "customStatus": "False", "displayName": "Top N Call Paths by Packet Loss", "isCustom": "false", "id": 109, "url": "/reports/GenerateReports.do?firstTime=true&reportID=109", "Name": "Top N Call Paths by Packet Loss", "desc": "Top call paths with maximum Packet Loss" }, { "customStatus": "False", "displayName": "Top N Call Paths by MOS", "isCustom": "false", "id": 108, "url": "/reports/GenerateReports.do?firstTime=true&reportID=108", "Name": "Top N Call Paths by MOS", "desc": "Top call paths with minimum MOS" }, { "customStatus": "False", "displayName": "Top N Call Paths by Latency", "isCustom": "false", "id": 111, "url": "/reports/GenerateReports.do?firstTime=true&reportID=111", "Name": "Top N Call Paths by Latency", "desc": "Top call paths with maximum Latency" }, { "customStatus": "False", "displayName": "Latency History Report", "isCustom": "false", "id": 102, "url": "/reports/GenerateReports.do?firstTime=true&reportID=102", "Name": "Latency History Report", "desc": "Shows latency of VoIP packets in both directions" }, { "customStatus": "False", "displayName": "Jitter History Report", "isCustom": "false", "id": 103, "url": "/reports/GenerateReports.do?firstTime=true&reportID=103", "Name": "Jitter History Report", "desc": "Shows jitter (inter packet delay) of VoIP packets in bonfa.overview.Qos=QoS" }, { "customStatus": "False", "displayName": "Packet Loss History Report", "isCustom": "false", "id": 104, "url": "/reports/GenerateReports.do?firstTime=true&reportID=104", "Name": "Packet Loss History Report", "desc": "Shows packetloss of VoIP packets in both directions" }, { "customStatus": "False", "displayName": "VoIP Errors History Report", "isCustom": "false", "id": 105, "url": "/reports/GenerateReports.do?firstTime=true&reportID=105", "Name": "VoIP Errors History Report", "desc": "Shows various errors (timeout, tail drop,MIA etc.,) generated in the VoIP traffic" }, { "customStatus": "False", "displayName": "MOS History Report", "isCustom": "false", "id": 106, "url": "/reports/GenerateReports.do?firstTime=true&reportID=106", "Name": "MOS History Report", "desc": "Report shows MOS (Mean Opinion Score) of VoIP traffic. MOS is the key quality indicator of VoIP traffic" } ], "title": "" } ], "Name": "VoIP Monitors" }, { "displayName": "Virtual Servers Report", "list": [ { "list": [ { "customStatus": "False", "displayName": "HyperV-Host vs Disk Mapping", "isCustom": "false", "id": 154, "url": "/reports/GenerateReports.do?firstTime=true&reportID=154", "Name": "webclient.virtual.hyperv.hostdisk.report", "desc": "Get report for all Monitored HyperV-Host Vs Disk Mappings" }, { "customStatus": "False", "displayName": "Datastore vs VMware-Host Mapping", "isCustom": "false", "id": 153, "url": "/reports/GenerateReports.do?firstTime=true&reportID=153", "Name": "webclient.virtual.vmware.datastorehost.report", "desc": "Get report for all Datastore Vs Monitored VMware-Host Mappings" }, { "customStatus": "False", "displayName": "Datastore vs VMware-VM Mapping", "isCustom": "false", "id": 152, "url": "/reports/GenerateReports.do?firstTime=true&reportID=152", "Name": "webclient.virtual.vmware.datastorevm.report", "desc": "Get report for all Datastore Vs Monitored VMware-VM Mappings" }, { "customStatus": "False", "displayName": "VMware Idle VMs", "isCustom": "false", "id": 156, "url": "/reports/GenerateReports.do?firstTime=true&reportID=156", "Name": "widget.name.vmware.idleVms", "desc": "List of Idle VMs" }, { "customStatus": "False", "displayName": "Top VMware VMs by CPU Under Allocated", "isCustom": "false", "id": 157, "url": "/reports/GenerateReports.do?firstTime=true&reportID=157", "Name": "widget.name.vmware.vmUnderAllocatedCPU", "desc": "vms with under allocated CPU" }, { "customStatus": "False", "displayName": "Top VMware VMs by CPU Over Allocated", "isCustom": "false", "id": 158, "url": "/reports/GenerateReports.do?firstTime=true&reportID=158", "Name": "widget.name.vmware.vmOverAllocatedCPU", "desc": "VMs with CPU over allocated" }, { "customStatus": "False", "displayName": "Top VMware VMs by Memory Under Allocated", "isCustom": "false", "id": 159, "url": "/reports/GenerateReports.do?firstTime=true&reportID=159", "Name": "widget.name.vmware.vmUnderAllocatedMemory", "desc": "VMs with memory under allocated" }, { "customStatus": "False", "displayName": "Top VMware VMs by Memory Over Allocated", "isCustom": "false", "id": 160, "url": "/reports/GenerateReports.do?firstTime=true&reportID=160", "Name": "widget.name.vmware.vmOverAllocatedMemory", "desc": "VMs with memory over allocated" }, { "customStatus": "False", "displayName": "All Virtual Machines", "isCustom": "false", "id": 726, "url": "/reports/GenerateReports.do?firstTime=true&reportID=726", "Name": "widget.name.vmware.vmsList", "desc": "List of virtual machines based on virtual type" } ], "title": "" } ], "Name": "Virtual Servers Report" }, { "displayName": "Storage Reports", "list": [ { "list": [ { "customStatus": "False", "displayName": "Growth Trend", "isCustom": "false", "id": 174, "url": "/reports/GenerateReports.do?firstTime=true&reportID=174", "Name": "webclient.reports.growthtrend.title", "desc": "Growth Trend" }, { "customStatus": "False", "displayName": "Storage Summary", "isCustom": "false", "id": 161, "url": "/reports/GenerateReports.do?firstTime=true&reportID=161", "Name": "webclient.reports.storagesummary.title", "desc": "Storage Summary" }, { "customStatus": "False", "displayName": "RAID Capacity Utilization", "isCustom": "false", "id": 162, "url": "/reports/GenerateReports.do?firstTime=true&reportID=162", "Name": "webclient.reports.topncapacity", "desc": "RAID Capacity Utilization" }, { "customStatus": "False", "displayName": "RAID IOPS ", "isCustom": "false", "id": 163, "url": "/reports/GenerateReports.do?firstTime=true&reportID=163", "Name": "webclient.reports.topnraidiops", "desc": "RAID IOPS " }, { "customStatus": "False", "displayName": "RAID Reads/Sec", "isCustom": "false", "id": 164, "url": "/reports/GenerateReports.do?firstTime=true&reportID=164", "Name": "webclient.reports.topnraidreads", "desc": "RAID Reads/Sec" }, { "customStatus": "False", "displayName": "RAID Writes/Sec", "isCustom": "false", "id": 165, "url": "/reports/GenerateReports.do?firstTime=true&reportID=165", "Name": "webclient.reports.topnraidwrites", "desc": "RAID Writes/Sec" }, { "customStatus": "False", "displayName": "RAID Latency", "isCustom": "false", "id": 166, "url": "/reports/GenerateReports.do?firstTime=true&reportID=166", "Name": "webclient.reports.topnraidlatency", "desc": "RAID Latency" }, { "customStatus": "False", "displayName": "RAID Controller IOPS", "isCustom": "false", "id": 167, "url": "/reports/GenerateReports.do?firstTime=true&reportID=167", "Name": "webclient.reports.topnraidcontrolleriops", "desc": "RAID Controller IOPS" }, { "customStatus": "False", "displayName": "RAID Controller Reads/Sec", "isCustom": "false", "id": 168, "url": "/reports/GenerateReports.do?firstTime=true&reportID=168", "Name": "webclient.reports.topnraidcontrollerreads", "desc": "RAID Controller Reads/Sec" }, { "customStatus": "False", "displayName": "RAID Controller Writes/Sec", "isCustom": "false", "id": 169, "url": "/reports/GenerateReports.do?firstTime=true&reportID=169", "Name": "webclient.reports.topnraidcontrollerwrites", "desc": "RAID Controller Writes/Sec" }, { "customStatus": "False", "displayName": "Disk IOPS", "isCustom": "false", "id": 170, "url": "/reports/GenerateReports.do?firstTime=true&reportID=170", "Name": "webclient.reports.topndiskiops", "desc": "Disk IOPS" }, { "customStatus": "False", "displayName": "Disk Reads/Sec", "isCustom": "false", "id": 171, "url": "/reports/GenerateReports.do?firstTime=true&reportID=171", "Name": "webclient.reports.topndiskreads", "desc": "Disk Reads/Sec" }, { "customStatus": "False", "displayName": "Disk Writes/Sec", "isCustom": "false", "id": 172, "url": "/reports/GenerateReports.do?firstTime=true&reportID=172", "Name": "webclient.reports.topndiskwrites", "desc": "Disk Writes/Sec" }, { "customStatus": "False", "displayName": "RAID Forecast By Utilization", "isCustom": "false", "id": 173, "url": "/reports/GenerateReports.do?firstTime=true&reportID=173", "Name": "webclient.reports.forecast.title", "desc": "RAID Forecast By Utilization" } ], "title": "" } ], "Name": "Storage Reports" }, { "displayName": "Forecast Reports", "list": [ { "list": [ { "customStatus": "False", "displayName": "Memory Forecast", "isCustom": "false", "id": 177, "url": "/reports/GenerateReports.do?firstTime=true&reportID=177", "Name": "Memory Forecast", "desc": "Forecasts the Memory Utilization" }, { "customStatus": "False", "displayName": "Disk Forecast By Usage", "isCustom": "false", "id": 175, "url": "/reports/GenerateReports.do?firstTime=true&reportID=175", "Name": "Disk Forecast By Usage", "desc": "Disk Forecast By Usage" }, { "customStatus": "False", "displayName": "CPU Forecast", "isCustom": "false", "id": 178, "url": "/reports/GenerateReports.do?firstTime=true&reportID=178", "Name": "CPU Forecast", "desc": "Forecasts the CPU utilization" } ], "title": "" } ], "Name": "Forecast Reports" }, { "displayName": "Nutanix Reports", "list": [ { "list": [ { "customStatus": "False", "displayName": "Top N Hosts by IOPS", "isCustom": "false", "id": 740, "url": "/reports/GenerateReports.do?firstTime=true&reportID=740", "Name": "webclient.nutanix.hostsUnderIOPS.report", "desc": "Get report for Top Hosts with IOPS rate" }, { "customStatus": "False", "displayName": "Disk Inventory", "isCustom": "false", "id": 739, "url": "/reports/GenerateReports.do?firstTime=true&reportID=739", "Name": "webclient.nutanix.disk.report", "desc": "Get report for all Disk Inventory Details" }, { "customStatus": "False", "displayName": "Storage Containers", "isCustom": "false", "id": 738, "url": "/reports/GenerateReports.do?firstTime=true&reportID=738", "Name": "webclient.nutanix.storagecontainers", "desc": "Get report for all Storage Container Details" }, { "customStatus": "False", "displayName": "Cluster Latency", "isCustom": "false", "id": 736, "url": "/reports/GenerateReports.do?firstTime=true&reportID=736", "Name": "webclient.nutanix.cluster.latency.report", "desc": "Get report for all Cluster Latency Data" }, { "customStatus": "False", "displayName": "Cluster IOPS", "isCustom": "false", "id": 735, "url": "/reports/GenerateReports.do?firstTime=true&reportID=735", "Name": "webclient.nutanix.cluster.iops.report", "desc": "Get report for all Cluster IOPS Data" }, { "customStatus": "False", "displayName": "Cluster Inventory", "isCustom": "false", "id": 734, "url": "/reports/GenerateReports.do?firstTime=true&reportID=734", "Name": "webclient.nutanix.cluster.report", "desc": "Get report for all Cluster details" }, { "customStatus": "False", "displayName": "VM Summary by Host", "isCustom": "false", "id": 733, "url": "/reports/GenerateReports.do?firstTime=true&reportID=733", "Name": "webclient.nutanix.hostToVmMap.report", "desc": "Get report for VMs Details based on its Host" }, { "customStatus": "False", "displayName": "VM Summary by Cluster", "isCustom": "false", "id": 732, "url": "/reports/GenerateReports.do?firstTime=true&reportID=732", "Name": "webclient.nutanix.clusterToVMMap.report", "desc": "Get report for VM Details based on its Cluster" }, { "customStatus": "False", "displayName": "Host Summary", "isCustom": "false", "id": 737, "url": "/reports/GenerateReports.do?firstTime=true&reportID=737", "Name": "webclient.nutanix.clusterToHostMap.report", "desc": "Get report for all Host Details based on its Cluster" }, { "customStatus": "False", "displayName": "Top N Hosts by IO Bandwidth", "isCustom": "false", "id": 743, "url": "/reports/GenerateReports.do?firstTime=true&reportID=743", "Name": "webclient.nutanix.hostUnderBandwidth.report", "desc": "Get report for Top Disks with IO Bandwidth rate" }, { "customStatus": "False", "displayName": "Top N Hosts by Latency", "isCustom": "false", "id": 742, "url": "/reports/GenerateReports.do?firstTime=true&reportID=742", "Name": "webclient.nutanix.hostUnderLatency.report", "desc": "Get report for Top Hosts with Latency" }, { "customStatus": "False", "displayName": "Top N Disks by free space", "isCustom": "false", "id": 741, "url": "/reports/GenerateReports.do?firstTime=true&reportID=741", "Name": "webclient.nutanix.diskUnderFreespace.report", "desc": "Get report for Top Disks with Free space" } ], "title": "" } ], "Name": "Nutanix Reports" }, { "displayName": "WLC Reports", "list": [ { "list": [ { "customStatus": "False", "displayName": "AP Availability", "isCustom": "false", "id": 837, "url": "/reports/GenerateReports.do?firstTime=true&reportID=837", "Name": "webclient.availability.accessPoints.report", "desc": "Get availability report for Access points" }, { "customStatus": "False", "displayName": "Rogue SSID Details", "isCustom": "false", "id": 839, "url": "/reports/GenerateReports.do?firstTime=true&reportID=839", "Name": "webclient.inventory.RougeAP.report", "desc": "Get inventory report of Rogue SSIDs" }, { "customStatus": "False", "displayName": "AP Details", "isCustom": "false", "id": 838, "url": "/reports/GenerateReports.do?firstTime=true&reportID=838", "Name": "webclient.inventory.accessPoints.report", "desc": "Get inventory report of Access points" } ], "title": "" } ], "Name": "WLC Reports" }, { "displayName": "Meraki Reports", "list": [ { "list": [ { "customStatus": "False", "displayName": "Meraki MS Details", "isCustom": "false", "id": 855, "url": "/reports/GenerateReports.do?firstTime=true&reportID=855", "Name": "webclient.opm.reports.meraki.msdetails", "desc": "Get summary reports of Meraki Switch devices." }, { "customStatus": "False", "displayName": "Meraki AP Details", "isCustom": "false", "id": 860, "url": "/reports/GenerateReports.do?firstTime=true&reportID=860", "Name": "webclient.opm.reports.meraki.apDetails", "desc": "Get inventory reports of Meraki Access Points." }, { "customStatus": "False", "displayName": "Meraki Rogue SSID Details", "isCustom": "false", "id": 859, "url": "/reports/GenerateReports.do?firstTime=true&reportID=859", "Name": "webclient.opm.reports.meraki.rogue", "desc": "Get inventory reports of Meraki Rogue SSIDs." }, { "customStatus": "False", "displayName": "Meraki Cellular Gateway Details", "isCustom": "false", "id": 858, "url": "/reports/GenerateReports.do?firstTime=true&reportID=858", "Name": "webclient.opm.reports.meraki.mgdetails", "desc": "Get summary reports of Meraki Gateway devices." }, { "customStatus": "False", "displayName": "Meraki MV Details", "isCustom": "false", "id": 857, "url": "/reports/GenerateReports.do?firstTime=true&reportID=857", "Name": "webclient.opm.reports.meraki.mvdetails", "desc": "Get summary reports of Meraki Vision devices." }, { "customStatus": "False", "displayName": "Meraki MR Details", "isCustom": "false", "id": 856, "url": "/reports/GenerateReports.do?firstTime=true&reportID=856", "Name": "webclient.opm.reports.meraki.mrdetails", "desc": "Get summary reports of Meraki Radio devices." }, { "customStatus": "False", "displayName": "Meraki Organization Summary", "isCustom": "false", "id": 853, "url": "/reports/GenerateReports.do?firstTime=true&reportID=853", "Name": "webclient.opm.reports.meraki.orgSummary", "desc": "Get inventory reports of devices in each organization" }, { "customStatus": "False", "displayName": "Meraki MX Details", "isCustom": "false", "id": 854, "url": "/reports/GenerateReports.do?firstTime=true&reportID=854", "Name": "webclient.opm.reports.meraki.mxdetails", "desc": "Get summary reports of Meraki Security appliances." }, { "customStatus": "False", "displayName": "Down Meraki Devices", "isCustom": "false", "id": 861, "url": "/reports/GenerateReports.do?firstTime=true&reportID=861", "Name": "webclient.opm.reports.meraki.down", "desc": "Get reports for all Meraki devices that are down." } ], "title": "" } ], "Name": "Meraki Reports" }, { "displayName": "My Favorites", "list": [ { "list": [ { "customStatus": "False", "displayName": "All Alerts", "isCustom": "false", "id": 84, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=84", "Name": "All Alerts", "desc": "Get report for all alerts" }, { "customStatus": "False", "displayName": "All Events", "isCustom": "false", "id": 1, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=1", "Name": "All Events", "desc": "Get report for all events" }, { "customStatus": "False", "displayName": "WAN Links by Utilization", "isCustom": "false", "id": 15, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=15", "Name": "WAN Links by Utilization", "desc": "Identify WAN links with heavy traffic utilization" }, { "customStatus": "True", "displayName": "Servers Health Report", "isCustom": "true", "id": 22, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=22", "Name": "Servers Health Report", "desc": "Get health report of servers" }, { "customStatus": "False", "displayName": "WAN Links Availability", "isCustom": "false", "id": 54, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=54", "Name": "WAN Links Availability", "desc": "Get availability report for all interfaces" }, { "customStatus": "False", "displayName": "All Interfaces Availability", "isCustom": "false", "id": 87, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=87", "Name": "All Interfaces Availability", "desc": "Get availability report for all interfaces" }, { "customStatus": "False", "displayName": "Service Monitors Availability", "isCustom": "false", "id": 56, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=56", "Name": "Service Monitors Availability", "desc": "Get availability report for all service monitors" }, { "customStatus": "False", "displayName": "Devices by Category", "isCustom": "false", "id": 70, "isFavourite": "True", "url": "/reports/GenerateReports.do?firstTime=true&reportID=70", "Name": "Devices by Category", "desc": "Get inventory report of devices by device category" } ], "title": "" } ], "Name": "My Favorites" }, { "ScheduleReports": true, "FavoriteReports": false, "CustomReports": true } ]

getReportsData

Method: GET

Description: The API to get the required report data.

Sample URL: https://localhost:8060/api/json/reports/getReportsData?apiKey=***************&reportID=84&isExcludeDays=true&excludedDays=Monday,Tuesday&category=Desktop&bview=All&time=Last_Month&timeWindow=8-20&isBusinessHour=false&showType=0&top=1000&viewAs=json

Sample Response: [ { "clientParams": { "top": 0, "genAt": "15 May 2022 02:26:08 AM IST", "showType": 0, "time": "Last_7_Days", "isFavourite": true, "genAtMilliseconds": 1652561768907 }, "additionalRespData": { "RECORDS": "1", "SKIPCOLUMNS": [ 1, 6 ] }, "graphDetails": [ [ "xxx.xxx.xxx.xx", "xxx.xxx.xxx.xx", "Device Active and Responding", "Clear", "Server", "13 May 2022 09:47:16 AM IST", 1652415436543 ], [ "xxx.xxx.xxx.xx", "xxx.xxx.xxx.xx", "Device Active and Responding", "Clear", "Server", "13 May 2022 09:47:16 AM IST", 1652415436543 ] ], "forward": "eventList", "graphHeaders": [ "Device Name", "Message", "Severity", "Category", "Alert Time", "" ], "vmClientParams": { "RECORDS": 1, "SKIPCOLUMNS": [ 1, 6 ] }, "ReportGraphName": "All Alerts", "graphDispName": "All Alerts" } ]

listBusinessRules

Method: GET

Description: This api can be used to list all the created Business Hour Rules.

Sample URL: https://localhost:8060//api/json/admin/listBusinessRules?apiKey=***************

addBusinessRules

Method: POST

Description: This api is used to configure business hour rule from Monday to Sunday.

Sample URL: https://localhost:8060/api/json/admin/addBusinessRules?apiKey=***************&businessRuleName=Rule1&description=Indian standard time shift 1.&timeSettings={"monday":"1-5","tuesday":"3-6","wednesday":"3-5","thursday":"2-5","friday":"5-13"}

deleteBusinessRules

Method: POST

Description: This api is to delete business hour rule created already.

Sample URL: https://localhost:8060//api/json/admin/deleteBusinessRules?apiKey=***************&businessRuleId=1

viewBusinessRules

Method: GET

Description: This api is to view the business hour rule created already.

Sample URL: https://localhost:8060//api/json/admin/viewBusinessRules?apiKey=***************&businessRuleId=1

updateBusinessRules

Method: POST

Description: This api is used to update the configured business hour rule From Monday to Sunday.

Sample URL: https://localhost:8060/api/json/admin/updateBusinessRules?apiKey=***************&businessRuleName=Rule1&description=Indian standard time shift 1.&timeSettings={"monday":"1-5","tuesday":"3-6","wednesday":"3-5","thursday":"2-5","friday":"5-13"}&businessRuleId=1

getReportData

Method: POST

Description: The api to fetch data of report builder reports.

Sample URL: https://localhost:8060/api/json/v2/device/getReportData?apiKey=***************&deviceList=moname1,moname2&monitorList=DevicesAvailability,ResponseTime,WMI-CPUUtilization,MSSQLDataFilesSizeKB&timePeriod=Last_Month&view=table&timeWindow=0-24&startDate=2020-11-09&endDate=2020-11-18-18

Sample Response: { "DevicesAvailability - Percentage": [ { "seriesname": "Ground Floor AD Server", "data": [ [ 1667759400000, 0, "DevicesAvailability" ], [ 1667763000000, 0, "DevicesAvailability" ], [ 1667766600000, 0, "DevicesAvailability" ], [ 1667770200000, 0, "DevicesAvailability" ], [ 1667773800000, 0, "DevicesAvailability" ], [ 1667777400000, 0, "DevicesAvailability" ], [ 1667781000000, 0, "DevicesAvailability" ], [ 1667784600000, 0, "DevicesAvailability" ], [ 1667788200000, 0, "DevicesAvailability" ], [ 1667791800000, 0, "DevicesAvailability" ], [ 1667795400000, 0, "DevicesAvailability" ], [ 1667799000000, 0, "DevicesAvailability" ] ], "yaxiscolumnorder": [ 0 ], "id": "20000049227" } ], "Packet Loss - Percentage": [ { "seriesname": "Ground Floor AD Server", "data": [ [ 1667759400000, 100, "Packet_Loss" ], [ 1667763000000, 100, "Packet_Loss" ], [ 1667766600000, 100, "Packet_Loss" ], [ 1667770200000, 100, "Packet_Loss" ], [ 1667773800000, 100, "Packet_Loss" ], [ 1667777400000, 100, "Packet_Loss" ], [ 1667781000000, 100, "Packet_Loss" ], [ 1667784600000, 100, "Packet_Loss" ], [ 1667788200000, 100, "Packet_Loss" ], [ 1667791800000, 100, "Packet_Loss" ], [ 1667795400000, 100, "Packet_Loss" ], [ 1667799000000, 100, "Packet_Loss" ] ], "id": "20000001078" } ] }

listAllAdvancedReports

Method: GET

Description: This api can be used to fetch all the created Advanced Reports.

Sample URL: https://: /api/json/reports/listAllAdvancedReports?apiKey=***********************************

Sample Response: [ { "Description": "Interfaces Availability report", "ReportId": 6903, "Name": "Intf Rep" }, { "Description": "Availbility reports for servers", "ReportId": 6904, "Name": "Device Avail" }, { "Description": "Report one for interfaces", "ReportId": 16201, "Name": "Report 1" }, { "Description": "Report two for devices", "ReportId": 16806, "Name": "Report 2" } ]

listSubnets

Method: GET

Description: Lists all the Subnets monitored in OpManager

Sample URL: https://localhost:8060/api/json/device/listSubnets?apiKey=***************

Sample Response: {"127.0.0.0.10000000001":{"data":[{"Status":"7","Label":"Unknown","Count":"25"}],"displayName":"127.0.0.0","subnetDisplayName":"ProductionSite"},"xxx.xxx.xxx.x.10000000001":{"data":[{"Status":"1","Label":"Critical","Count":"147"}],"displayName":"xxx.xxx.xxx.x","subnetDisplayName":"TestingPlant"}}

getWirelessNetworkDetails

Method: GET

Description: Lists Access Points, Client Count and Network Usage for each SSID in Wireless LAN Controller

Sample URL: https://localhost:8060/api/json/wireless/getWirelessNetworkDetails?apiKey=***************&deviceName=CiscoWirelessController

Sample Response: [{"ClientCount":"40","TotalBytes":"224.548 MBps","SSIDName":"Mobile-Connect","APCount":"20"},{"ClientCount":"20","TotalBytes":"224.546 MBps","SSIDName":"Machine-Connect","APCount":"20"},{"ClientCount":"20","TotalBytes":"196.161 MBps","SSIDName":"Free-Connect","APCount":"20"}]

getWirelessAPList

Method: GET

Description: Lists all Access Points in the WLC Device.

Sample URL: https://localhost:8060/api/json/wireless/getWirelessAPList?apiKey=***************&deviceName=CiscoWirelessController

Sample Response: [{"macAddress":"1:50:bf:7:xx:xx","channels":"53,64","statusStr":"Clear","ipAddress":"127.0.0.1","apDisplayName":"South-0011","advanceMonitoringEnabled":"true","apName":"ap-127.0.0.1-1.80.191.7.xxx.xx","statusNum":"5"},{"macAddress":"1:50:bf:7:xx:xx","channels":"53,64","statusStr":"Not Monitored","ipAddress":"127.0.0.1","apDisplayName":"North021","advanceMonitoringEnabled":"false","apName":"ap-127.0.0.1-1.80.191.7.xxx.xx","statusNum":"7"},{"macAddress":"1:50:bf:7:xx:xx","channels":"53,64","statusStr":"Not Monitored","ipAddress":"127.0.0.1","apDisplayName":"South0021","advanceMonitoringEnabled":"false","apName":"ap-127.0.0.1-1.80.191.7.xxx.xx","statusNum":"7"},{"macAddress":"1:50:bf:7:xx:xx","channels":"53,64","statusStr":"Not Monitored","ipAddress":"127.0.0.1","apDisplayName":"North0031","advanceMonitoringEnabled":"false","apName":"ap-127.0.0.1-1.80.191.7.xxx.xx","statusNum":"7"}]

getSSIDClientList

Method: GET

Description: Lists all the SSID Clients associated with the given WLC device.

Sample URL: https://localhost:8060/api/json/wireless/getSSIDClientList?apiKey=***************&deviceName=CiscoWirelessController

Sample Response: {"clientData":[{"displayName":"Mobile-Connect","ClientCount":"40"},{"displayName":"Free-Connect","ClientCount":"20"},{"displayName":"Machine-Connect","ClientCount":"20"}],"clientCount":80}

getClientDetails

Method: GET

Description: Fetches the client devices connected to the given SSID of WLC device.

Sample URL: https://localhost:8060/api/json/wireless/getClientDetails?apiKey=***************&deviceName=CiscoWirelessController&ssidName=WorkstationNetwork

Sample Response: [{"ClientCount":"2","TotalBytes":"28.156 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0041"},{"ClientCount":"2","TotalBytes":"28.154 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0031"},{"ClientCount":"2","TotalBytes":"14.079 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0101"},{"ClientCount":"2","TotalBytes":"14.079 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"South0081"},{"ClientCount":"2","TotalBytes":"14.079 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0061"},{"ClientCount":"2","TotalBytes":"14.078 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0091"},{"ClientCount":"2","TotalBytes":"14.078 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0071"},{"ClientCount":"2","TotalBytes":"14.077 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"South0031"},{"ClientCount":"2","TotalBytes":"14.077 MBps","APMOName":"ap-127.0.0.1-1.80.191.7.xxx.xx","advanceMonitoringEnabled":"false","apName":"North0051"}]

getCategoryList

Method: POST

Description: Lists all the available device categories

Sample URL: https://localhost:8060/api/json/device/getCategoryList?apiKey=***************

Sample Response: {"Wireless":"Wireless","Server":"Server","UCS":"UCS","WirelessLANController":"Wireless LAN Controller","DomainController":"DomainController","Printer":"Printer","IoT":"IoT","MerakiRadio":"Meraki Radio","Unknown":"Unknown","MerakiCellularGateway":"Meraki Cellular Gateway","UPS":"UPS","WirelessAccessPoint":"Wireless Access Point","MerakiVision":"Meraki Vision","SDN":"SDN","TapeLibrary":"TapeLibrary","PDU":"PDU","IPMI":"IPMI","MerakiSwitch":"Meraki Switch","FCSwitch":"FCSwitch","LoadBalancer":"Load Balancer","Router":"Router","RAID":"RAID","Firewall":"Firewall","Storage":"Storage","Desktop":"Desktop","Switch":"Switch","MerakiController":"Meraki Controller","MerakiSecurity":"Meraki Security","WANAccelerator":"WAN Accelerator"}
