Configure KerioControl Firewalls

    Firewall Analyzer supports KerioControl Firewall: 9.2 and earlier, later versions.

    Configuring KerioControl FIrewall

    1. Connect the KerioControl Web UI.
    2. Navigate to Logs page.

    Below list of logs will be shown in logs page:

    Log Severity
    Alert 1: Alert
    Config 6: Informational
    Connection 6: Informational
    Debug 7: Debug
    Dial 5: Notice
    Error 3: Error
    Filter 6: Informational
    Host 6: Informational
    HTTP 6: Informational
    Security 5: Notice
    Warning 4: Warning
    Web 6: Informational



    1. Click every log page and right click. Log Settings option will show.
    2. Click Log Settings option.

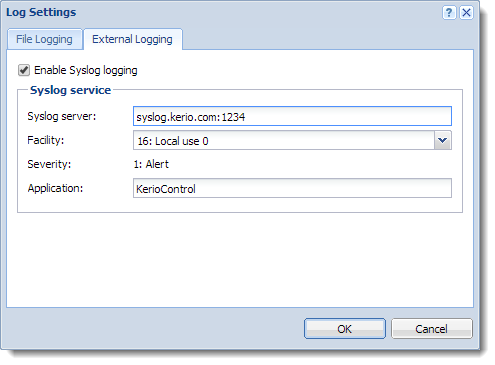

    3. In Log Settings page, Click External Logging.
      • Select Enable Syslog logging.
      • Syslog service:
        • Syslog server > Firewall Analyzer IP Address
        • Facility > 16:Local use 0
        • Severity > By default, it will be selected.
        • Application > KerioControl







    Reference:

    https://manuals.gfi.com/en/kerio/control/content/logs/using-and-configuring-logs-1461.html
