Managing VMware Alerts

OpManager's dynamic alerting and threshold capabilities are central to a proactive monitoring approach. OpManager seamlessly fetches events from each vCenter/ESX Host, similar to SNMP traps. Currently, a list of important events is supported, and this list is updated every release. Apart from these events, OpManager also monitors threshold for critical performance indicators and raises alerts.

To tailor this system to your requirements, and change the pre-set threshold values for each performance monitor, go to the Monitors section under the snapshot page of the host / VM / Datastore.

Vm alert monitors

To view the complete list of VMware monitors,

  • Go to the Monitors tab in the VMware host's snapshot page (Navigate to Inventory -> Devices and then click on a device to view its snapshot page.)
  • Under the Performance Monitors tab, click on 'Actions' and then on 'Add Performance Monitor'. This will display a list of all performance monitors available in OpManager.
  • To view the list of Performance monitors for VMware hosts alone, scroll down to the VMware-Host Monitors section.
  • To view the list of Performance monitors for VMs, scroll down to the VMware - VM Monitors section.
  • To view the list of Performance monitors for Datastore, scroll down to the VMWare - Datastore Monitors section.
  • You can also view and add the performance monitors for hosts/VMs by clicking on 'Add Monitors' under their corresponding Device Templates.

Table 1: List of few Threshold Monitors for critical performance indicators related to host, datastore & VM's supported by OpManager

S.No. Threshold Monitors Virtual Device Type Resource
1. Host Network Received Packets Host Network
2. Host Network Transmitted Packets Host Network
3. Host Network Usage (avg) Host Network
4. Host CPU Utilization (avg) Host CPU
5. Host Memory Utilization (avg) Host Memory
6. Host Disk Read Latency Host Disk
7. Host Disk Write Latency Host Disk
8. Datastore Freespace Host Network
9. VirtualMachine Network Packets Received VM Network
10. VirtualMachine Network Packets Transmitted VM Network
11. VirtualMachine Network Usage (avg) VM Network
12. VirtualMachine CPU Utilization (avg) VM CPU
13. VirtualMachine Memory Usage (avg) VM Memory



Table 2: Few of the VCenter / ESX hosts' Events supported by OpManager

S.No. Events Virtual Device Type Severity
1. VmFailedToPowerOffEvent VM Critical
2. VmPoweredOffEvent VM Attention
3. VmPowerOffOnIsolationEvent VM Clear
4. VmFailedToPowerOnEvent VM Critical
5. VmPoweredOnEvent VM Attention
6. VmFailedToSuspendEvent VM Critical
7. VmSuspendedEvent VM Attention
8. VmFailedToRebootGuestEvent VM Critical
9. VmGuestRebootEvent VM Clear
10. VmFailoverFailed VM Trouble
11 VmPrimaryFailoverEvent VM Critical
12. VmUpgradeFailedEvent VM Critical
13. VmUpgradeCompleteEvent VM Clear
14. VmDisconnectedEvent VM Attention
15. VmConnectedEvent VM Attention
16. VmDiskFailedEvent VM Critical
17. VmRelocatedEvent VM Attention
18. VmRelocateFailedEvent VM Critical

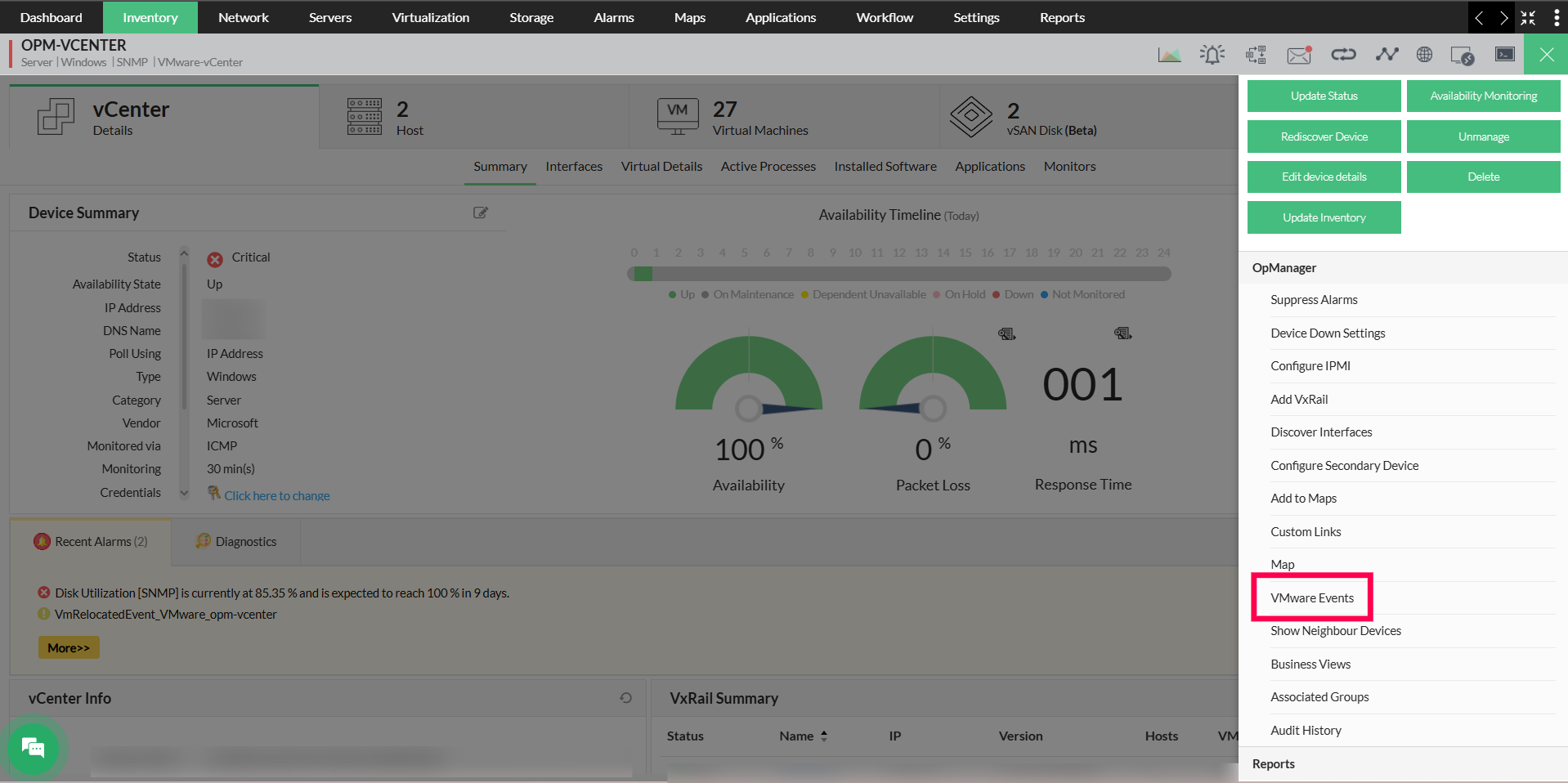

You can view the complete list of ESX host/vCenter Events that are supported by OpManager, under Settings → Monitors → VMware Events.

Note: OpManager only triggers alarms based on VMware events, and they have to be manually cleared once the issue/notification has been taken care of.

In addition to this, you can also enable Physical NIC/Host Bus Adapter based alerts in OpManager for your VMware parent devices. These alerts can be enabled during discovery of that parent device or from the Update Inventory page, by enabling the "Raise alerts for Physical NIC & Host Bus Adapter" option. These are the available status messages in OpManager and their NIC/HBA equivalents:

Physical NIC status messages:

S.No OpManager status message Corresponding NIC status
1 Clear Connected
2 Critical Disconnected

Host Bus Adapter status messages:

S.No OpManager status message Corresponding HBA status
1 Clear Online
2 Attention Unbound (or) Offline
3 Trouble Fault

To gain in-depth insights into OpManager's VMware monitoring practices, explore the following help documents.
