Create Users

Contents

Creating New Users

You can create users in Network Configuration Manager and provide access privileges to them. The power to create users is available only for the admin login account and for those accounts which have 'Full Control' privilege.

Administrator: Administrators have unrestricted access to perform all the operations in Network Configuration Manager. They can add/remove devices, troubleshoot issues, make changes in configurations and more without any limitation.

Operator: Operators have restricted access in Network Configuration Manager. Any change made to a configuration by an operator will not be uploaded directly to a device unless an Admin approves it.

Steps to add a user

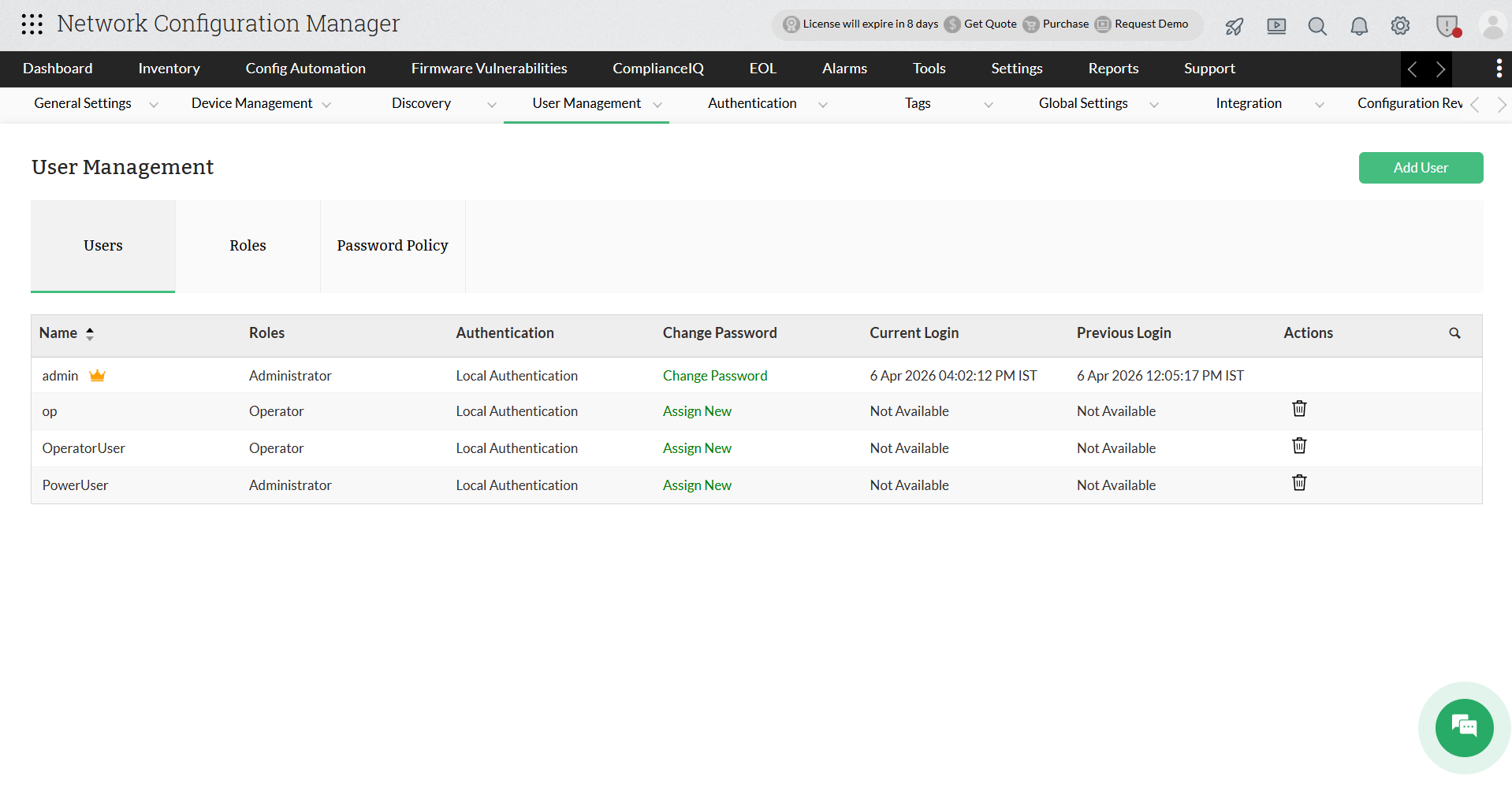

  1. Go to Settings → User Management → Users → Add User.
  2. In the Configure User Details tab, the first step is to provide user role, credential and contact details.
  3. Select user role in Role as Administrator or Operator from the drop down list.
  4. Select User Type from the drop down list:
  • Local Authentication
  • Radius Authentication
  • AD Authentication

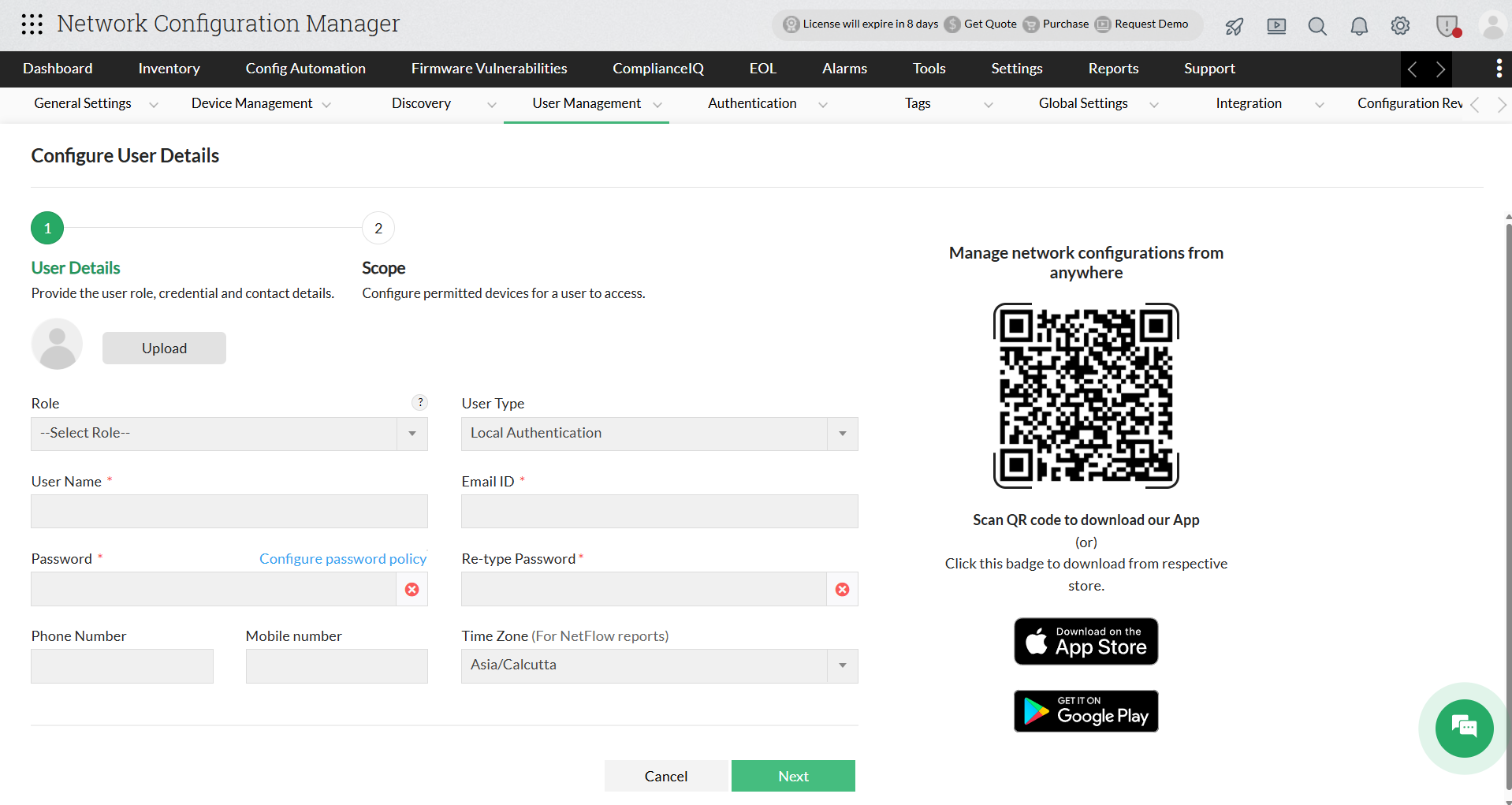

Add a local user

  1. User Details:
    • User Name: Provide a user name for the user.
    • Password: Create a password for the above user
    • Re-type Password: Retype the password for confirmation
    • Phone Number: Enter the user's phone number
    • Mobile Number: Enter the user's mobile number
    • Email ID: Enter the user's mail ID
    • Photo: Upload the user's photo if necessary
    • Time Zone: Enter the Time zone of the user's location
    • Click on "Next" to provide the scope.

    2.

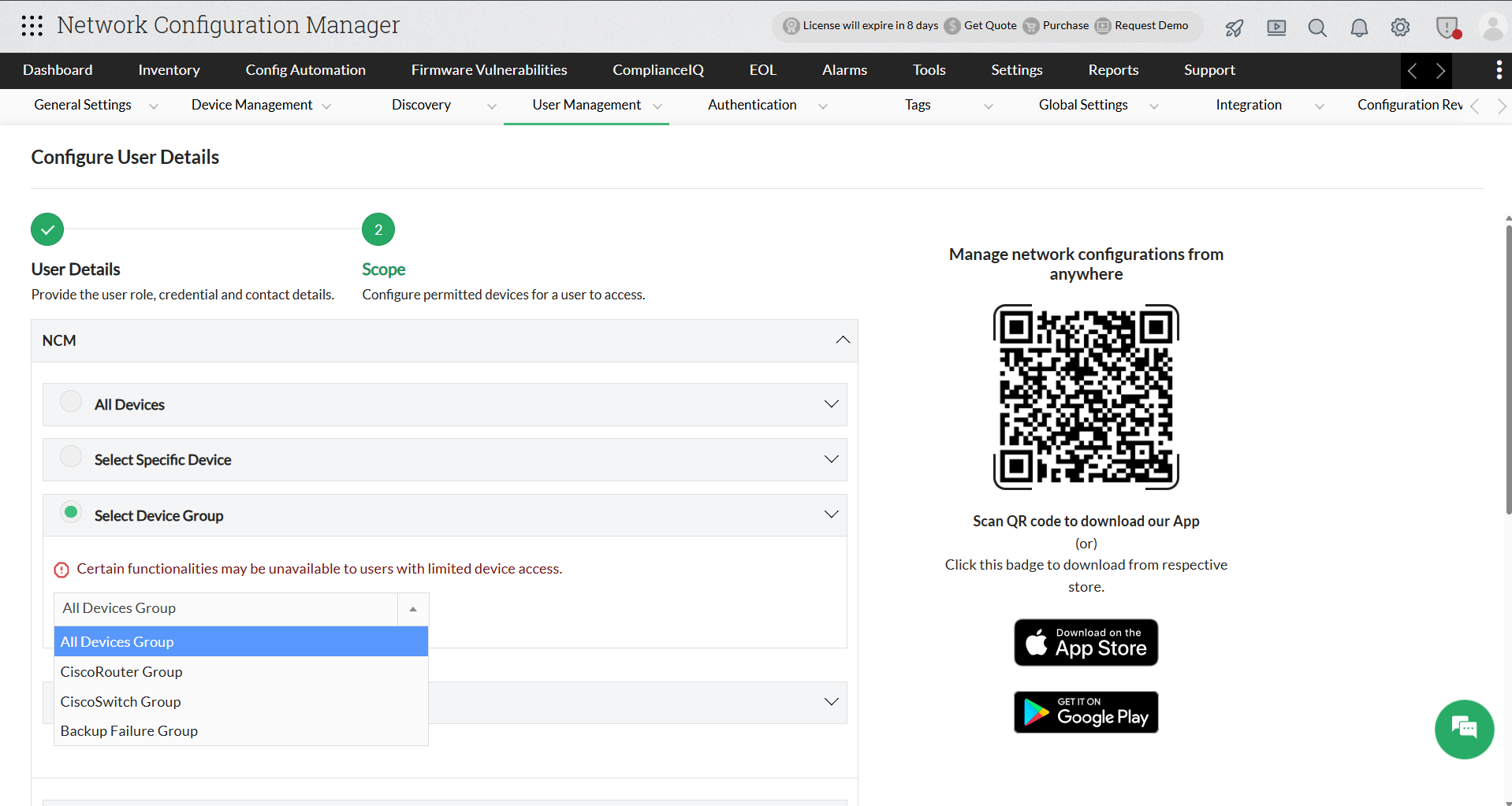

  2. Scope: You can provide this user an access to specific devices/device groups or all the device groups. If All Devices are selected, the user will have access to all the devices in Network Configuration Manager. If specific devices are selected, the user will be able to view and manage only those devices.

  3. Once the scope is defined, click on "save" to add the user.

Logout and try logging in as the new user and check the privileges.

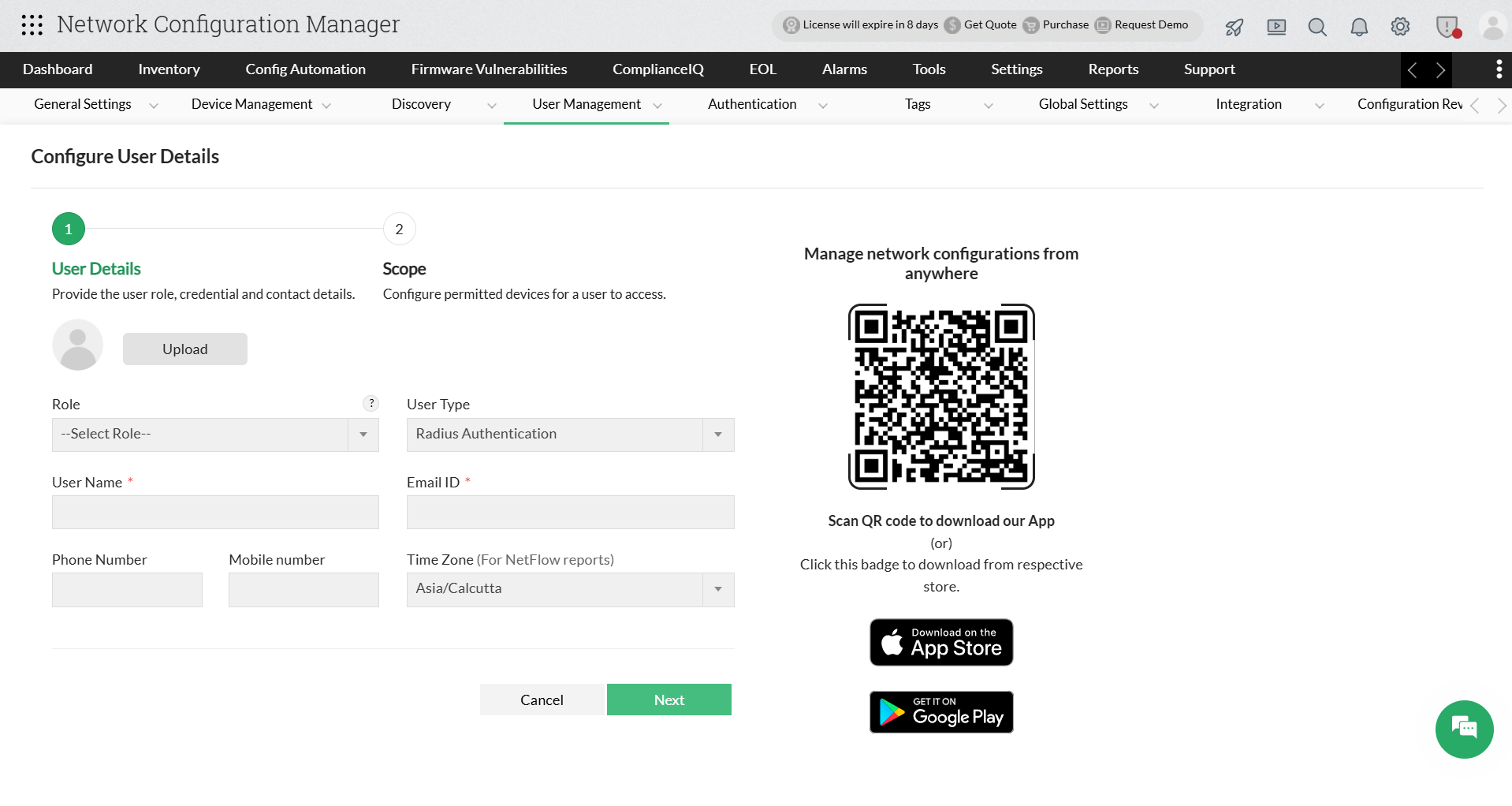

Add a Radius user

  1. User Details:
    • User Name: Name of the Radius user to be added
    • Email ID: Email ID for the Radius user
    • Phone Number: Enter the user's phone number
    • Mobile Number: Enter the user's mobile number
    • Time Zone: Enter the Time zone of the user's location

  2. Scope: You can provide this user an access to specific devices/device groups or all the device groups. If All Devices are selected, the user will have access to all the devices in Network Configuration Manager. If specific devices are selected, the user will be able to view and manage only those devices.

  3. Click on "save" to add the user according to the scope specified here.

Logout and try logging in as the new user and check the privileges.

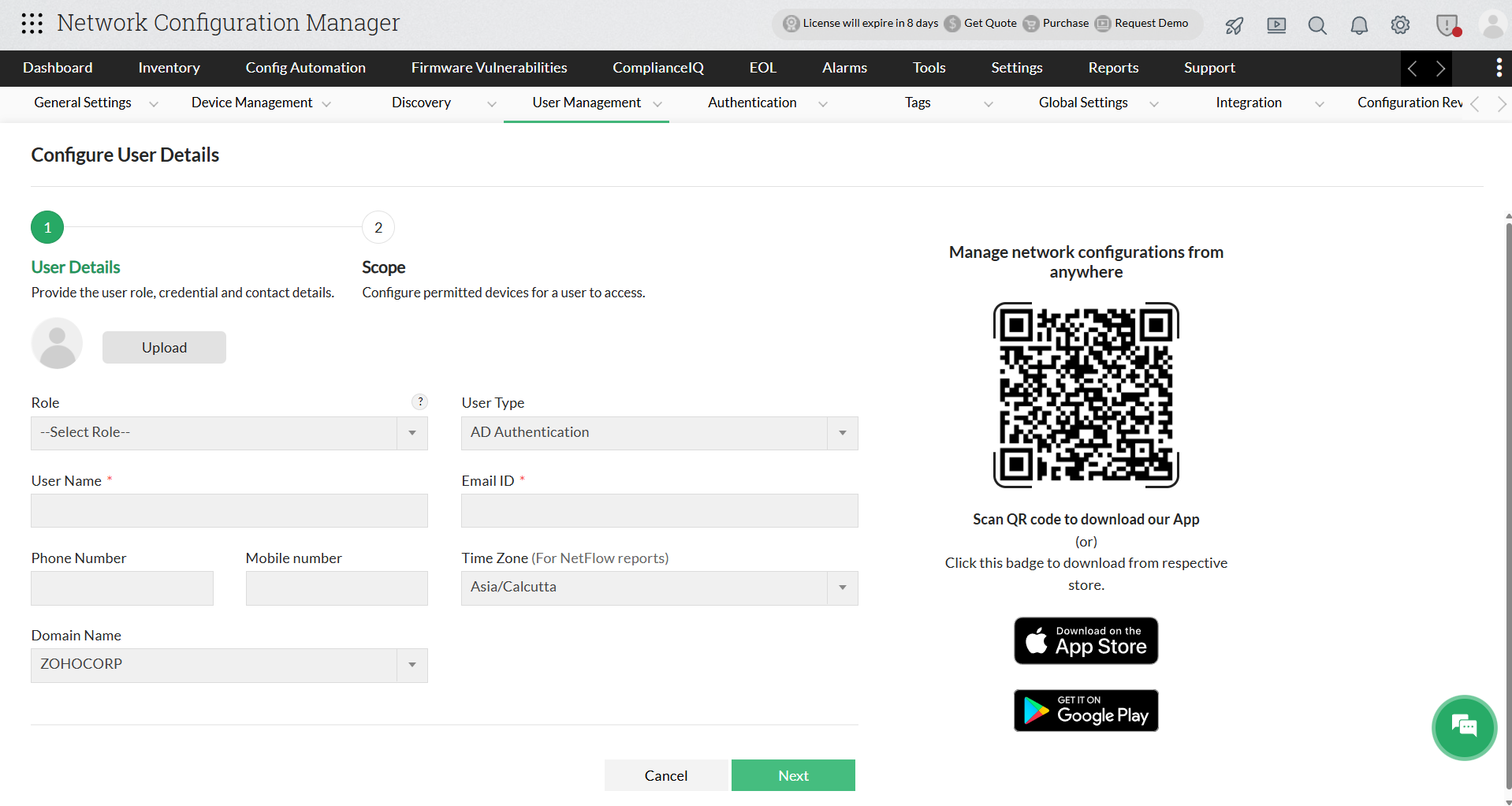

Add an AD user

  1. User Details:
    • User Name - Name of the AD user to be added
    • Email ID - Email ID for the AD user
    • Phone Number: Enter the user's phone number
    • Mobile Number: Enter the user's mobile number
    • Domain Name: Select the desired AD domain from the list of available domains or Click Add Domain to add a new domain
    • To add a new domain, provide the domain details such as - "Domain name" and "Domain Controller" and click "save" to add the new domain.
    • Time Zone: Enter the Time zone of the user's location

  2. Scope: You can provide this user an access to specific devices/device groups or all the device groups. If All Devices are selected, the user will have access to all the devices in Network Configuration Manager. If specific devices are selected, the user will be able to view and manage only those devices.

  3. Click "save" to add the user according to the scope specified here.

    4. Logout and try logging in as the new user and check the privileges.

Feature access for users

Comparison of Feature Access to the Users

Sl No Feature Name Administrator Operator
1 User Management
Create/Modify/Delete users		 Yes No
2 Trigger configuration backup An admin user can trigger configuration backups for any device in his/her network. An operator user can only backup configurations of devices assigned.
3 Make configuration changes An admin user can make configuration changes in any device and directly upload the draft. He/she can also review changes made by operators and choose to reject/approve change. An operator can only make configuration changes in the device assigned to him. Once he/she makes configuration changes, he/she can upload the draft. His/Her draft will be uploaded only when an admin approves the changes.
4 Edit/Delete Device All devices No
5 Dashboard View Customization All devices Only the devices assigned to the operator
6 Advanced Search Yes Yes
7 Enabling/Disabling Pass-Through authentication Yes No
8 Create compliance policies/apply policies to devices An admin can create new compliance policies, apply on devices and run periodic compliance checks. An operator can run compliance checks on devices assigned to him/her. He/She cannot create new compliance policies.
9 Edit configlets and push configlets to devices Yes, he can push configlets to any device Can edit configlet commands in all the devices assigned to him/her. Needs the approval of the admin to push the configlets
10 Firmware vulnerability assessment/Firmware upgrade All devices Operators cannot see the firmware vulnerability details. They need admin approval to upgrade firmware.
11 Scheduling configuration tasks Can schedule any operation in any device without restrictions Can schedule configuration operations in the device assigned to him/her. However, admin approval is required for scheduling configlet push operation alone.
12 Receive change notifications All device configuration changes He/She can receive change notifications for devices assigned to him/her.
13 Sync configurations Yes No
14 Configuration reports Admin can generate all sorts of configuration reports An operator can generate reports for devices assigned to him/her
15 Edit configuration settings Yes Yes
16
  • User Assistance
  • Tell a Friend
  • Upgrade License
  • Help
  • Feedback
  • Feedback
 Yes Operators can see only the "About" info
17 Startup-Running Conflict Report Yes Yes
18 Configuration Changes Report Yes Yes
19 Configuration Change Trend Yes Yes
20 Configuration Change Annotation Report Yes Yes
21 Configuration Analysis Report Yes No
22 Security Audit Report Yes No
23 Hardware Inventory Report Yes Yes
24 Device Inventory Report Yes Yes
25 Firmware Inventory Report Yes Yes
26 Network Health Status Report Yes Yes
27 Device Management Status Yes Yes
28 Device Audit Yes Yes
29 CVE ID Report Yes Yes
30 Exposed Devices Report Yes Yes
31 Firmware versions with vulnerabilities Yes Yes
32 User Access Yes No
33 Configuration Upload Request Yes No
34 User Audit Yes No
35 EOL/EOS Report Yes No
36 Compliance Report Yes Yes
37 Configuration Review Report Yes No
38 Custom Report Yes No
