WLC Overview



NetFlow Analyzer provides information on the wireless controllers and connected Access Points with SSID and connected Clients with application, QOS and bandwidth utilization based on Controller, Access Point, Time Frame, Resource Type, Client and SSID with different widgets.

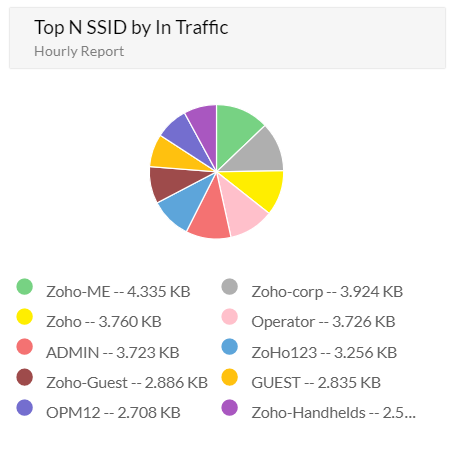

Top In N User by Wlan SSID

Displays Top 10 details based on Wireless SSID and its traffic utilization for IN direction.

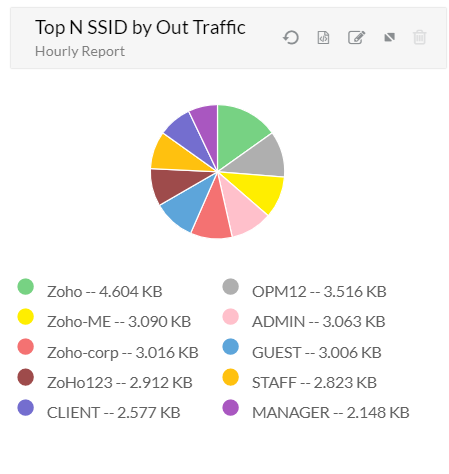

Top Out N User by Wlan SSID

Displays Top 10 details based on Wireless SSID and its traffic utilization for OUT direction.

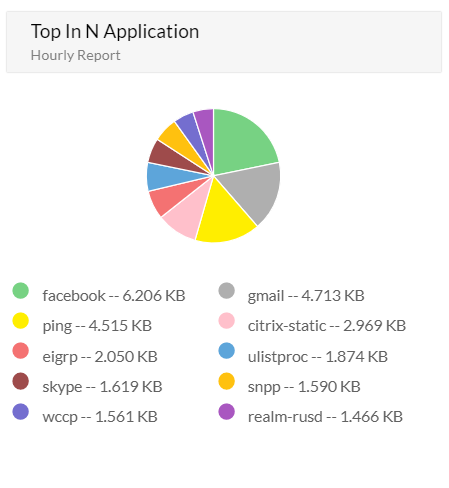

Top In N Application

Displays Top 10 details based on Application and its traffic utilization for IN direction for WLAN.

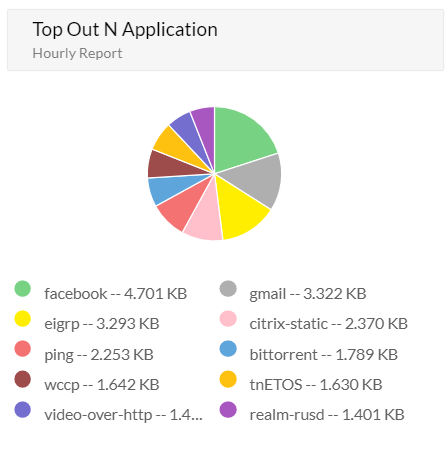

Top Out N Application

Displays Top 10 details based on Application and its traffic utilization for OUT direction for WLAN.

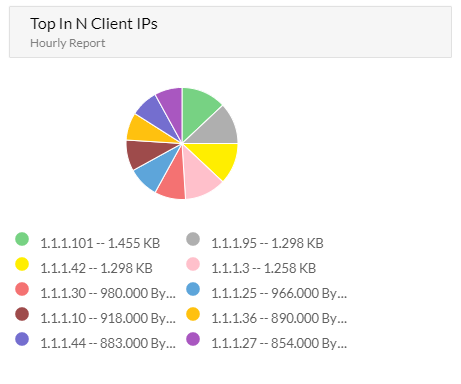

Top In N Application by Wireless Host

Displays Top 10 details based on wireless Host IP and its traffic utilization for IN direction for WLAN.

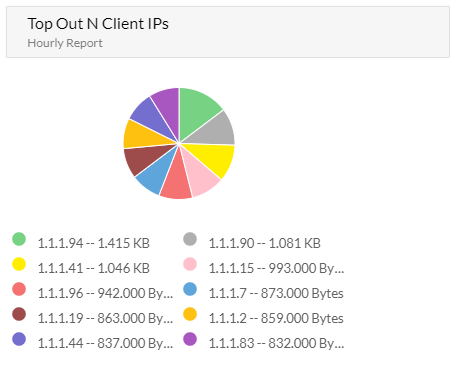

Top Out N Application by Wireless Host

Displays Top 10 details based on wireless Host IP and its traffic utilization for OUT direction for Wireless Host.

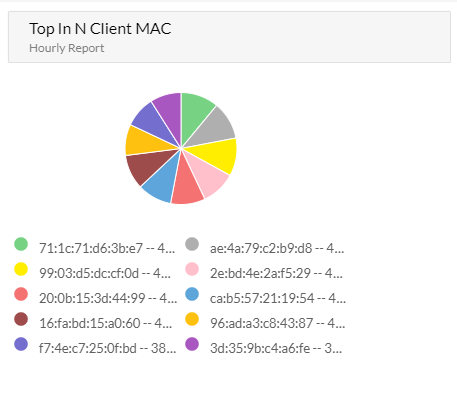

Top In N User by Mac

Displays Top 10 details based on wireless client MAC address, Access Point and its traffic utilization for IN direction.

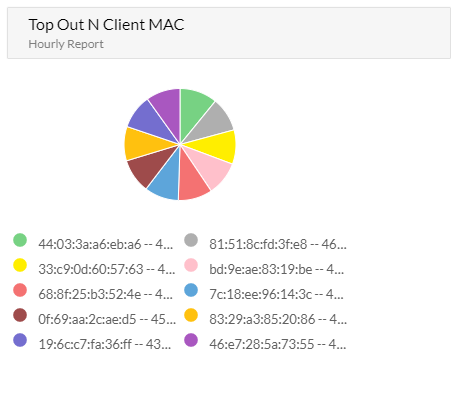

Top Out N User by Mac

Displays Top 10 details based on wireless client MAC address, Access Point and its traffic utilization for OUT direction.

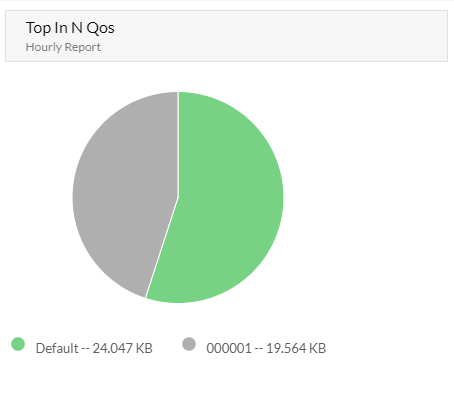

Top In N Qos

Displays Top 10 details based on QOS and its traffic utilization for IN direction for WLAN Controller.

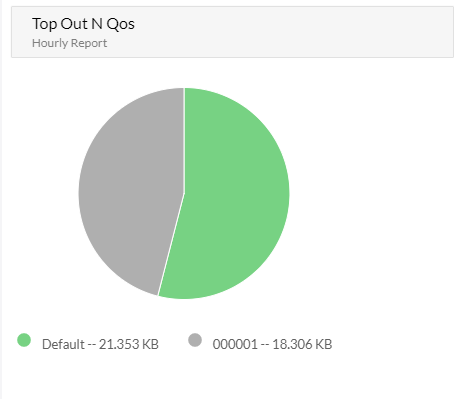

Top Out N Qos

Displays Top 10 details based on QOS and its traffic utilization for OUT direction for WLAN.
