How to add a new device in Network Configuration Manager?

Adding a device in NCM is a two-step process:

  1. Adding a device
  2. Applying the credential

Faster troubleshooting with advanced Forensics

Steps to add a device

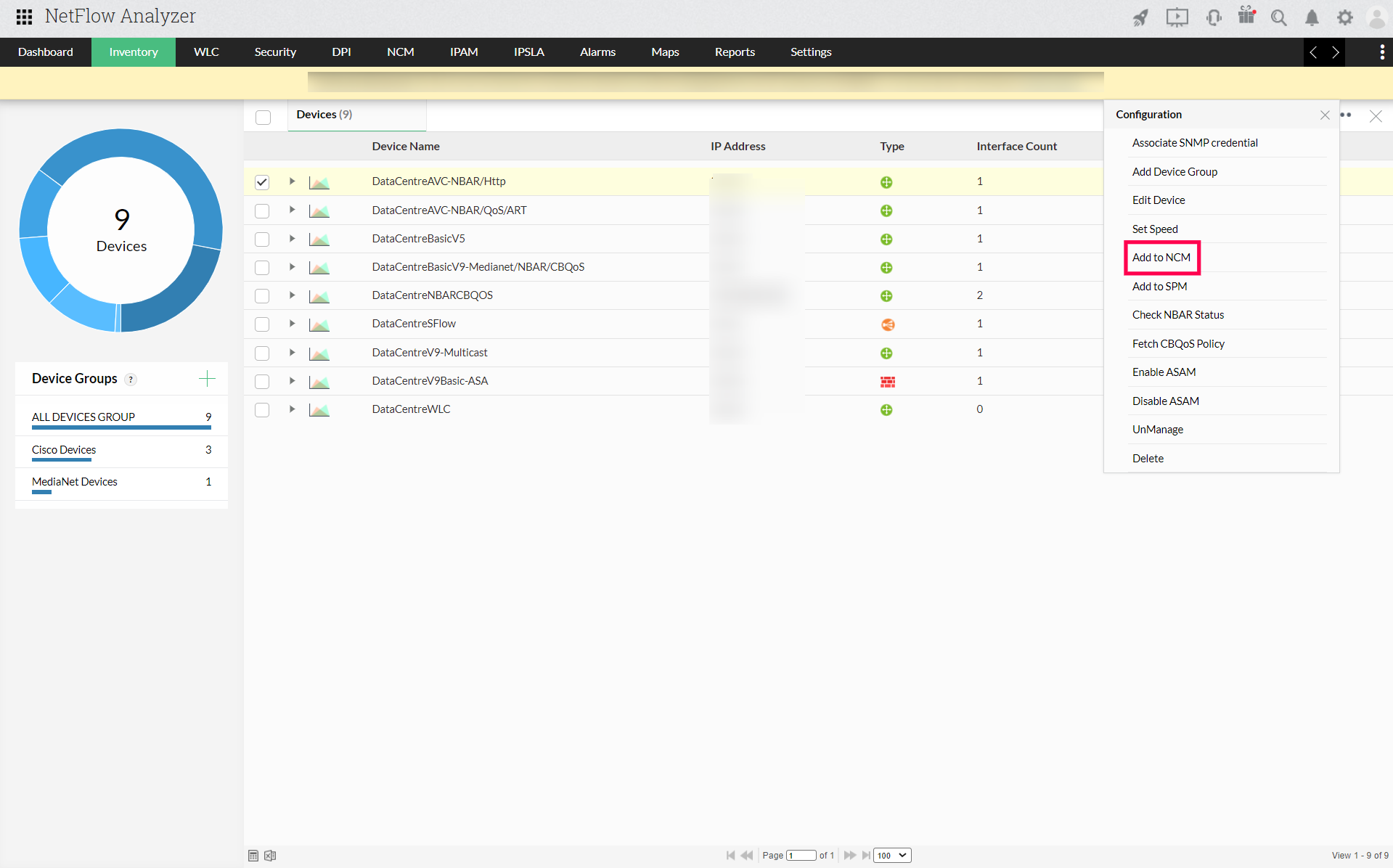

  1. Navigate to Inventory > Device
  2. Select the device and click on icon three-dots
  3. Click on "Add to NCM"
  4. Select vendor name
  5. Select Device Template Name
  6. Select the device series and model if required
  7. Ping the device and click on "Add".
  8. Faster troubleshooting with advanced Forensics

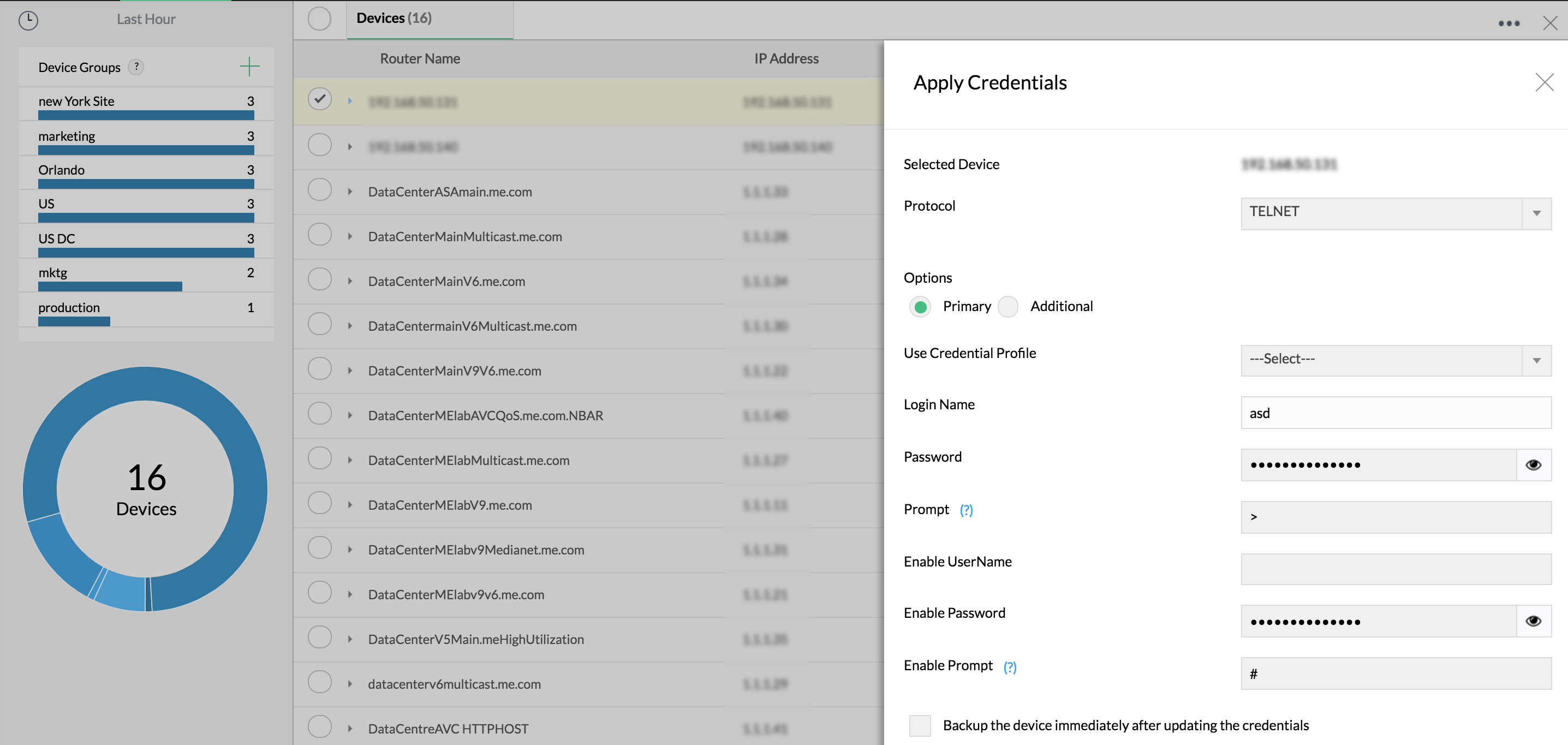

    Steps to provide credential to a device

  9. Choose the protocol
  10. Provide device credentials such as login name, password, prompt, enable Username, enable password and enable prompt
  11. Click on backup device to take back up of device credentials (not mandatory)
  12. Click on Save and test
