Firewall Rule Change history - Rule Comparison Reports


Firewall Analyzer's Rule Change History feature empower network security administrators by providing a transparent and comprehensive view of all alterations made to their firewall rules. Using this feature, network security admins gain valuable insights into security policy management.

To access this feature, go to Rule Management -> Comparison -> Rule Changes.

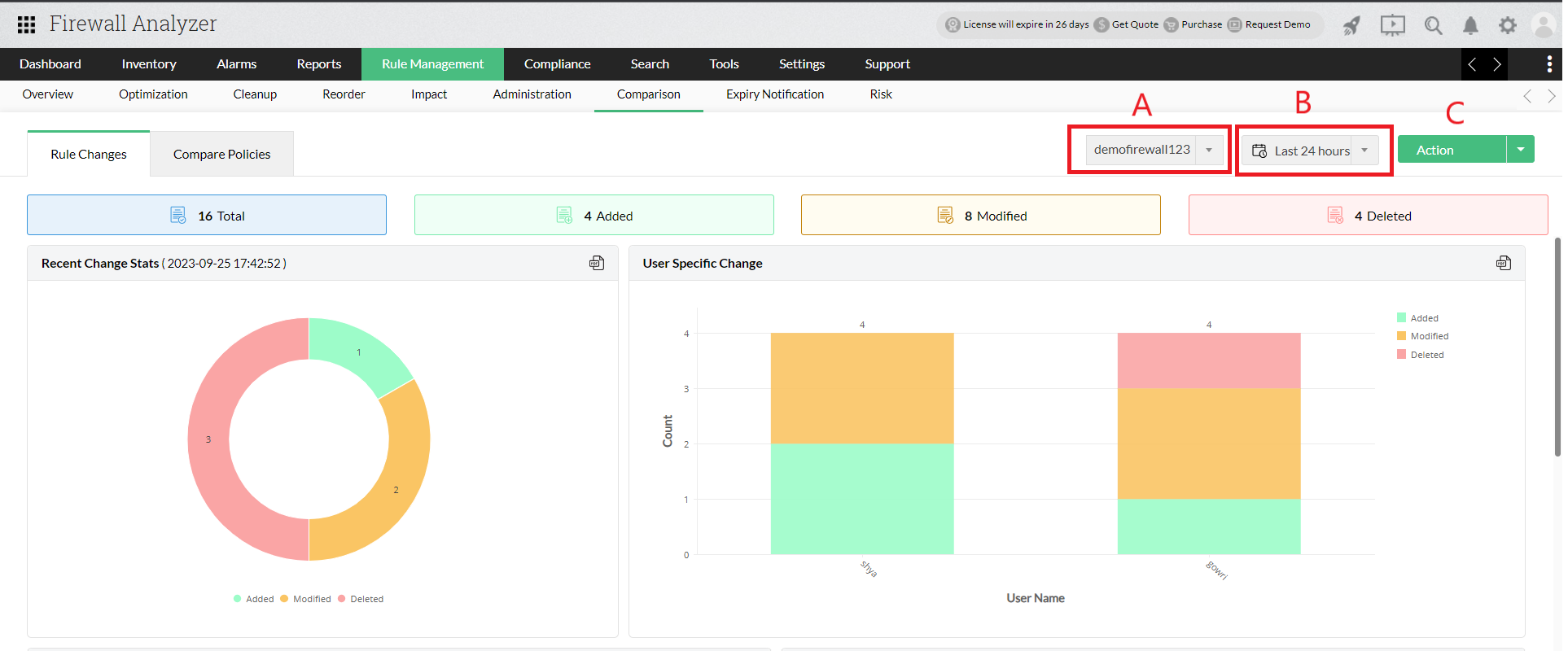

The Rule Changes window displays the overall status of the rule changes made on all your configured firewall devices.

Firewall-Rule-Changes

You can choose the following metrics for which you want this data to be generated.

  • Choose the firewall device
  • Select the time frame
  • Download this data in the report format of your choosing

The other prominent sections and their descriptions are as following.

Name Description
Total Denotes the total changes made to your firewall rules (Added+Modified+Deleted).
Added Denotes to all the rule additions made.
Modified Denotes to all the rule modifications made.
Deleted Denotes to all the rule deletions made.

In addition, you can also view the following information displayed in a graphical format:

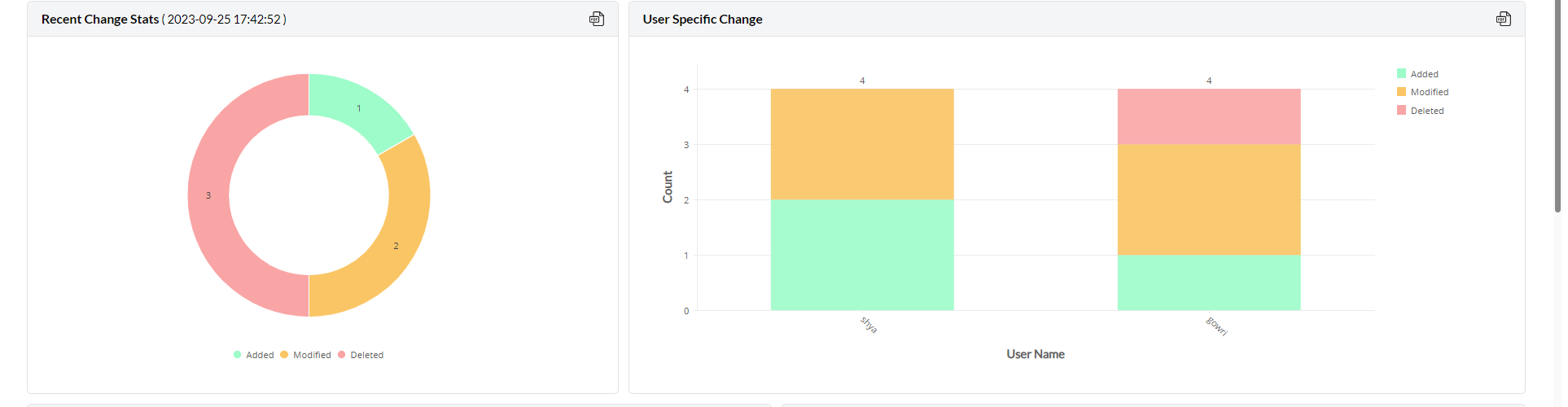

  • Recent Changes Stats: View the latest rule change made on your firewall.
  • User Specific Changes: View users and the number of changes made by them.

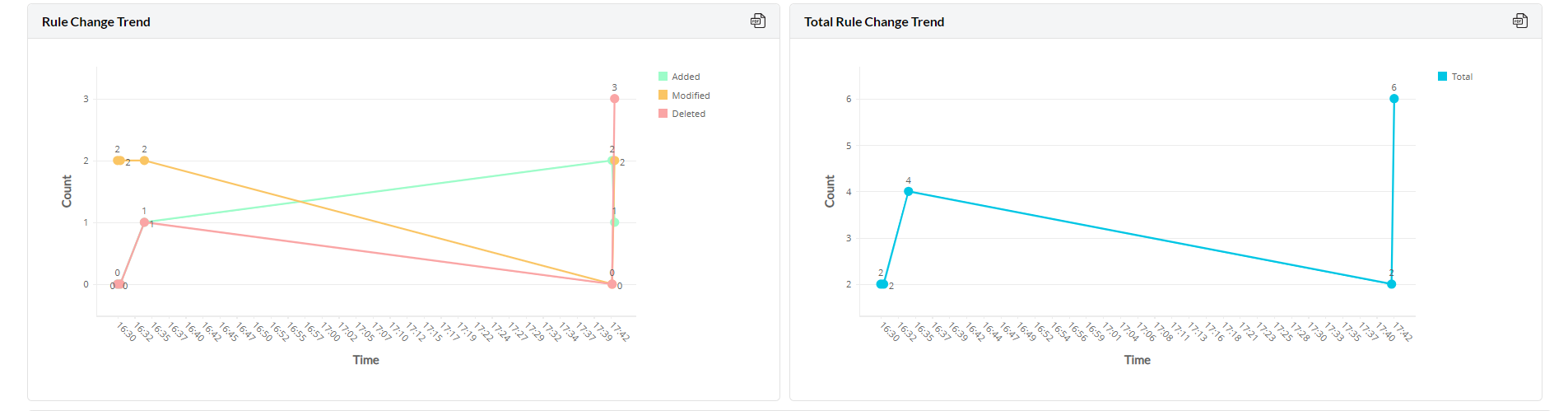

  • Rule Change Trend: Trend graph of added, modified and deleted rule changes.
  • Total Rule Change Trend: Trend graph of the total rule changes made.

Firewall-rule-change-Recent-and-User-specific-stats

Firewall-rule-and-total-change-trend

Firewall-rule-and-total-change-report

Rule Change Report:

Contains in-depth information on the rule changes made to your firewall device.

Title Description
Policy changes on Date and time of rule change
Changed by User who made the change
Changes from IP address of the user who made that change
Version Number Configuration change version
Added Count Number of new rule additions
Modified Count Number of new rule modifications
Deleted Count Number of new rule deletions

Click on any Policy Changes on entry to compare it with previous rule changes versions.

Firewall-history-policy-changes

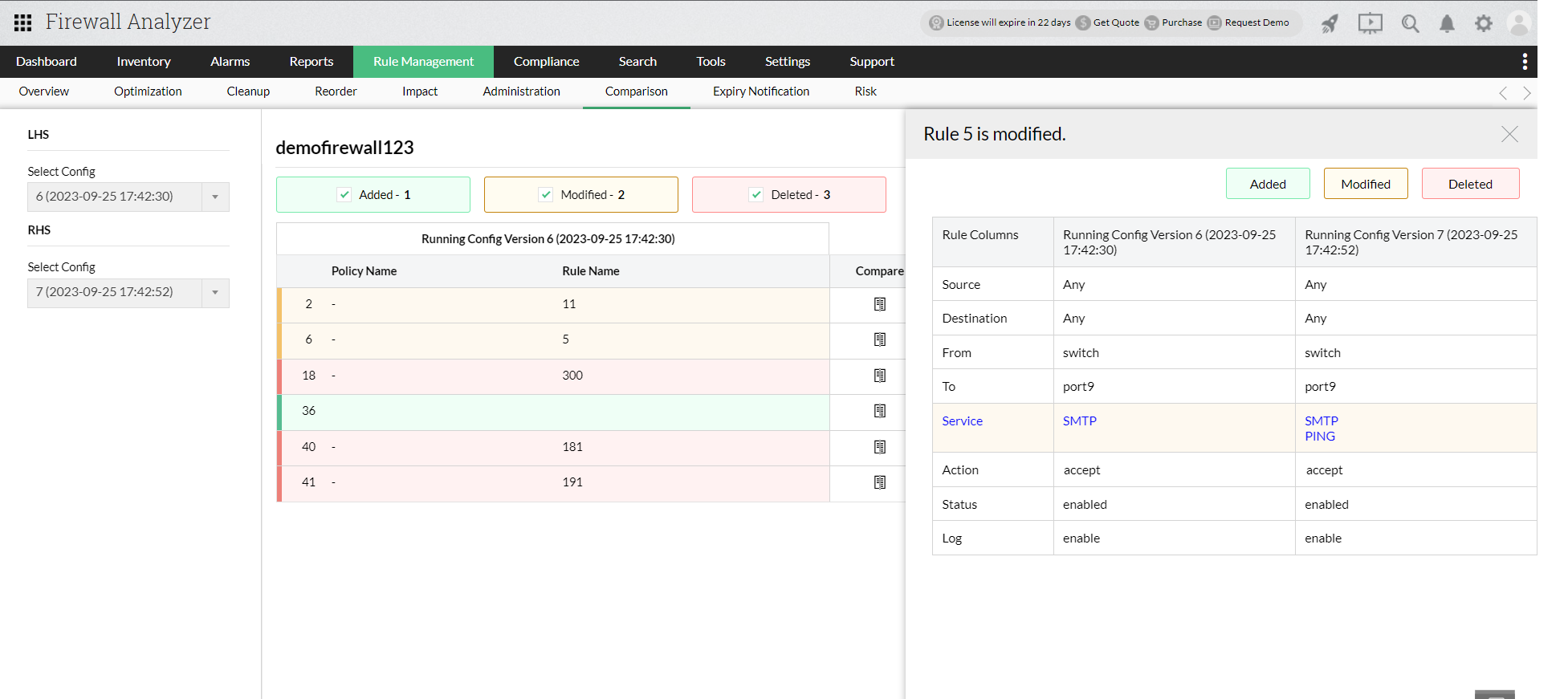

Select the Rule change configuration version to be compared from the LHS and RHS section.

The color codes (Green, yellow, and red) denote rule additions, modifications, and deletions respectively.

Firewall-rule-changes-comparison

Click on the compare icon to drill down and view each of the rule changes in detail.
